  • VVDI Key Tool Plus Program Hyundai Venue 2020 ID4A Key via OBD

     Xhorse VVDI Key Tool Plus Pad can program Hyundai Venue 2020 ID4A key successfully.

    As below is the operation step by step.

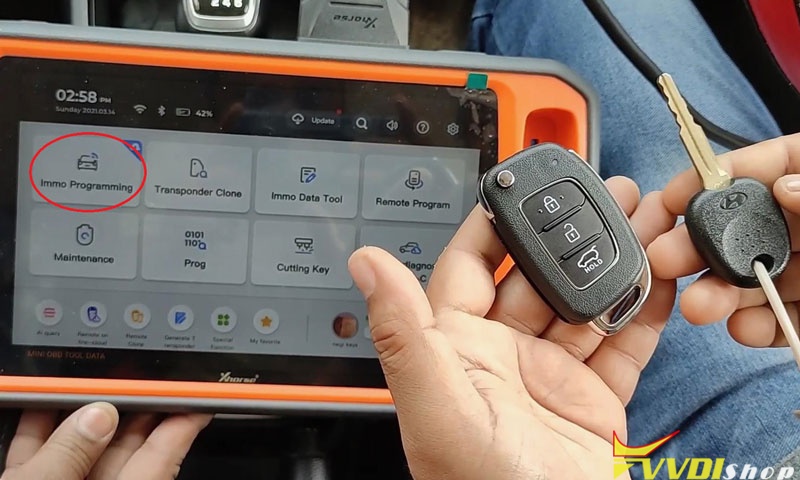

    Prepare a original key & a new smart key.

    Plug Key Tool Plus connector into OBD2 port, let’s start:

    xhorse-hyundai-2020-venue-key-1

    Program Key

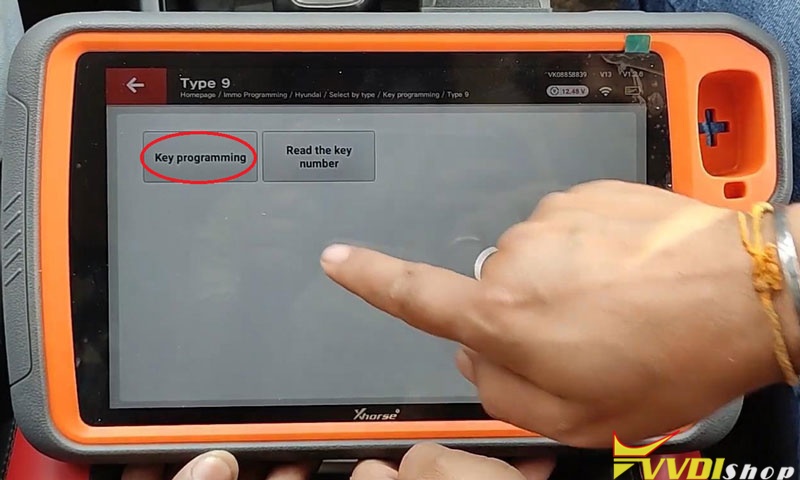

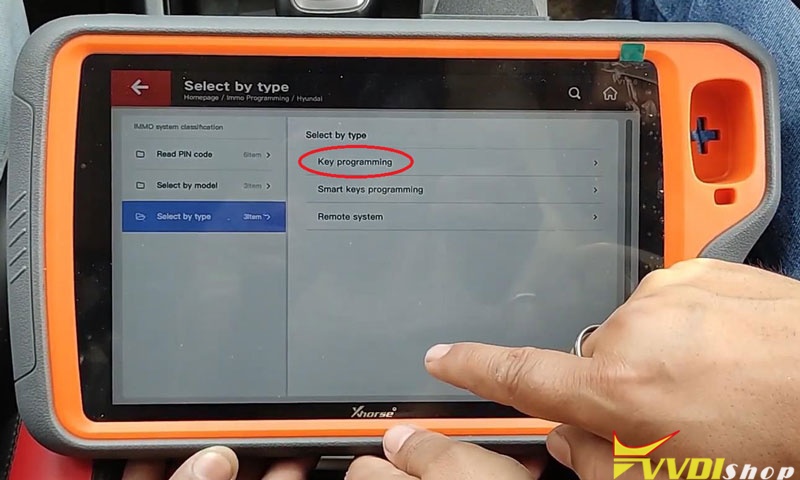

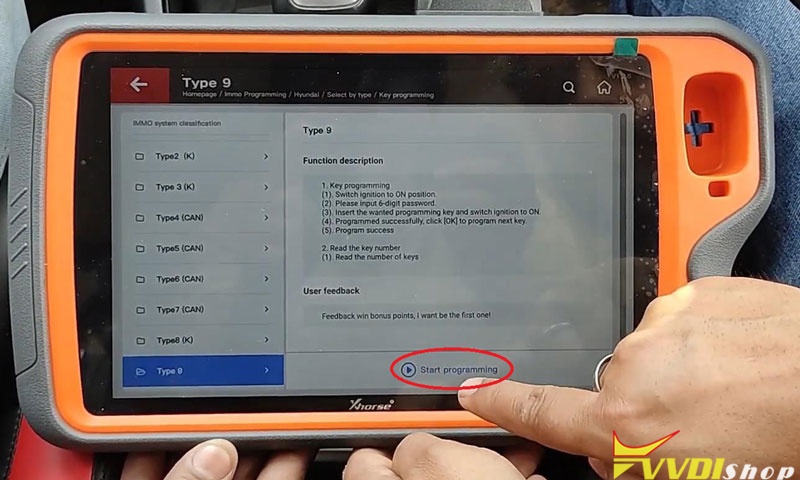

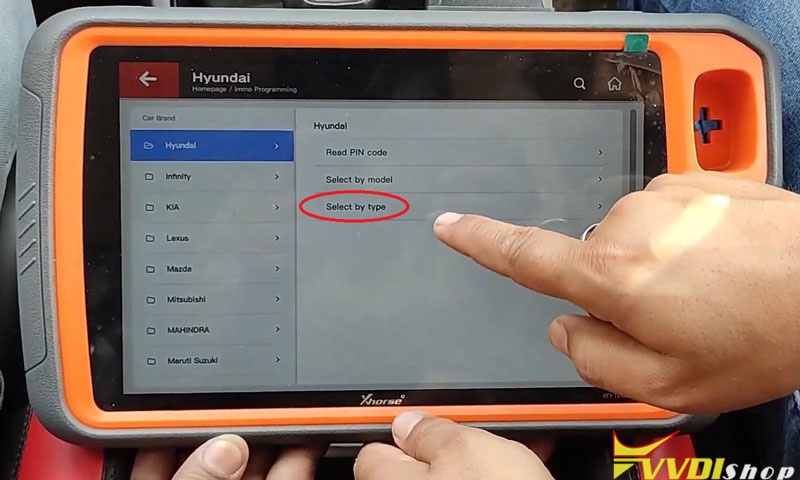

    Immo programming >> Asia >> Hyundai >> Select by type >> Key programming >> Type 9 >> Start programming >> Key programming

    xhorse-hyundai-2020-venue-key-2
    xhorse-hyundai-2020-venue-key-3
    xhorse-hyundai-2020-venue-key-4
    xhorse-hyundai-2020-venue-key-5

    Turn the ignition switch to ON, press “OK”.

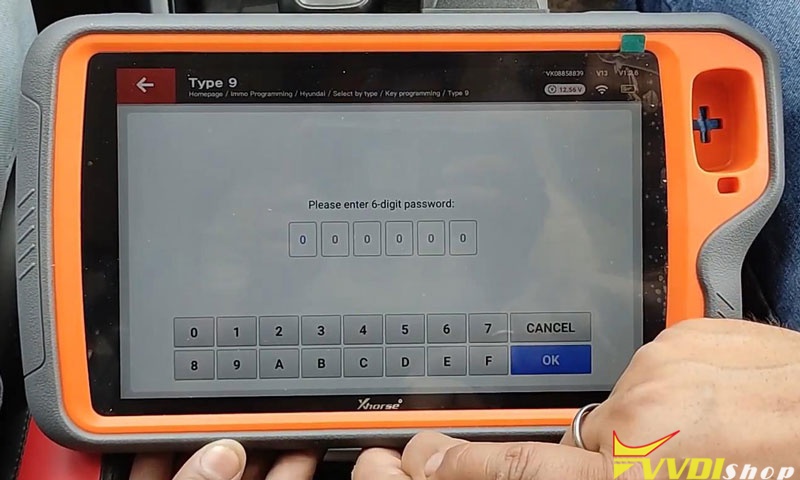

    Enter 6-digit password, press “OK”.

    Insert the original key and switch ignition on ON. Press “OK”.

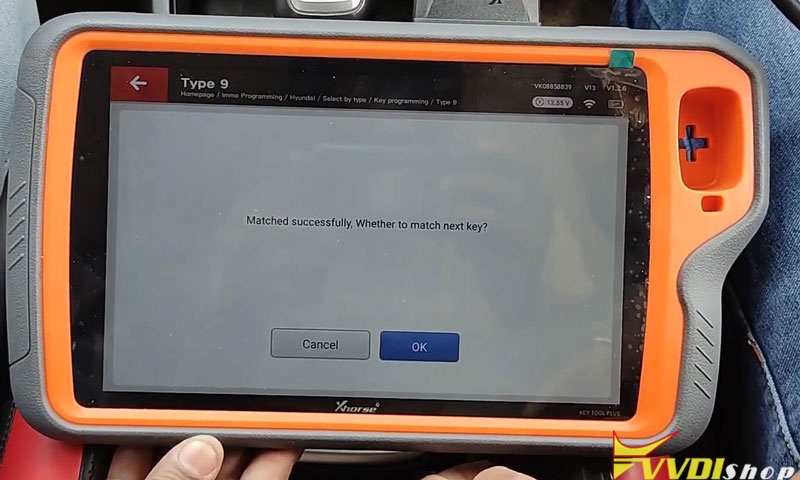

    Matched successfully.

    Press “OK” to match next one.

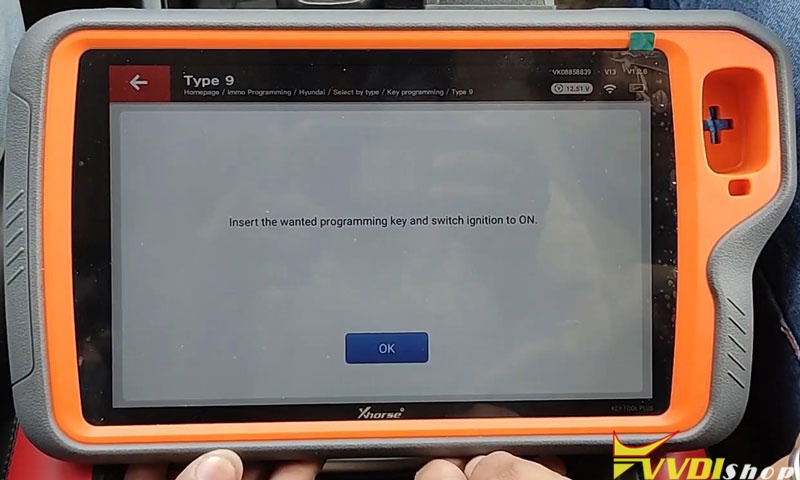

    Insert the new smart key and switch ignition on ON. Press “OK”.

    Matched successfully.

    Press “Cancel” to finish.

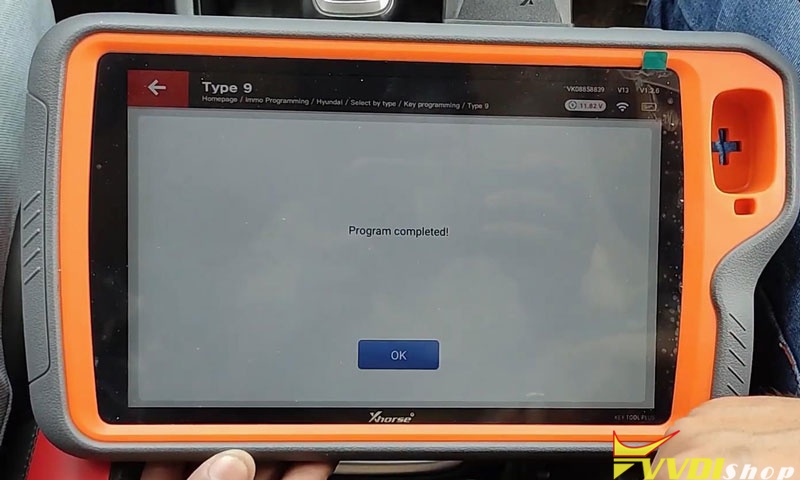

    Program completed! Press “OK”.

    xhorse-hyundai-2020-venue-key-6
    xhorse-hyundai-2020-venue-key-7
    xhorse-hyundai-2020-venue-key-8
    xhorse-hyundai-2020-venue-key-9

    Program Remote

    Go back to “Select by type” page, press

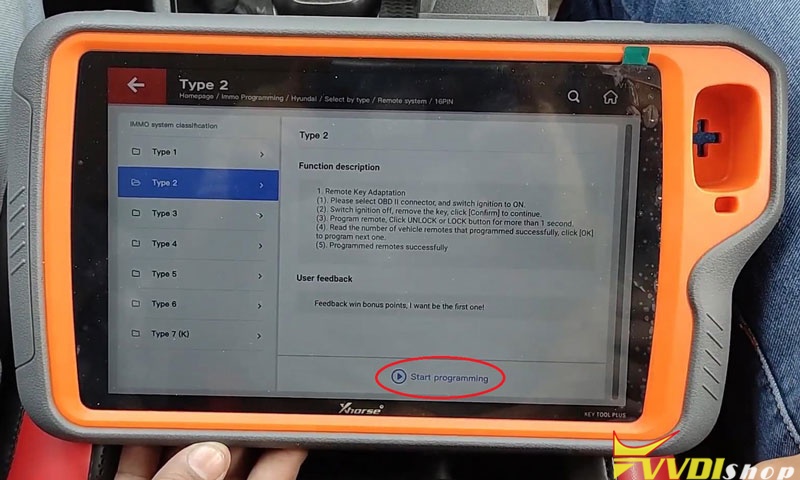

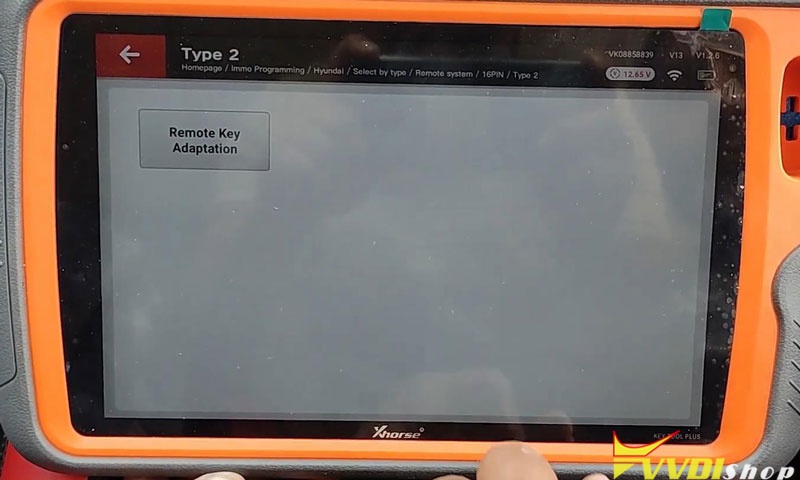

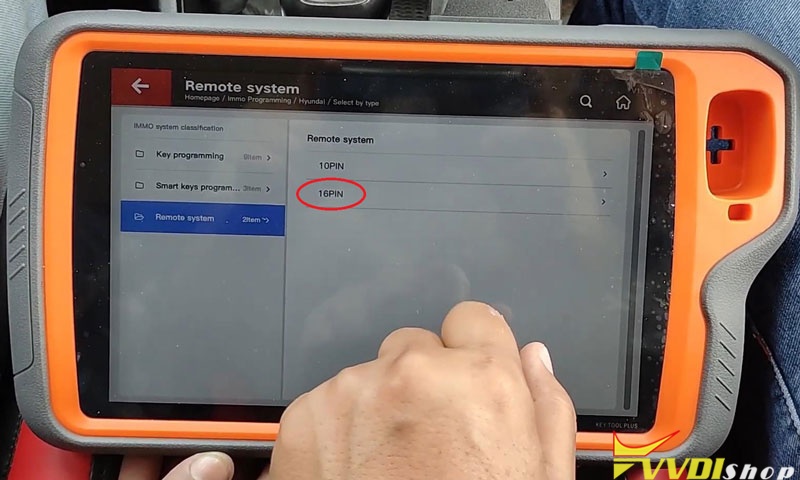

    Remote system >> 16PIN >> Type 2 >> Start programming >> Remote key adaptation

    xhorse-hyundai-2020-venue-key-10
    xhorse-hyundai-2020-venue-key-11
    xhorse-hyundai-2020-venue-key-12

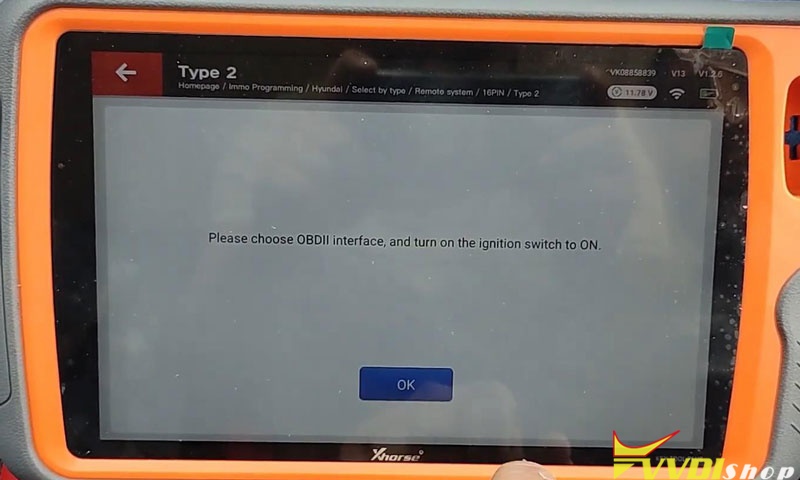

    Choose OBD2 interface, and turn on the ignition switch to ON. Press “OK”.

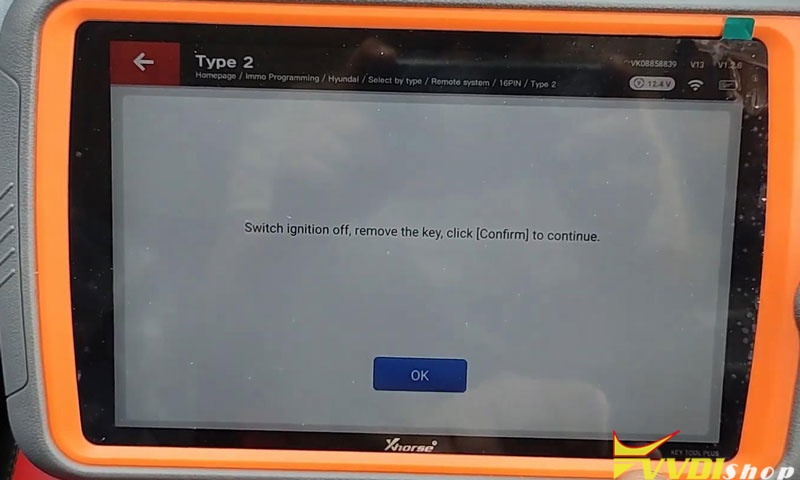

    Switch ignition off, remove the key, press “OK”.

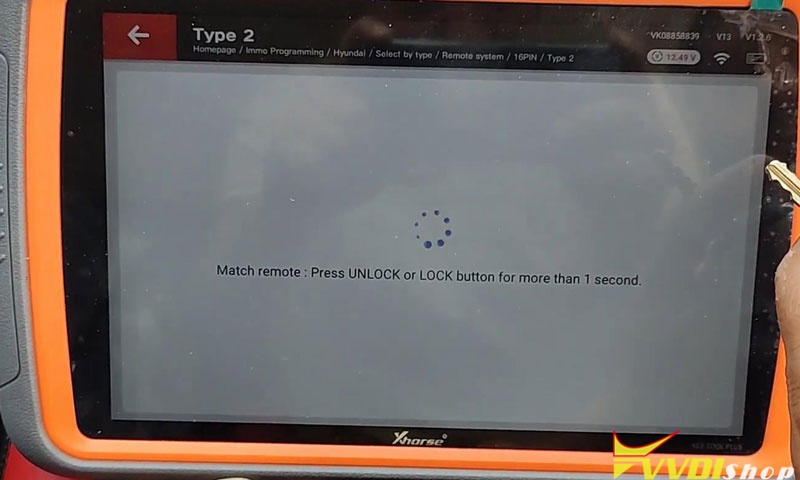

    Match remote: press UNLOCK or LOCK button for more than 1 second.

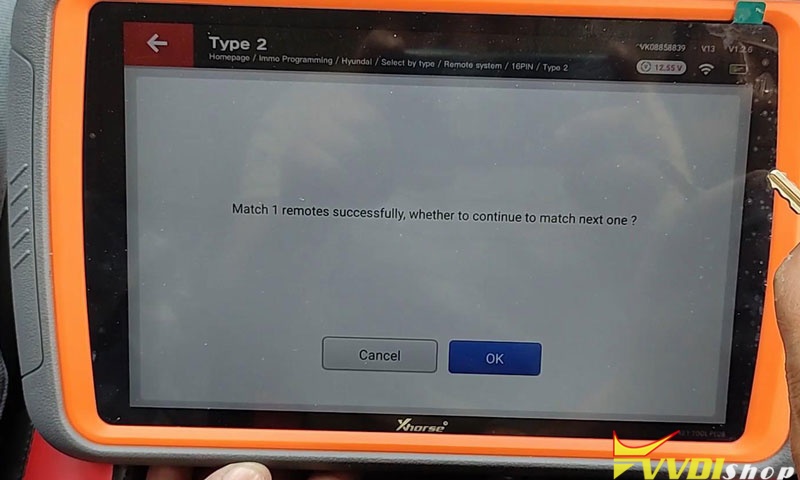

    Match 1 remotes successfully, press “Cancel” to finish.

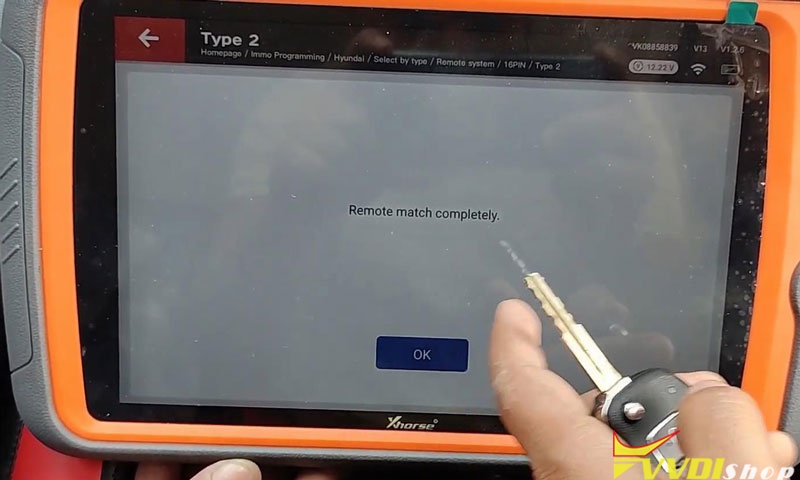

    Remote match completely. Press “OK”.

    xhorse-hyundai-2020-venue-key-13
    xhorse-hyundai-2020-venue-key-14
    xhorse-hyundai-2020-venue-key-15
    xhorse-hyundai-2020-venue-key-16
    xhorse-hyundai-2020-venue-key-17

    Here we go to test the key now, it can work well.

    Key programming has done!

    This is a demonstration of Hyundai Venue 2020 ID4A key programming via Xhorse Key Tool Plus.
