Today I’ll show how to use Xhorse VVDI Key Tool Plus Pad key programmer to unlock/renew a Nissan Micra key.

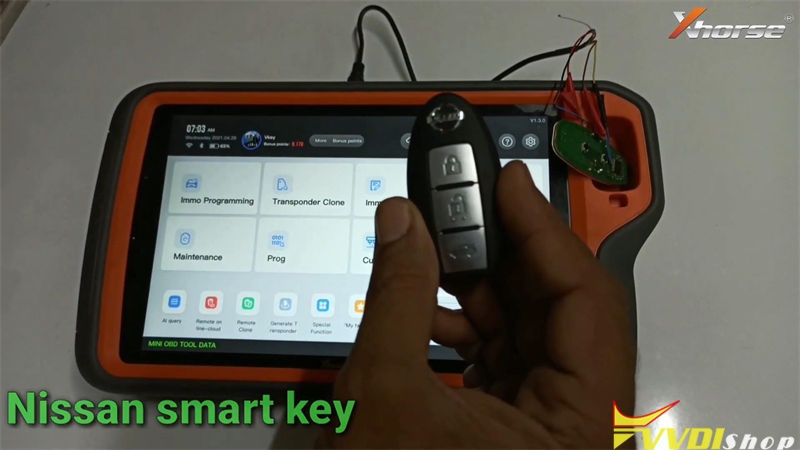

Separate outer shell of Nissan smart key.
Take out the chip into Key Tool Plus slot, press

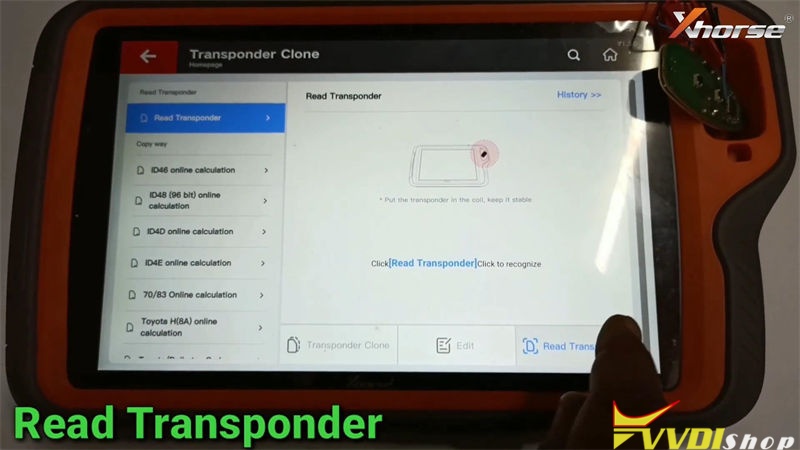

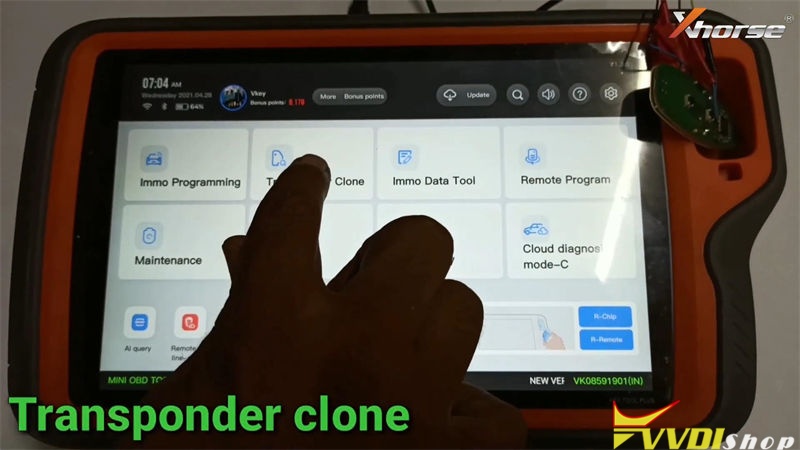

Transponder clone >> Read transponder
We can see the transponder info here, including locked or not.

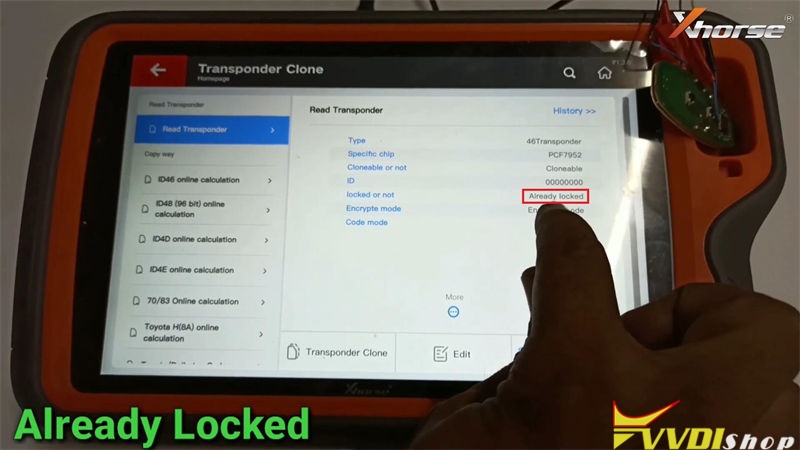

It is said “Already locked” state.
Go back to home page, press

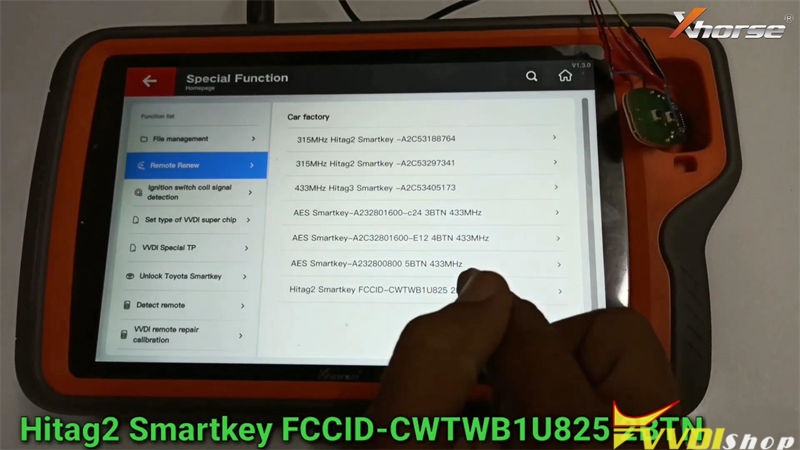

Special function >> Remote renew >> Nissan >> Hitag2 Smartkey FCCID-CWTWB1U825 2BTN

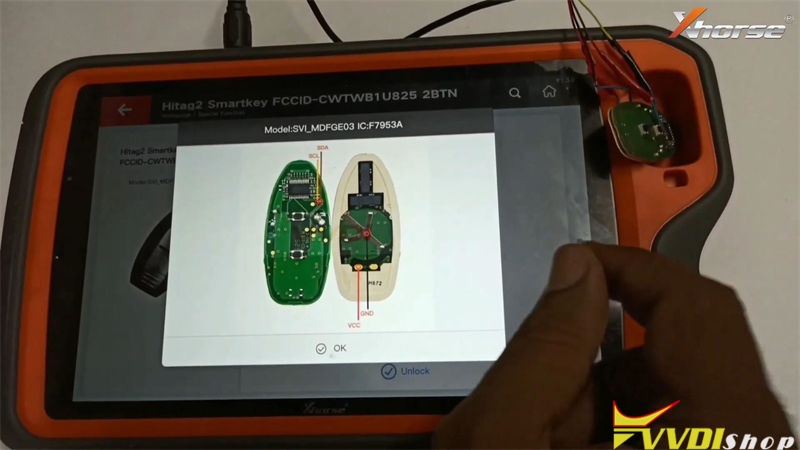

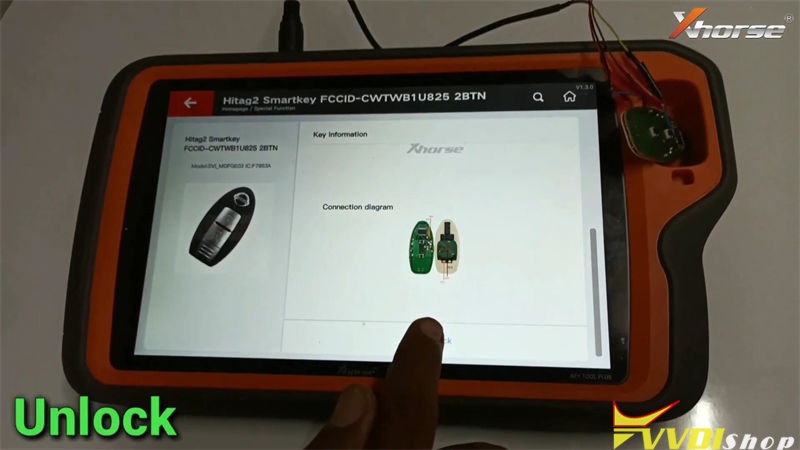

Connect the smart key chip according diagram, press “Unlock”.

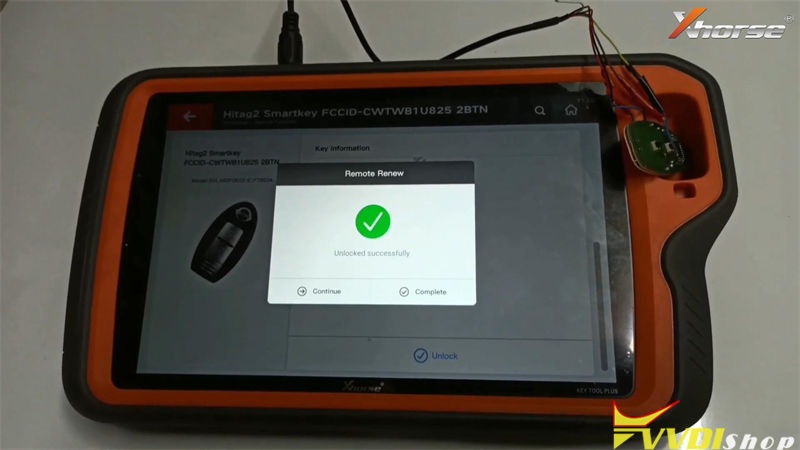

Unlocked successfully, press “Complete”.
Pull out the connection cable, then go back to read transponder again.
It is “Unlocked” now.
Done!
Xhorse Key Tool Plus can unlock the Nissan Micra smart key easily.
