初学者学习SSM框架,若有问题,请留言.

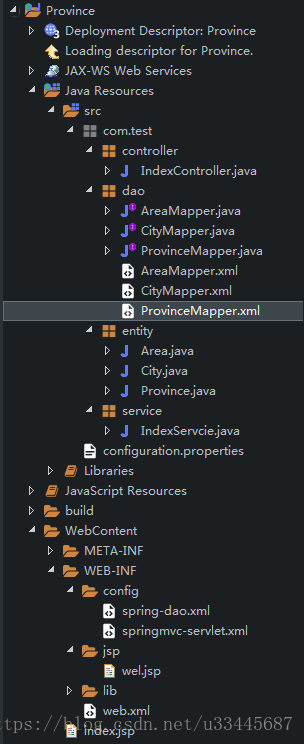

首先看一下项目结构.
配置文件Web.xml, spring-dao.xml, springmvc-servlet.xml, configuration.properties 等就是常规没有特殊的,具体内容可以看我上一篇博客.

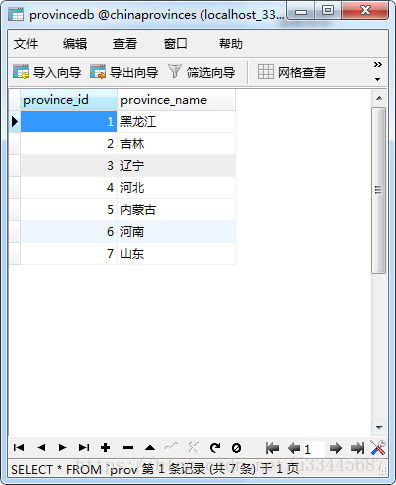

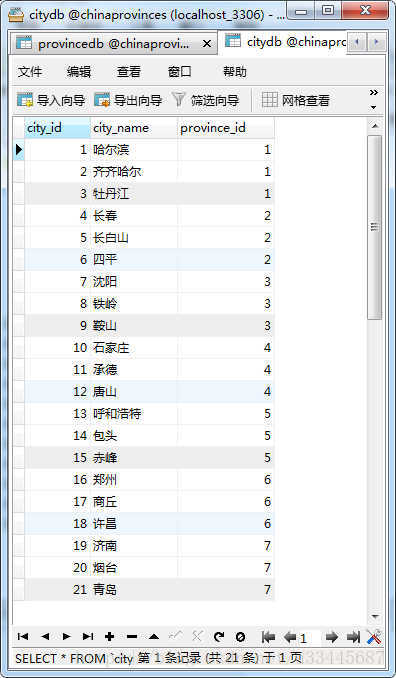

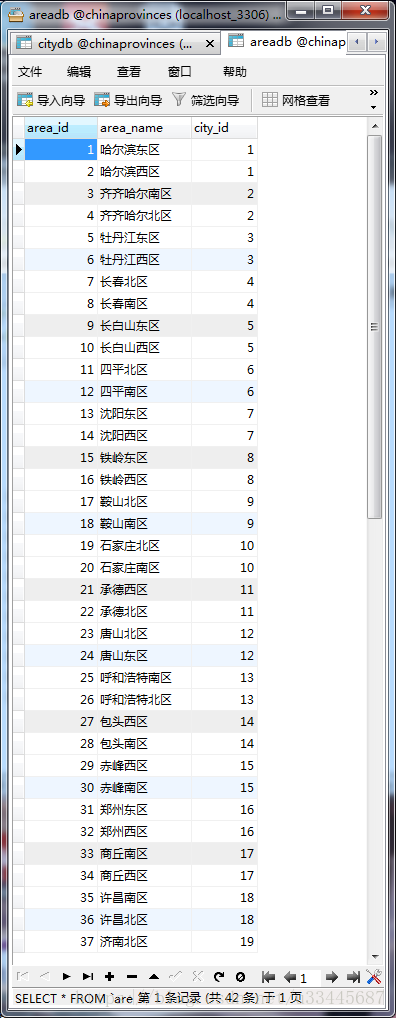

首先看一下Mysql的表
省市区三张表,市通过p_id与省相连,区通过c_id与市相连.
通过Mybatis代码自动生成工具自动生成dao层和entity层.也就是

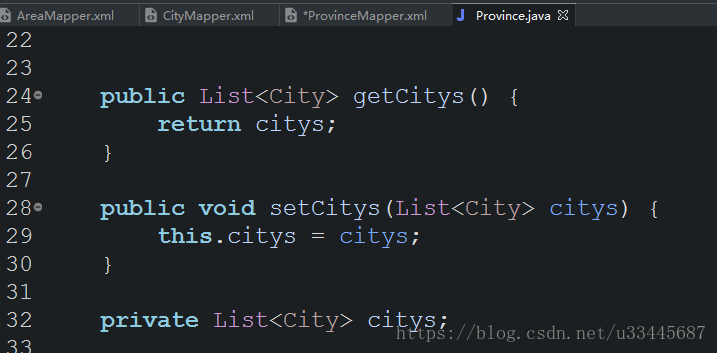

我们要做的是 在Province(后简称P)类中建立一个List<city>字段,用来储存对应的City对象,然后再City(后简称C)类中建立一个List<area>字段用来储存对应的Area(后简称A)对象.
P类,C类,A类属于接口,所以只需要定义方法即可. 具体如何实现,我们要在对应的Mapper.xml文件中写出来.
这样,只要通过数据库查出所有的P,也就同时能够查出City和Area.

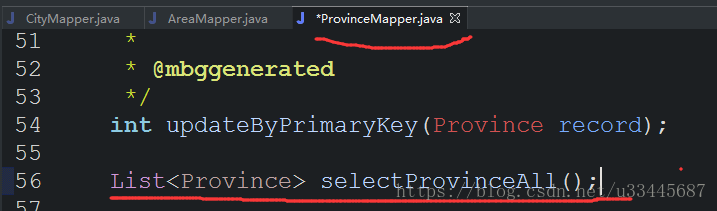

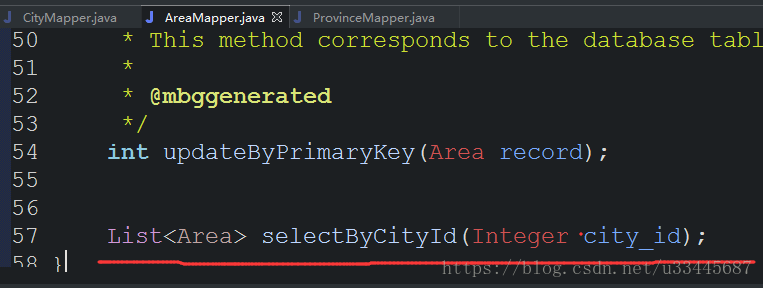

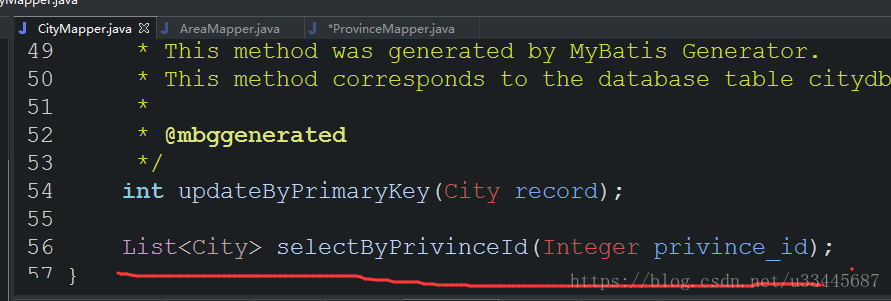

在PMapper.java中建立 搜索所有P 的方法, 在CMapper.java中建立 根据pid搜索 的方法, 在AMapper.java中建立 根据cid搜索 的方法.如下图:
在P.xml中 添加这样的方法
<!-- 返回里面有集合的话,就需要添加<collection> -->
<resultMap id="BaseResultMapProvinceAll" type="com.test.entity.Province" >
<id column="province_id" property="provinceId" jdbcType="INTEGER" />
<result column="province_name" property="provinceName" jdbcType="VARCHAR" />
<!-- property为对应的字段名,ofType为对应集合存储对象实体类的全限定名 -->
<!-- column为对应的下一级搜索的参数列名 -->
<!-- select为对应的下一级搜索的<select>的id,这样做就能相当于嵌套搜索 -->
<!-- collection中的内容为集合中实体类所对应的表中列名与实体类对应的关系 -->
<collection property="citys" ofType="com.test.entity.City" column="province_id" select="com.test.dao.CityMapper.selectByPrivinceId" >
<id column="city_id" property="cityId" />
<result column="city_name" property="cityName" />
<result column="province_id" property="provinceId" />
</collection>
</resultMap>
<!-- 因为P类中有个字段类型是集合,且对应的xml也有方法返回时集合,所以需要重写resultMap -->
<select id="selectProvinceAll" resultMap="BaseResultMapProvinceAll" >
select
<!-- <include/>属于是该表的所有字段,自动生成的,如果需要,我们可以修改 -->
<include refid="Base_Column_List" />
from provincedb
</select>
在C.xml文件中添加方法:
<resultMap id="BaseResultMapCity" type="com.test.entity.City" >
<id column="city_id" property="cityId" jdbcType="INTEGER" />
<result column="city_name" property="cityName" jdbcType="VARCHAR" />
<result column="province_id" property="provinceId" jdbcType="INTEGER" />
<collection property="areas" ofType="com.test.entity.Area" column="city_id" select="com.test.dao.AreaMapper.selectByCityId" >
<id column="area_id" property="areaId" />
<result column="area_name" property="areaName" />
<result column="city_id" property="cityId" />
</collection>
</resultMap>
<select id="selectByPrivinceId" resultMap="BaseResultMapCity" parameterType="java.lang.Integer" >
select
<include refid="Base_Column_List" />
from citydb
where province_id = #{privince_id,jdbcType=INTEGER}
</select>
在A.xml文件中添加方法:
<select id="selectByCityId" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
select
<include refid="Base_Column_List" />
from areadb
where city_id = #{city_id,jdbcType=INTEGER}
</select>
这样,只要我们一搜索省份所有的信息,就能得到所对应的市区数据.
下面我们建立测试方法在controller层和service层的内容,以及前端
Controller层:
package com.test.controller;
import java.util.List;
import javax.servlet.http.HttpServletRequest;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import com.test.entity.Province;
import com.test.service.IndexServcie;
@Controller
@RequestMapping("/con")
public class IndexController {
@Autowired
private IndexServcie service;
@RequestMapping("/get")
public String getPCA(HttpServletRequest req) {
List<Province> list = service.getPCAs();
req.getSession().setAttribute("list", list);
return "wel";
}
}
service层:
package com.test.service;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.test.dao.ProvinceMapper;
import com.test.entity.Province;
@Service
public class IndexServcie {
@Autowired
private ProvinceMapper dao;
public List<Province> getPCAs() {
return dao.selectProvinceAll();
}
}
哦,对了.我这里是以一个空白页的jsp为起点,跳入到后台,后台获取数据后,在跳入另一个jsp页面中.
起始页index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<script type="text/javascript" src="jquery-3.3.1.min.js"></script>
<body>
</body>
<script type="text/javascript">
$(function(){
window.location.replace("con/get");
})
</script>
</html>
获取数据后的跳转的页面 wel.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c"
uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<div>
<dl>
<c:forEach items="${list }" var="temp">
<dt>${temp.provinceName }</dt>
<c:forEach items="${temp.citys }" var="temp2">
<dd>${temp2.cityName }
<c:forEach items="${temp2.areas }" var="temp3">
<p> ${temp3.areaName }</p>
</c:forEach>
</dd>
</c:forEach>
</c:forEach>
</dl>
</div>
</body>
</html>

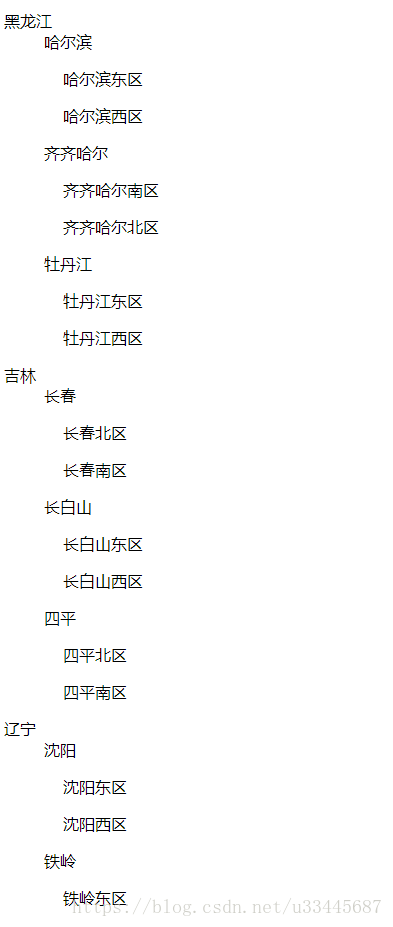

效果如下:
测试结果还可以,至少是数据取回来了.接下来我们就根据具体的要求来处理数据.

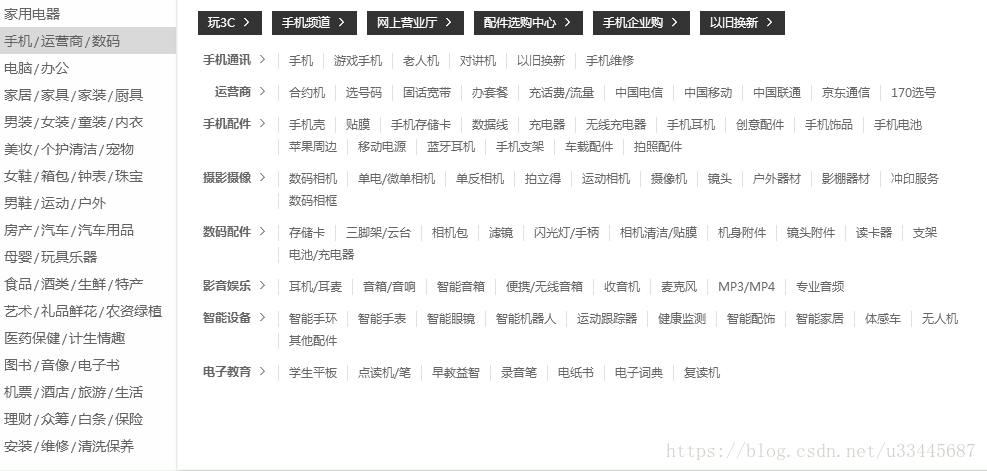

这个方法不仅仅可以做 省市区三级联动 也可以做电商平台的商品类别之类的.
类似于这样的
