Keras 之 自编码器（Auto Encoder）

这里以 fashion_mnist 数据集为例，先写出自编码器的基本实现代码如下：

import  os
import  tensorflow as tf
import  numpy as np
from    tensorflow import keras
from    tensorflow.keras import Sequential, layers
from    PIL import Image
from    matplotlib import pyplot as plt

tf.random.set_seed(42)
np.random.seed(42)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')

h_dim = 36
batchsz = 512
epochs = 1000
lr = tf.linspace(0.001,0.001,epochs)
buffersize = batchsz*5

(x_train, y_train), (x_val, y_val) = keras.datasets.fashion_mnist.load_data()
x_train, x_val = x_train.astype(np.float32) / 255., x_val.astype(np.float32) / 255.

train_db = tf.data.Dataset.from_tensor_slices(x_train)
train_db = train_db.shuffle(batchsz * 5).batch(batchsz)
val_db = tf.data.Dataset.from_tensor_slices(x_val)
val_db = val_db.batch(batchsz)

class AutoEncoder(keras.Model):

    def __init__(self,input_shape,hidden_list,activation=tf.nn.relu):
        super(AutoEncoder, self).__init__()

        # Encoders
        center = hidden_list.pop()
        self.encoder = Sequential([layers.Dense(num, activation=tf.nn.relu) for num in hidden_list]
                                + [layers.Dense(center)])

        # Decoders
        hidden_list.reverse()
        self.decoder = Sequential([layers.Dense(num, activation=tf.nn.relu) for num in hidden_list]
                                + [layers.Dense(input_shape)])


    def call(self, inputs, training=None):
        # [b, 784] => [b, 10]
        h = self.encoder(inputs)
        # [b, 10] => [b, 784]
        x_hat = self.decoder(h)
        return x_hat

def train(train_db,val_db,input_shape=784):
    model = AutoEncoder(input_shape,[392,196,98,36])
    model.build(input_shape=(None, input_shape))
    model.summary()

    train_list = []
    val_list = []
    for epoch in range(epochs):
        optimizer = tf.optimizers.Adam(lr=lr[epoch])
        train_losses = 0
        val_losses = 0
        for step, x in enumerate(train_db):
            x = tf.reshape(x, [-1, input_shape])
            with tf.GradientTape() as tape:
                x_rec_logits = tf.sigmoid(model(x))
                rec_loss = tf.losses.mean_squared_error(x, x_rec_logits)
                rec_loss = tf.reduce_mean(rec_loss)
            train_losses += rec_loss
            grads = tape.gradient(rec_loss, model.trainable_variables)
            optimizer.apply_gradients(zip(grads, model.trainable_variables))

        for x in val_db:
            x = tf.reshape(x, [-1, input_shape])
            x_rec_logits = tf.sigmoid(model(x))
            rec_loss = tf.losses.mean_squared_error(x, x_rec_logits)
            rec_loss = tf.reduce_mean(rec_loss)
            val_losses += rec_loss

        print(epoch,"train_losses :",float(train_losses),"val_losses :",float(val_losses))

        train_list.append(train_losses)
        val_list.append(val_losses)

    model.save('/tmp/model')

    x = [i for i in range(0, epochs)]
    # 绘制曲线
    plt.figure()
    plt.plot(x, train_list, color='blue', label='vaildation')
    plt.plot(x, val_list, color='red', label='training')
    plt.xlabel('Epoch')
    plt.ylabel('Accuracy')
    plt.legend()
    plt.show()
    plt.close()

def save_images(imgs, name, shape=(32,32)):
    new_im = Image.new('L', (28*shape[0], 28*shape[1]))

    index = 0
    for i in range(0, 28*shape[0], 28):
        for j in range(0, 28*shape[1], 28):
            im = imgs[index]
            im = Image.fromarray(im, mode='L')
            new_im.paste(im, (i, j))
            index += 1

    new_im.save(name)


def showImage(dataset,input_shape=784):
    model = tf.keras.models.load_model('/tmp/model',compile=False)

    for step,x in enumerate(val_db):
        x_hat = tf.sigmoid(model(tf.reshape(x, [-1, input_shape])))
        x_hat = tf.reshape(x_hat, [-1, 28, 28])
        x_concat = tf.concat([x, x_hat], axis=0)
        if(x_concat.shape[0] < batchsz * 2):
            break
        x_concat = x_concat.numpy() * 255.
        x_concat = x_concat.astype(np.uint8)
        shape=(int(tf.sqrt(batchsz*2.)),int(tf.sqrt(batchsz*2.)))
        save_images(x_concat, 'ae_images/rec_epoch_%d.png'%step,shape)

train(train_db,val_db)
showImage(val_db)

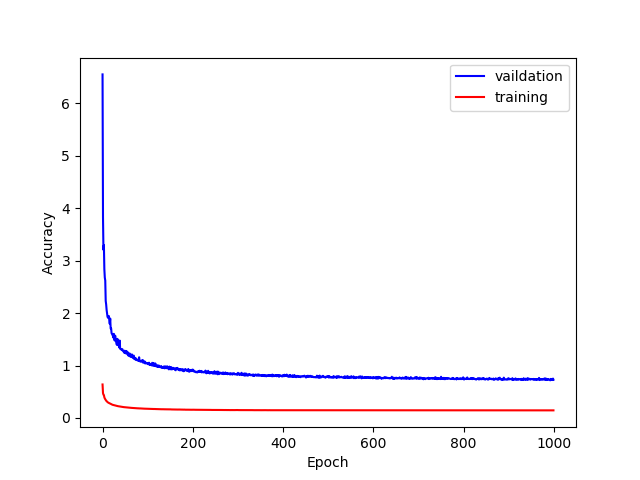

训练曲线如下：

下面写出比较适合博主自己使用的自编码器实现方法，包括：csv文件读取，数据标准化，数据分割，转换为 tf.Dataset 类型，自编码器模型（keras 实现），模型训练，模型导入和保存，变量导入和保存：

import  os
import pickle
import numpy as np
import pandas as pd
from math import ceil
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import Sequential, layers
from sklearn.preprocessing import MinMaxScaler
from sklearn.preprocessing import StandardScaler

from PIL import Image
from matplotlib import pyplot as plt

tf.random.set_seed(42)
np.random.seed(42)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')

def get_dataset_to_pandas(file_name, dropList=[]):
	dataset = pd.read_csv(file_name)
	for drop_str in dropList:
		dataset = dataset.drop(drop_str,axis=1)
	return dataset

def pre_scaler(dataset, type_str = "std"):
	if type_str == "minmax":
		scaler = MinMaxScaler()
	elif type_str == "std":
		scaler = StandardScaler()
	else :
		return None
	scaler.fit(dataset)
	return scaler,scaler.transform(dataset)

def to_tf_dataset(dataset, batch_size = None, shuffle_buffer_size = None, repeat_size = None):
	dataset = tf.data.Dataset.from_tensor_slices(dataset)
	if batch_size != None:
		dataset = dataset.batch(batch_size)
	if shuffle_buffer_size != None:
		dataset = dataset.shuffle(shuffle_buffer_size)
	if repeat_size != None:
		dataset = dataset.repeat(repeat_size)
	return dataset

def train_test_split(dataset, test_ratio = 0.3, seed = 42):
	if seed:
		np.random.seed(seed)
	shuffle_index = np.random.permutation(len(dataset))
	test_size = ceil(len(dataset) * test_ratio)
	test_index = shuffle_index[:test_size]
	train_index = shuffle_index[test_size:]
	dataset_train = dataset[train_index]
	dataset_test = dataset[test_index]
	return dataset_train, dataset_test

class AutoEncoder(keras.Model):

	def __init__(self,input_shape,hidden_list,activation=tf.nn.relu):
		super(AutoEncoder, self).__init__()

		# Encoders
		center = hidden_list.pop()
		self.encoder = Sequential([layers.Dense(num, activation=tf.nn.relu) for num in hidden_list]
								+ [layers.Dense(center)])

		# Decoders
		hidden_list.reverse()
		self.decoder = Sequential([layers.Dense(num, activation=tf.nn.relu) for num in hidden_list]
								+ [layers.Dense(input_shape)])


	def call(self, inputs, training=None):
		# [b, 784] => [b, 10]
		h = self.encoder(inputs)
		# [b, 10] => [b, 784]
		x_hat = self.decoder(h)
		return x_hat

def get_auto_encoder(dataset,input_shape,hidden_list,epochs,lr=0.001,activation=tf.nn.relu):
	(train_db,val_db) = dataset

	model = AutoEncoder(input_shape,hidden_list,activation)
	model.build(input_shape=(None, input_shape))
	model.summary()

	train_list = []
	val_list = []
	optimizer = tf.optimizers.Adam(lr=lr)
	for epoch in range(epochs):

		train_losses = 0
		val_losses = 0
		for step, x in enumerate(train_db):
			x = tf.reshape(x, [-1, input_shape])
			with tf.GradientTape() as tape:
				x_rec_logits = tf.sigmoid(model(x))
				rec_loss = tf.losses.mean_squared_error(x, x_rec_logits)
				rec_loss = tf.reduce_mean(rec_loss)
			train_losses += rec_loss
			grads = tape.gradient(rec_loss, model.trainable_variables)
			optimizer.apply_gradients(zip(grads, model.trainable_variables))

		for x in val_db:
			x = tf.reshape(x, [-1, input_shape])
			x_rec_logits = tf.sigmoid(model(x))
			rec_loss = tf.losses.mean_squared_error(x, x_rec_logits)
			rec_loss = tf.reduce_mean(rec_loss)
			val_losses += rec_loss

		print(epoch,"train_losses :",float(train_losses),"val_losses :",float(val_losses))

		train_list.append(train_losses)
		val_list.append(val_losses)

	x = [i for i in range(0, epochs)]
	# 绘制曲线
	plt.figure()
	plt.plot(x, train_list, color='blue', label='vaildation')
	plt.plot(x, val_list, color='red', label='training')
	plt.xlabel('Epoch')
	plt.ylabel('Accuracy')
	plt.legend()
	plt.show()
	plt.close()
	return model

def variable_save(variable, file_name):
	data_output = open(file_name, 'wb')
	pickle.dump(variable,data_output)
	data_output.close()

def variable_load(file_name):
	data_input = open(file_name, 'rb')
	variable = pickle.load(data_input)
	data_input.close()
	return variable

def model_save(model, file_name):
	model.save(file_name)

def model_load(file_name, is_compile=False):
	return tf.keras.models.load_model(file_name, compile=is_compile)

if __name__ == '__main__':
	dataset = get_dataset_to_pandas("walk1.csv", ["Loss","TimeStamp","LT_Foot_TimeStamp","RT_Foot_TimeStamp",'Chest_TimeStamp'])
	scaler, dataset = pre_scaler(dataset,"minmax")
	dataset_train, dataset_test = train_test_split(dataset)
	(dataset_train, dataset_test) = (to_tf_dataset(data,batch_size=20,shuffle_buffer_size=100) for data in [dataset_train, dataset_test])
	model = get_auto_encoder((dataset_train, dataset_test),input_shape=18,hidden_list=[9,4],epochs=100,lr=0.01)
	variable_save(scaler,'./auto_model/scaler')
	model_save(model,'./auto_model')

	# save model and scaler
	# scaler = variable_load('./auto_model/scaler')
	# model = model_load('./auto_model')
	# print(model,'
',scaler)

训练完模型之后，来使用模型计算 loss 进而判断是否属于正样本数据集。one-class svm的检测函数效果类似。
