C#高性能Socket服务器SocketAsyncEventArgs的实现(IOCP)

原创性申明

本文作者:小竹zz 博客地址:http://blog.csdn.net/zhujunxxxxx/article/details/43573879转载请注明出处

引言

我一直在探寻一个高性能的Socket客户端代码。以前，我使用Socket类写了一些基于传统异步编程模型的代码（BeginSend、BeginReceive，等等）也看过很多博客的知识，在linux中有poll和epoll来实现，在windows下面
微软MSDN中也提供了SocketAsyncEventArgs这个类来实现IOCP 地址:https://msdn.microsoft.com/zh-cn/library/system.net.sockets.socketasynceventargs.aspx
NET Framework中的APM也称为Begin/End模式。这是因为会调用Begin方法来启动异步操作，然后返回一个IAsyncResult 对象。可以选择将一个代理作为参数提供给Begin方法，异步操作完成时会调用该方法。或者，一个线程可以等待 IAsyncResult.AsyncWaitHandle。当回调被调用或发出等待信号时，就会调用End方法来获取异步操作的结果。这种模式很灵活，使用相对简单，在 .NET Framework 中非常常见。
但是，您必须注意，如果进行大量异步套接字操作，是要付出代价的。针对每次操作，都必须创建一个IAsyncResult对象，而且该对象不能被重复使用。由于大量使用对象分配和垃圾收集，这会影响性能。为了解决这个问题，新版本提供了另一个使用套接字上执行异步I/O的方法模式。这种新模式并不要求为每个套接字操作分配操作上下文对象。

代码下载：http://download.csdn.net/detail/zhujunxxxxx/8431289 这里的代码优化了的

目标

在上面微软提供的例子我觉得不是很完整，没有具体一个流程，只是受到客户端消息后发送相同内容给客户端，初学者不容易看懂流程，因为我花了一天的时间来实现一个功能齐全的IOCP服务器，

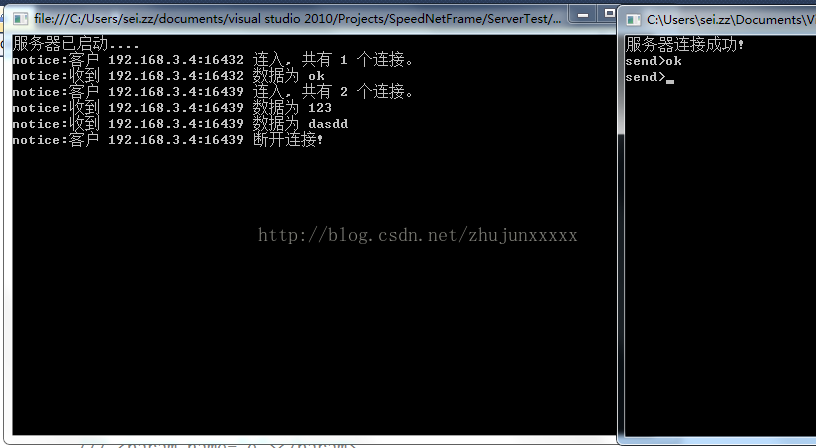

效果如下

代码

首先是ICOPServer.cs 这个类是IOCP服务器的核心类，目前这个类是网络上比较全的代码，MSDN上面的例子都没有我的全

[csharp] view plain copy print ?

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Net.Sockets;
using System.Net;
using System.Threading;
namespace ServerTest
{
/// <summary>
/// IOCP SOCKET服务器
/// </summary>
public class IOCPServer : IDisposable
{
const int opsToPreAlloc = 2;
#region Fields
/// <summary>
/// 服务器程序允许的最大客户端连接数
/// </summary>
private int _maxClient;
/// <summary>
/// 监听Socket，用于接受客户端的连接请求
/// </summary>
private Socket _serverSock;
/// <summary>
/// 当前的连接的客户端数
/// </summary>
private int _clientCount;
/// <summary>
/// 用于每个I/O Socket操作的缓冲区大小
/// </summary>
private int _bufferSize = 1024;
/// <summary>
/// 信号量
/// </summary>
Semaphore _maxAcceptedClients;
/// <summary>
/// 缓冲区管理
/// </summary>
BufferManager _bufferManager;
/// <summary>
/// 对象池
/// </summary>
SocketAsyncEventArgsPool _objectPool;
private bool disposed = false;
#endregion
#region Properties
/// <summary>
/// 服务器是否正在运行
/// </summary>
public bool IsRunning { get; private set; }
/// <summary>
/// 监听的IP地址
/// </summary>
public IPAddress Address { get; private set; }
/// <summary>
/// 监听的端口
/// </summary>
public int Port { get; private set; }
/// <summary>
/// 通信使用的编码
/// </summary>
public Encoding Encoding { get; set; }
#endregion
#region Ctors
/// <summary>
/// 异步IOCP SOCKET服务器
/// </summary>
/// <param name="listenPort">监听的端口</param>
/// <param name="maxClient">最大的客户端数量</param>
public IOCPServer(int listenPort,int maxClient)
: this(IPAddress.Any, listenPort, maxClient)
{
}
/// <summary>
/// 异步Socket TCP服务器
/// </summary>
/// <param name="localEP">监听的终结点</param>
/// <param name="maxClient">最大客户端数量</param>
public IOCPServer(IPEndPoint localEP, int maxClient)
: this(localEP.Address, localEP.Port,maxClient)
{
}
/// <summary>
/// 异步Socket TCP服务器
/// </summary>
/// <param name="localIPAddress">监听的IP地址</param>
/// <param name="listenPort">监听的端口</param>
/// <param name="maxClient">最大客户端数量</param>
public IOCPServer(IPAddress localIPAddress, int listenPort, int maxClient)
{
this.Address = localIPAddress;
this.Port = listenPort;
this.Encoding = Encoding.Default;
_maxClient = maxClient;
_serverSock = new Socket(localIPAddress.AddressFamily, SocketType.Stream, ProtocolType.Tcp);
_bufferManager = new BufferManager(_bufferSize * _maxClient * opsToPreAlloc,_bufferSize);
_objectPool = new SocketAsyncEventArgsPool(_maxClient);
_maxAcceptedClients = new Semaphore(_maxClient, _maxClient);
}
#endregion
#region 初始化
/// <summary>
/// 初始化函数
/// </summary>
public void Init()
{
// Allocates one large byte buffer which all I/O operations use a piece of. This gaurds
// against memory fragmentation
_bufferManager.InitBuffer();
// preallocate pool of SocketAsyncEventArgs objects
SocketAsyncEventArgs readWriteEventArg;
for (int i = 0; i < _maxClient; i++)
{
//Pre-allocate a set of reusable SocketAsyncEventArgs
readWriteEventArg = new SocketAsyncEventArgs();
readWriteEventArg.Completed += new EventHandler<SocketAsyncEventArgs>(OnIOCompleted);
readWriteEventArg.UserToken = null;
// assign a byte buffer from the buffer pool to the SocketAsyncEventArg object
_bufferManager.SetBuffer(readWriteEventArg);
// add SocketAsyncEventArg to the pool
_objectPool.Push(readWriteEventArg);
}
}
#endregion
#region Start
/// <summary>
/// 启动
/// </summary>
public void Start()
{
if (!IsRunning)
{
Init();
IsRunning = true;
IPEndPoint localEndPoint = new IPEndPoint(Address, Port);
// 创建监听socket
_serverSock = new Socket(localEndPoint.AddressFamily, SocketType.Stream, ProtocolType.Tcp);
//_serverSock.ReceiveBufferSize = _bufferSize;
//_serverSock.SendBufferSize = _bufferSize;
if (localEndPoint.AddressFamily == AddressFamily.InterNetworkV6)
{
// 配置监听socket为 dual-mode (IPv4 & IPv6)
// 27 is equivalent to IPV6_V6ONLY socket option in the winsock snippet below,
_serverSock.SetSocketOption(SocketOptionLevel.IPv6, (SocketOptionName)27, false);
_serverSock.Bind(new IPEndPoint(IPAddress.IPv6Any, localEndPoint.Port));
}
else
{
_serverSock.Bind(localEndPoint);
}
// 开始监听
_serverSock.Listen(this._maxClient);
// 在监听Socket上投递一个接受请求。
StartAccept(null);
}
}
#endregion
#region Stop
/// <summary>
/// 停止服务
/// </summary>
public void Stop()
{
if (IsRunning)
{
IsRunning = false;
_serverSock.Close();
//TODO 关闭对所有客户端的连接
}
}
#endregion
#region Accept
/// <summary>
/// 从客户端开始接受一个连接操作
/// </summary>
private void StartAccept(SocketAsyncEventArgs asyniar)
{
if (asyniar == null)
{
asyniar = new SocketAsyncEventArgs();
asyniar.Completed += new EventHandler<SocketAsyncEventArgs>(OnAcceptCompleted);
}
else
{
//socket must be cleared since the context object is being reused
asyniar.AcceptSocket = null;
}
_maxAcceptedClients.WaitOne();
if (!_serverSock.AcceptAsync(asyniar))
{
ProcessAccept(asyniar);
//如果I/O挂起等待异步则触发AcceptAsyn_Asyn_Completed事件
//此时I/O操作同步完成，不会触发Asyn_Completed事件，所以指定BeginAccept()方法
}
}
/// <summary>
/// accept 操作完成时回调函数
/// </summary>
/// <param name="sender">Object who raised the event.</param>
/// <param name="e">SocketAsyncEventArg associated with the completed accept operation.</param>
private void OnAcceptCompleted(object sender, SocketAsyncEventArgs e)
{
ProcessAccept(e);
}
/// <summary>
/// 监听Socket接受处理
/// </summary>
/// <param name="e">SocketAsyncEventArg associated with the completed accept operation.</param>
private void ProcessAccept(SocketAsyncEventArgs e)
{
if (e.SocketError == SocketError.Success)
{
Socket s = e.AcceptSocket;//和客户端关联的socket
if (s.Connected)
{
try
{
Interlocked.Increment(ref _clientCount);//原子操作加1
SocketAsyncEventArgs asyniar = _objectPool.Pop();
asyniar.UserToken = s;
Log4Debug(String.Format("客户 {0} 连入, 共有 {1} 个连接。", s.RemoteEndPoint.ToString(), _clientCount));
if (!s.ReceiveAsync(asyniar))//投递接收请求
{
ProcessReceive(asyniar);
}
}
catch (SocketException ex)
{
Log4Debug(String.Format("接收客户 {0} 数据出错, 异常信息： {1} 。", s.RemoteEndPoint, ex.ToString()));
//TODO 异常处理
}
//投递下一个接受请求
StartAccept(e);
}
}
}
#endregion
#region 发送数据
/// <summary>
/// 异步的发送数据
/// </summary>
/// <param name="e"></param>
/// <param name="data"></param>
public void Send(SocketAsyncEventArgs e, byte[] data)
{
if (e.SocketError == SocketError.Success)
{
Socket s = e.AcceptSocket;//和客户端关联的socket
if (s.Connected)
{
Array.Copy(data, 0, e.Buffer, 0, data.Length);//设置发送数据
//e.SetBuffer(data, 0, data.Length); //设置发送数据
if (!s.SendAsync(e))//投递发送请求，这个函数有可能同步发送出去，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
{
// 同步发送时处理发送完成事件
ProcessSend(e);
}
else
{
CloseClientSocket(e);
}
}
}
}
/// <summary>
/// 同步的使用socket发送数据
/// </summary>
/// <param name="socket"></param>
/// <param name="buffer"></param>
/// <param name="offset"></param>
/// <param name="size"></param>
/// <param name="timeout"></param>
public void Send(Socket socket, byte[] buffer, int offset, int size, int timeout)
{
socket.SendTimeout = 0;
int startTickCount = Environment.TickCount;
int sent = 0; // how many bytes is already sent
do
{
if (Environment.TickCount > startTickCount + timeout)
{
//throw new Exception("Timeout.");
}
try
{
sent += socket.Send(buffer, offset + sent, size - sent, SocketFlags.None);
}
catch (SocketException ex)
{
if (ex.SocketErrorCode == SocketError.WouldBlock ||
ex.SocketErrorCode == SocketError.IOPending ||
ex.SocketErrorCode == SocketError.NoBufferSpaceAvailable)
{
// socket buffer is probably full, wait and try again
Thread.Sleep(30);
}
else
{
throw ex; // any serious error occurr
}
}
} while (sent < size);
}
/// <summary>
/// 发送完成时处理函数
/// </summary>
/// <param name="e">与发送完成操作相关联的SocketAsyncEventArg对象</param>
private void ProcessSend(SocketAsyncEventArgs e)
{
if (e.SocketError == SocketError.Success)
{
Socket s = (Socket)e.UserToken;
//TODO
}
else
{
CloseClientSocket(e);
}
}
#endregion
#region 接收数据
/// <summary>
///接收完成时处理函数
/// </summary>
/// <param name="e">与接收完成操作相关联的SocketAsyncEventArg对象</param>
private void ProcessReceive(SocketAsyncEventArgs e)
{
if (e.SocketError == SocketError.Success)//if (e.BytesTransferred > 0 && e.SocketError == SocketError.Success)
{
// 检查远程主机是否关闭连接
if (e.BytesTransferred > 0)
{
Socket s = (Socket)e.UserToken;
//判断所有需接收的数据是否已经完成
if (s.Available == 0)
{
//从侦听者获取接收到的消息。
//String received = Encoding.ASCII.GetString(e.Buffer, e.Offset, e.BytesTransferred);
//echo the data received back to the client
//e.SetBuffer(e.Offset, e.BytesTransferred);
byte[] data = new byte[e.BytesTransferred];
Array.Copy(e.Buffer, e.Offset, data, 0, data.Length);//从e.Buffer块中复制数据出来，保证它可重用
string info=Encoding.Default.GetString(data);
Log4Debug(String.Format("收到 {0} 数据为 {1}",s.RemoteEndPoint.ToString(),info));
//TODO 处理数据
//增加服务器接收的总字节数。
}
if (!s.ReceiveAsync(e))//为接收下一段数据，投递接收请求，这个函数有可能同步完成，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
{
//同步接收时处理接收完成事件
ProcessReceive(e);
}
}
}
else
{
CloseClientSocket(e);
}
}
#endregion
#region 回调函数
/// <summary>
/// 当Socket上的发送或接收请求被完成时，调用此函数
/// </summary>
/// <param name="sender">激发事件的对象</param>
/// <param name="e">与发送或接收完成操作相关联的SocketAsyncEventArg对象</param>
private void OnIOCompleted(object sender, SocketAsyncEventArgs e)
{
// Determine which type of operation just completed and call the associated handler.
switch (e.LastOperation)
{
case SocketAsyncOperation.Accept:
ProcessAccept(e);
break;
case SocketAsyncOperation.Receive:
ProcessReceive(e);
break;
default:
throw new ArgumentException("The last operation completed on the socket was not a receive or send");
}
}
#endregion
#region Close
/// <summary>
/// 关闭socket连接
/// </summary>
/// <param name="e">SocketAsyncEventArg associated with the completed send/receive operation.</param>
private void CloseClientSocket(SocketAsyncEventArgs e)
{
Log4Debug(String.Format("客户 {0} 断开连接!",((Socket)e.UserToken).RemoteEndPoint.ToString()));
Socket s = e.UserToken as Socket;
CloseClientSocket(s, e);
}
/// <summary>
/// 关闭socket连接
/// </summary>
/// <param name="s"></param>
/// <param name="e"></param>
private void CloseClientSocket(Socket s, SocketAsyncEventArgs e)
{
try
{
s.Shutdown(SocketShutdown.Send);
}
catch (Exception)
{
// Throw if client has closed, so it is not necessary to catch.
}
finally
{
s.Close();
}
Interlocked.Decrement(ref _clientCount);
_maxAcceptedClients.Release();
_objectPool.Push(e);//SocketAsyncEventArg 对象被释放，压入可重用队列。
}
#endregion
#region Dispose
/// <summary>
/// Performs application-defined tasks associated with freeing,
/// releasing, or resetting unmanaged resources.
/// </summary>
public void Dispose()
{
Dispose(true);
GC.SuppressFinalize(this);
}
/// <summary>
/// Releases unmanaged and - optionally - managed resources
/// </summary>
/// <param name="disposing"><c>true</c> to release
/// both managed and unmanaged resources; <c>false</c>
/// to release only unmanaged resources.</param>
protected virtual void Dispose(bool disposing)
{
if (!this.disposed)
{
if (disposing)
{
try
{
Stop();
if (_serverSock != null)
{
_serverSock = null;
}
}
catch (SocketException ex)
{
//TODO 事件
}
}
disposed = true;
}
}
#endregion
public void Log4Debug(string msg)
{
Console.WriteLine("notice:"+msg);
}
}
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Net.Sockets;
using System.Net;
using System.Threading;

namespace ServerTest
{
    /// <summary>
    /// IOCP SOCKET服务器
    /// </summary>
    public class IOCPServer : IDisposable
    {
        const int opsToPreAlloc = 2;
        #region Fields
        /// <summary>
        /// 服务器程序允许的最大客户端连接数
        /// </summary>
        private int _maxClient;

        /// <summary>
        /// 监听Socket，用于接受客户端的连接请求
        /// </summary>
        private Socket _serverSock;

        /// <summary>
        /// 当前的连接的客户端数
        /// </summary>
        private int _clientCount;

        /// <summary>
        /// 用于每个I/O Socket操作的缓冲区大小
        /// </summary>
        private int _bufferSize = 1024;

        /// <summary>
        /// 信号量
        /// </summary>
        Semaphore _maxAcceptedClients;

        /// <summary>
        /// 缓冲区管理
        /// </summary>
        BufferManager _bufferManager;

        /// <summary>
        /// 对象池
        /// </summary>
        SocketAsyncEventArgsPool _objectPool;

        private bool disposed = false;

        #endregion

        #region Properties

        /// <summary>
        /// 服务器是否正在运行
        /// </summary>
        public bool IsRunning { get; private set; }
        /// <summary>
        /// 监听的IP地址
        /// </summary>
        public IPAddress Address { get; private set; }
        /// <summary>
        /// 监听的端口
        /// </summary>
        public int Port { get; private set; }
        /// <summary>
        /// 通信使用的编码
        /// </summary>
        public Encoding Encoding { get; set; }

        #endregion

        #region Ctors

        /// <summary>
        /// 异步IOCP SOCKET服务器
        /// </summary>
        /// <param name="listenPort">监听的端口</param>
        /// <param name="maxClient">最大的客户端数量</param>
        public IOCPServer(int listenPort,int maxClient)
            : this(IPAddress.Any, listenPort, maxClient)
        {
        }

        /// <summary>
        /// 异步Socket TCP服务器
        /// </summary>
        /// <param name="localEP">监听的终结点</param>
        /// <param name="maxClient">最大客户端数量</param>
        public IOCPServer(IPEndPoint localEP, int maxClient)
            : this(localEP.Address, localEP.Port,maxClient)
        {
        }

        /// <summary>
        /// 异步Socket TCP服务器
        /// </summary>
        /// <param name="localIPAddress">监听的IP地址</param>
        /// <param name="listenPort">监听的端口</param>
        /// <param name="maxClient">最大客户端数量</param>
        public IOCPServer(IPAddress localIPAddress, int listenPort, int maxClient)
        {
            this.Address = localIPAddress;
            this.Port = listenPort;
            this.Encoding = Encoding.Default;

            _maxClient = maxClient;

            _serverSock = new Socket(localIPAddress.AddressFamily, SocketType.Stream, ProtocolType.Tcp);

            _bufferManager = new BufferManager(_bufferSize * _maxClient * opsToPreAlloc,_bufferSize);

            _objectPool = new SocketAsyncEventArgsPool(_maxClient);

            _maxAcceptedClients = new Semaphore(_maxClient, _maxClient);
        }

        #endregion


        #region 初始化

        /// <summary>
        /// 初始化函数
        /// </summary>
        public void Init()
        {
            // Allocates one large byte buffer which all I/O operations use a piece of.  This gaurds
            // against memory fragmentation
            _bufferManager.InitBuffer();

            // preallocate pool of SocketAsyncEventArgs objects
            SocketAsyncEventArgs readWriteEventArg;

            for (int i = 0; i < _maxClient; i++)
            {
                //Pre-allocate a set of reusable SocketAsyncEventArgs
                readWriteEventArg = new SocketAsyncEventArgs();
                readWriteEventArg.Completed += new EventHandler<SocketAsyncEventArgs>(OnIOCompleted);
                readWriteEventArg.UserToken = null;

                // assign a byte buffer from the buffer pool to the SocketAsyncEventArg object
                _bufferManager.SetBuffer(readWriteEventArg);

                // add SocketAsyncEventArg to the pool
                _objectPool.Push(readWriteEventArg);
            }

        }

        #endregion

        #region Start
        /// <summary>
        /// 启动
        /// </summary>
        public void Start()
        {
            if (!IsRunning)
            {
                Init();
                IsRunning = true;
                IPEndPoint localEndPoint = new IPEndPoint(Address, Port);
                // 创建监听socket
                _serverSock = new Socket(localEndPoint.AddressFamily, SocketType.Stream, ProtocolType.Tcp);
                //_serverSock.ReceiveBufferSize = _bufferSize;
                //_serverSock.SendBufferSize = _bufferSize;
                if (localEndPoint.AddressFamily == AddressFamily.InterNetworkV6)
                {
                    // 配置监听socket为 dual-mode (IPv4 & IPv6)
                    // 27 is equivalent to IPV6_V6ONLY socket option in the winsock snippet below,
                    _serverSock.SetSocketOption(SocketOptionLevel.IPv6, (SocketOptionName)27, false);
                    _serverSock.Bind(new IPEndPoint(IPAddress.IPv6Any, localEndPoint.Port));
                }
                else
                {
                    _serverSock.Bind(localEndPoint);
                }
                // 开始监听
                _serverSock.Listen(this._maxClient);
                // 在监听Socket上投递一个接受请求。
                StartAccept(null);
            }
        }
        #endregion

        #region Stop

        /// <summary>
        /// 停止服务
        /// </summary>
        public void Stop()
        {
            if (IsRunning)
            {
                IsRunning = false;
                _serverSock.Close();
                //TODO 关闭对所有客户端的连接

            }
        }

        #endregion


        #region Accept

        /// <summary>
        /// 从客户端开始接受一个连接操作
        /// </summary>
        private void StartAccept(SocketAsyncEventArgs asyniar)
        {
            if (asyniar == null)
            {
                asyniar = new SocketAsyncEventArgs();
                asyniar.Completed += new EventHandler<SocketAsyncEventArgs>(OnAcceptCompleted);
            }
            else
            {
                //socket must be cleared since the context object is being reused
                asyniar.AcceptSocket = null;
            }
            _maxAcceptedClients.WaitOne();
            if (!_serverSock.AcceptAsync(asyniar))
            {
                ProcessAccept(asyniar);
                //如果I/O挂起等待异步则触发AcceptAsyn_Asyn_Completed事件
                //此时I/O操作同步完成，不会触发Asyn_Completed事件，所以指定BeginAccept()方法
            }
        }

        /// <summary>
        /// accept 操作完成时回调函数
        /// </summary>
        /// <param name="sender">Object who raised the event.</param>
        /// <param name="e">SocketAsyncEventArg associated with the completed accept operation.</param>
        private void OnAcceptCompleted(object sender, SocketAsyncEventArgs e)
        {
            ProcessAccept(e);
        }

        /// <summary>
        /// 监听Socket接受处理
        /// </summary>
        /// <param name="e">SocketAsyncEventArg associated with the completed accept operation.</param>
        private void ProcessAccept(SocketAsyncEventArgs e)
        {
            if (e.SocketError == SocketError.Success)
            {
                Socket s = e.AcceptSocket;//和客户端关联的socket
                if (s.Connected)
                {
                    try
                    {

                        Interlocked.Increment(ref _clientCount);//原子操作加1
                        SocketAsyncEventArgs asyniar = _objectPool.Pop();
                        asyniar.UserToken = s;

                        Log4Debug(String.Format("客户 {0} 连入, 共有 {1} 个连接。", s.RemoteEndPoint.ToString(), _clientCount));

                        if (!s.ReceiveAsync(asyniar))//投递接收请求
                        {
                            ProcessReceive(asyniar);
                        }
                    }
                    catch (SocketException ex)
                    {
                        Log4Debug(String.Format("接收客户 {0} 数据出错, 异常信息： {1} 。", s.RemoteEndPoint, ex.ToString()));
                        //TODO 异常处理
                    }
                    //投递下一个接受请求
                    StartAccept(e);
                }
            }
        }

        #endregion

        #region 发送数据

        /// <summary>
        /// 异步的发送数据
        /// </summary>
        /// <param name="e"></param>
        /// <param name="data"></param>
        public void Send(SocketAsyncEventArgs e, byte[] data)
        {
            if (e.SocketError == SocketError.Success)
            {
                Socket s = e.AcceptSocket;//和客户端关联的socket
                if (s.Connected)
                {
                    Array.Copy(data, 0, e.Buffer, 0, data.Length);//设置发送数据

                    //e.SetBuffer(data, 0, data.Length); //设置发送数据
                    if (!s.SendAsync(e))//投递发送请求，这个函数有可能同步发送出去，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
                    {
                        // 同步发送时处理发送完成事件
                        ProcessSend(e);
                    }
                    else
                    {
                        CloseClientSocket(e);
                    }
                }
            }
        }

        /// <summary>
        /// 同步的使用socket发送数据
        /// </summary>
        /// <param name="socket"></param>
        /// <param name="buffer"></param>
        /// <param name="offset"></param>
        /// <param name="size"></param>
        /// <param name="timeout"></param>
        public void Send(Socket socket, byte[] buffer, int offset, int size, int timeout)
        {
            socket.SendTimeout = 0;
            int startTickCount = Environment.TickCount;
            int sent = 0; // how many bytes is already sent
            do
            {
                if (Environment.TickCount > startTickCount + timeout)
                {
                    //throw new Exception("Timeout.");
                }
                try
                {
                    sent += socket.Send(buffer, offset + sent, size - sent, SocketFlags.None);
                }
                catch (SocketException ex)
                {
                    if (ex.SocketErrorCode == SocketError.WouldBlock ||
                    ex.SocketErrorCode == SocketError.IOPending ||
                    ex.SocketErrorCode == SocketError.NoBufferSpaceAvailable)
                    {
                        // socket buffer is probably full, wait and try again
                        Thread.Sleep(30);
                    }
                    else
                    {
                        throw ex; // any serious error occurr
                    }
                }
            } while (sent < size);
        }


        /// <summary>
        /// 发送完成时处理函数
        /// </summary>
        /// <param name="e">与发送完成操作相关联的SocketAsyncEventArg对象</param>
        private void ProcessSend(SocketAsyncEventArgs e)
        {
            if (e.SocketError == SocketError.Success)
            {
                Socket s = (Socket)e.UserToken;

                //TODO
            }
            else
            {
                CloseClientSocket(e);
            }
        }

        #endregion

        #region 接收数据


        /// <summary>
        ///接收完成时处理函数
        /// </summary>
        /// <param name="e">与接收完成操作相关联的SocketAsyncEventArg对象</param>
        private void ProcessReceive(SocketAsyncEventArgs e)
        {
            if (e.SocketError == SocketError.Success)//if (e.BytesTransferred > 0 && e.SocketError == SocketError.Success)
            {
                // 检查远程主机是否关闭连接
                if (e.BytesTransferred > 0)
                {
                    Socket s = (Socket)e.UserToken;
                    //判断所有需接收的数据是否已经完成
                    if (s.Available == 0)
                    {
                        //从侦听者获取接收到的消息。
                        //String received = Encoding.ASCII.GetString(e.Buffer, e.Offset, e.BytesTransferred);
                        //echo the data received back to the client
                        //e.SetBuffer(e.Offset, e.BytesTransferred);

                        byte[] data = new byte[e.BytesTransferred];
                        Array.Copy(e.Buffer, e.Offset, data, 0, data.Length);//从e.Buffer块中复制数据出来，保证它可重用

                        string info=Encoding.Default.GetString(data);
                        Log4Debug(String.Format("收到 {0} 数据为 {1}",s.RemoteEndPoint.ToString(),info));
                        //TODO 处理数据

                        //增加服务器接收的总字节数。
                    }

                    if (!s.ReceiveAsync(e))//为接收下一段数据，投递接收请求，这个函数有可能同步完成，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
                    {
                        //同步接收时处理接收完成事件
                        ProcessReceive(e);
                    }
                }
            }
            else
            {
                CloseClientSocket(e);
            }
        }

        #endregion

        #region 回调函数

        /// <summary>
        /// 当Socket上的发送或接收请求被完成时，调用此函数
        /// </summary>
        /// <param name="sender">激发事件的对象</param>
        /// <param name="e">与发送或接收完成操作相关联的SocketAsyncEventArg对象</param>
        private void OnIOCompleted(object sender, SocketAsyncEventArgs e)
        {
            // Determine which type of operation just completed and call the associated handler.
            switch (e.LastOperation)
            {
                case SocketAsyncOperation.Accept:
                    ProcessAccept(e);
                    break;
                case SocketAsyncOperation.Receive:
                    ProcessReceive(e);
                    break;
                default:
                    throw new ArgumentException("The last operation completed on the socket was not a receive or send");
            }
        }

        #endregion

        #region Close
        /// <summary>
        /// 关闭socket连接
        /// </summary>
        /// <param name="e">SocketAsyncEventArg associated with the completed send/receive operation.</param>
        private void CloseClientSocket(SocketAsyncEventArgs e)
        {
            Log4Debug(String.Format("客户 {0} 断开连接!",((Socket)e.UserToken).RemoteEndPoint.ToString()));
            Socket s = e.UserToken as Socket;
            CloseClientSocket(s, e);
        }

        /// <summary>
        /// 关闭socket连接
        /// </summary>
        /// <param name="s"></param>
        /// <param name="e"></param>
        private void CloseClientSocket(Socket s, SocketAsyncEventArgs e)
        {
            try
            {
                s.Shutdown(SocketShutdown.Send);
            }
            catch (Exception)
            {
                // Throw if client has closed, so it is not necessary to catch.
            }
            finally
            {
                s.Close();
            }
            Interlocked.Decrement(ref _clientCount);
            _maxAcceptedClients.Release();
            _objectPool.Push(e);//SocketAsyncEventArg 对象被释放，压入可重用队列。
        }
        #endregion

        #region Dispose
        /// <summary>
        /// Performs application-defined tasks associated with freeing,
        /// releasing, or resetting unmanaged resources.
        /// </summary>
        public void Dispose()
        {
            Dispose(true);
            GC.SuppressFinalize(this);
        }

        /// <summary>
        /// Releases unmanaged and - optionally - managed resources
        /// </summary>
        /// <param name="disposing"><c>true</c> to release
        /// both managed and unmanaged resources; <c>false</c>
        /// to release only unmanaged resources.</param>
        protected virtual void Dispose(bool disposing)
        {
            if (!this.disposed)
            {
                if (disposing)
                {
                    try
                    {
                        Stop();
                        if (_serverSock != null)
                        {
                            _serverSock = null;
                        }
                    }
                    catch (SocketException ex)
                    {
                        //TODO 事件
                    }
                }
                disposed = true;
            }
        }
        #endregion

        public void Log4Debug(string msg)
        {
            Console.WriteLine("notice:"+msg);
        }

    }
}

BufferManager.cs 这个类是缓存管理类，是采用MSDN上面的例子一样的地址: https://msdn.microsoft.com/zh-cn/library/bb517542.aspx

SocketAsyncEventArgsPool.cs 这个类也是来自MSDN的地址:https://msdn.microsoft.com/zh-cn/library/system.net.sockets.socketasynceventargs.aspx

需要的话自己到MSDN网站上去取，我就不贴出来了

服务器端

[csharp] view plain copy print ?

static void Main(string[] args)
{
IOCPServer server = new IOCPServer(8088, 1024);
server.Start();
Console.WriteLine("服务器已启动....");
System.Console.ReadLine();
}

static void Main(string[] args)
        {

            IOCPServer server = new IOCPServer(8088, 1024);
            server.Start();
            Console.WriteLine("服务器已启动....");
            System.Console.ReadLine();
        }

客户端

客户端代码也是很简单

[csharp] view plain copy print ?

static void Main(string[] args)
{
IPAddress remote=IPAddress.Parse("192.168.3.4");
client c = new client(8088,remote);
c.connect();
Console.WriteLine("服务器连接成功!");
while (true)
{
Console.Write("send>");
string msg=Console.ReadLine();
if (msg == "exit")
break;
c.send(msg);
}
c.disconnect();
Console.ReadLine();
}

static void Main(string[] args)
        {
            IPAddress remote=IPAddress.Parse("192.168.3.4");
            client c = new client(8088,remote);

            c.connect();
            Console.WriteLine("服务器连接成功!");
            while (true)
            {
                Console.Write("send>");
                string msg=Console.ReadLine();
                if (msg == "exit")
                    break;
                c.send(msg);
            }
            c.disconnect();
            Console.ReadLine();
        }

client.cs

[csharp] view plain copy print ?

public class client
{
public TcpClient _client;
public int port;
public IPAddress remote;
public client(int port,IPAddress remote)
{
this.port = port;
this.remote = remote;
}
public void connect()
{
this._client=new TcpClient();
_client.Connect(remote, port);
}
public void disconnect()
{
_client.Close();
}
public void send(string msg)
{
byte[] data=Encoding.Default.GetBytes(msg);
_client.GetStream().Write(data, 0, data.Length);
}
}

public class client
    {

        public TcpClient _client;

        public int port;

        public IPAddress remote;

        public client(int port,IPAddress remote)
        {

            this.port = port;
            this.remote = remote;
        }

        public void connect()
        {
            this._client=new TcpClient();
            _client.Connect(remote, port);
        }
        public void disconnect()
        {
            _client.Close();
        }
        public void send(string msg)
        {
            byte[] data=Encoding.Default.GetBytes(msg);
            _client.GetStream().Write(data, 0, data.Length);
        }
    }

IOCPClient类，使用SocketAsyncEventArgs类建立一个Socket客户端。虽然MSDN说这个类特别设计给网络服务器应用，但也没有限制在客户端代码中使用APM。下面给出了IOCPClient类的样例代码：

[csharp] view plain copy print ?

public class IOCPClient
{
/// <summary>
/// 连接服务器的socket
/// </summary>
private Socket _clientSock;
/// <summary>
/// 用于服务器执行的互斥同步对象
/// </summary>
private static Mutex mutex = new Mutex();
/// <summary>
/// Socket连接标志
/// </summary>
private Boolean _connected = false;
private const int ReceiveOperation = 1, SendOperation = 0;
private static AutoResetEvent[]
autoSendReceiveEvents = new AutoResetEvent[]
{
new AutoResetEvent(false),
new AutoResetEvent(false)
};
/// <summary>
/// 服务器监听端点
/// </summary>
private IPEndPoint _remoteEndPoint;
public IOCPClient(IPEndPoint local,IPEndPoint remote)
{
_clientSock = new Socket(local.AddressFamily,SocketType.Stream, ProtocolType.Tcp);
_remoteEndPoint = remote;
}
#region 连接服务器
/// <summary>
/// 连接远程服务器
/// </summary>
public void Connect()
{
SocketAsyncEventArgs connectArgs = new SocketAsyncEventArgs();
connectArgs.UserToken = _clientSock;
connectArgs.RemoteEndPoint = _remoteEndPoint;
connectArgs.Completed += new EventHandler<SocketAsyncEventArgs>(OnConnected);
mutex.WaitOne();
if (!_clientSock.ConnectAsync(connectArgs))//异步连接
{
ProcessConnected(connectArgs);
}
}
/// <summary>
/// 连接上的事件
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
void OnConnected(object sender, SocketAsyncEventArgs e)
{
mutex.ReleaseMutex();
//设置Socket已连接标志。
_connected = (e.SocketError == SocketError.Success);
}
/// <summary>
/// 处理连接服务器
/// </summary>
/// <param name="e"></param>
private void ProcessConnected(SocketAsyncEventArgs e)
{
//TODO
}
#endregion
#region 发送消息
/// <summary>
/// 向服务器发送消息
/// </summary>
/// <param name="data"></param>
public void Send(byte[] data)
{
SocketAsyncEventArgs asyniar = new SocketAsyncEventArgs();
asyniar.Completed += new EventHandler<SocketAsyncEventArgs>(OnSendComplete);
asyniar.SetBuffer(data, 0, data.Length);
asyniar.UserToken = _clientSock;
asyniar.RemoteEndPoint = _remoteEndPoint;
autoSendReceiveEvents[SendOperation].WaitOne();
if (!_clientSock.SendAsync(asyniar))//投递发送请求，这个函数有可能同步发送出去，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
{
// 同步发送时处理发送完成事件
ProcessSend(asyniar);
}
}
/// <summary>
/// 发送操作的回调方法
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void OnSendComplete(object sender, SocketAsyncEventArgs e)
{
//发出发送完成信号。
autoSendReceiveEvents[SendOperation].Set();
ProcessSend(e);
}
/// <summary>
/// 发送完成时处理函数
/// </summary>
/// <param name="e">与发送完成操作相关联的SocketAsyncEventArg对象</param>
private void ProcessSend(SocketAsyncEventArgs e)
{
//TODO
}
#endregion
#region 接收消息
/// <summary>
/// 开始监听服务端数据
/// </summary>
/// <param name="e"></param>
public void StartRecive(SocketAsyncEventArgs e)
{
//准备接收。
Socket s = e.UserToken as Socket;
byte[] receiveBuffer = new byte[255];
e.SetBuffer(receiveBuffer, 0, receiveBuffer.Length);
e.Completed += new EventHandler<SocketAsyncEventArgs>(OnReceiveComplete);
autoSendReceiveEvents[ReceiveOperation].WaitOne();
if (!s.ReceiveAsync(e))
{
ProcessReceive(e);
}
}
/// <summary>
/// 接收操作的回调方法
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void OnReceiveComplete(object sender, SocketAsyncEventArgs e)
{
//发出接收完成信号。
autoSendReceiveEvents[ReceiveOperation].Set();
ProcessReceive(e);
}
/// <summary>
///接收完成时处理函数
/// </summary>
/// <param name="e">与接收完成操作相关联的SocketAsyncEventArg对象</param>
private void ProcessReceive(SocketAsyncEventArgs e)
{
if (e.SocketError == SocketError.Success)
{
// 检查远程主机是否关闭连接
if (e.BytesTransferred > 0)
{
Socket s = (Socket)e.UserToken;
//判断所有需接收的数据是否已经完成
if (s.Available == 0)
{
byte[] data = new byte[e.BytesTransferred];
Array.Copy(e.Buffer, e.Offset, data, 0, data.Length);//从e.Buffer块中复制数据出来，保证它可重用
//TODO 处理数据
}
if (!s.ReceiveAsync(e))//为接收下一段数据，投递接收请求，这个函数有可能同步完成，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
{
//同步接收时处理接收完成事件
ProcessReceive(e);
}
}
}
}
#endregion
public void Close()
{
_clientSock.Disconnect(false);
}
/// <summary>
/// 失败时关闭Socket，根据SocketError抛出异常。
/// </summary>
/// <param name="e"></param>
private void ProcessError(SocketAsyncEventArgs e)
{
Socket s = e.UserToken as Socket;
if (s.Connected)
{
//关闭与客户端关联的Socket
try
{
s.Shutdown(SocketShutdown.Both);
}
catch (Exception)
{
//如果客户端处理已经关闭，抛出异常
}
finally
{
if (s.Connected)
{
s.Close();
}
}
}
//抛出SocketException
throw new SocketException((Int32)e.SocketError);
}
/// <summary>
/// 释放SocketClient实例
/// </summary>
public void Dispose()
{
mutex.Close();
autoSendReceiveEvents[SendOperation].Close();
autoSendReceiveEvents[ReceiveOperation].Close();
if (_clientSock.Connected)
{
_clientSock.Close();
}
}
}

 public class IOCPClient
    {
        /// <summary>
        /// 连接服务器的socket
        /// </summary>
        private Socket _clientSock;

        /// <summary>
        /// 用于服务器执行的互斥同步对象
        /// </summary>
        private static Mutex mutex = new Mutex();
        /// <summary>
        /// Socket连接标志
        /// </summary>
        private Boolean _connected = false;

        private const int ReceiveOperation = 1, SendOperation = 0;

        private static AutoResetEvent[]
                 autoSendReceiveEvents = new AutoResetEvent[]
         {
             new AutoResetEvent(false),
             new AutoResetEvent(false)
         };

        /// <summary>
        /// 服务器监听端点
        /// </summary>
        private IPEndPoint _remoteEndPoint;

        public IOCPClient(IPEndPoint local,IPEndPoint remote)
        {
            _clientSock = new Socket(local.AddressFamily,SocketType.Stream, ProtocolType.Tcp);
            _remoteEndPoint = remote;
        }

        #region 连接服务器

        /// <summary>
        /// 连接远程服务器
        /// </summary>
        public void Connect()
        {
            SocketAsyncEventArgs connectArgs = new SocketAsyncEventArgs();

            connectArgs.UserToken = _clientSock;
            connectArgs.RemoteEndPoint = _remoteEndPoint;
            connectArgs.Completed += new EventHandler<SocketAsyncEventArgs>(OnConnected);
            mutex.WaitOne();
            if (!_clientSock.ConnectAsync(connectArgs))//异步连接
            {
                ProcessConnected(connectArgs);
            }

        }
        /// <summary>
        /// 连接上的事件
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        void OnConnected(object sender, SocketAsyncEventArgs e)
        {
            mutex.ReleaseMutex();
            //设置Socket已连接标志。
            _connected = (e.SocketError == SocketError.Success);
        }
        /// <summary>
        /// 处理连接服务器
        /// </summary>
        /// <param name="e"></param>
        private void ProcessConnected(SocketAsyncEventArgs e)
        {
            //TODO
        }

        #endregion

        #region 发送消息
        /// <summary>
        /// 向服务器发送消息
        /// </summary>
        /// <param name="data"></param>
        public void Send(byte[] data)
        {
            SocketAsyncEventArgs asyniar = new SocketAsyncEventArgs();
            asyniar.Completed += new EventHandler<SocketAsyncEventArgs>(OnSendComplete);
            asyniar.SetBuffer(data, 0, data.Length);
            asyniar.UserToken = _clientSock;
            asyniar.RemoteEndPoint = _remoteEndPoint;
            autoSendReceiveEvents[SendOperation].WaitOne();
            if (!_clientSock.SendAsync(asyniar))//投递发送请求，这个函数有可能同步发送出去，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
            {
                // 同步发送时处理发送完成事件
                ProcessSend(asyniar);
            }
        }

        /// <summary>
        /// 发送操作的回调方法
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void OnSendComplete(object sender, SocketAsyncEventArgs e)
        {
            //发出发送完成信号。
            autoSendReceiveEvents[SendOperation].Set();
            ProcessSend(e);
        }

        /// <summary>
        /// 发送完成时处理函数
        /// </summary>
        /// <param name="e">与发送完成操作相关联的SocketAsyncEventArg对象</param>
        private void ProcessSend(SocketAsyncEventArgs e)
        {
            //TODO
        }
        #endregion

        #region 接收消息
        /// <summary>
        /// 开始监听服务端数据
        /// </summary>
        /// <param name="e"></param>
        public void StartRecive(SocketAsyncEventArgs e)
        {
            //准备接收。
            Socket s = e.UserToken as Socket;
            byte[] receiveBuffer = new byte[255];
            e.SetBuffer(receiveBuffer, 0, receiveBuffer.Length);
            e.Completed += new EventHandler<SocketAsyncEventArgs>(OnReceiveComplete);
            autoSendReceiveEvents[ReceiveOperation].WaitOne();
            if (!s.ReceiveAsync(e))
            {
                ProcessReceive(e);
            }
        }

        /// <summary>
        /// 接收操作的回调方法
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void OnReceiveComplete(object sender, SocketAsyncEventArgs e)
        {
            //发出接收完成信号。
            autoSendReceiveEvents[ReceiveOperation].Set();
            ProcessReceive(e);
        }

        /// <summary>
        ///接收完成时处理函数
        /// </summary>
        /// <param name="e">与接收完成操作相关联的SocketAsyncEventArg对象</param>
        private void ProcessReceive(SocketAsyncEventArgs e)
        {
            if (e.SocketError == SocketError.Success)
            {
                // 检查远程主机是否关闭连接
                if (e.BytesTransferred > 0)
                {
                    Socket s = (Socket)e.UserToken;
                    //判断所有需接收的数据是否已经完成
                    if (s.Available == 0)
                    {
                        byte[] data = new byte[e.BytesTransferred];
                        Array.Copy(e.Buffer, e.Offset, data, 0, data.Length);//从e.Buffer块中复制数据出来，保证它可重用

                        //TODO 处理数据
                    }

                    if (!s.ReceiveAsync(e))//为接收下一段数据，投递接收请求，这个函数有可能同步完成，这时返回false，并且不会引发SocketAsyncEventArgs.Completed事件
                    {
                        //同步接收时处理接收完成事件
                        ProcessReceive(e);
                    }
                }
            }
        }

        #endregion


        public void Close()
        {
            _clientSock.Disconnect(false);
        }

        /// <summary>
        /// 失败时关闭Socket，根据SocketError抛出异常。
        /// </summary>
        /// <param name="e"></param>

        private void ProcessError(SocketAsyncEventArgs e)
        {
            Socket s = e.UserToken as Socket;
            if (s.Connected)
            {
                //关闭与客户端关联的Socket
                try
                {
                    s.Shutdown(SocketShutdown.Both);
                }
                catch (Exception)
                {
                    //如果客户端处理已经关闭，抛出异常
                }
                finally
                {
                    if (s.Connected)
                    {
                        s.Close();
                    }
                }
            }
            //抛出SocketException
            throw new SocketException((Int32)e.SocketError);
        }


        /// <summary>
        /// 释放SocketClient实例
        /// </summary>
        public void Dispose()
        {
            mutex.Close();
            autoSendReceiveEvents[SendOperation].Close();
            autoSendReceiveEvents[ReceiveOperation].Close();
            if (_clientSock.Connected)
            {
                _clientSock.Close();
            }
        }

    }

这个类我没有测试，但是理论上是没问题的。

本文地址:http://blog.csdn.net/zhujunxxxxx/article/details/43573879

查看全文

相关阅读:
从数据到代码—通过代码生成机制实现强类型编程
 .NET中oledb访问access含子查询的语句的参数置换顺序
 Android开发入门学习
 Shell脚本初步学习鸟哥Linux私房菜基础学习篇
 rpm打包学习
 关于计算机工作方向的几点想法
 source insight中文注释乱码问题的解决方案
 makefilerpm编译软件，输出依赖软件包的编译顺序
 在android中资源文件夹中添加一个新的图片资源
 Linux批量替换某种类型文件中的字符串sed和grep命令使用

原文地址：https://www.cnblogs.com/HappinessZhao/p/7745974.html
