    5)Visual Studio 2010 Tools - To improve code quality

    http://www.c-sharpcorner.com/UploadFile/sanks/1733/

    In this article, I am going to present a step by step demo on how to
    improve code quality by using Visual Studio Tools like:



    • Unit Testing: Writing piece of code to test another piece of code or
      functionality.
    • Code Coverage: This tells what lines of code getting executed during testing
      process.
    • Test Impact Analysis: This tells what test need to be run depending on under
      line code changes.

    Following tables shows features availability  in different Visual Studio
    2010 editions.



























    ProfessionalPremiumUltimate
    Unit TestingYesYesYes
    Code CoverageNoYesYes
    Test Impact AnalysisNoYesYes

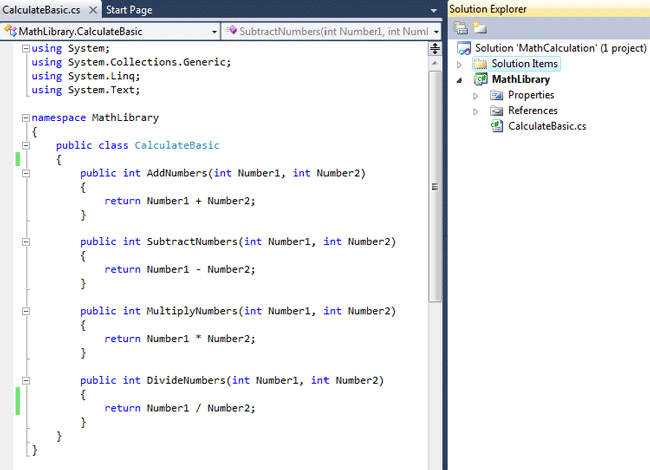

    Step 1 : Create class library



    Class Library Name: MathLibrary

    Class Name: CalculateBasic

    Methods: AddNumbers, SubtractNumbers, MultiplyNumbers and DivideNumbers as
    shown below






    Step 2 : Create Unit Test

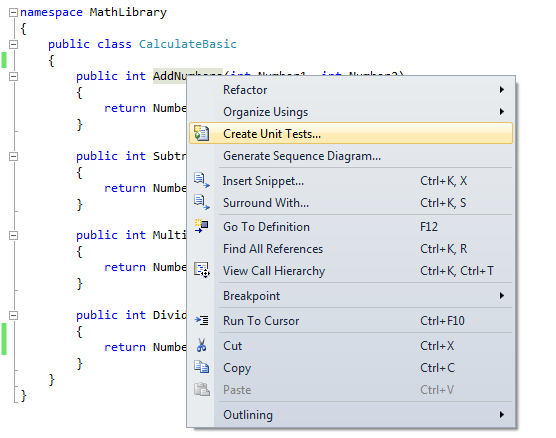

    Right any method and click "Create Unit Tests"

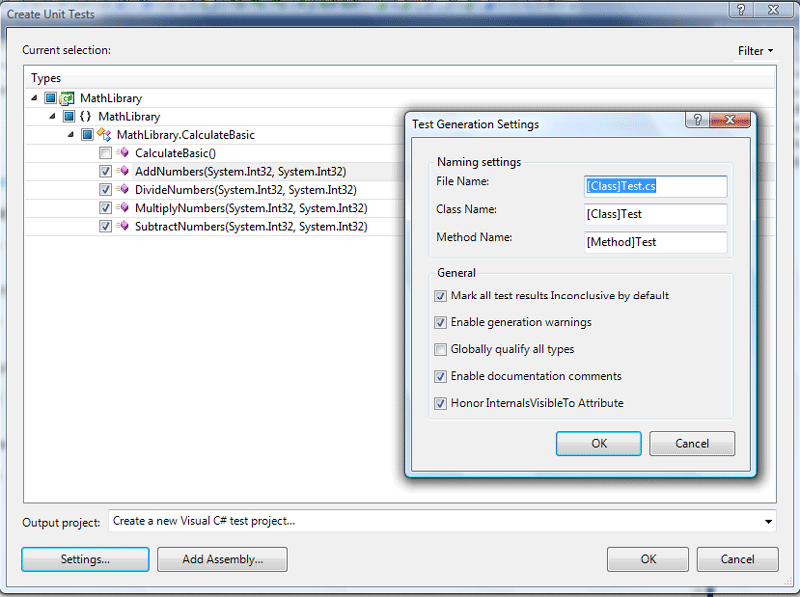

    Window will pop up. Select all methods and set Test Generation settings for
    file, class and method name. Click OK.

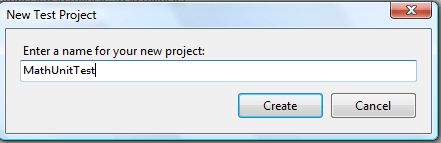

    Enter project name Unit Test project.

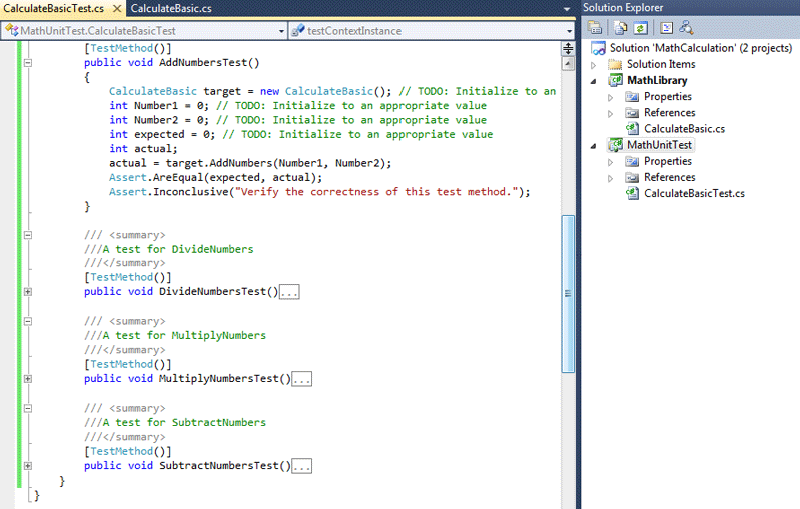

    New project created "MathUnitTest" with class CalculateBasicTest.cs having
    test methods for AddNumbersTest, SubtractNumbersTest, MultiplyNumbersTest and
    DivideNumbersTest as shown below. Remove Assert.Inconclusive statement from each
    method.





    Step 3 : Test Unit Test



    Click on Test Menu and select Run --> All Test in solutions.

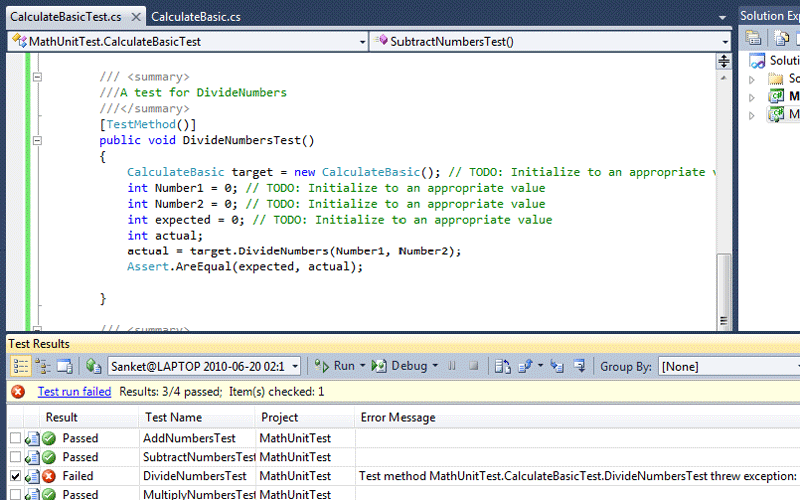

    Here DivideNumbersTest fails because this unit test is trying divide by
    0.

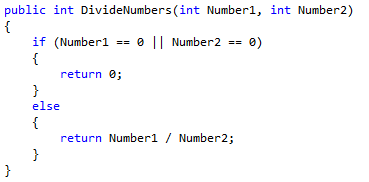

    Change code to handle if 0 value is passed.

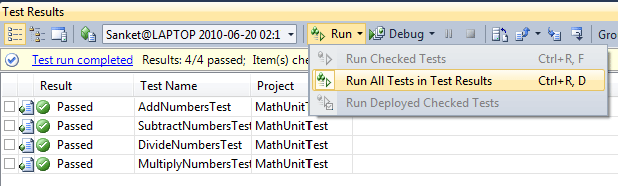

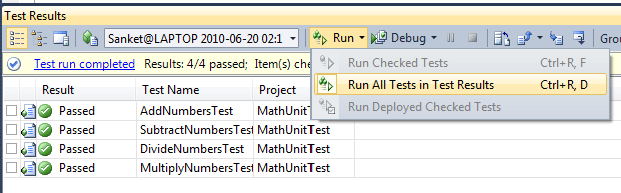

    Again click on Test Menu and select Run --> All Test in solutions. And
    now all tests are passed.






    Step 4: Enable Code Coverage and Test Impact Analysis

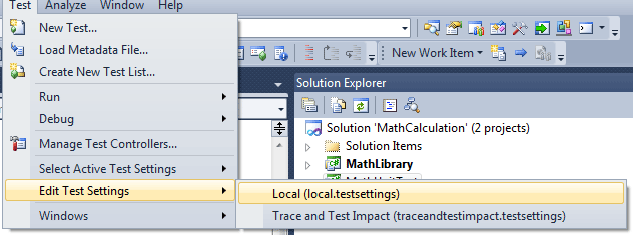

    To enable Code Coverage and Test Impact Analysis, click on Test --> Edit
    Test Settings --> Local (local.testsettings)

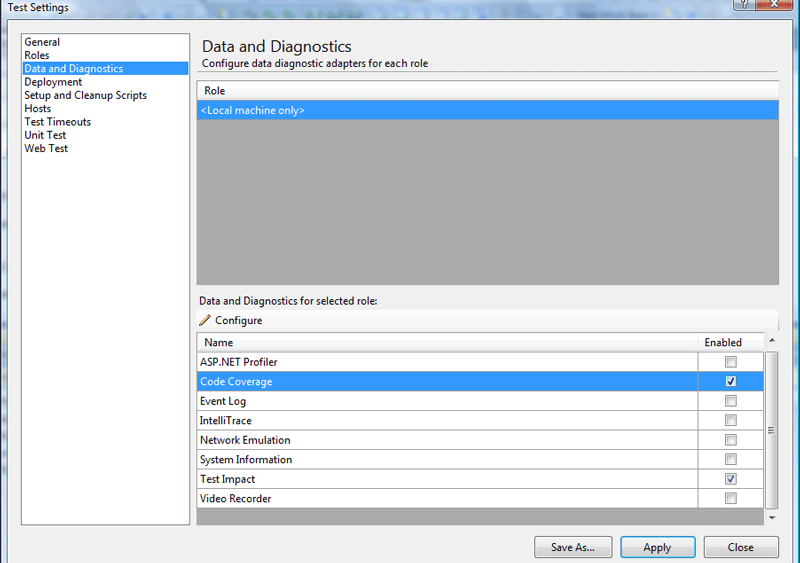

    Test settings windows pops up.



    1. Select Data and Diagnostics on left menu
    2. On Right side bottom screen, select Code Coverage and Test Impact
    3. Select Code Coverage and click Configure

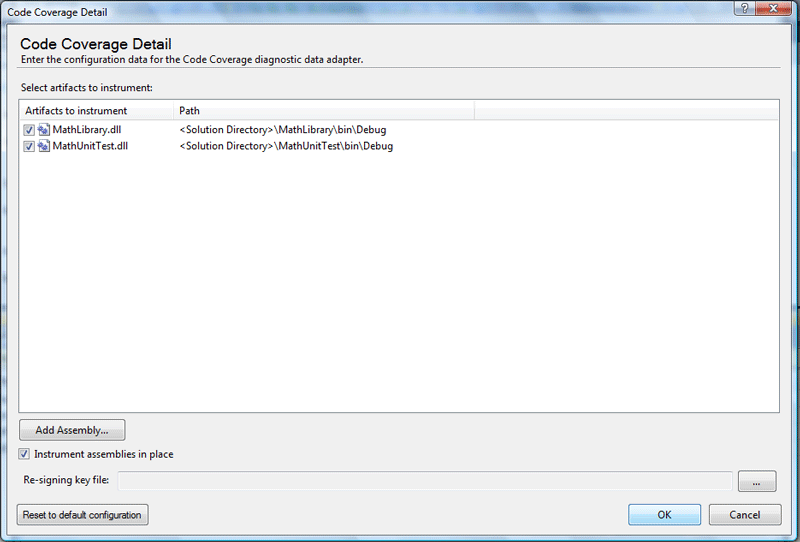

    A new windows pops up. Select assemblies to be included for Code Coverage.
    Here   select both MathLibrary and MathUnitTest. Click OK.






    Step 5: Check Code Coverage



    Now again run all Unit Tests.

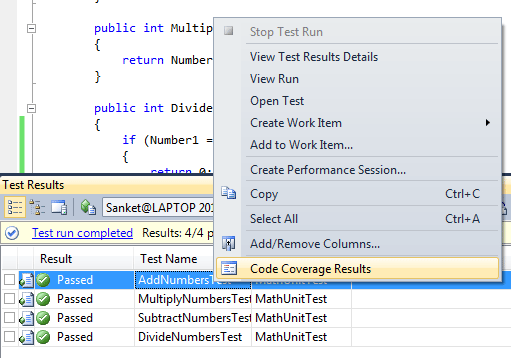

    All result is passed. Right click any test and select Code Coverage
    Results.

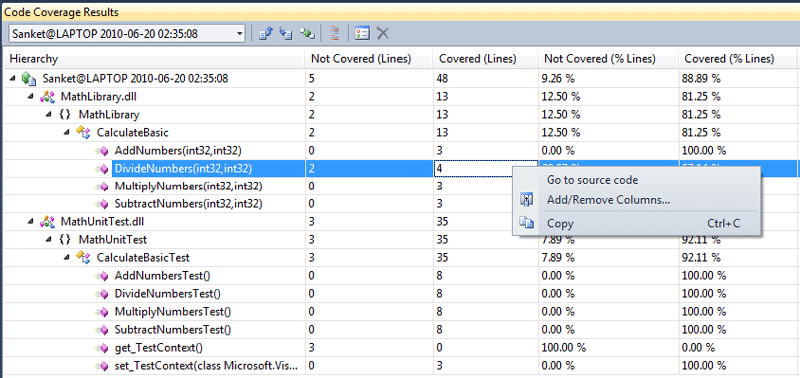

    It shows code coverage in terms Not Covered and Covered lines by Unit
    Tests. Here Add, Subtract and Multiply method Covered Lines = 3 and Not Covered
    lines = 0. This shows that Unit Test covered all code. The Divide method Covered
    Lines = 4 and Not Covered lines = 2. This shows Unit Test has not covered 2
    lines of code. Right Click as show below and click Go to source code.

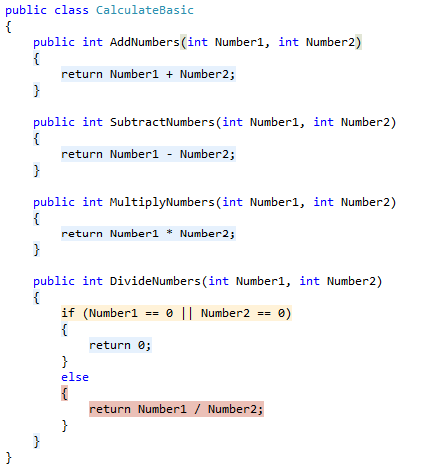

    The source code is divided in to two colors



    1. Code Covered
    2. Code Not Covered




    Step 6: Test Impact Analysis



    The purpose of test impact analysis is to check the impact of any code on
    Unit Test.

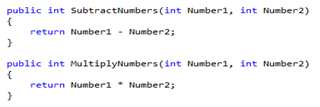

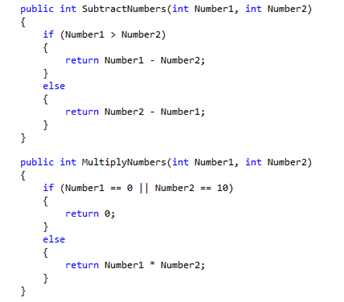

    Change the Subtract and Multiply Numbers method to as shown below.

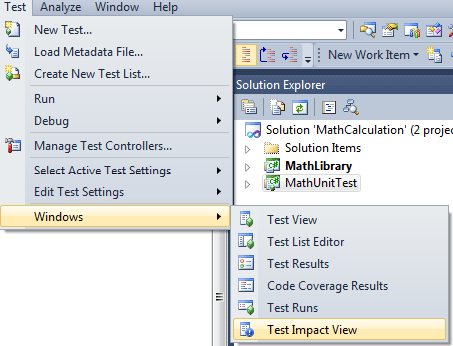

    For Test Impact Analysis, Click on Test --> Windows --> Test Impact
    View

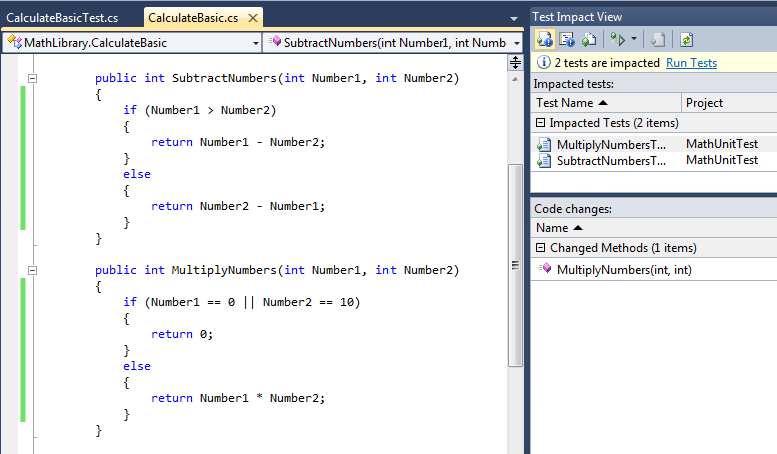

    Build the solution and the Test Impact view window shows the list of
    impacted test.Here is shows Multiply and Subtract Numbers method as we have
    changed earlier.

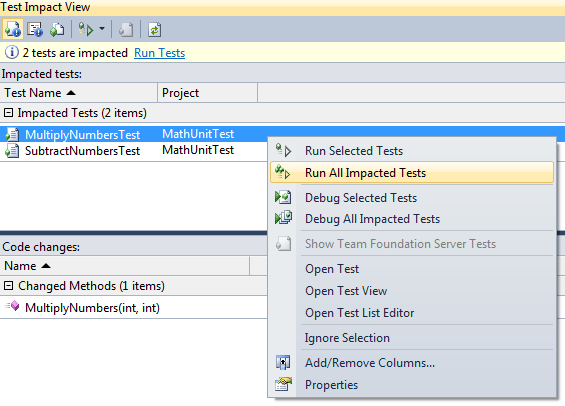

    Right Click Unit Test and select Run All Impacted Tests.





    It shows both impacted test is passed.

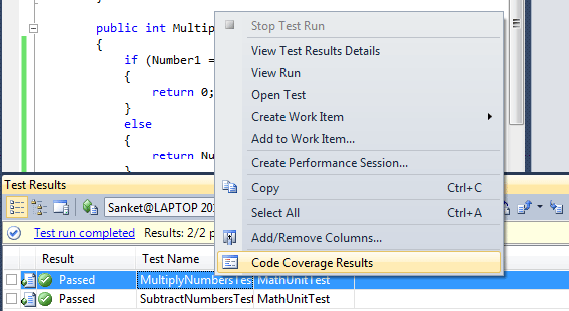

    Again from here you can view the Code Coverage results.



    Conclusion:



    In this article I have tried to explain that by using Unit Testing, Code
    Coverage and Test Impact analysis how we can improve the quality of code.
    Analyzing these things helps during our code review process and also if there is
    any code change we can do the Test impact analysis.
