C/C++ 实现命令行画心形代码 [转载]

绘制一个简易心形

#include <stdio.h>
#include <Windows.h>

int main()
{
    for (float y = 1.5f; y > -1.5f; y -= 0.1f)
    {
        for (float x = -1.5f; x < 1.5f; x += 0.05f)
        {
            float z = x * x + y * y - 1;
            float f = z * z * z - x * x * y * y * y;
            putchar(f <= 0.0f ? ".:-=+*#%@"[(int)(f * -8.0f)] : ' ');
        }

        putchar('\n');
    }

    system("pause");
    return 0;
}

绘制一个精致红心

#include "stdafx.h"
#include <stdio.h>
#include <Windows.h>
#include <math.h>

float f(float x, float y, float z)
{
    float a = x * x + 9.0f / 4.0f * y * y + z * z - 1;

    return a * a * a - x * x * z * z * z - 9.0f / 80.0f * y * y * z * z * z;
}

float h(float x, float z)
{
    for (float y = 1.0f; y >= 0.0f; y -= 0.001f)
    if (f(x, y, z) <= 0.0f)
        return y;

    return 0.0f;
}

int main()
{
    for (float z = 1.5f; z > -1.5f; z -= 0.05f)
    {
        for (float x = -1.5f; x < 1.5f; x += 0.025f)
        {
            float v = f(x, 0.0f, z);
            if (v <= 0.0f)
            {
                float y0 = h(x, z);
                float ny = 0.01f;
                float nx = h(x + ny, z) - y0;
                float nz = h(x, z + ny) - y0;
                float nd = 1.0f / sqrtf(nx * nx + ny * ny + nz * nz);
                float d = (nx + ny - nz) * nd * 0.5f + 0.5f;
                putchar(".:-=+*#%@"[(int)(d * 5.0f)]);
            }
            else
                putchar(' ');
        }
        putchar('\n');
    }

    system("pause");
    return 0;
}

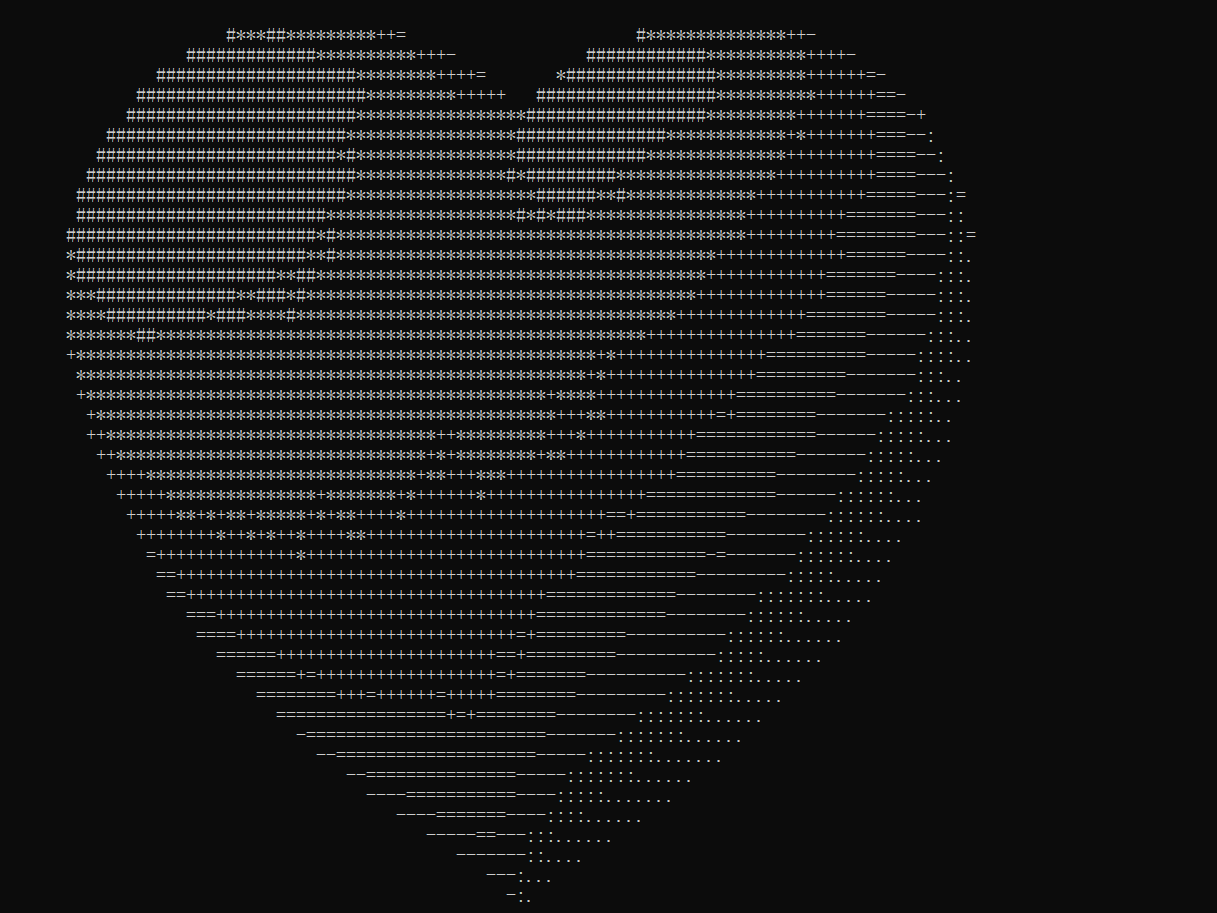

绘制红心并保存到文件

#include "stdafx.h"
#include <stdio.h>
#include <Windows.h>
#include <math.h>

float f(float x, float y, float z)
{
    float a = x * x + 9.0f / 4.0f * y * y + z * z - 1;

    return a * a * a - x * x * z * z * z - 9.0f / 80.0f * y * y * z * z * z;
}

float h(float x, float z)
{
    for (float y = 1.0f; y >= 0.0f; y -= 0.001f)
    if (f(x, y, z) <= 0.0f)
        return y;
    return 0.0f;
}

int main()
{
    FILE* fp = fopen("heart.ppm", "w");
    int sw = 512, sh = 512;
    fprintf(fp, "P3\n%d %d\n255\n", sw, sh);

    for (int sy = 0; sy < sh; sy++)
    {
        float z = 1.5f - sy * 3.0f / sh;
        for (int sx = 0; sx < sw; sx++)
        {
            float x = sx * 3.0f / sw - 1.5f;
            float v = f(x, 0.0f, z);
            int r = 0;
            if (v <= 0.0f)
            {
                float y0 = h(x, z);
                float ny = 0.001f;
                float nx = h(x + ny, z) - y0;
                float nz = h(x, z + ny) - y0;
                float nd = 1.0f / sqrtf(nx * nx + ny * ny + nz * nz);
                float d = (nx + ny - nz) / sqrtf(3) * nd * 0.5f + 0.5f;
                r = (int)(d * 255.0f);
            }

            fprintf(fp, "%d 0 0 ", r);
        }

        fputc('\n', fp);
    }
    fclose(fp);
    system("pause");
}

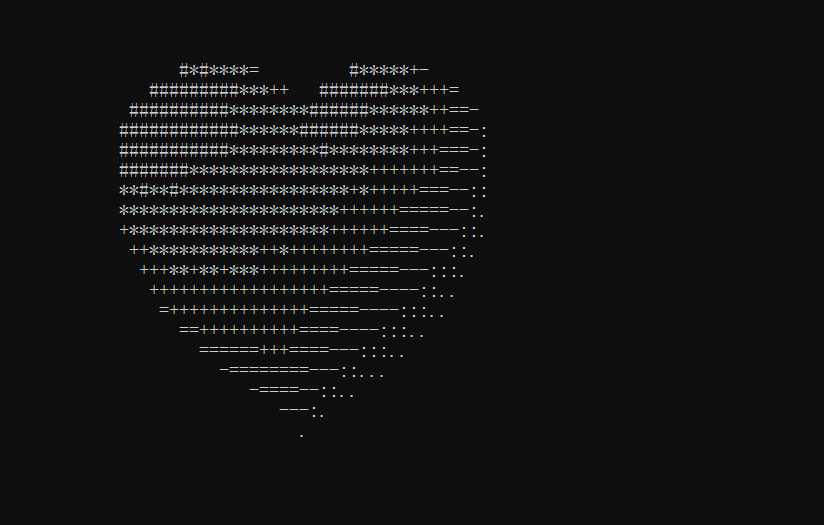

绘制跳动的心脏：注此版本只能在Windows系统下编译运行。

#include "stdafx.h"
#include <stdio.h>
#include <math.h>
#include <windows.h>
#include <tchar.h>

float f(float x, float y, float z)
{
    float a = x * x + 9.0f / 4.0f * y * y + z * z - 1;

    return a * a * a - x * x * z * z * z - 9.0f / 80.0f * y * y * z * z * z;
}

float h(float x, float z)
{
    for (float y = 1.0f; y >= 0.0f; y -= 0.001f)
    if (f(x, y, z) <= 0.0f)
        return y;
    return 0.0f;
}

int main()
{
    HANDLE o = GetStdHandle(STD_OUTPUT_HANDLE);
    _TCHAR buffer[25][80] = { _T(' ') };
    _TCHAR ramp[] = _T(".:-=+*#%@");

    for (float t = 0.0f;; t += 0.1f)
    {
        int sy = 0;
        float s = sinf(t);
        float a = s * s * s * s * 0.2f;
        for (float z = 1.3f; z > -1.2f; z -= 0.1f)
        {
            _TCHAR* p = &buffer[sy++][0];
            float tz = z * (1.2f - a);
            for (float x = -1.5f; x < 1.5f; x += 0.05f)
            {
                float tx = x * (1.2f + a);
                float v = f(tx, 0.0f, tz);
                if (v <= 0.0f)
                {
                    float y0 = h(tx, tz);
                    float ny = 0.01f;
                    float nx = h(tx + ny, tz) - y0;
                    float nz = h(tx, tz + ny) - y0;
                    float nd = 1.0f / sqrtf(nx * nx + ny * ny + nz * nz);
                    float d = (nx + ny - nz) * nd * 0.5f + 0.5f;
                    *p++ = ramp[(int)(d * 5.0f)];
                }
                else
                    *p++ = ' ';
            }
        }


        for (sy = 0; sy < 25; sy++)
        {
            COORD coord = { 0, sy };
            SetConsoleCursorPosition(o, coord);
            WriteConsole(o, buffer[sy], 79, NULL, 0);
        }
        Sleep(33);
    }
}
