SSM整合

文章涉及代码地址：https://gitee.com/ilovemo/ssmbuild

环境要求

环境：

• IDEA
• MySQL 8
• Tomcat 9
• Maven 3.6

要求：

• 需要熟练掌握MySQL数据库，Spring，JavaWeb及MyBatis知识，简单的前端知识；

数据库环境

创建一个存放书籍数据的数据库表

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8;

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

基本环境搭建

1、新建一Maven项目！ssmbuild ， 添加web的支持

2、导入相关的pom依赖！

<dependencies>
    <!--Junit-->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.13</version>
    </dependency>
    <!--数据库驱动-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.20</version>
    </dependency>
    <!-- 数据库连接池 -->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>1.1.22</version>
    </dependency>

    <!--Servlet - JSP -->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>servlet-api</artifactId>
        <version>2.5</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet.jsp</groupId>
        <artifactId>jsp-api</artifactId>
        <version>2.2</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>

    <!--Mybatis-->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.4</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.4</version>
    </dependency>
    <!--ehcache缓存-->
    <dependency>
        <groupId>org.mybatis.caches</groupId>
        <artifactId>mybatis-ehcache</artifactId>
        <version>1.1.0</version>
    </dependency>

    <!--Spring-->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <!--aop-->
    <dependency>
        <groupId>org.aspectj</groupId>
        <artifactId>aspectjweaver</artifactId>
        <version>1.9.5</version>
    </dependency>
    <!--lombok-->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.12</version>
    </dependency>
</dependencies>

3、Maven资源过滤设置

<!--静态资源导出-->
<build>
    <resources>
        <resource>
            <directory>src/main/java</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>false</filtering>
        </resource>
        <resource>
            <directory>src/main/resources</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>false</filtering>
        </resource>
    </resources>
</build>

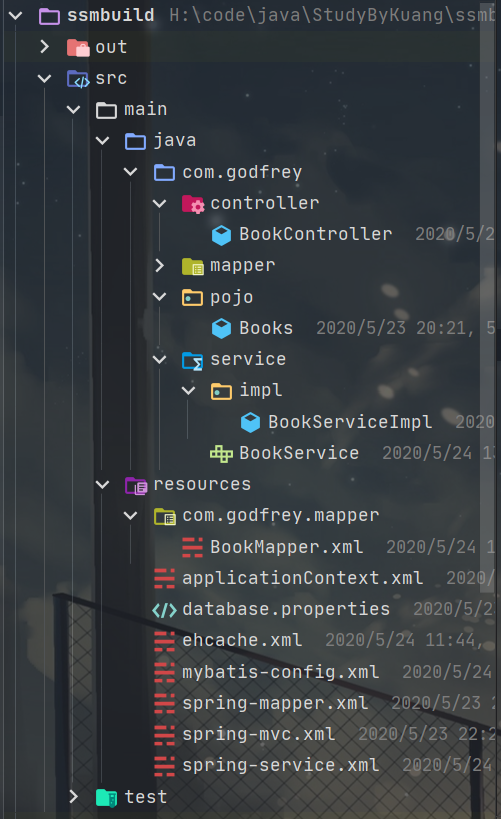

4、建立基本结构和配置框架！

• com.godfrey.pojo

• com.godfrey.mapper

• com.godfrey.service

• com.godfrey.controller

• mybatis-config.xml

  <?xml version="1.0" encoding="UTF-8" ?>
  <!DOCTYPE configuration
         PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
         "http://mybatis.org/dtd/mybatis-3-config.dtd">
  <configuration>

  </configuration>


• applicationContext.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

  </beans>


Mybatis层编写

1、数据库配置文件 database.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=123456

2、IDEA关联数据库

3、编写MyBatis的核心配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <!--开启下划线驼峰自动转换-->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <!--标准日志工厂-->
        <setting name="logImpl" value="STDOUT_LOGGING"/>
        <!--开启全局缓存-->
        <setting name="cacheEnabled" value="true"/>
    </settings>

    <typeAliases>
        <package name="com.godfrey.pojo"/>
    </typeAliases>
    <mappers>
        <mapper resource="com/godfrey/mapper/BookMapper.xml"/>
    </mappers>

</configuration>

4、ehcache缓存

<?xml version="1.0" encoding="UTF-8"?>
<ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNamespaceSchemaLocation="http://ehcache.org/ehcache.xsd"
         updateCheck="false">
    <!--
       diskStore：为缓存路径，ehcache分为内存和磁盘两级，此属性定义磁盘的缓存位置。参数解释如下：
       user.home – 用户主目录
       user.dir – 用户当前工作目录
       java.io.tmpdir – 默认临时文件路径
     -->
    <diskStore path="./tmpdir/Tmp_EhCache"/>

    <defaultCache
            eternal="false"
            maxElementsInMemory="10000"
            overflowToDisk="false"
            diskPersistent="false"
            timeToIdleSeconds="1800"
            timeToLiveSeconds="259200"
            memoryStoreEvictionPolicy="LRU"/>

    <cache
            name="cloud_user"
            eternal="false"
            maxElementsInMemory="5000"
            overflowToDisk="false"
            diskPersistent="false"
            timeToIdleSeconds="1800"
            timeToLiveSeconds="1800"
            memoryStoreEvictionPolicy="LRU"/>
    <!--
       defaultCache：默认缓存策略，当ehcache找不到定义的缓存时，则使用这个缓存策略。只能定义一个。
     -->
    <!--
      name:缓存名称。
      maxElementsInMemory:缓存最大数目
      maxElementsOnDisk：硬盘最大缓存个数。
      eternal:对象是否永久有效，一但设置了，timeout将不起作用。
      overflowToDisk:是否保存到磁盘，当系统当机时
      timeToIdleSeconds:设置对象在失效前的允许闲置时间（单位：秒）。仅当eternal=false对象不是永久有效时使用，可选属性，默认值是0，也就是可闲置时间无穷大。
      timeToLiveSeconds:设置对象在失效前允许存活时间（单位：秒）。最大时间介于创建时间和失效时间之间。仅当eternal=false对象不是永久有效时使用，默认是0.，也就是对象存活时间无穷大。
      diskPersistent：是否缓存虚拟机重启期数据 Whether the disk store persists between restarts of the Virtual Machine. The default value is false.
      diskSpoolBufferSizeMB：这个参数设置DiskStore（磁盘缓存）的缓存区大小。默认是30MB。每个Cache都应该有自己的一个缓冲区。
      diskExpiryThreadIntervalSeconds：磁盘失效线程运行时间间隔，默认是120秒。
      memoryStoreEvictionPolicy：当达到maxElementsInMemory限制时，Ehcache将会根据指定的策略去清理内存。默认策略是LRU（最近最少使用）。你可以设置为FIFO（先进先出）或是LFU（较少使用）。
      clearOnFlush：内存数量最大时是否清除。
      memoryStoreEvictionPolicy:可选策略有：LRU（最近最少使用，默认策略）、FIFO（先进先出）、LFU（最少访问次数）。
      FIFO，first in first out，这个是大家最熟的，先进先出。
      LFU， Less Frequently Used，就是上面例子中使用的策略，直白一点就是讲一直以来最少被使用的。如上面所讲，缓存的元素有一个hit属性，hit值最小的将会被清出缓存。
      LRU，Least Recently Used，最近最少使用的，缓存的元素有一个时间戳，当缓存容量满了，而又需要腾出地方来缓存新的元素的时候，那么现有缓存元素中时间戳离当前时间最远的元素将被清出缓存。
   -->

</ehcache>

5、编写数据库对应的实体类 com.godfrey.pojo.Books

使用lombok插件！

package com.godfrey.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

/**
 * description : 实体类
 *
 * @author godfrey
 * @since 2020-05-23
 */
@Data
@NoArgsConstructor
@AllArgsConstructor
public class Books implements Serializable {
    private static final long serialVersionUID = -52398968511286469L;
    private Integer bookID;
    private String bookName;
    private Integer bookCounts;
    private String detail;
}

6、编写Dao层的 Mapper接口！

package com.godfrey.mapper;

import com.godfrey.pojo.Books;
import org.apache.ibatis.annotations.Param;

import java.util.List;

/**
 * description : BookMapper
 *
 * @author godfrey
 * @since 2020-05-23
 */
public interface BookMapper {

    //增加一个Book
    int addBook(Books book);

    //根据id删除一个Book
    int deleteBookById(@Param("booID") int id);

    //更新Book
    int updateBook(Books books);

    //根据id查询,返回一个Book
    Books queryBookById(@Param("booID") int id);

    //查询全部Book,返回list集合
    List<Books> queryAllBook();

    //根据书名查询书籍
    List<Books> queryBookByName(@Param("bookName") String bookName);
}

7、编写接口对应的 Mapper.xml 文件。需要导入MyBatis的包；

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.godfrey.mapper.BookMapper">

    <!--开启二级缓存-->
    <cache type="org.mybatis.caches.ehcache.EhcacheCache"/>

    <!--增加一个Book-->
    <insert id="addBook" parameterType="Books">
        insert into ssmbuild.books(bookName,bookCounts,detail)
        values (#{bookName}, #{bookCounts}, #{detail});
    </insert>

    <!--根据id删除一个Book-->
    <delete id="deleteBookById" parameterType="int">
        delete from ssmbuild.books where bookID=#{booID};
    </delete>

    <!--更新Book-->
    <update id="updateBook" parameterType="Books">
        update ssmbuild.books
        set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
        where bookID = #{bookID}
   </update>

    <!--根据id查询,返回一个Book-->
    <select id="queryBookById" parameterType="int" resultType="Books">
        select * from ssmbuild.books where bookID = #{booID};
    </select>

    <!--查询全部Book-->
    <select id="queryAllBook" resultType="Books">
        SELECT * from ssmbuild.books;
    </select>

    <!--根据书名查询-->
    <select id="queryBookByName" resultType="Books">
        SELECT * from ssmbuild.books where bookName = #{bookName};
    </select>
</mapper>

8、编写Service层的接口和实现类

接口：

package com.godfrey.service;

import com.godfrey.pojo.Books;

import java.util.List;

/**
 * description : 业务层接口
 *
 * @author godfrey
 * @since 2020-05-23
 */
public interface BookService {
    //增加一个Book
    int addBook(Books book);

    //根据id删除一个Book
    int deleteBookById(int id);

    //更新Book
    int updateBook(Books book);

    //根据id查询,返回一个Book
    Books queryBookById(int id);

    //查询全部Book,返回list集合
    List<Books> queryAllBook();

    //根据书名查询书籍
    List<Books> queryBookByName(String bookName);
}

实现类：

package com.godfrey.service.impl;

import com.godfrey.mapper.BookMapper;
import com.godfrey.pojo.Books;
import com.godfrey.service.BookService;

import java.util.List;

/**
 * description : 业务接口实现类
 *
 * @author godfrey
 * @since 2020-05-23
 */
public class BookServiceImpl implements BookService {

    //调用dao层的操作，设置一个set接口，方便Spring管理
    private BookMapper bookMapper;

    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }

    @Override
    public int addBook(Books book) {
        return bookMapper.addBook(book);
    }

    @Override
    public int deleteBookById(int id) {
        return bookMapper.deleteBookById(id);
    }

    @Override
    public int updateBook(Books book) {
        return bookMapper.updateBook(book);
    }

    @Override
    public Books queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }

    @Override
    public List<Books> queryAllBook() {
        return bookMapper.queryAllBook();
    }

    @Override
    public List<Books> queryBookByName(String bookName) {
        return bookMapper.queryBookByName(bookName);
    }
}

OK，到此，底层需求操作编写完毕！

Spring层

1、配置Spring整合MyBatis，我们这里数据源使用druid连接池；

2、我们去编写Spring整合Mybatis的相关的配置文件；spring-mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd">

    <!--1.关联数据库配置文件-->
    <context:property-placeholder location="classpath:database.properties"/>

    <!--2.连接池-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <!-- ”连接“的基本属性  -->
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />
        <!-- 连接池属性 -->
        <property name="initialSize" value="5" />
        <property name="minIdle" value="5"/>
        <property name="maxActive" value="20" />
        <property name="maxWait" value="60000" />
        <property name="timeBetweenEvictionRunsMillis" value="60000"/>
        <property name="minEvictableIdleTimeMillis" value="300000"/>
        <property name="validationQuery" value="SELECT 1 FROM DUAL"/>
        <property name="testWhileIdle" value="true"/>
        <property name="testOnBorrow" value="false"/>
        <property name="testOnReturn" value="false"/>
        <property name="poolPreparedStatements" value="true"/>
    </bean>

    <!--3.sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--注入数据库连接池-->
        <property name="dataSource" ref="dataSource"/>
        <!--配置MyBaties全局配置文件:mybatis-config.xml-->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!--4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--注入sqlSessionFactory-->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!--扫描mapper包-->
        <property name="basePackage" value="com.godfrey.mapper"/>
    </bean>
</beans>

3、Spring整合service层

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd">

    <!--1.扫描service下的包-->
    <context:component-scan base-package="com.godfrey.service"/>

    <!--2.BookServiceImpl注入到IOC容器中-->
    <bean id="BookServiceImpl" class="com.godfrey.service.impl.BookServiceImpl">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!--3.声明式事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--4.AOP事务支持-->

    <!--结合AOP实现事务的织入-->
    <!--配置事务通知-->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <!--给哪些方法配置事务-->
        <!--配置事务的传播特性-->
        <tx:attributes>
            <tx:method name="*" propagation="REQUIRED"/>
        </tx:attributes>
    </tx:advice>

    <!--配置事务切入-->
    <aop:config>
        <aop:pointcut id="txPointCut" expression="execution(* com.godfrey.mapper.*.*(..))"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="txPointCut"/>
    </aop:config>
</beans>

Spring层搞定！再次理解一下，Spring就是一个大杂烩，一个容器！对吧！

SpringMVC层

1、web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过时时间（分钟）-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>
</web-app>

2、spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc
        https://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd">

    <!--1.开启SpringMVC注解驱动-->
    <mvc:annotation-driven/>

    <!--2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!--3.扫描web相关的bean-->
    <context:component-scan base-package="com.godfrey.controller"/>

    <!--4.配置jsp 显示ViewResolver视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
</beans>

3、Spring配置整合文件，applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="classpath:spring-mapper.xml"/>
    <import resource="classpath:spring-service.xml"/>
    <import resource="classpath:spring-mvc.xml"/>
</beans>

配置文件，暂时结束！Controller 和 视图层编写

1、BookController 类编写 ， 方法一：查询全部书籍

@Controller
@RequestMapping("/book")
public class BookController {

   @Autowired
   @Qualifier("BookServiceImpl")
   private BookService bookService;

    //1.展示所有书籍
    @GetMapping("allBook")
    public String list(Model model) {
        List<Books> list = bookService.queryAllBook();
        model.addAttribute("list", list);
        return "allBook";
    }
}

2、编写首页 index.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>首页</title>
    <style type="text/css">
        a {
            text-decoration: none;
            color: black;
            font-size: 18px;
        }

        h3 {
             180px;
            height: 38px;
            margin: 100px auto;
            text-align: center;
            line-height: 38px;
            background: deepskyblue;
            border-radius: 4px;
        }
    </style>
</head>
<body>
<h3>
    <a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
</h3>
</body>
</html>

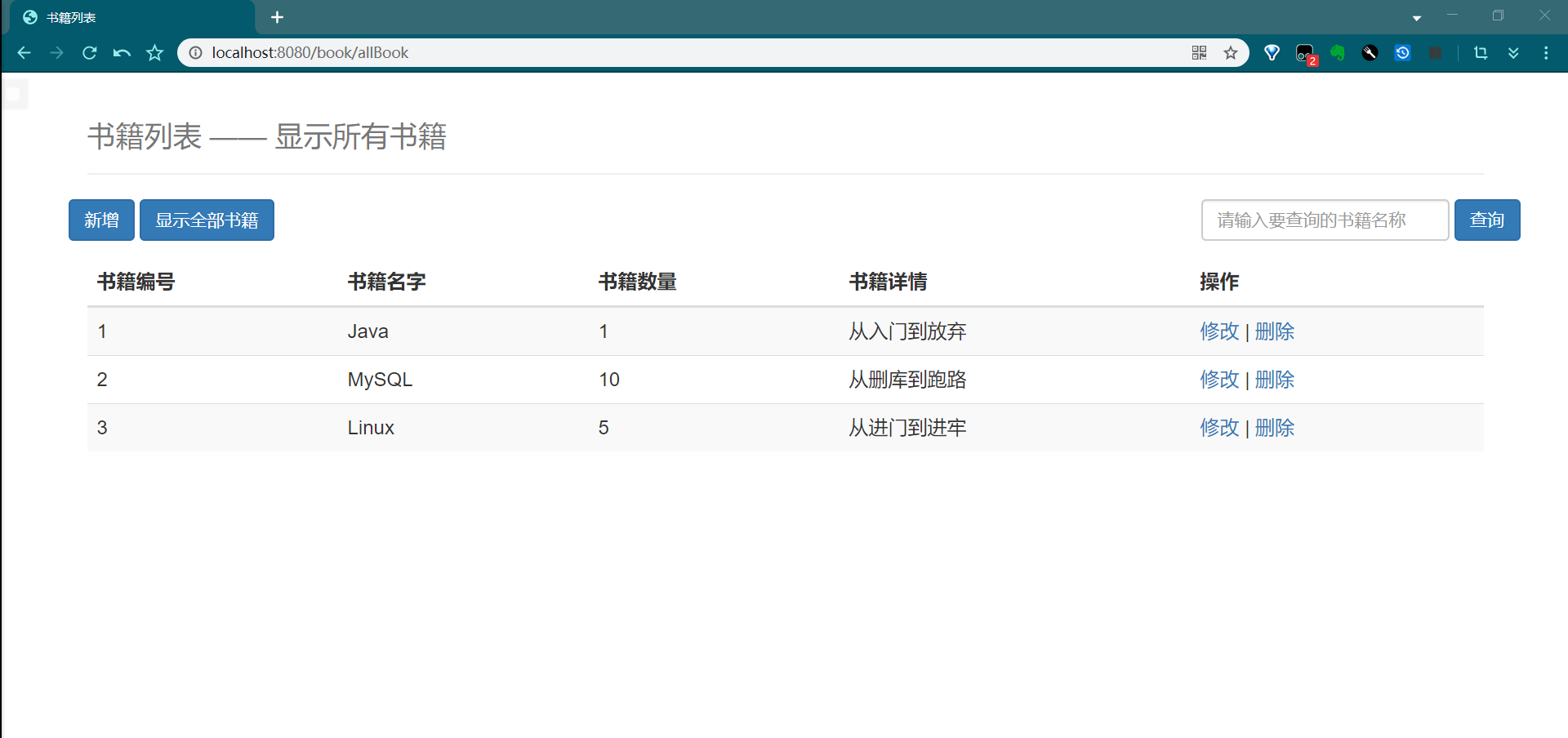

3、书籍列表页面 allbook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>书籍列表</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>

<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>书籍列表 —— 显示所有书籍</small>
                </h1>
            </div>
        </div>


        <div class="row">
            <div class="col-md-4 column">
                <%--新增书籍--%>
                <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
                <%--显示全部书籍--%>
                <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/allBook">显示全部书籍</a>
            </div>

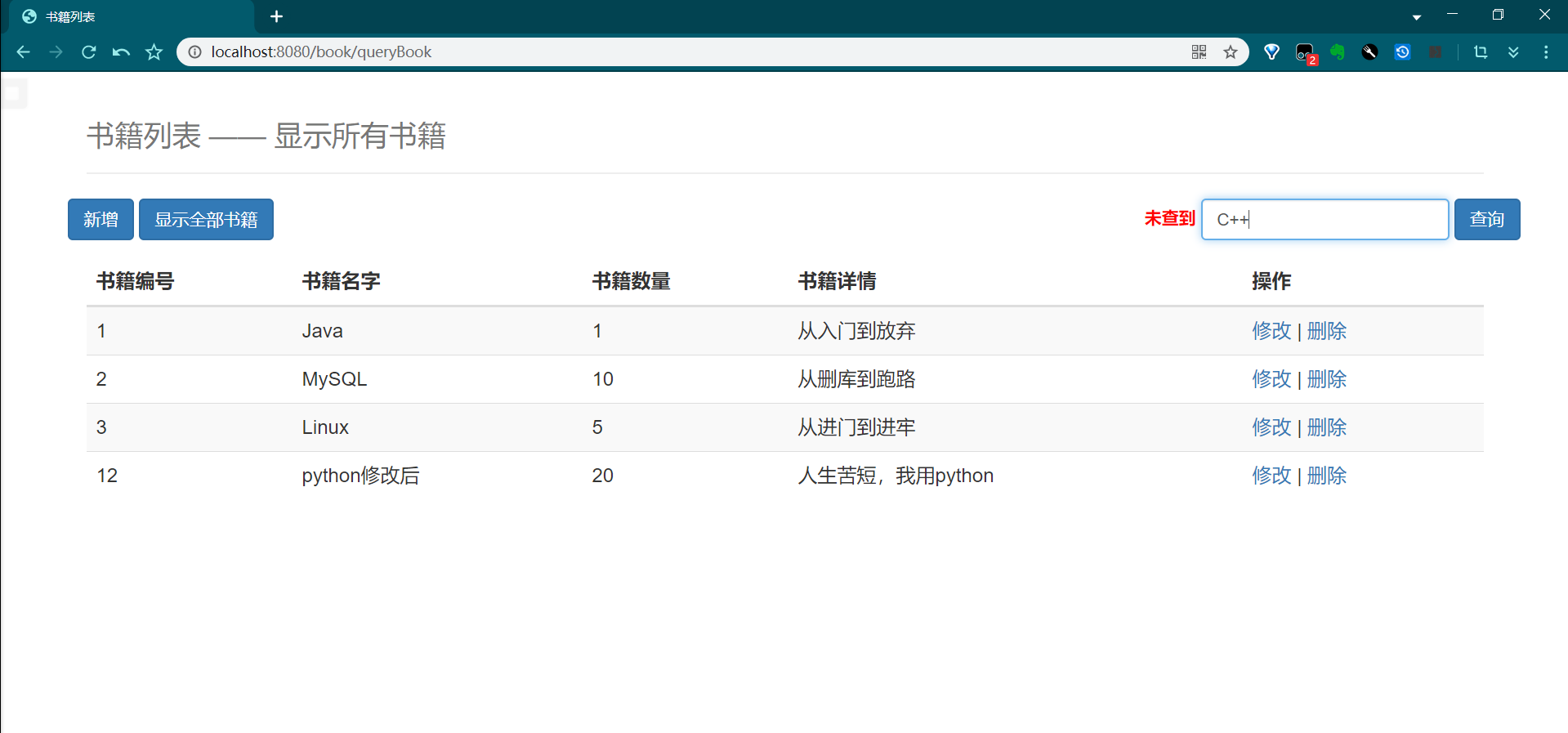

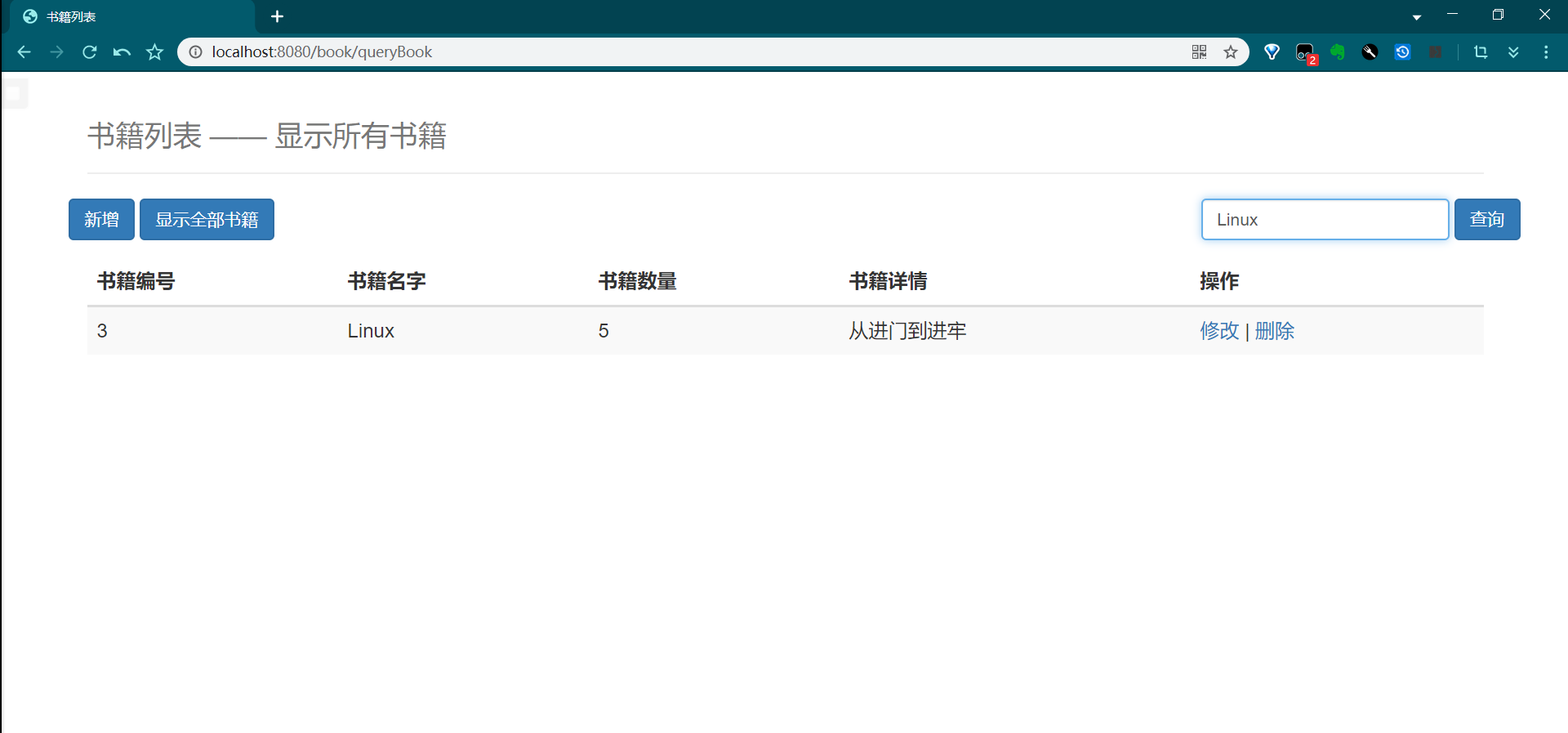

            <div class="form-inline">
                <%--查询书籍--%>
                <form action="${pageContext.request.contextPath}/book/queryBook" method="post" style="float: right">
                    <span style="color:red; font-weight: bold">${error}</span>
                    <input type="text" name="queryBookName" class="form-control" placeholder="请输入要查询的书籍名称">
                    <input type="submit" value="查询" class="btn btn-primary">
                </form>
            </div>
        </div>
    </div>

    <div class="row clearfix">
        <div class="col-md-12 column">
            <table class="table table-hover table-striped">
                <thead>
                <tr>
                    <th>书籍编号</th>
                    <th>书籍名字</th>
                    <th>书籍数量</th>
                    <th>书籍详情</th>
                    <th>操作</th>
                </tr>
                </thead>

                <tbody>
                <c:forEach var="book" items="${requestScope.get('list')}">
                    <tr>
                        <td>${book.getBookID()}</td>
                        <td>${book.getBookName() }</td>
                        <td>${book.getBookCounts()}</td>
                        <td>${book.getDetail()}</td>
                        <td>
                            <a href="${pageContext.request.contextPath}/book/toUpdateBook/${book.getBookID()}">修改</a> |
                            <a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
                        </td>
                    </tr>
                </c:forEach>
                </tbody>
            </table>
        </div>
    </div>
</div>

4、BookController 类编写 ， 方法二：添加书籍

//2.1跳转到添加书籍页面
@GetMapping("toAddBook")
public String toAddPaper() {
    return "addBook";
}
//2.2添加书籍
@PostMapping("addBook")
public String addPaper(Books books) {
    bookService.addBook(books);
    return "redirect:/book/allBook";
}

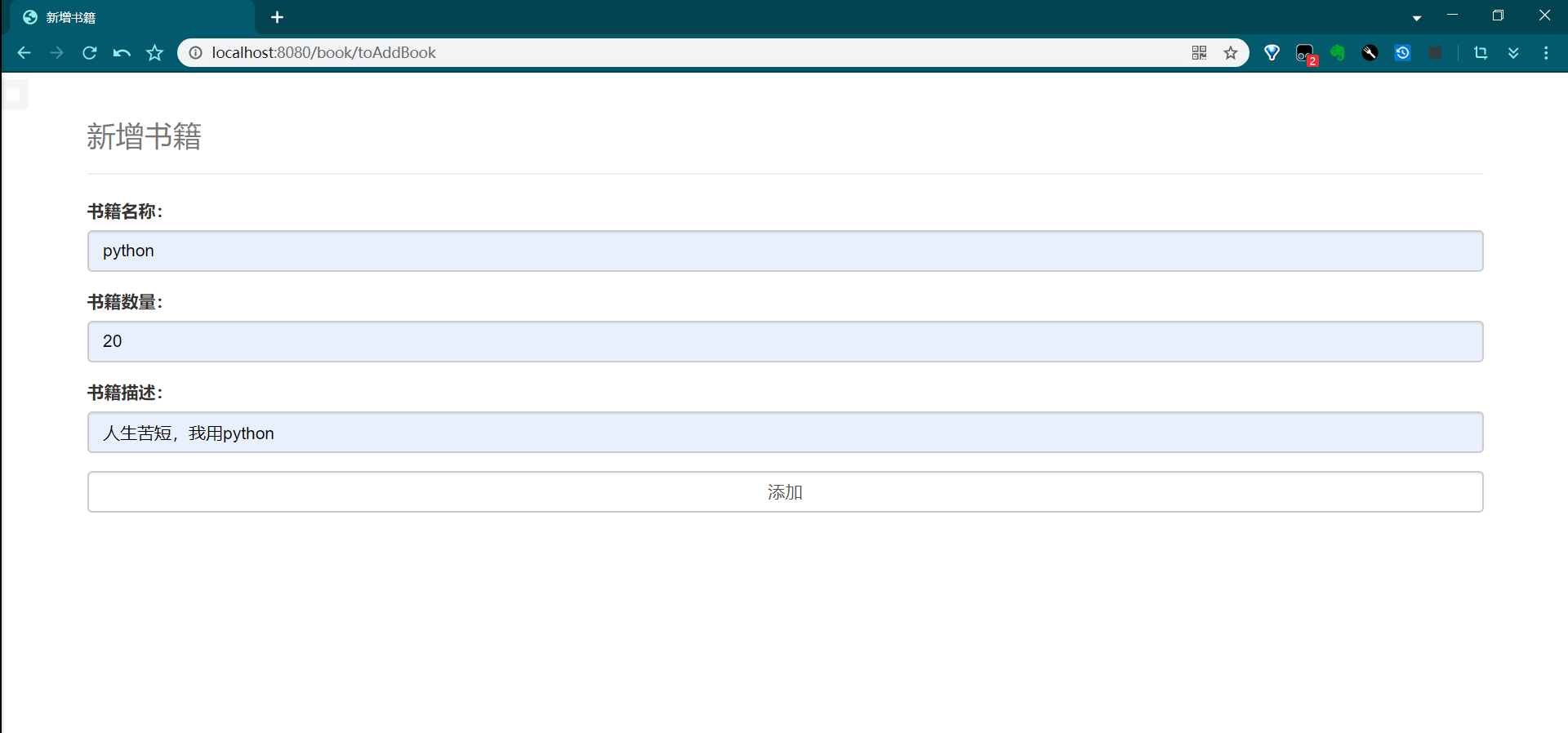

5、添加书籍页面：addBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>
<head>
    <title>新增书籍</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>新增书籍</small>
                </h1>
            </div>
        </div>
    </div>

    <form action="${pageContext.request.contextPath}/book/addBook" method="post">
        <div class="form-group">
            <label>书籍名称：</label>
            <input type="text" name="bookName" class="form-control" required>
        </div>
        <div class="form-group">
            <label>书籍数量：</label>
            <input type="text" name="bookCounts" class="form-control" required>
        </div>
        <div class="form-group">
            <label>书籍描述：</label>
            <input type="text" name="detail" class="form-control" required>
        </div>
        <div class="form-group">
            <input type="submit" class="form-control" value="添加">
        </div>
    </form>

</div>

6、BookController 类编写 ， 方法三：修改书籍

//3.1跳转到修改书籍页面
@GetMapping("toUpdateBook/{bookID}")
public String toUpdateBook(Model model, @PathVariable("bookID") int id) {
    Books books = bookService.queryBookById(id);
    model.addAttribute("book", books);
    return "updateBook";
}
//3.2修改书籍信息
@RequestMapping("updateBook")
public String updateBook(Model model, Books book) {
    bookService.updateBook(book);
    return "redirect:/book/allBook";
}

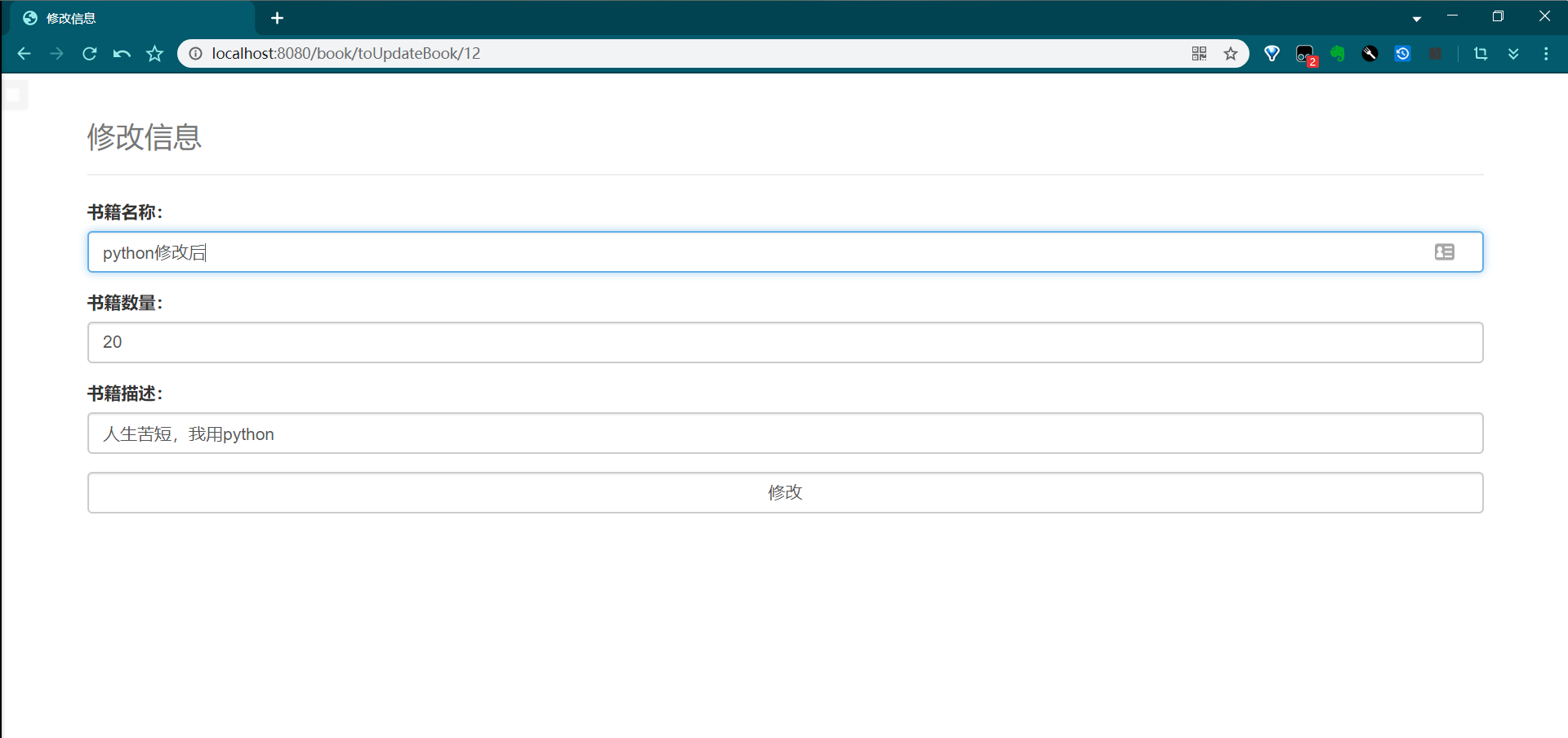

7、修改书籍页面 updateBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>修改信息</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>修改信息</small>
                </h1>
            </div>
        </div>
    </div>

    <form action="${pageContext.request.contextPath}/book/updateBook" method="post">
        <input type="hidden" name="bookID" value="${book.getBookID()}"/>
        <div class="form-group">
            <label>书籍名称：</label>
            <input type="text" name="bookName" class="form-control" value="${book.getBookName()}" required>
        </div>
        <div class="form-group">
            <label>书籍数量：</label>
            <input type="text" name="bookCounts" class="form-control" value="${book.getBookCounts()}" required>
        </div>
        <div class="form-group">
            <label>书籍描述：</label>
            <input type="text" name="detail" class="form-control" value="${book.getDetail()}" required>
        </div>
        <div class="form-group">
            <input type="submit" class="form-control" value="修改">
        </div>
    </form>

</div>

8、BookController 类编写 ， 方法四：删除书籍

//4.删除书籍
@RequestMapping("del/{bookID}")
public String deleteBook(@PathVariable("bookID") int id) {
    bookService.deleteBookById(id);
    return "redirect:/book/allBook";
}

9、BookController 类编写 ， 方法五：搜索书籍

//5.查询书籍
@PostMapping("queryBook")
public String queryBook(Model model, String queryBookName) {
    List<Books> list = bookService.queryBookByName(queryBookName);
    if (list.isEmpty()) {
        list = bookService.queryAllBook();
        model.addAttribute("error","未查到");
    }
    model.addAttribute("list", list);
    return "allBook";
}

配置Tomcat，进行运行！

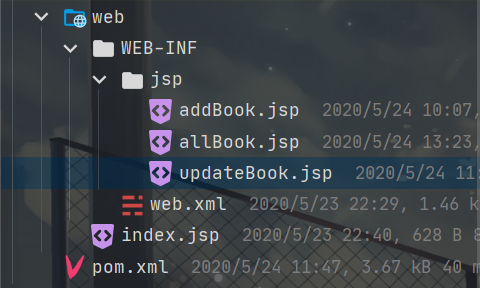

项目结构图

.

.

项目截图
