Kubernetes之基于gitlab的CICD自动化

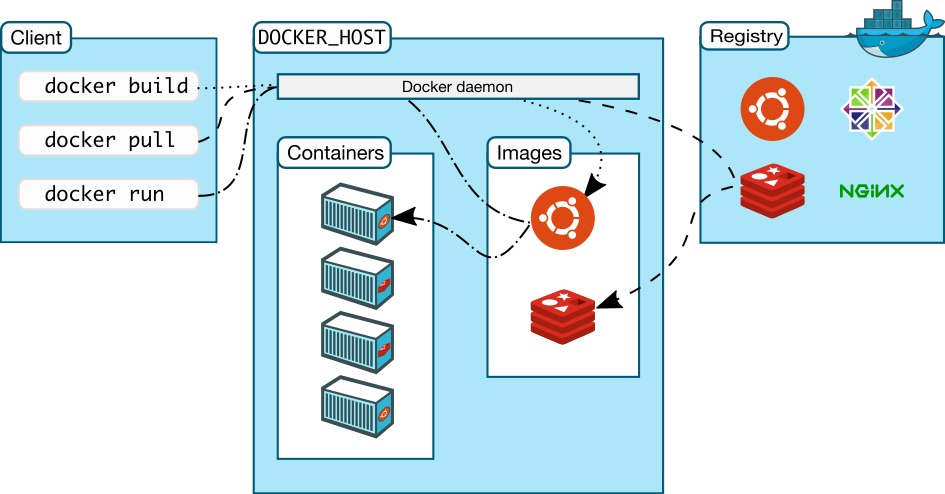

这里我们讲解一下在k8s中基于gitlab的实战部署，生产环境中是根据下面这张图来进行实战的。
我们先来部署gitlab私有代码仓库所需要的数据库postgresql和redis。
需要注意的是，如果大家的nfs-server的地址和挂载目录不是按博哥前面课程讲得来定义的话，那么下面的yaml配置中需要记得替换。
部署postgresql
# ------------------------------------------------
# mkdir -p /nfs_dir/{gitlab_etc_ver130806,gitlab_log_ver130806,gitlab_opt_ver130806,gitlab_postgresql_data_ver130806}
# kubectl create namespace gitlab-ver130806
# kubectl -n gitlab-ver130806 apply -f 3postgres.yaml
# kubectl -n gitlab-ver130806 apply -f 4redis.yaml
# kubectl -n gitlab-ver130806 apply -f 5gitlab.yaml
# kubectl -n gitlab-ver130806 apply -f 6gitlab-tls.yaml
# ------------------------------------------------
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-postgresql-data-ver130806
labels:
type: gitlab-postgresql-data-ver130806
spec:
capacity:
storage: 10Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /nfs_dir/gitlab_postgresql_data_ver130806
server: 10.0.1.201
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-postgresql-data-ver130806-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-postgresql-data-ver130806
---
apiVersion: v1
kind: Service
metadata:
name: postgresql
labels:
app: gitlab
tier: postgreSQL
spec:
ports:
- port: 5432
selector:
app: gitlab
tier: postgreSQL
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: postgresql
labels:
app: gitlab
tier: postgreSQL
spec:
replicas: 1
selector:
matchLabels:
app: gitlab
tier: postgreSQL
strategy:
type: Recreate
template:
metadata:
labels:
app: gitlab
tier: postgreSQL
spec:
#nodeSelector:
# gee/disk: "500g"
containers:
- image: postgres:12.6-alpine
#- image: harbor.boge.com/library/postgres:12.6-alpine
name: postgresql
env:
- name: POSTGRES_USER
value: gitlab
- name: POSTGRES_DB
value: gitlabhq_production
- name: POSTGRES_PASSWORD
value: bogeusepg
- name: TZ
value: Asia/Shanghai
ports:
- containerPort: 5432
name: postgresql
livenessProbe:
exec:
command:
- sh
- -c
- exec pg_isready -U gitlab -h 127.0.0.1 -p 5432 -d gitlabhq_production
initialDelaySeconds: 110
timeoutSeconds: 5
failureThreshold: 6
readinessProbe:
exec:
command:
- sh
- -c
- exec pg_isready -U gitlab -h 127.0.0.1 -p 5432 -d gitlabhq_production
initialDelaySeconds: 20
timeoutSeconds: 3
periodSeconds: 5
# resources:
# requests:
# cpu: 100m
# memory: 512Mi
# limits:
# cpu: "1"
# memory: 1Gi
volumeMounts:
- name: postgresql
mountPath: /var/lib/postgresql/data
volumes:
- name: postgresql
persistentVolumeClaim:
claimName: gitlab-postgresql-data-ver130806-pvc
部署redis
---
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: gitlab
tier: backend
spec:
ports:
- port: 6379
targetPort: 6379
selector:
app: gitlab
tier: backend
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
labels:
app: gitlab
tier: backend
spec:
replicas: 1
selector:
matchLabels:
app: gitlab
tier: backend
strategy:
type: Recreate
template:
metadata:
labels:
app: gitlab
tier: backend
spec:
#nodeSelector:
# gee/disk: "500g"
containers:
- image: redis:6.2.0-alpine3.13
#- image: harbor.boge.com/library/redis:6.2.0-alpine3.13
name: redis
command:
- "redis-server"
args:
- "--requirepass"
- "bogeuseredis"
# resources:
# requests:
# cpu: "1"
# memory: 2Gi
# limits:
# cpu: "1"
# memory: 2Gi
ports:
- containerPort: 6379
name: redis
livenessProbe:
exec:
command:
- sh
- -c
- "redis-cli ping"
initialDelaySeconds: 30
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
readinessProbe:
exec:
command:
- sh
- -c
- "redis-cli ping"
initialDelaySeconds: 5
periodSeconds: 10
timeoutSeconds: 1
successThreshold: 1
failureThreshold: 3
initContainers:
- command:
- /bin/sh
- -c
- |
ulimit -n 65536
mount -o remount rw /sys
echo never > /sys/kernel/mm/transparent_hugepage/enabled
mount -o remount rw /proc/sys
echo 2000 > /proc/sys/net/core/somaxconn
echo 1 > /proc/sys/vm/overcommit_memory
image: registry.cn-beijing.aliyuncs.com/acs/busybox:v1.29.2
imagePullPolicy: IfNotPresent
name: init-redis
resources: {}
securityContext:
privileged: true
procMount: Default
部署gitlab
先定制一下镜像
Dockerfile
FROM gitlab/gitlab-ce:13.8.6-ce.0
RUN rm /etc/apt/sources.list
&& echo 'deb http://apt.postgresql.org/pub/repos/apt/ xenial-pgdg main' > /etc/apt/sources.list.d/pgdg.list
&& wget --quiet -O - https://www.postgresql.org/media/keys/ACCC4CF8.asc | apt-key add -
COPY sources.list /etc/apt/sources.list
RUN apt-get update -yq &&
apt-get install -y vim iproute2 net-tools iputils-ping curl wget software-properties-common unzip postgresql-client-12 &&
rm -rf /var/cache/apt/archives/*
RUN ln -svf /usr/bin/pg_dump /opt/gitlab/embedded/bin/pg_dump
#---------------------------------------------------------------
# docker build -t gitlab/gitlab-ce:13.8.6-ce.1 .
sources.list
deb http://mirrors.aliyun.com/ubuntu/ xenial main
deb-src http://mirrors.aliyun.com/ubuntu/ xenial main
deb http://mirrors.aliyun.com/ubuntu/ xenial-updates main
deb-src http://mirrors.aliyun.com/ubuntu/ xenial-updates main
deb http://mirrors.aliyun.com/ubuntu/ xenial universe
deb-src http://mirrors.aliyun.com/ubuntu/ xenial universe
deb http://mirrors.aliyun.com/ubuntu/ xenial-updates universe
deb-src http://mirrors.aliyun.com/ubuntu/ xenial-updates universe
deb http://mirrors.aliyun.com/ubuntu xenial-security main
deb-src http://mirrors.aliyun.com/ubuntu xenial-security main
deb http://mirrors.aliyun.com/ubuntu xenial-security universe
deb-src http://mirrors.aliyun.com/ubuntu xenial-security universe
开始部署
# restore gitlab data command example:
# kubectl -n gitlab-ver130806 exec -it $(kubectl -n gitlab-ver130806 get pod|grep -v runner|grep gitlab|awk '{print $1}') -- gitlab-rake gitlab:backup:restore BACKUP=1602889879_2020_10_17_12.9.2
# kubectl -n gitlab-ver130806 exec -it $(kubectl -n gitlab-ver130806 get pod|grep -v runner|grep gitlab|awk '{print $1}') -- gitlab-ctl reconfigure
# kubectl -n gitlab-ver130806 exec -it $(kubectl -n gitlab-ver130806 get pod|grep -v runner|grep gitlab|awk '{print $1}') -- gitlab-ctl status
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-etc-ver130806
labels:
type: gitlab-etc-ver130806
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /nfs_dir/gitlab_etc_ver130806
server: 10.0.1.201
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-etc-ver130806-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-etc-ver130806
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-log-ver130806
labels:
type: gitlab-log-ver130806
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /nfs_dir/gitlab_log_ver130806
server: 10.0.1.201
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-log-ver130806-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-log-ver130806
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-opt-ver130806
labels:
type: gitlab-opt-ver130806
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /nfs_dir/gitlab_opt_ver130806
server: 10.0.1.201
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-opt-ver130806-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-opt-ver130806
---
apiVersion: v1
kind: Service
metadata:
name: gitlab
labels:
app: gitlab
tier: frontend
spec:
ports:
- name: gitlab-ui
port: 80
protocol: TCP
targetPort: 80
- name: gitlab-ssh
port: 22
protocol: TCP
targetPort: 22
selector:
app: gitlab
tier: frontend
type: NodePort
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: gitlab
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: gitlab-cb-ver130806
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: gitlab
namespace: gitlab-ver130806
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: gitlab
labels:
app: gitlab
tier: frontend
spec:
replicas: 1
selector:
matchLabels:
app: gitlab
tier: frontend
strategy:
type: Recreate
template:
metadata:
labels:
app: gitlab
tier: frontend
spec:
serviceAccountName: gitlab
containers:
- image: harbor.boge.com/library/gitlab-ce:13.8.6-ce.1
name: gitlab
# resources:
# requests:
# cpu: 400m
# memory: 4Gi
# limits:
# cpu: "800m"
# memory: 8Gi
securityContext:
privileged: true
env:
- name: TZ
value: Asia/Shanghai
- name: GITLAB_OMNIBUS_CONFIG
value: |
postgresql['enable'] = false
gitlab_rails['db_username'] = "gitlab"
gitlab_rails['db_password'] = "bogeusepg"
gitlab_rails['db_host'] = "postgresql"
gitlab_rails['db_port'] = "5432"
gitlab_rails['db_database'] = "gitlabhq_production"
gitlab_rails['db_adapter'] = 'postgresql'
gitlab_rails['db_encoding'] = 'utf8'
redis['enable'] = false
gitlab_rails['redis_host'] = 'redis'
gitlab_rails['redis_port'] = '6379'
gitlab_rails['redis_password'] = 'bogeuseredis'
gitlab_rails['gitlab_shell_ssh_port'] = 22
external_url 'http://git.boge.com/'
nginx['listen_port'] = 80
nginx['listen_https'] = false
#-------------------------------------------
gitlab_rails['gitlab_email_enabled'] = true
gitlab_rails['gitlab_email_from'] = 'admin@boge.com'
gitlab_rails['gitlab_email_display_name'] = 'boge'
gitlab_rails['gitlab_email_reply_to'] = 'gitlab@boge.com'
gitlab_rails['gitlab_default_can_create_group'] = true
gitlab_rails['gitlab_username_changing_enabled'] = true
gitlab_rails['smtp_enable'] = true
gitlab_rails['smtp_address'] = "smtp.exmail.qq.com"
gitlab_rails['smtp_port'] = 465
gitlab_rails['smtp_user_name'] = "gitlab@boge.com"
gitlab_rails['smtp_password'] = "bogesendmail"
gitlab_rails['smtp_domain'] = "exmail.qq.com"
gitlab_rails['smtp_authentication'] = "login"
gitlab_rails['smtp_enable_starttls_auto'] = true
gitlab_rails['smtp_tls'] = true
#-------------------------------------------
# 关闭 promethues
prometheus['enable'] = false
# 关闭 grafana
grafana['enable'] = false
# 减少内存占用
unicorn['worker_memory_limit_min'] = "200 * 1 << 20"
unicorn['worker_memory_limit_max'] = "300 * 1 << 20"
# 减少 sidekiq 的并发数
sidekiq['concurrency'] = 16
# 减少 postgresql 数据库缓存
postgresql['shared_buffers'] = "256MB"
# 减少 postgresql 数据库并发数量
postgresql['max_connections'] = 8
# 减少进程数 worker=CPU核数+1
unicorn['worker_processes'] = 2
nginx['worker_processes'] = 2
puma['worker_processes'] = 2
# puma['per_worker_max_memory_mb'] = 850
# 保留3天备份的数据文件
gitlab_rails['backup_keep_time'] = 259200
#-------------------------------------------
ports:
- containerPort: 80
name: gitlab
livenessProbe:
exec:
command:
- sh
- -c
- "curl -s http://127.0.0.1/-/health|grep -w 'GitLab OK'"
initialDelaySeconds: 120
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
readinessProbe:
exec:
command:
- sh
- -c
- "curl -s http://127.0.0.1/-/health|grep -w 'GitLab OK'"
initialDelaySeconds: 120
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
volumeMounts:
- mountPath: /etc/gitlab
name: gitlab1
- mountPath: /var/log/gitlab
name: gitlab2
- mountPath: /var/opt/gitlab
name: gitlab3
- mountPath: /etc/localtime
name: tz-config
volumes:
- name: gitlab1
persistentVolumeClaim:
claimName: gitlab-etc-ver130806-pvc
- name: gitlab2
persistentVolumeClaim:
claimName: gitlab-log-ver130806-pvc
- name: gitlab3
persistentVolumeClaim:
claimName: gitlab-opt-ver130806-pvc
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
securityContext:
runAsUser: 0
fsGroup: 0
部署gitlab-tls
# old version
#apiVersion: extensions/v1beta1
#kind: Ingress
#metadata:
# name: gitlab
# annotations:
# nginx.ingress.kubernetes.io/force-ssl-redirect: "true"
# nginx.ingress.kubernetes.io/proxy-body-size: "20m"
#spec:
# tls:
# - hosts:
# - git.boge.com
# secretName: mytls
# rules:
# - host: git.boge.com
# http:
# paths:
# - path: /
# backend:
# serviceName: gitlab
# servicePort: 80
# Add tls
# openssl genrsa -out tls.key 2048
# openssl req -new -x509 -key tls.key -out tls.cert -days 360 -subj /CN=*.boge.com
# kubectl -n gitlab-ver130806 create secret tls mytls --cert=tls.cert --key=tls.key
# new version
## https://kubernetes.io/docs/concepts/services-networking/ingress/
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: gitlab
annotations:
nginx.ingress.kubernetes.io/force-ssl-redirect: "false"
nginx.ingress.kubernetes.io/proxy-body-size: "20m"
spec:
tls:
- hosts:
- git.boge.com
secretName: mytls
rules:
- host: git.boge.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: gitlab
port:
number: 80
---
这节课我们来讲gitlab里面的runner，gitlab的CI/CD自动化，都是由gitlab下发指令，依靠runner这个组件去执行的，我们这里也是把runner运行在k8s上面。
runner按字面意思就是奔跑者的意思，它在整个自动化流程里面的角色也相当于一个外卖小哥，它接收gitlab下发的自动化指令，来去做相应的操作，从而实现整个CI/CD的效果。
部署gitlab-runner
docker
# mkdir -p /nfs_dir/{gitlab-runner1-ver130806-docker,gitlab-runner2-ver130806-share}
# gitlab-ci-multi-runner register
# Active √ Paused Runners don't accept new jobs
# Protected This runner will only run on pipelines triggered on protected branches
# Run untagged jobs Indicates whether this runner can pick jobs without tags
# Lock to current projects When a runner is locked, it cannot be assigned to other projects
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-runner1-ver130806-docker
labels:
type: gitlab-runner1-ver130806-docker
spec:
capacity:
storage: 0.1Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /nfs_dir/gitlab-runner1-ver130806-docker
server: 10.0.1.201
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-runner1-ver130806-docker
namespace: gitlab-ver130806
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 0.1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-runner1-ver130806-docker
---
# https://docs.gitlab.com/runner/executors
#concurrent = 30
#check_interval = 0
#[session_server]
# session_timeout = 1800
#[[runners]]
# name = "gitlab-runner1-ver130806-docker"
# url = "http://git.boge.com"
# token = "xxxxxxxxxxxxxxxxxxxxxx"
# executor = "kubernetes"
# [runners.kubernetes]
# namespace = "gitlab-ver130806"
# image = "docker:stable"
# helper_image = "gitlab/gitlab-runner-helper:x86_64-9fc34d48-pwsh"
# privileged = true
# [[runners.kubernetes.volumes.pvc]]
# name = "gitlab-runner1-ver130806-docker"
# mount_path = "/mnt"
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: gitlab-runner1-ver130806-docker
namespace: gitlab-ver130806
spec:
replicas: 1
selector:
matchLabels:
name: gitlab-runner1-ver130806-docker
template:
metadata:
labels:
name: gitlab-runner1-ver130806-docker
spec:
hostAliases:
- ip: "10.68.140.109"
hostnames:
- "git.boge.com"
serviceAccountName: gitlab
containers:
- args:
- run
image: gitlab/gitlab-runner:v13.10.0
name: gitlab-runner1-ver130806-docker
volumeMounts:
- mountPath: /etc/gitlab-runner
name: config
- mountPath: /etc/ssl/certs
name: cacerts
readOnly: true
restartPolicy: Always
volumes:
- persistentVolumeClaim:
claimName: gitlab-runner1-ver130806-docker
name: config
- hostPath:
path: /usr/share/ca-certificates/mozilla
name: cacerts
share
# gitlab-ci-multi-runner register
# Active √ Paused Runners don't accept new jobs
# Protected This runner will only run on pipelines triggered on protected branches
# Run untagged jobs √ Indicates whether this runner can pick jobs without tags
# Lock to current projects When a runner is locked, it cannot be assigned to other projects
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-runner2-ver130806-share
labels:
type: gitlab-runner2-ver130806-share
spec:
capacity:
storage: 0.1Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /nfs_dir/gitlab-runner2-ver130806-share
server: 10.0.1.201
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-runner2-ver130806-share
namespace: gitlab-ver130806
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 0.1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-runner2-ver130806-share
---
# https://docs.gitlab.com/runner/executors
#concurrent = 30
#check_interval = 0
#[session_server]
# session_timeout = 1800
#[[runners]]
# name = "gitlab-runner2-ver130806-share"
# url = "http://git.boge.com"
# token = "xxxxxxxxxxxxxxxx"
# executor = "kubernetes"
# [runners.kubernetes]
# namespace = "gitlab-ver130806"
# image = "registry.cn-beijing.aliyuncs.com/acs/busybox/busybox:v1.29.2"
# helper_image = "gitlab/gitlab-runner-helper:x86_64-9fc34d48-pwsh"
# privileged = false
# [[runners.kubernetes.volumes.pvc]]
# name = "gitlab-runner2-v1230-share"
# mount_path = "/mnt"
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: gitlab-runner2-ver130806-share
namespace: gitlab-ver130806
spec:
replicas: 1
selector:
matchLabels:
name: gitlab-runner2-ver130806-share
template:
metadata:
labels:
name: gitlab-runner2-ver130806-share
spec:
hostAliases:
- ip: "10.68.140.109"
hostnames:
- "git.boge.com"
serviceAccountName: gitlab
containers:
- args:
- run
image: gitlab/gitlab-runner:v13.10.0
name: gitlab-runner2-ver130806-share
volumeMounts:
- mountPath: /etc/gitlab-runner
name: config
- mountPath: /etc/ssl/certs
name: cacerts
readOnly: true
restartPolicy: Always
volumes:
- persistentVolumeClaim:
claimName: gitlab-runner2-ver130806-share
name: config
- hostPath:
path: /usr/share/ca-certificates/mozilla
name: cacerts
增加gitlab在k8s的内部解析
为什么这么做呢，博哥这里总结了两点原因：
- 优化gitlab网络通信，对于runner要调用gitlab服务来说，直接走内部地址速度更快
- 如果是在用阿里云的同学，采用在k8s上部署gitlab的话，那么k8s内部服务比如runner是不能通过同集群前面的公网入口SLB来请求访问的，这里阿里云自身网络架构原因，这个时候我们只需要做如下配置即可完美解决
# kubectl -n kube-system get configmaps coredns -o yaml
apiVersion: v1
data:
Corefile: |
.:53 {
errors
health
ready
log
rewrite stop {
name regex git.boge.com gitlab.gitlab-ver130806.svc.cluster.local
answer name gitlab.gitlab-ver130806.svc.cluster.local git.boge.com
}
kubernetes cluster.local in-addr.arpa ip6.arpa {
pods verified
fallthrough in-addr.arpa ip6.arpa
}
autopath @kubernetes
prometheus :9153
forward . /etc/resolv.conf
cache 30
loop
reload
loadbalance
}
kind: ConfigMap
metadata:
name: coredns
namespace: kube-system
增加ssh端口转发
我们要保持所有开发人员能使用默认的22端口来通过ssh拉取代码，那么就需要做如下端口转发配置
# 注意配置此转发前，需要将对应NODE的本身ssh连接端口作一下修改，以防后面登陆不了该机器
iptables -t nat -A PREROUTING -d 10.0.1.204 -p tcp --dport 22 -j DNAT --to-destination 10.0.1.204:31755
#↑ 删除上面创建的这一条规则，将-A换成-D即可
iptables -t nat -nvL PREROUTING
接着我们找一台机器，这里我们选取10.0.1.201这台机器，加一条本地hosts 10.0.1.204 git.boge.com，来试下推送gitlab代码仓库有无问题，详细操作见本节同名视频课程，希望大家能对着视频自己动手操作一遍，理解上面这些配置的含义，后面可以举一反三，在k8s的其他服务也可以这么来做，达到访问更优的效果。
部署dind(docker in docker)
大家好，我是博哥爱运维。我们现在在k8s来部署dind服务，提供整个CI（持续集成）的功能。
我们看看docker version列出的结果 Docker采取的是C/S架构 Docker进程默认不监听任何端口，它会生成一个socket（/var/run/docker.sock）文件来进行本地进程通信 Docker C/S 之间采取Rest API作为通信协议，我们可以让Docker daemon进程监听一个端口，这就为我们用docker client调用远程调用docker daemon进程执行镜像构建提供了可行性
docker in docker
# dind pip instll staus : kill -9 code 137(128+9) ,may be limits(cpu,memory) resources need change
# only have docker client ,use dind can be use normal
#dindSvc=$(kubectl -n kube-system get svc dind |awk 'NR==2{print $3}')
#export DOCKER_HOST="tcp://${dindSvc}:2375/"
#export DOCKER_DRIVER=overlay2
#export DOCKER_TLS_CERTDIR=""
---
# SVC
kind: Service
apiVersion: v1
metadata:
name: dind
namespace: kube-system
spec:
selector:
app: dind
ports:
- name: tcp-port
port: 2375
protocol: TCP
targetPort: 2375
---
# Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: dind
namespace: kube-system
labels:
app: dind
spec:
replicas: 1
selector:
matchLabels:
app: dind
template:
metadata:
labels:
app: dind
spec:
hostNetwork: true
containers:
- name: dind
#image: docker:19-dind
image: harbor.boge.com/library/docker:19-dind
lifecycle:
postStart:
exec:
command: ["/bin/sh", "-c", "docker login harbor.boge.com -u 'admin' -p 'boge666'"]
# 3. when delete this pod , use this keep kube-proxy to flush role done
preStop:
exec:
command: ["/bin/sh", "-c", "sleep 5"]
ports:
- containerPort: 2375
# resources:
# requests:
# cpu: 200m
# memory: 256Mi
# limits:
# cpu: 0.5
# memory: 1Gi
readinessProbe:
tcpSocket:
port: 2375
initialDelaySeconds: 10
periodSeconds: 30
livenessProbe:
tcpSocket:
port: 2375
initialDelaySeconds: 10
periodSeconds: 30
securityContext:
privileged: true
env:
- name: DOCKER_HOST
value: tcp://localhost:2375
- name: DOCKER_DRIVER
value: overlay2
- name: DOCKER_TLS_CERTDIR
value: ''
volumeMounts:
- name: docker-graph-storage
mountPath: /var/lib/docker
- name: tz-config
mountPath: /etc/localtime
# kubectl -n kube-system create secret generic harbor-ca --from-file=harbor-ca=/data/harbor/ssl/tls.cert
- name: harbor-ca
mountPath: /etc/docker/certs.d/harbor.boge.com/ca.crt
subPath: harbor-ca
# kubectl create secret docker-registry boge-secret --docker-server=harbor.boge.com --docker-username=admin --docker-password=boge666 --docker-email=admin@boge.com
hostAliases:
- hostnames:
- harbor.boge.com
ip: 10.0.1.204
imagePullSecrets:
- name: bogeharbor
volumes:
# - emptyDir:
# medium: ""
# sizeLimit: 10Gi
- hostPath:
path: /var/lib/container/docker
name: docker-graph-storage
- hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
name: tz-config
- name: harbor-ca
secret:
secretName: harbor-ca
defaultMode: 0600
#
# kubectl taint node 10.0.1.201 Ingress=:NoExecute
# kubectl describe node 10.0.1.201 |grep -i taint
# kubectl taint node 10.0.1.201 Ingress:NoExecute-
nodeSelector:
kubernetes.io/hostname: "10.0.1.201"
tolerations:
- operator: Exists
CI/CD生产实战项目
大家好，我是博哥爱运维。这节课我们开始最终CI/CD自动化流程实战，终于要到打大BOSS大结局了，博哥自从2021年3月1日开始分享这套K8S架构师课程以来，坚持每天整理文档录制视频，一直坚持到今天，在这期间，博哥认识了不少喜欢K8S的朋友，也收到了很多朋友的鼓励和建议，这对博哥都是宝贵的财富。有些人可能会想，在现如今这个社会，免费的东西还存在嘛？免费的东西就是最贵的东西，诚然，这些博哥也认同，但也不能排除网上也有很多热爱技术，执着分享的人，像国内外很多大牛开源出来很多优化的代码项目，像优秀的操作系统LINUX，像谷歌开源的这套K8S系统等等，博哥虽然做不到这么优秀，但也想把自己工作中的一些踩坑经验积累分享给大家，要说私心嘛，就是博哥想锻炼下自己的讲课经验，拓宽下自己的职业发展路线，但这个和我分享给大家的内容不相冲突，反而我认为它们是有利的，相辅相成的，博哥分享的所有东西都是实实在在工作中拿下来的生产经验，再精心整理来作分享。
大家一定要仔细观看，多多操作，把整个流程都掌握透彻。这里我会采用目前企业较常见的编程语言python的flask模块来实施完整的项目自动化流程步骤，其他语言都可以参照这个项目来实施自动化流程。
先把k8s的二进制命令行工具kubectl容器化备用
FROM harbor.boge.com/library/alpine:3.13
MAINTAINER boge
ENV TZ "Asia/Shanghai"
RUN sed -ri 's+dl-cdn.alpinelinux.org+mirrors.aliyun.com+g' /etc/apk/repositories
&& apk add --no-cache curl tzdata ca-certificates
&& cp -f /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
&& apk upgrade
&& rm -rf /var/cache/apk/*
COPY kubectl /usr/local/bin/
RUN chmod +x /usr/local/bin/kubectl
ENTRYPOINT ["kubectl"]
CMD ["help"]
python的flask模块
准备好flask相关的代码文件上传到gitlab代码仓库
app.py
from flask import Flask
app = Flask(__name__)
@app.route('/')
def hello_world():
return 'Hello, boge! 21.04.11.01'
@app.route('/gg/<username>')
def hello(username):
return 'welcome' + ': ' + username + '!'
Dockerfile
FROM harbor.boge.com/library/python:3.5-slim-stretch
MAINTAINER boge
WORKDIR /kae/app
COPY requirements.txt .
RUN sed -i 's/deb.debian.org/ftp.cn.debian.org/g' /etc/apt/sources.list
&& sed -i 's/security.debian.org/ftp.cn.debian.org/g' /etc/apt/sources.list
&& apt-get update -y
&& apt-get install -y wget gcc libsm6 libxext6 libglib2.0-0 libxrender1 make
&& apt-get clean && apt-get autoremove -y && rm -rf /var/lib/apt/lists/*
RUN pip install --no-cache-dir -i https://mirrors.aliyun.com/pypi/simple -r requirements.txt
&& rm requirements.txt
COPY . .
EXPOSE 5000
HEALTHCHECK CMD curl --fail http://localhost:5000 || exit 1
ENTRYPOINT ["gunicorn", "app:app", "-c", "gunicorn_config.py"]
gunicorn_config.py
bind = '0.0.0.0:5000'
graceful_timeout = 3600
timeout = 1200
max_requests = 1200
workers = 1
worker_class = 'gevent'
requirements.txt
flask
gevent
gunicorn
在代码仓库变量配置里面配置如下变量值
Type Key Value State Masked
Variable DOCKER_USER admin 下面都关闭 下面都关闭
Variable DOCKER_PASS boge666
Variable REGISTRY_URL harbor.boge.com
Variable REGISTRY_NS product
File KUBE_CONFIG_TEST k8s相关config配置文件内容
准备项目自动化配置文件.gitlab-ci.yml
stages:
- build
- deploy
- rollback
# tag name need: 20.11.21.01
variables:
namecb: "flask-test"
svcport: "5000"
replicanum: "2"
ingress: "flask-test.boge.com"
certname: "mytls"
CanarylIngressNum: "20"
.deploy_k8s: &deploy_k8s |
if [ $CANARY_CB -eq 1 ];then cp -arf .project-name-canary.yaml ${namecb}-${CI_COMMIT_TAG}.yaml; sed -ri "s+CanarylIngressNum+${CanarylIngressNum}+g" ${namecb}-${CI_COMMIT_TAG}.yaml; sed -ri "s+NomalIngressNum+$(expr 100 - ${CanarylIngressNum})+g" ${namecb}-${CI_COMMIT_TAG}.yaml ;else cp -arf .project-name.yaml ${namecb}-${CI_COMMIT_TAG}.yaml;fi
sed -ri "s+projectnamecb.boge.com+${ingress}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
sed -ri "s+projectnamecb+${namecb}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
sed -ri "s+5000+${svcport}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
sed -ri "s+replicanum+${replicanum}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
sed -ri "s+mytls+${certname}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
sed -ri "s+mytagcb+${CI_COMMIT_TAG}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
sed -ri "s+harbor.boge.com/library+${IMG_URL}+g" ${namecb}-${CI_COMMIT_TAG}.yaml
cat ${namecb}-${CI_COMMIT_TAG}.yaml
[ -d ~/.kube ] || mkdir ~/.kube
echo "$KUBE_CONFIG" > ~/.kube/config
if [ $NORMAL_CB -eq 1 ];then if kubectl get deployments.|grep -w ${namecb}-canary &>/dev/null;then kubectl delete deployments.,svc ${namecb}-canary ;fi;fi
kubectl apply -f ${namecb}-${CI_COMMIT_TAG}.yaml --record
echo
echo
echo "============================================================="
echo " Rollback Indx List"
echo "============================================================="
kubectl rollout history deployment ${namecb}|tail -5|awk -F"[ =]+" '{print $1" "$5}'|sed '$d'|sed '$d'|sort -r|awk '{print $NF}'|awk '$0=""NR". "$0'
.rollback_k8s: &rollback_k8s |
[ -d ~/.kube ] || mkdir ~/.kube
echo "$KUBE_CONFIG" > ~/.kube/config
last_version_command=$( kubectl rollout history deployment ${namecb}|tail -5|awk -F"[ =]+" '{print $1" "$5}'|sed '$d'|sed '$d'|tail -${ROLL_NUM}|head -1 )
last_version_num=$( echo ${last_version_command}|awk '{print $1}' )
last_version_name=$( echo ${last_version_command}|awk '{print $2}' )
kubectl rollout undo deployment ${namecb} --to-revision=$last_version_num
echo $last_version_num
echo $last_version_name
kubectl rollout history deployment ${namecb}
build:
stage: build
retry: 2
variables:
# use dind.yaml to depoy dind'service on k8s
DOCKER_HOST: tcp://10.68.86.33:2375/
DOCKER_DRIVER: overlay2
DOCKER_TLS_CERTDIR: ""
##services:
##- docker:dind
before_script:
- docker login ${REGISTRY_URL} -u "$DOCKER_USER" -p "$DOCKER_PASS"
script:
- docker pull ${REGISTRY_URL}/${REGISTRY_NS}/${namecb}:latest || true
- docker build --network host --cache-from ${REGISTRY_URL}/${REGISTRY_NS}/${namecb}:latest --tag ${REGISTRY_URL}/${REGISTRY_NS}/${namecb}:$CI_COMMIT_TAG --tag ${REGISTRY_URL}/${REGISTRY_NS}/${namecb}:latest .
- docker push ${REGISTRY_URL}/${REGISTRY_NS}/${namecb}:$CI_COMMIT_TAG
- docker push ${REGISTRY_URL}/${REGISTRY_NS}/${namecb}:latest
after_script:
- docker logout ${REGISTRY_URL}
tags:
- "docker"
only:
- tags
#--------------------------K8S DEPLOY--------------------------------------------------
BOGE-deploy:
stage: deploy
image: harbor.boge.com/library/kubectl:v1.19.9
variables:
KUBE_CONFIG: "$KUBE_CONFIG_TEST"
IMG_URL: "${REGISTRY_URL}/${REGISTRY_NS}"
NORMAL_CB: 1
script:
- *deploy_k8s
when: manual
only:
- tags
# canary start
BOGE-canary-deploy:
stage: deploy
image: harbor.boge.com/library/kubectl:v1.19.9
variables:
KUBE_CONFIG: "$KUBE_CONFIG_TEST"
IMG_URL: "${REGISTRY_URL}/${REGISTRY_NS}"
CANARY_CB: 1
script:
- *deploy_k8s
when: manual
only:
- tags
# canary end
BOGE-rollback-1:
stage: rollback
image: harbor.boge.com/library/kubectl:v1.19.9
variables:
KUBE_CONFIG: "$KUBE_CONFIG_TEST"
ROLL_NUM: 1
script:
- *rollback_k8s
when: manual
only:
- tags
BOGE-rollback-2:
stage: rollback
image: harbor.boge.com/library/kubectl:v1.19.9
variables:
KUBE_CONFIG: "$KUBE_CONFIG_TEST"
ROLL_NUM: 2
script:
- *rollback_k8s
when: manual
only:
- tags
BOGE-rollback-3:
stage: rollback
image: harbor.boge.com/library/kubectl:v1.19.9
variables:
KUBE_CONFIG: "$KUBE_CONFIG_TEST"
ROLL_NUM: 3
script:
- *rollback_k8s
when: manual
only:
- tags
准备k8s的deployment模板文件 .project-name.yaml
这里要注意提前在K8S把harbor拉取的凭证secret给创建好，命令如下：
kubectl -n test create secret docker-registry boge-secret --docker-server=harbor.boge.com --docker-username=admin --docker-password=boge666 --docker-email=admin@boge.com
---
# SVC
kind: Service
apiVersion: v1
metadata:
labels:
kae: "true"
kae-app-name: projectnamecb
kae-type: app
name: projectnamecb
spec:
selector:
kae: "true"
kae-app-name: projectnamecb
kae-type: app
ports:
- name: http-port
port: 80
protocol: TCP
targetPort: 5000
# nodePort: 12345
# type: NodePort
---
# Ingress
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
labels:
kae: "true"
kae-app-name: projectnamecb
kae-type: app
name: projectnamecb
spec:
tls:
- hosts:
- projectnamecb.boge.com
secretName: mytls
rules:
- host: projectnamecb.boge.com
http:
paths:
- path: /
backend:
serviceName: projectnamecb
servicePort: 80
---
# Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: projectnamecb
labels:
kae: "true"
kae-app-name: projectnamecb
kae-type: app
spec:
replicas: replicanum
selector:
matchLabels:
kae-app-name: projectnamecb
template:
metadata:
labels:
kae: "true"
kae-app-name: projectnamecb
kae-type: app
spec:
containers:
- name: projectnamecb
image: harbor.boge.com/library/projectnamecb:mytagcb
env:
- name: TZ
value: Asia/Shanghai
ports:
- containerPort: 5000
readinessProbe:
httpGet:
scheme: HTTP
path: /
port: 5000
initialDelaySeconds: 10
periodSeconds: 5
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 3
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 5000
initialDelaySeconds: 10
periodSeconds: 5
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 3
resources:
requests:
cpu: 0.3
memory: 0.5Gi
limits:
cpu: 0.3
memory: 0.5Gi
imagePullSecrets:
- name: boge-secret
准备好K8S上金丝雀部署的模板文件 .project-name-canary.yaml
---
# SVC
kind: Service
apiVersion: v1
metadata:
labels:
kae: "true"
kae-app-name: projectnamecb-canary
kae-type: app
name: projectnamecb-canary
spec:
selector:
kae: "true"
kae-app-name: projectnamecb-canary
kae-type: app
ports:
- name: http-port
port: 80
protocol: TCP
targetPort: 5000
# nodePort: 12345
# type: NodePort
---
# Ingress
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
labels:
kae: "true"
kae-app-name: projectnamecb-canary
kae-type: app
name: projectnamecb
annotations:
nginx.ingress.kubernetes.io/service-weight: |
projectnamecb: NomalIngressNum, projectnamecb-canary: CanarylIngressNum
spec:
tls:
- hosts:
- projectnamecb.boge.com
secretName: mytls
rules:
- host: projectnamecb.boge.com
http:
paths:
- path: /
backend:
serviceName: projectnamecb
servicePort: 80
- path: /
backend:
serviceName: projectnamecb-canary
servicePort: 80
---
# Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: projectnamecb-canary
labels:
kae: "true"
kae-app-name: projectnamecb-canary
kae-type: app
spec:
replicas: replicanum
selector:
matchLabels:
kae-app-name: projectnamecb-canary
template:
metadata:
labels:
kae: "true"
kae-app-name: projectnamecb-canary
kae-type: app
spec:
containers:
- name: projectnamecb-canary
image: harbor.boge.com/library/projectnamecb:mytagcb
env:
- name: TZ
value: Asia/Shanghai
ports:
- containerPort: 5000
readinessProbe:
httpGet:
scheme: HTTP
path: /
port: 5000
initialDelaySeconds: 10
periodSeconds: 5
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 3
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 5000
initialDelaySeconds: 10
periodSeconds: 5
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 3
resources:
requests:
cpu: 0.3
memory: 0.5Gi
limits:
cpu: 0.3
memory: 0.5Gi
imagePullSecrets:
- name: boge-secret
最后，在修改完代码，提交tag版本号后，即会触发CI/CD自动化流程，详细操作可以看博哥录制的同名视频教程好了。
