  • 怎样绘制矩形

    有三种方法:

    1. ctx.fillRect(x, y, width, height);

    2. ctx.strokeRect(x, y, width, height);

    3. ctx.clearRect(x, y width, height);

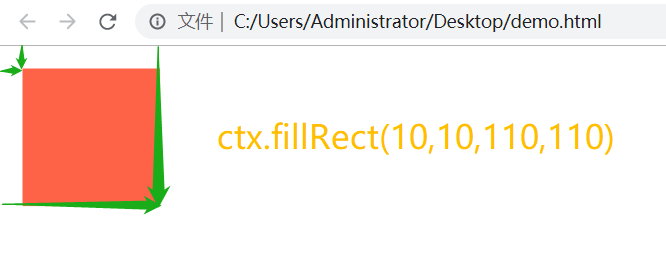

    方法1. ctx可以认为是一支画笔, 所有的和绘图有关的方法都在ctx上, 绘制矩形需要使用: ctx.fillRect(), 参数有四个, 分别为左上角xy坐标和矩形宽高.

    function draw() {
        var canvas = document.getElementById('canv');
        if (!canvas.getContext) return;
        var ctx = canvas.getContext("2d");
        ctx.fillStyle = "tomato";
        //绘制矩形
        ctx.fillRect(10, 10, 110, 110);
    }
    draw();

    方法2.  使用 strokeRect(x, y, width, height) 绘制矩形边框

    function draw() {
        var canvas = document.getElementById('canv');
        if (!canvas.getContext) return;
        var ctx = canvas.getContext("2d");
        // 绘制矩形边框
        ctx.strokeRect(50, 50, 150, 150);
    }
    draw();

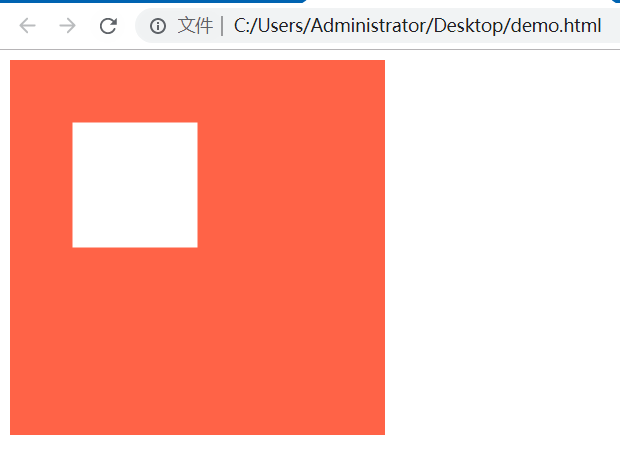

    方法3. 清除矩形区域内的图形, 使其形成一个透明的矩形区域.

    function draw() {
        var canvas = document.getElementById('canv');
        if (!canvas.getContext) return;
        var ctx = canvas.getContext("2d");
        // 填充一个矩形
        ctx.fillStyle = "tomato";
        ctx.fillRect(0, 0, 300, 300);
        ctx.clearRect(50, 50, 100, 100);
    }
    draw();
