C#曲线分析平台的制作（三，三层构架+echarts显示）

    本文依据CSDN另一位网友关于三层构架的简单搭建，基于他的源码进行修改。实现了三层构架合理结构，以及从数据库中传递数值在echarts显示的实验目的。

废话不多说，show me codes：

具体构建方式：点击打开链接

1.MODEL层代码：

依据数据库中定义的表格结构，构造实体类中的各个属性值。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace MODEL
{
    public class Users
    {
        private string Sname;//字段类型和字段名要与数据库对应

        public string Sname1//封装后的字段
        {
            get { return Sname; }
            set { Sname = value; }
        }

        private string Ssex;

        public string Ssex1
        {
            get { return Ssex; }
            set { Ssex = value; }
        }

        private string Snumber;

        public string Snumber1
        {
            get { return Snumber; }
            set { Snumber = value; }
        }

        private int Sgrade;

        public int Sgrade1
        {
            get { return Sgrade; }
            set { Sgrade = value; }
        }

        private string Steacher;

        public string Steacher1
        {
            get { return Steacher; }
            set { Steacher = value; }
        }

        private int Sid;

        public int Sid1
        {
            get { return Sid; }
            set { Sid = value; }
        }


    }
}

2.DAL层：

主要对数据库数据进行处理。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Data;
using System.Data.SqlClient;
using MODEL;
using System.Reflection;

namespace DAL
{
    public class UserService
    {
        //连接数据库
        public static SqlConnection connection;
        public static SqlConnection Connection
        {
            get
            {
                if (connection == null)
                {
                    //远程连接数据库命令（前提远程数据库服务器已经配置好允许远程连接）
                    //string strConn = @"Data Source=172.18.72.158;Initial Catalog=WebKuangjia;User ID=sa;Password=LIwei123;Persist Security Info=True";

                    //连接本地数据库命令
                    string strConn = @"Data Source=.;Initial Catalog=SanCengDemo;Integrated Security=True";

                    connection = new SqlConnection(strConn);
                    connection.Open();
                }
                else if (connection.State == ConnectionState.Closed)
                {
                    connection.Open();
                }
                else if (connection.State == ConnectionState.Broken)
                {
                    connection.Close();
                    connection.Open();
                }
                return connection;
            }
        }

        //执行sql语句,返回被修改行数
        public static int ExecuteCommand(string commandText, CommandType commandType, SqlParameter[] para)
        {
            SqlCommand cmd = new SqlCommand();
            cmd.Connection = Connection;
            cmd.CommandText = commandText;
            try
            {
                if (para != null)
                {
                    cmd.Parameters.AddRange(para);
                }
                return cmd.ExecuteNonQuery();
            }
            catch (Exception e)
            {
                throw new Exception(e.Message);
            }
            finally
            {
                connection.Close();
                cmd.Dispose();
            }
        }

        //执行sql语句,返回数据库表
        public static DataTable GetDataTable(string commandText, CommandType commandType, SqlParameter[] para)
        {
            SqlCommand cmd = new SqlCommand();
            cmd.Connection = Connection;
            cmd.CommandText = commandText;
            cmd.CommandType = commandType;
            try
            {
                if (para != null)
                {
                    cmd.Parameters.AddRange(para);
                }
                SqlDataAdapter da = new SqlDataAdapter(cmd);
                DataTable temp = new DataTable();
                da.Fill(temp);
                return temp;
            }
            catch (Exception e)
            {
                throw new Exception(e.Message);
            }
            finally
            {
                connection.Close();
                cmd.Dispose();
            }
        }

        //增加用户
        public static bool AddStudent(Users user)
        {
            string sql = "insert into Student(Sname,Ssex,Snumber,Sgrade,Steacher)" + "values(@name,@sex,@number,@grade,@teacher)";//sql语句字符串
            if (user.Sname1 == null)
            {
                user.Sname1 = "";
            }
            if (user.Ssex1 == null)
            {
                user.Ssex1 = "";
            }
            if (user.Snumber1 == null)
            {
                user.Snumber1 = "";
            }

            if (user.Steacher1 == null)
            {
                user.Steacher1 = "";
            }
            SqlParameter[] para = new SqlParameter[]//存储相应参数的容器
            {
                new SqlParameter("@name",user.Sname1),
                new SqlParameter("@sex",user.Ssex1),
                new SqlParameter("@number",user.Snumber1),
                new SqlParameter("@grade",user.Sgrade1),
                new SqlParameter("@teacher",user.Steacher1),
            };
            int count = ExecuteCommand(sql, CommandType.Text, para);//调用执行sql语句函数
            if (count > 0)
            {
                return true;
            }
            else
            {
                return false;
            }

        }

        //查询数据库表
        public static DataTable Selecttable()
        {
            string sql = "select * from Student";
            return GetDataTable(sql, CommandType.Text, null);
        }

        //test for echarts
        public static DataTable returntable()
        {
            string sql = "select Sgrade,Sname from Student";
            return GetDataTable(sql, CommandType.Text, null);
        }
        //删除用户
        /****************删除用户返回影响行数*****************/
        public static bool DeleteStudentBySnumber(string number)
        {
            string sql = "delete from Student where Snumber=@number";
            SqlParameter[] para = new SqlParameter[]
            {
                new SqlParameter("@number",number),
            };
            int count = ExecuteCommand(sql, CommandType.Text, para);
            if (count > 0)
            {
                return true;
            }
            else
            {
                return false;
            }
        }
        /****************删除用户返回表*****************/
        public static DataTable DeleteStudentBySid(int id)
        {
            string sql = "delete from Student where Sid=@id";
            SqlParameter[] para = new SqlParameter[]
            {
                new SqlParameter("@id",id),
            };
            return GetDataTable(sql, CommandType.Text, para);
        }

        //修改用户
        public static bool ModifyStudent(Users user)
        {
            string sql = "update Student set Sname=@name,Ssex=@sex,Snumber=@number,Sgrade=@grade,Steacher=@teacher where Sid=@id";
            SqlParameter[] para = new SqlParameter[]
             {
                new SqlParameter("@name",user.Sname1),
                new SqlParameter("@sex",user.Ssex1),
                new SqlParameter("@number",user.Snumber1),
                new SqlParameter("@grade",user.Sgrade1),
                new SqlParameter("@teacher",user.Steacher1),
                new SqlParameter("@id",user.Sid1),
             };
            int count = ExecuteCommand(sql, CommandType.Text, para);
            if (count > 0)
            {
                return true;
            }
            else
            {
                return false;
            }
        }

        //查询用户
        public static bool QueryStudent(string number)
        {
            string sql = "select * from Student where Snumber=@number";
            SqlParameter[] para = new SqlParameter[]
            {
                new SqlParameter("@number",number),
            };
            int count = ExecuteCommand(sql, CommandType.Text, para);
            if (count > 0)
            {
                return true;
            }
            else
            {
                return false;
            }
        }


    }
}

3.BLL层代码：

主要用于参数传递和DAL中的函数调用。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using DAL;
using System.Data;
using System.Data.SqlClient;
using MODEL;


namespace BLL
{
    public class UserManage
    {
        public static bool add(Users user)
        {
            return UserService.AddStudent(user);
        }
        public static bool delete(string number)
        {
            return UserService.DeleteStudentBySnumber(number);
        }
        public static bool xiugai(string number)
        {
            return UserService.QueryStudent(number);
        }
        public static bool modify(Users user)
        {
            return UserService.ModifyStudent(user);
        }
        public static bool select(string number)
        {
            return UserService.QueryStudent(number);
        }
        public static DataTable table()
        {
            return UserService.Selecttable();
        }
        public static DataTable deletebyid(int id)
        {
            return UserService.DeleteStudentBySid(id);
        }

        public static DataTable returntable()
        {
            return UserService.returntable();
        }


    }
}

echarts前台显示部分：

实现对后台数据的异步读取和实时刷新（根据setIntervar()方法中的秒数，来实现实时性)

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <script src="Scripts/jquery-3.3.1.min.js"></script>
    <script src="Scripts/echarts.js"></script>
    <script src="Scripts/macarons.js"></script>
    <title></title>
</head>
<body>
    <div id="main" style=" 600px;height:400px;"></div>
    <script type="text/javascript">


        var mychart = echarts.init(document.getElementById('main'), 'macarons');
        mychart.setOption({
            title: {
                text: '异步加载数据示例'
            },
            tooltip: {},
            legend: {
                data: ['班级']
            },
            xAxis: {

                data: []
            },
            yAxis: {},
            series: [{
                name: 'Sname',
                type: 'bar',
                data: []
            }]
        });
        mychart.showLoading();
       var sname =[];    //sname数组（实际用来盛放X轴坐标值）
        var sgrade = [];    //sgrade数组（实际用来盛放Y坐标值）


        getdata();
        function getdata() {
            var sname = [];    //类别数组（实际用来盛放X轴坐标值）
            var sgrade = [];    //销量数组（实际用来盛放Y坐标值）</span>
        $.ajax({
            type: "post",
            async: true,            //异步请求（同步请求将会锁住浏览器，用户其他操作必须等待请求完成才可以执行）
          url: "Default.aspx?method=getdata",

            data: {},
            dataType: "json",        //返回数据形式为json
            success: function (result) {
                //请求成功时执行该函数内容，result即为服务器返回的json对象
                if (result) {
                    for (var i = 0; i < result.length; i++) {
                        sname.push(result[i].Sname);    //挨个取出类别并填入类别数组


                    }
                    for (var i = 0; i < result.length; i++) {
                        sgrade.push(result[i].Sgrade);    //挨个取出销量并填入销量数组
                    }
                    mychart.hideLoading();    //隐藏加载动画
                    mychart.setOption({        //加载数据图表
                        xAxis: {
                            data: sname
                        },
                        series: [{
                            // 根据名字对应到相应的系列
                            name: '班级',
                            data: sgrade
                        }]
                    });


                }


            },
            error: function (errorMsg) {
                //请求失败时执行该函数
                alert("图表请求数据失败!");
                myChart.hideLoading();
            }
        })
        }
        setInterval(getdata, 20000);
    </script>
</body>
</html>

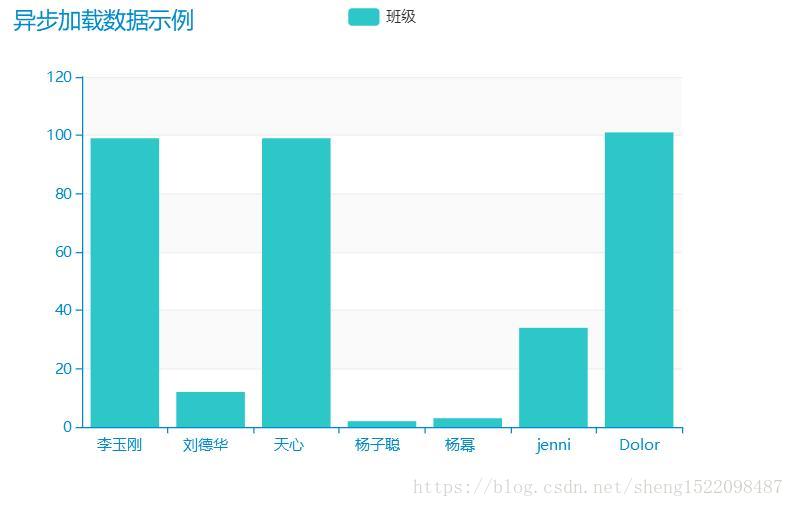

显示结果：

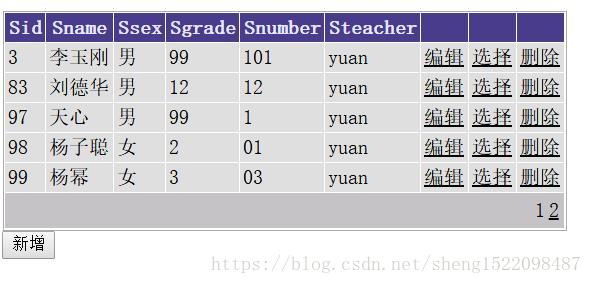

注：原博客用的gridview来实现对数据的显示，增删改操作，本人进行适当该写，增加了分页功能，以及增加按钮。

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>

<%@ Register assembly="DevExpress.Xpo.v14.1.Web, Version=14.1.4.0, Culture=neutral, PublicKeyToken=b88d1754d700e49a" namespace="DevExpress.Xpo" tagprefix="dx" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <asp:GridView ID="GridView1" runat="server" BackColor="White" BorderColor="White" BorderStyle="Ridge" BorderWidth="2px" CellPadding="3" CellSpacing="1" GridLines="None" OnRowCancelingEdit="GridView1_RowCancelingEdit" OnRowDeleting="GridView1_RowDeleting" OnRowEditing="GridView1_RowEditing" OnRowUpdating="GridView1_RowUpdating" OnSelectedIndexChanging="GridView1_SelectedIndexChanging" AutoGenerateColumns="False" AllowPaging="True" OnPageIndexChanging="GridView1_PageIndexChanging" PageSize="5">
            <Columns>
                <asp:BoundField DataField="Sid" HeaderText="Sid" />
                <asp:BoundField DataField="Sname" HeaderText="Sname" />
                <asp:BoundField DataField="Ssex" HeaderText="Ssex" />
                <asp:BoundField DataField="Sgrade" HeaderText="Sgrade" />
                <asp:BoundField DataField="Snumber" HeaderText="Snumber" />
                <asp:BoundField DataField="Steacher" HeaderText="Steacher" />
                <asp:CommandField ShowEditButton="True" />
                <asp:CommandField ShowSelectButton="True" />
                <asp:CommandField ShowDeleteButton="True" />

            </Columns>
            <FooterStyle BackColor="#C6C3C6" ForeColor="Black" />
            <HeaderStyle BackColor="#4A3C8C" Font-Bold="True" ForeColor="#E7E7FF" />
            <PagerStyle BackColor="#C6C3C6" ForeColor="Black" HorizontalAlign="Right" />
            <RowStyle BackColor="#DEDFDE" ForeColor="Black" />
            <SelectedRowStyle BackColor="#9471DE" Font-Bold="True" ForeColor="White" />
            <SortedAscendingCellStyle BackColor="#F1F1F1" />
            <SortedAscendingHeaderStyle BackColor="#594B9C" />
            <SortedDescendingCellStyle BackColor="#CAC9C9" />
            <SortedDescendingHeaderStyle BackColor="#33276A" />
        </asp:GridView>


        <asp:Button ID="Button1" runat="server" OnClick="Button1_Click" Text="新增" />


    </div>
    </form>
 </body>
</html>

Default.aspx后台代码：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient;
using DAL;
using MODEL;
using BLL;
using Newtonsoft.Json;
public partial class _Default : System.Web.UI.Page
{
    List<object> lists = new List<object>();

    protected void Page_Load(object sender, EventArgs e)
    {
           if (!IsPostBack)//初次加载该页
            {
                gvbind();
           }
           string method = Request.QueryString["method"];
           if (!string.IsNullOrEmpty(method))
           {
               if (method == "getdata")
               {
                   data();
               }
           }
    }
    private void data()
    {
        DataTable dt = new DataTable();
        dt = UserManage. returntable();

       // lists = new List<object>();
      //  lists = UserManage.returnlist();
        object JSONObj = (Object)JsonConvert.SerializeObject(dt);
        Response.Write(JSONObj);
        //  一定要加，不然前端接收失败
        Response.End();
        }

        protected void GridView1_RowDeleting(object sender, GridViewDeleteEventArgs e)
        {
           // string number = GridView1.Rows[e.RowIndex].Cells[3].Text;
           // UserManage.delete(number);
           //// GridView1.DataBind();
            int id = int.Parse(GridView1.Rows[e.RowIndex].Cells[0].Text);
            UserManage.deletebyid(id);
            gvbind();
        }

        protected void GridView1_SelectedIndexChanging(object sender, GridViewSelectEventArgs e)
        {
            GridView1.SelectedIndex = e.NewSelectedIndex;
            //GridView1.DataBind();
            gvbind();
        }

        protected void GridView1_RowEditing(object sender, GridViewEditEventArgs e)
        {
           GridView1.EditIndex = e.NewEditIndex;
           // GridView1.DataBind();
           gvbind();
        }

        protected void GridView1_RowUpdating(object sender, GridViewUpdateEventArgs e)
        {
            Users us = new Users();
            us.Sid1 = int.Parse(GridView1.DataKeys[e.RowIndex].Value.ToString());//获取编辑行的数据主键值//((TextBox)GridView1.Rows[e.RowIndex].Cells[0].Controls[0]).Text;//[0].Controls[0]).Text;
            us.Sname1 = ((TextBox)GridView1.Rows[e.RowIndex].Cells[1].Controls[0]).Text.ToString().Trim();//获取编辑行的第1列的textbox控件中的内容赋值给Users对象us的Sname1封装字段
            us.Ssex1 = ((TextBox)GridView1.Rows[e.RowIndex].Cells[2].Controls[0]).Text.ToString().Trim();
            us.Snumber1 = ((TextBox)GridView1.Rows[e.RowIndex].Cells[3].Controls[0]).Text.ToString().Trim();
            us.Sgrade1 = int.Parse(((TextBox)GridView1.Rows[e.RowIndex].Cells[4].Controls[0]).Text.ToString().Trim());
            us.Steacher1 = ((TextBox)GridView1.Rows[e.RowIndex].Cells[5].Controls[0]).Text.ToString().Trim();
            if (UserManage.modify(us))
            {
               GridView1.EditIndex = -1;
               //GridView1.DataBind();
               gvbind();
            }
            else
            {
                Response.Write("<script>alert('修改失败!')</script>");
            }

        }

        protected void GridView1_RowCancelingEdit(object sender, GridViewCancelEditEventArgs e)
        {
            GridView1.EditIndex = -1;
           // GridView1.DataBind();
            gvbind();
        }

        private void gvbind()
        {
            DataTable list;//声明表变量
            list = UserManage.table();
            GridView1.DataSource = list;
            GridView1.DataKeyNames = new string[] { "Sid" };//主键
            GridView1.DataBind();
        }



        protected void Button1_Click(object sender, EventArgs e)
        {
            Users user1 = new Users();

            UserManage.add(user1);
            gvbind();
        }

        protected void GridView1_PageIndexChanging(object sender, GridViewPageEventArgs e)
        {
            GridView1.PageIndex = e.NewPageIndex;
            gvbind();
        }
}

实现效果：
