[MFC] 手动美化 MFC 窗体

去除边框

1.把窗口边框改成无边框：

但只这样做会导致无法拖动窗口。

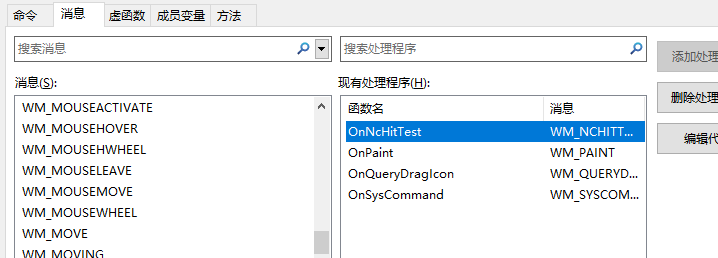

2.在类向导中添加这个消息：OnHcHitTest

3.修改这个消息处理函数的返回值为：HTCAPTION

---

添加背景图片

1.准备一张 bmp 格式的图片（其他格式我没有实验，可能会有问题），在项目中添加资源，选择 BitMap ，导入：

2.在 OnPaint() 函数中添加如下代码：

// 上面还有一部分代码，是 vs 自动生成的
else
	{
		//CDialogEx::OnPaint();			// 这是原本的，注释掉

		/*
			从这里开始是我们自己的代码 ---------------
		*/

		CPaintDC   dc(this);
		CRect   rect;
		GetClientRect(&rect);												// 获取对话框长宽
		CDC   dcBmp;															// 定义并创建一个内存设备环境
		dcBmp.CreateCompatibleDC(&dc);						// 创建兼容性DC
		CBitmap   bmpBackground;
		bmpBackground.LoadBitmap(IDB_BITMAP1);    // 载入资源中图片
		BITMAP   m_bitmap;												// 图片变量
		bmpBackground.GetBitmap(&m_bitmap);			// 将图片载入位图中

		//将位图选入临时内存设备环境
		CBitmap* pbmpOld = dcBmp.SelectObject(&bmpBackground);

		//调用函数显示图片StretchBlt显示形状可变
		dc.SetStretchBltMode(COLORONCOLOR);			// 防止 bmp 图片压缩后失真
		dc.StretchBlt(0, 0, rect.Width(), rect.Height(), &dcBmp, 0, 0, m_bitmap.bmWidth, m_bitmap.bmHeight, SRCCOPY);
	}

注意：背景图片在窗口拉伸时会失真，但配合无边框使用时不需要在意，因为本身无边框窗体不支持拉伸窗口。

---

添加背景颜色

这个没有添加背景图片好用，但还是记录一下吧。
1.类向导里添加消息处理函数 ： WM_CTLCOLOR
2.在 xxxDlg.h 的 protected 里添加成员变量：CBrush m_brush;
3.在 WM_CTLCOLOR 的处理函数 OnCtlColor() 中 ，修改返回值为 m_brush

HBRUSH Ctestmfc2Dlg::OnCtlColor(CDC* pDC, CWnd* pWnd, UINT nCtlColor)
{
	HBRUSH hbr = CDialogEx::OnCtlColor(pDC, pWnd, nCtlColor);

	// TODO:  在此更改 DC 的任何特性


	// TODO:  如果默认的不是所需画笔，则返回另一个画笔
	return /*hbr*/m_brush;
}

4.在 OnInitDialog() 中添加代码，绘制背景颜色：

m_brush.CreateSolidBrush(RGB(255, 255, 102));

---

给按钮添加背景图片

比起 bmp 图片，显然按钮必须要用 png 的透明图片更加好看，但是 MFC 对 png 的支持并不太友好，我找了很久，终于在这篇文章的启发下完成了这个功能：
https://www.codeproject.com/Articles/26887/A-user-draw-button-that-supports-PNG-files-with-tr

https://github.com/JustLoveI/GdipButton 这里的代码更新，但是我没有调通，所以我用的时上面连接里的代码。

以防链接失效，这里记录下具体实现过程，不愿看英文的人也可以直接看我下面写的。

1.首先需要几个文件
CGdiPlusBitmap.h

#pragma once

class CGdiPlusBitmap
{
public:
	Gdiplus::Bitmap* m_pBitmap;

public:
	CGdiPlusBitmap()							{ m_pBitmap = NULL; }
	CGdiPlusBitmap(LPCWSTR pFile)				{ m_pBitmap = NULL; Load(pFile); }
	virtual ~CGdiPlusBitmap()					{ Empty(); }

	void Empty()								{ delete m_pBitmap; m_pBitmap = NULL; }

	bool Load(LPCWSTR pFile)
	{
		Empty();
		m_pBitmap = Gdiplus::Bitmap::FromFile(pFile);
		return m_pBitmap->GetLastStatus() == Gdiplus::Ok;
	}

	operator Gdiplus::Bitmap*() const			{ return m_pBitmap; }
};


class CGdiPlusBitmapResource : public CGdiPlusBitmap
{
protected:
	HGLOBAL m_hBuffer;

public:
	CGdiPlusBitmapResource()					{ m_hBuffer = NULL; }
	CGdiPlusBitmapResource(LPCTSTR pName, LPCTSTR pType = RT_RCDATA, HMODULE hInst = NULL)
												{ m_hBuffer = NULL; Load(pName, pType, hInst); }
	CGdiPlusBitmapResource(UINT id, LPCTSTR pType = RT_RCDATA, HMODULE hInst = NULL)
												{ m_hBuffer = NULL; Load(id, pType, hInst); }
	CGdiPlusBitmapResource(UINT id, UINT type, HMODULE hInst = NULL)
												{ m_hBuffer = NULL; Load(id, type, hInst); }
	virtual ~CGdiPlusBitmapResource()			{ Empty(); }

	void Empty();

	bool Load(LPCTSTR pName, LPCTSTR pType = RT_RCDATA, HMODULE hInst = NULL);
	bool Load(UINT id, LPCTSTR pType = RT_RCDATA, HMODULE hInst = NULL)
												{ return Load(MAKEINTRESOURCE(id), pType, hInst); }
	bool Load(UINT id, UINT type, HMODULE hInst = NULL)
												{ return Load(MAKEINTRESOURCE(id), MAKEINTRESOURCE(type), hInst); }
};

inline
void CGdiPlusBitmapResource::Empty()
{
	CGdiPlusBitmap::Empty();
	if (m_hBuffer)
	{
		::GlobalUnlock(m_hBuffer);
		::GlobalFree(m_hBuffer);
		m_hBuffer = NULL;
	}
}

inline
bool CGdiPlusBitmapResource::Load(LPCTSTR pName, LPCTSTR pType, HMODULE hInst)
{
	Empty();

	HRSRC hResource = ::FindResource(hInst, pName, pType);
	if (!hResource)
		return false;

	DWORD imageSize = ::SizeofResource(hInst, hResource);
	if (!imageSize)
		return false;

	const void* pResourceData = ::LockResource(::LoadResource(hInst, hResource));
	if (!pResourceData)
		return false;

	m_hBuffer  = ::GlobalAlloc(GMEM_MOVEABLE, imageSize);
	if (m_hBuffer)
	{
		void* pBuffer = ::GlobalLock(m_hBuffer);
		if (pBuffer)
		{
			CopyMemory(pBuffer, pResourceData, imageSize);

			IStream* pStream = NULL;
			if (::CreateStreamOnHGlobal(m_hBuffer, FALSE, &pStream) == S_OK)
			{
				m_pBitmap = Gdiplus::Bitmap::FromStream(pStream);
				pStream->Release();
				if (m_pBitmap)
				{
					if (m_pBitmap->GetLastStatus() == Gdiplus::Ok)
						return true;

					delete m_pBitmap;
					m_pBitmap = NULL;
				}
			}
			::GlobalUnlock(m_hBuffer);
		}
		::GlobalFree(m_hBuffer);
		m_hBuffer = NULL;
	}
	return false;
}

GdipButton.h

//
// GdipButton.h : Version 1.0 - see article at CodeProject.com
//
// Author:  Darren Sessions
//
//
// Description:
//     GdipButton is a CButton derived control that uses GDI+
//     to support alternate image formats
//
// History
//     Version 1.0 - 2008 June 10
//     - Initial public release
//
// License:
//     This software is released under the Code Project Open License (CPOL),
//     which may be found here:  http://www.codeproject.com/info/eula.aspx
//     You are free to use this software in any way you like, except that you
//     may not sell this source code.
//
//     This software is provided "as is" with no expressed or implied warranty.
//     I accept no liability for any damage or loss of business that this
//     software may cause.
//
///

#pragma once

// GdipButton.h : header file
//

class CGdiPlusBitmapResource;
/
// CGdipButton window

class CGdipButton : public CButton
{
public:

	CGdipButton();
	virtual ~CGdipButton();

	// image types
	enum	{
				STD_TYPE	= 0,
				ALT_TYPE,
				DIS_TYPE
			};

	// sets the image type
	void SetImage(int type);

	BOOL LoadAltImage(UINT id, LPCTSTR pType);
	BOOL LoadStdImage(UINT id, LPCTSTR pType);

	// if false, disables the press state and uses grayscale image if it exists
	void EnableButton(BOOL bEnable = TRUE) { m_bIsDisabled = !bEnable; }

	// in toggle mode each press toggles between std and alt images
	void EnableToggle(BOOL bEnable = TRUE);

	// return the enable/disable state
	BOOL IsDisabled(void) {return (m_bIsDisabled == TRUE); }

	void SetBkGnd(CDC* pDC);

	void SetToolTipText(CString spText, BOOL bActivate = TRUE);
	void SetToolTipText(UINT nId, BOOL bActivate = TRUE);
	void SetHorizontal(bool ImagesAreLaidOutHorizontally = FALSE);
	void DeleteToolTip();


protected:

	void PaintBk(CDC* pDC);
	void PaintBtn(CDC* pDC);

	BOOL	m_bHaveAltImage;
	BOOL	m_bHaveBitmaps;

	BOOL	m_bIsDisabled;
	BOOL	m_bIsToggle;
	BOOL	m_bIsHovering;
	BOOL	m_bIsTracking;

	int		m_nCurType;

	CGdiPlusBitmapResource* m_pAltImage;
	CGdiPlusBitmapResource* m_pStdImage;

	CString			m_tooltext;
	CToolTipCtrl*	m_pToolTip;

	void	InitToolTip();

	virtual void PreSubclassWindow();
	virtual void DrawItem(LPDRAWITEMSTRUCT /*lpDrawItemStruct*/);
	virtual BOOL PreTranslateMessage(MSG* pMsg);

	//{{AFX_MSG(CGdipButton)
	afx_msg HBRUSH CtlColor(CDC* pDC, UINT nCtlColor);
	afx_msg BOOL OnEraseBkgnd(CDC* pDC);
	afx_msg void OnMouseMove(UINT nFlags, CPoint point);
	afx_msg LRESULT OnMouseLeave(WPARAM wparam, LPARAM lparam);
	afx_msg LRESULT OnMouseHover(WPARAM wparam, LPARAM lparam) ;
	//}}AFX_MSG

	DECLARE_MESSAGE_MAP()

private:

	CDC		m_dcBk;			// button background

	CDC		m_dcStd;		// standard button
	CDC		m_dcStdP;		// standard button pressed
	CDC		m_dcStdH;		// standard button hot

	CDC		m_dcAlt;		// alternate button
	CDC		m_dcAltP;		// alternate button pressed
	CDC		m_dcAltH;		// alternate button hot

	CDC		m_dcGS;			// grayscale button (does not have a hot or pressed state)

	CDC*	m_pCurBtn;		// current pointer to one of the above

};

MemDC.h

//
// CMemDC - memory DC
//
// Author: Keith Rule, keithr@europa.com,  Copyright 1996-1997, Keith Rule
//
// You may freely use or modify this code provided this copyright is included in all derived versions.
//
// History - 10/3/97 Fixed scrolling bug.
//                   Added print support.
//				 - 14/7/99 Added optional clip rect parameter [jgh]
//
//				 - 06/06/08  Added option to copy screen on construction
//
#if !defined(AFX_CaMemDC_H__F666A491_3847_11D3_A58E_00805FC1DE10__INCLUDED_)
#define AFX_CaMemDC_H__F666A491_3847_11D3_A58E_00805FC1DE10__INCLUDED_

	class CaMemDC : public CDC {			// 高版本的 vs 这里 CMemDC 会报重定义错误，我这里改成了 CaMemDC
	private:
		CBitmap m_bitmap; // Offscreen bitmap
		CBitmap* m_oldBitmap; // bitmap originally found in CMemDC
		CDC* m_pDC; // Saves CDC passed in constructor
		CRect m_rect; // Rectangle of drawing area.
		BOOL m_bMemDC; // TRUE if CDC really is a Memory DC.
	public:
		/// Function Header
		CaMemDC(CDC* pDC, CRect rect = CRect(0,0,0,0), BOOL bCopyFirst = FALSE) : CDC(), m_oldBitmap(NULL), m_pDC(pDC)
		//
		{
			ASSERT(m_pDC != NULL); // If you asserted here, you passed in a NULL CDC.

			m_bMemDC = !pDC->IsPrinting();

			if (m_bMemDC){
				// Create a Memory DC
				CreateCompatibleDC(pDC);
				if ( rect == CRect(0,0,0,0) )
					pDC->GetClipBox(&m_rect);
				else
					m_rect = rect;

				m_bitmap.CreateCompatibleBitmap(pDC, m_rect.Width(), m_rect.Height());
				m_oldBitmap = SelectObject(&m_bitmap);
				SetWindowOrg(m_rect.left, m_rect.top);
				if(bCopyFirst)
				{
					this->BitBlt(m_rect.left, m_rect.top, m_rect.Width(), m_rect.Height(),
							m_pDC, m_rect.left, m_rect.top, SRCCOPY);
				}
			} else {
				// Make a copy of the relevent parts of the current DC for printing
				m_bPrinting = pDC->m_bPrinting;
				m_hDC = pDC->m_hDC;
				m_hAttribDC = pDC->m_hAttribDC;
			}
		}

		/// Function Header
		~CaMemDC()
		//
		{
			if (m_bMemDC) {
				// Copy the offscreen bitmap onto the screen.
				m_pDC->BitBlt(m_rect.left, m_rect.top, m_rect.Width(), m_rect.Height(),
					this, m_rect.left, m_rect.top, SRCCOPY);
				//Swap back the original bitmap.
				SelectObject(m_oldBitmap);
			} else {
				// All we need to do is replace the DC with an illegal value,
				// this keeps us from accidently deleting the handles associated with
				// the CDC that was passed to the constructor.
				m_hDC = m_hAttribDC = NULL;
			}
		}

		// Allow usage as a pointer
		CaMemDC* operator->() {return this;}

		// Allow usage as a pointer
		operator CaMemDC*() {return this;}
	};

#endif
// End CMemDC
//

GdipButton.cpp

//
// GdipButton.cpp : Version 1.0 - see article at CodeProject.com
//
// Author:  Darren Sessions
//
//
// Description:
//     GdipButton is a CButton derived control that uses GDI+
//     to support alternate image formats
//
// History
//     Version 1.0 - 2008 June 10
//     - Initial public release
//
// License:
//     This software is released under the Code Project Open License (CPOL),
//     which may be found here:  http://www.codeproject.com/info/eula.aspx
//     You are free to use this software in any way you like, except that you
//     may not sell this source code.
//
//     This software is provided "as is" with no expressed or implied warranty.
//     I accept no liability for any damage or loss of business that this
//     software may cause.
//
///

#include "pch.h"		//  低版本的 vs 使用 stdafx.h
#include "GdipButton.h"

#include "CGdiPlusBitmap.h"
#include "MemDC.h"



#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

/
// CGdipButton

CGdipButton::CGdipButton()
{
	m_pStdImage = NULL;
	m_pAltImage = NULL;

	m_bHaveBitmaps = FALSE;
	m_bHaveAltImage = FALSE;

	m_pCurBtn = NULL;

	m_bIsDisabled = FALSE;
	m_bIsToggle = FALSE;

	m_bIsHovering = FALSE;
	m_bIsTracking = FALSE;

	m_nCurType = STD_TYPE;

	m_pToolTip = NULL;

}

CGdipButton::~CGdipButton()
{
	if(m_pStdImage) delete m_pStdImage;
	if(m_pAltImage) delete m_pAltImage;

	if(m_pToolTip)	delete m_pToolTip;
}


BEGIN_MESSAGE_MAP(CGdipButton, CButton)
	//{{AFX_MSG_MAP(CGdipButton)
	ON_WM_DRAWITEM()
	ON_WM_ERASEBKGND()
	ON_WM_CTLCOLOR_REFLECT()
	ON_WM_MOUSEMOVE()
	ON_MESSAGE(WM_MOUSELEAVE, OnMouseLeave)
	ON_MESSAGE(WM_MOUSEHOVER, OnMouseHover)
	//}}AFX_MSG_MAP
END_MESSAGE_MAP()



//=============================================================================
//
// LoadStdImage()
//
// Purpose:     The LoadStdImage() Loads the image for the button.  This
//				function must be called at a minimum or the button wont do
//				anything.
//
// Parameters:
//		[IN]	id
//				resource id, one of the resources already imported with the
//				resource editor, usually begins with IDR_
//
//		[IN]	pType
//				pointer to string describing the resource type
//
// Returns:     BOOL
//				Non zero if successful, otherwise zero
//
//=============================================================================
BOOL CGdipButton::LoadStdImage(UINT id, LPCTSTR pType)
{
	m_pStdImage = new CGdiPlusBitmapResource;
	return m_pStdImage->Load(id, pType);
}

//=============================================================================
//
// LoadAltImage()
//
// Purpose:     The LoadAltImage() Loads the altername image for the button.
//				This function call is optional
// Parameters:
//		[IN]	id
//				resource id, one of the resources already imported with the
//				resource editor, usually begins with IDR_
//
//		[IN]	pType
//				pointer to string describing the resource type
//
// Returns:     BOOL
//				Non zero if successful, otherwise zero
//
//=============================================================================
BOOL CGdipButton::LoadAltImage(UINT id, LPCTSTR pType)
{
	m_bHaveAltImage = TRUE;
	m_pAltImage = new CGdiPlusBitmapResource;
	return (m_pAltImage->Load(id, pType));
}


//=============================================================================
//
//	The framework calls this member function when a child control is about to
//	be drawn.  All the bitmaps are created here on the first call. Every thing
//	is done with a memory DC except the background, which get's it's information
//	from the parent. The background is needed for transparent portions of PNG
//	images. An always on top app (such as Task Manager) that is in the way can
//	cause it to get an incorrect background.  To avoid this, the parent should
//	call the SetBkGnd function with a memory DC when it creates the background.
//
//=============================================================================
HBRUSH CGdipButton::CtlColor(CDC* pScreenDC, UINT nCtlColor)
{
	if(!m_bHaveBitmaps)
	{
		if(!m_pStdImage)
		{
			return NULL; // Load the standard image with LoadStdImage()
		}

		CBitmap bmp, *pOldBitmap;

		CRect rect;
		GetClientRect(rect);

		// do everything with mem dc
		CaMemDC pDC(pScreenDC, rect);

		Gdiplus::Graphics graphics(pDC->m_hDC);

		// background
		if (m_dcBk.m_hDC == NULL)
		{

			CRect rect1;
			CClientDC clDC(GetParent());
			GetWindowRect(rect1);
			GetParent()->ScreenToClient(rect1);

			m_dcBk.CreateCompatibleDC(&clDC);
			bmp.CreateCompatibleBitmap(&clDC, rect.Width(), rect.Height());
			pOldBitmap = m_dcBk.SelectObject(&bmp);
			m_dcBk.BitBlt(0, 0, rect.Width(), rect.Height(), &clDC, rect1.left, rect1.top, SRCCOPY);
			bmp.DeleteObject();
		}

		// standard image
		if (m_dcStd.m_hDC == NULL)
		{
			PaintBk(pDC);

			graphics.DrawImage(*m_pStdImage, 0, 0);

			m_dcStd.CreateCompatibleDC(pDC);
			bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
			pOldBitmap = m_dcStd.SelectObject(&bmp);
			m_dcStd.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
			bmp.DeleteObject();

			// standard image pressed
			if (m_dcStdP.m_hDC == NULL)
			{
				PaintBk(pDC);

				graphics.DrawImage(*m_pStdImage, 1, 1);

				m_dcStdP.CreateCompatibleDC(pDC);
				bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
				pOldBitmap = m_dcStdP.SelectObject(&bmp);
				m_dcStdP.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
				bmp.DeleteObject();
			}

			// standard image hot
			if(m_dcStdH.m_hDC == NULL)
			{
				PaintBk(pDC);

				ColorMatrix HotMat = {	1.05f, 0.00f, 0.00f, 0.00f, 0.00f,
										0.00f, 1.05f, 0.00f, 0.00f, 0.00f,
										0.00f, 0.00f, 1.05f, 0.00f, 0.00f,
										0.00f, 0.00f, 0.00f, 1.00f, 0.00f,
										0.05f, 0.05f, 0.05f, 0.00f, 1.00f	};

				ImageAttributes ia;
				ia.SetColorMatrix(&HotMat);

				float width = (float)m_pStdImage->m_pBitmap->GetWidth();
				float height = (float)m_pStdImage->m_pBitmap->GetHeight();

				RectF grect; grect.X=0, grect.Y=0; grect.Width = width; grect.Height = height;

				graphics.DrawImage(*m_pStdImage, grect, 0, 0, width, height, UnitPixel, &ia);

				m_dcStdH.CreateCompatibleDC(pDC);
				bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
				pOldBitmap = m_dcStdH.SelectObject(&bmp);
				m_dcStdH.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
				bmp.DeleteObject();
			}

			// grayscale image
			if(m_dcGS.m_hDC == NULL)
			{
				PaintBk(pDC);

				ColorMatrix GrayMat = {	0.30f, 0.30f, 0.30f, 0.00f, 0.00f,
										0.59f, 0.59f, 0.59f, 0.00f, 0.00f,
										0.11f, 0.11f, 0.11f, 0.00f, 0.00f,
										0.00f, 0.00f, 0.00f, 1.00f, 0.00f,
										0.00f, 0.00f, 0.00f, 0.00f, 1.00f	};

				ImageAttributes ia;
				ia.SetColorMatrix(&GrayMat);

				float width = (float)m_pStdImage->m_pBitmap->GetWidth();
				float height = (float)m_pStdImage->m_pBitmap->GetHeight();

				RectF grect; grect.X=0, grect.Y=0; grect.Width = width; grect.Height = height;

				graphics.DrawImage(*m_pStdImage, grect, 0, 0, width, height, UnitPixel, &ia);

				m_dcGS.CreateCompatibleDC(pDC);
				bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
				pOldBitmap = m_dcGS.SelectObject(&bmp);
				m_dcGS.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
				bmp.DeleteObject();
			}
		}

		// alternate image
		if( (m_dcAlt.m_hDC == NULL) && m_bHaveAltImage )
		{
			PaintBk(pDC);

			graphics.DrawImage(*m_pAltImage, 0, 0);

			m_dcAlt.CreateCompatibleDC(pDC);
			bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
			pOldBitmap = m_dcAlt.SelectObject(&bmp);
			m_dcAlt.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
			bmp.DeleteObject();

			// alternate image pressed
			if( (m_dcAltP.m_hDC == NULL) && m_bHaveAltImage )
			{
				PaintBk(pDC);

				graphics.DrawImage(*m_pAltImage, 1, 1);

				m_dcAltP.CreateCompatibleDC(pDC);
				bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
				pOldBitmap = m_dcAltP.SelectObject(&bmp);
				m_dcAltP.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
				bmp.DeleteObject();
			}

			// alternate image hot
			if(m_dcAltH.m_hDC == NULL)
			{
				PaintBk(pDC);

				ColorMatrix HotMat = {	1.05f, 0.00f, 0.00f, 0.00f, 0.00f,
										0.00f, 1.05f, 0.00f, 0.00f, 0.00f,
										0.00f, 0.00f, 1.05f, 0.00f, 0.00f,
										0.00f, 0.00f, 0.00f, 1.00f, 0.00f,
										0.05f, 0.05f, 0.05f, 0.00f, 1.00f	};

				ImageAttributes ia;
				ia.SetColorMatrix(&HotMat);

				float width = (float)m_pStdImage->m_pBitmap->GetWidth();
				float height = (float)m_pStdImage->m_pBitmap->GetHeight();

				RectF grect; grect.X=0, grect.Y=0; grect.Width = width; grect.Height = height;

				graphics.DrawImage(*m_pAltImage, grect, 0, 0, width, height, UnitPixel, &ia);

				m_dcAltH.CreateCompatibleDC(pDC);
				bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
				pOldBitmap = m_dcAltH.SelectObject(&bmp);
				m_dcAltH.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, 0, 0, SRCCOPY);
				bmp.DeleteObject();
			}
		}

		if(m_pCurBtn == NULL)
		{
			m_pCurBtn = &m_dcStd;
		}

		m_bHaveBitmaps = TRUE;
	}

	return NULL;
}

//=============================================================================
// paint the background
//=============================================================================
void CGdipButton::PaintBk(CDC *pDC)
{
	CRect rect;
	GetClientRect(rect);
	pDC->BitBlt(0, 0, rect.Width(), rect.Height(), &m_dcBk, 0, 0, SRCCOPY);
}

//=============================================================================
// paint the bitmap currently pointed to with m_pCurBtn
//=============================================================================
void CGdipButton::PaintBtn(CDC *pDC)
{
	CRect rect;
	GetClientRect(rect);
	pDC->BitBlt(0, 0, rect.Width(), rect.Height(), m_pCurBtn, 0, 0, SRCCOPY);
}

//=============================================================================
// enables the toggle mode
// returns if it doesn't have the alternate image
//=============================================================================
void CGdipButton::EnableToggle(BOOL bEnable)
{
	if(!m_bHaveAltImage) return;

	m_bIsToggle = bEnable;

	// this actually makes it start in the std state since toggle is called before paint
	if(bEnable)	m_pCurBtn = &m_dcAlt;
	else		m_pCurBtn = &m_dcStd;

}

//=============================================================================
// sets the image type and disabled state then repaints
//=============================================================================
void CGdipButton::SetImage(int type)
{
	m_nCurType = type;

	(type == DIS_TYPE) ? m_bIsDisabled = TRUE : m_bIsDisabled = FALSE;

	Invalidate();
}

//=============================================================================
// set the control to owner draw
//=============================================================================
void CGdipButton::PreSubclassWindow()
{
	// Set control to owner draw
	ModifyStyle(0, BS_OWNERDRAW, SWP_FRAMECHANGED);

	CButton::PreSubclassWindow();
}

//=============================================================================
// disable double click
//=============================================================================
BOOL CGdipButton::PreTranslateMessage(MSG* pMsg)
{
	if (pMsg->message == WM_LBUTTONDBLCLK)
		pMsg->message = WM_LBUTTONDOWN;

	if (m_pToolTip != NULL)
	{
		if (::IsWindow(m_pToolTip->m_hWnd))
		{
			m_pToolTip->RelayEvent(pMsg);
		}
	}

	return CButton::PreTranslateMessage(pMsg);
}


//=============================================================================
// overide the erase function
//=============================================================================
BOOL CGdipButton::OnEraseBkgnd(CDC* pDC)
{
	return TRUE;
}

//=============================================================================
// Paint the button depending on the state of the mouse
//=============================================================================
void CGdipButton::DrawItem(LPDRAWITEMSTRUCT lpDIS)
{
	CDC* pDC = CDC::FromHandle(lpDIS->hDC);

	// handle disabled state
	if(m_bIsDisabled)
	{
		m_pCurBtn = &m_dcGS;
		PaintBtn(pDC);
		return;
	}

	BOOL bIsPressed = (lpDIS->itemState & ODS_SELECTED);

	// handle toggle button
	if(m_bIsToggle && bIsPressed)
	{
		(m_nCurType == STD_TYPE) ? m_nCurType = ALT_TYPE : m_nCurType = STD_TYPE;
	}

	if(bIsPressed)
	{
		if(m_nCurType == STD_TYPE)
			m_pCurBtn = &m_dcStdP;
		else
			m_pCurBtn = &m_dcAltP;
	}
	else if(m_bIsHovering)
	{

		if(m_nCurType == STD_TYPE)
			m_pCurBtn = &m_dcStdH;
		else
			m_pCurBtn = &m_dcAltH;
	}
	else
	{
		if(m_nCurType == STD_TYPE)
			m_pCurBtn = &m_dcStd;
		else
			m_pCurBtn = &m_dcAlt;
	}

	// paint the button
	PaintBtn(pDC);
}

//=============================================================================
LRESULT CGdipButton::OnMouseHover(WPARAM wparam, LPARAM lparam)
//=============================================================================
{
	m_bIsHovering = TRUE;
	Invalidate();
	DeleteToolTip();

	// Create a new Tooltip with new Button Size and Location
	SetToolTipText(m_tooltext);

	if (m_pToolTip != NULL)
	{
		if (::IsWindow(m_pToolTip->m_hWnd))
		{
			//Display ToolTip
			m_pToolTip->Update();
		}
	}

	return 0;
}


//=============================================================================
LRESULT CGdipButton::OnMouseLeave(WPARAM wparam, LPARAM lparam)
//=============================================================================
{
	m_bIsTracking = FALSE;
	m_bIsHovering = FALSE;
	Invalidate();
	return 0;
}

//=============================================================================
void CGdipButton::OnMouseMove(UINT nFlags, CPoint point)
//=============================================================================
{
	if (!m_bIsTracking)
	{
		TRACKMOUSEEVENT tme;
		tme.cbSize = sizeof(tme);
		tme.hwndTrack = m_hWnd;
		tme.dwFlags = TME_LEAVE|TME_HOVER;
		tme.dwHoverTime = 1;
		m_bIsTracking = _TrackMouseEvent(&tme);
	}

	CButton::OnMouseMove(nFlags, point);
}

//=============================================================================
//
//	Call this member function with a memory DC from the code that paints
//	the parents background.  Passing the screen DC defeats the purpose of
//  using this function.
//
//=============================================================================
void CGdipButton::SetBkGnd(CDC* pDC)
{
	CRect rect, rectS;
	CBitmap bmp, *pOldBitmap;

	GetClientRect(rect);
	GetWindowRect(rectS);
	GetParent()->ScreenToClient(rectS);

	m_dcBk.DeleteDC();

	m_dcBk.CreateCompatibleDC(pDC);
	bmp.CreateCompatibleBitmap(pDC, rect.Width(), rect.Height());
	pOldBitmap = m_dcBk.SelectObject(&bmp);
	m_dcBk.BitBlt(0, 0, rect.Width(), rect.Height(), pDC, rectS.left, rectS.top, SRCCOPY);
	bmp.DeleteObject();
}


//=============================================================================
// Set the tooltip with a string resource
//=============================================================================
void CGdipButton::SetToolTipText(UINT nId, BOOL bActivate)
{
	// load string resource
	m_tooltext.LoadString(nId);

	// If string resource is not empty
	if (m_tooltext.IsEmpty() == FALSE)
	{
		SetToolTipText(m_tooltext, bActivate);
	}

}

//=============================================================================
// Set the tooltip with a CString
//=============================================================================
void CGdipButton::SetToolTipText(CString spText, BOOL bActivate)
{
	// We cannot accept NULL pointer
	if (spText.IsEmpty()) return;

	// Initialize ToolTip
	InitToolTip();
	m_tooltext = spText;

	// If there is no tooltip defined then add it
	if (m_pToolTip->GetToolCount() == 0)
	{
		CRect rectBtn;
		GetClientRect(rectBtn);
		m_pToolTip->AddTool(this, m_tooltext, rectBtn, 1);
	}

	// Set text for tooltip
	m_pToolTip->UpdateTipText(m_tooltext, this, 1);
	m_pToolTip->SetDelayTime(2000);
	m_pToolTip->Activate(bActivate);
}

//=============================================================================
void CGdipButton::InitToolTip()
//=============================================================================
{
	if (m_pToolTip == NULL)
	{
		m_pToolTip = new CToolTipCtrl;
		// Create ToolTip control
		m_pToolTip->Create(this);
		m_pToolTip->Activate(TRUE);
	}
}

//=============================================================================
void CGdipButton::DeleteToolTip()
//=============================================================================
{
	// Destroy Tooltip incase the size of the button has changed.
	if (m_pToolTip != NULL)
	{
		delete m_pToolTip;
		m_pToolTip = NULL;
	}
}


2.在 pch.h （或者是 stdafx.h）里添加上对 GDI+ 的引用：

```cpp
#include <gdiplus.h>
#pragma comment(lib, "gdiplus.lib")
using namespace Gdiplus;

3.在 InitInstance() 函数的 CWinApp::InitInstance(); 之前中启用 GDI+:

// ....


GdiplusStartup(&GdiToken, &gdiplusstartupinput, NULL);					// 激活 GDI （应该在程序退出时应该调用 GdiplusShutdown 关闭）

CWinApp::InitInstance();	// 要在这一句上面，否则会导致以后窗口不能自动重绘、不能使用字体等一系列问题。
// .....

4.关闭 GDI+ ：
应该在 ExitInstance() 里处理 ，但是我没有找到这个函数，可能是高版本里被废除掉了，所以我尝试用 OnDestroy 来代替它完成清理工作，但这么做会触发一个异常。

GdiplusShutdown(GdiToken);

关于 GDI+ 的内容，参考自：https://wenku.baidu.com/view/c662b31514791711cc791776.html

5.在 OnInitDialog() 函数里添加如下代码（m_cPlay 是你按钮的变量名，IDR_PLAY 是你的 png 资源名）

m_cPlay.LoadStdImage(IDR_PLAY, _T("PNG"));

效果图：

---

修改普通按钮风格

1 . 为按钮添加一个成员变量，类型为 CMFCButton
关于 CMFCButton 的定义，参考 ：
https://docs.microsoft.com/zh-cn/cpp/mfc/reference/cmfcbutton-class?view=msvc-160

2 . 在 OnInitDialog() 函数里添加按钮的属性：

btn_1.SetWindowTextW(_T("LYSM"));						// 设置文本内容
btn_1.SetTextColor(RGB(255, 255, 255));				// 设置文本颜色
btn_1.SetTextHotColor(RGB(0, 0, 0));						// 设置文本被点击时的颜色
btn_1.SetMouseCursorHand();									// 鼠标经过时变成手指
btn_1.m_bTransparent = FALSE;								// 按钮透明
btn_1.SetFaceColor(RGB(100, 0, 0));				// 更改背景颜色
btn_1.m_bDontUseWinXPTheme = TRUE;				// 使用 XP 风格，否则颜色不显示
btn_1.m_bDrawFocus = FALSE;									// 去除周围黑框

2 . 类向导里添加一个时钟事件，相应鼠标悬停逻辑：

void Ctestmfc1Dlg::OnTimer(UINT_PTR nIDEvent)
{
	// TODO: 在此添加消息处理程序代码和/或调用默认值
	if (1 == nIDEvent)
	{
		POINT p;
		GetCursorPos(&p);
		CWnd* hwndMouse  = WindowFromPoint(p);
		CWnd* hwndBtn1 = GetDlgItem(IDC_BUTTON1);
		if (hwndMouse == hwndBtn1)
		{

			btn_1.SetFaceColor(RGB(0, 100, 0));			// 鼠标悬停改变按钮颜色
		}
		else
		{
			btn_1.SetFaceColor(RGB(100, 0, 0));			// 否则使用默认颜色
		}
	}


	CDialogEx::OnTimer(nIDEvent);
}

最后不要忘了在 OnInitDialog() 里初始化时钟：

SetTimer(1, 100, NULL);

效果图：

---

取消 ESC、ENTER 后程序退出

mfc 对话框程序，按以上两个键会退出程序，所以需要处理一下。

1 . 类向导里添加虚函数 ： PreTranslateMessage

2 . 添加如下代码，接管按键事件：

BOOL Ctestmfc1Dlg::PreTranslateMessage(MSG* pMsg)
{
	// TODO: 在此添加专用代码和/或调用基类
	if (pMsg->message == WM_KEYDOWN)
	{
		switch (pMsg->wParam)
		{
			case VK_RETURN :		// 屏蔽回车
				return TRUE;
			case VK_ESCAPE :			// 屏蔽 Esc
				return TRUE;
		}
	}


	return CDialogEx::PreTranslateMessage(pMsg);
}

---

edit control 修改字体大小

1 .OnInitDialog() 里，添加如下代码：

CFont my_Font;
my_Font.CreatePointFont(300, L"Arial");		// 300 ：字体大小 ，Arial ： 字体样式
edit_1.SetFont(&my_Font);					// edit_1 ：edit control 控件变量

---
