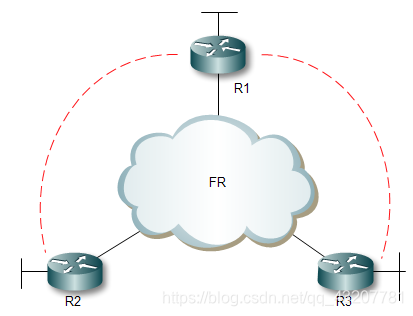

ISIS帧中继实验

R1======================================

router isis
net 49.0000.0000.0001.00

int lo 0
ip add 1.1.1.1 255.255.255.255
ip router isis

int s2/0
no sh
en fr
ip add 192.168.1.1 255.255.255.0
no frame inver
frame map ip 192.168.1.2 102 br
frame map ip 192.168.1.3 103 br
frame map clns 102 br
frame map clns 103 br
cln router isis
ip router isis

R2========================================

router isis
net 49.0000.0000.0002.00

int lo 0
ip add 2.2.2.2 255.255.255.255
ip router isis

int s2/0
no sh
en fr
ip add 192.168.1.2 255.255.255.0
no frame inver
frame map ip 192.168.1.1 201 br
frame map ip 192.168.1.3 201 br
frame map clns 201 br

cln router isis
ip router isis

R3==========================================

router isis
net 49.0000.0000.0003.00

int lo 0
ip add 3.3.3.3 255.255.255.255
ip router isis

int s2/0
no sh
en fr
ip add 192.168.1.3 255.255.255.0
no frame inver
frame map ip 192.168.1.1 301 br
frame map ip 192.168.1.2 301 br

frame map clns 301 br
cln router isis
ip router isis
