  • iOS 瀑布流之栅格布局

    代码地址如下:
    http://www.demodashi.com/demo/14760.html

    一 、效果预览

    实现的栅格布局效果示意图

    二、确定需求

    由下面的需求示意图可知模块的最小单位是正方形,边长是屏幕宽除去边距间隔后的四等份,而每个模块的样式有小正方形(1:1)、大正方形(2:2)、横长方形(2:1)、纵长方形(1:2),动态的根据服务器下发模块样式绘制布局,可以横向滑动,限定为两行的高度。
    注意:上面的示意宽高比是约等于,忽略了间距,计算的时候千万别忘了。

    需求示意图

    三、实现思路

    由上需求分析可知,我们可以让后台每个模块下发width和height两个字段,字段的值是1或2就行了,然后我们就能根据宽高字段来确定模块的宽高了。现在宽高有了,我们怎么来绘制模块呢?
    答案当然是用UICollectionView了,然后自定义流水布局UICollectionViewLayout,主要代码如下:计算记录每一个cell对应的布局属性。瀑布流的创建我已在之前的 iOS 瀑布流封装 文章中写过了,这次只是多了个栅格布局的瀑布流样式,可以下载当前最新示例Demo查看。

    /** 返回indexPath位置cell对应的布局属性*/
    - (CGRect)itemFrameOfHorizontalGridWaterFlow:(NSIndexPath *)indexPath{
        //collectionView的高度
        CGFloat collectionH = self.collectionView.frame.size.height;
        //设置布局属性item的frame
        CGFloat h = [self.delegate waterFlowLayout:self sizeForItemAtIndexPath:indexPath].height;
        CGFloat w = [self.delegate waterFlowLayout:self sizeForItemAtIndexPath:indexPath].width;

        CGFloat x = 0;
        CGFloat y = 0;

        //找出宽度最短的那一行
        NSInteger destRow = 0;
        CGFloat minRowWidth = [self.rowWidths[destRow] doubleValue];
        for (NSInteger i = 1; i < self.rowWidths.count; i++) {
            //取出第i行
            CGFloat rowWidth = [self.rowWidths[i] doubleValue];
            if (minRowWidth > rowWidth) {
                minRowWidth = rowWidth;
                destRow = i;
            }
        }

        y = destRow == 0 ? self.edgeInsets.top : self.edgeInsets.top + h + self.rowMargin;

        x = [self.rowWidths[destRow] doubleValue] == self.edgeInsets.left ? self.edgeInsets.left : [self.rowWidths[destRow] doubleValue] + self.columnMargin;
        //更新最短那行的宽度
        if (h >= collectionH - self.edgeInsets.bottom - self.edgeInsets.top) {
            x = [self.rowWidths[destRow] doubleValue] == self.edgeInsets.left ? self.edgeInsets.left : self.maxRowWidth + self.columnMargin;
            for (NSInteger i = 0; i < 2; i++) {
                self.rowWidths[i] = @(x + w);
            }
        }else{
            self.rowWidths[destRow] = @(x + w);
        }
        //记录最大宽度
        if (self.maxRowWidth < x + w) {
            self.maxRowWidth = x + w ;
        }
        return CGRectMake(x, y, w, h);
    }


    后台下发字段格式示意图

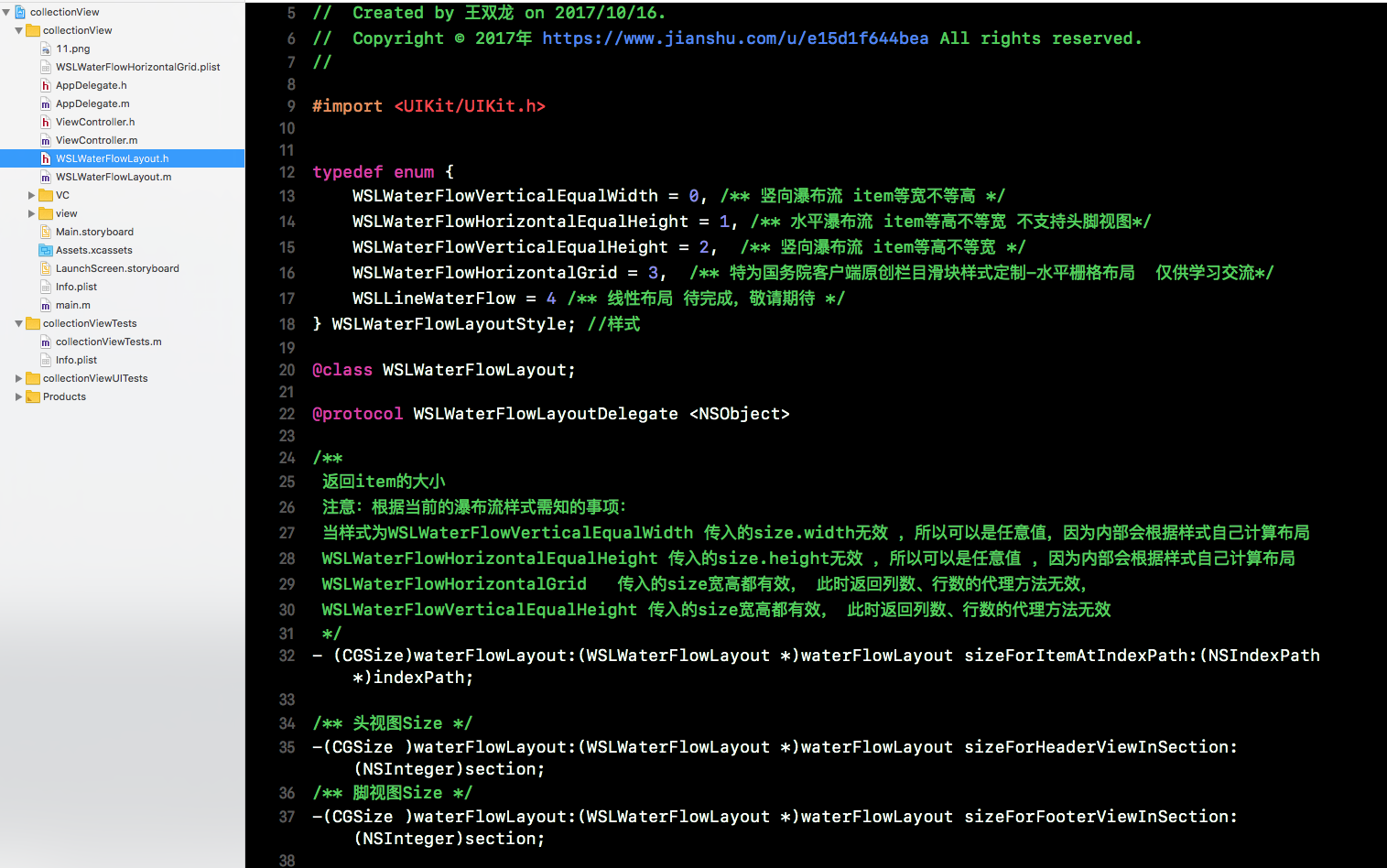

    功能描述:WSLWaterFlowLayout 是在继承于UICollectionViewLayout的基础上封装的带头脚视图的瀑布流控件。目前支持竖向瀑布流(item等宽不等高、支持头脚视图)、水平瀑布流(item等高不等宽 不支持头脚视图)、竖向瀑布流( item等高不等宽、支持头脚视图)、栅格布局瀑布流 4种样式的瀑布流布局。

    WSLWaterFlowLayout

    四、项目结构

    iOS 瀑布流之栅格布局

    代码地址如下:
    http://www.demodashi.com/demo/14760.html
