  • vpp 通过配置文件配置接口

    startup-config /path_to_config_file
     配置TenGigabitEthernet4/0/0的ip地址和端口状态
    set interface state TenGigabitEthernet4/0/0 up
    set interface ip address TenGigabitEthernet4/0/0 2001:1a::1/64
    # 配置默认路由
    ip route add ::/0 via 2001:1a::2
    # 配置GigabitEthernetb/0/0的ip地址和端口状态
    set interface state GigabitEthernetb/0/0 up
    set interface ip address GigabitEthernetb/0/0 10.0.0.1/24
    # 配置TenGigabitEthernet13/0/0的ip地址和端口状态
    set interface state TenGigabitEthernet13/0/0 up
    set interface ip address TenGigabitEthernet13/0/0 10.1.0.1/24
    # 新建Loopback端口,配置loopback地址和端口状态
    loopback create-interface
    set interface ip address loop0 fc00:1::1/64
    set interface state loop0 up

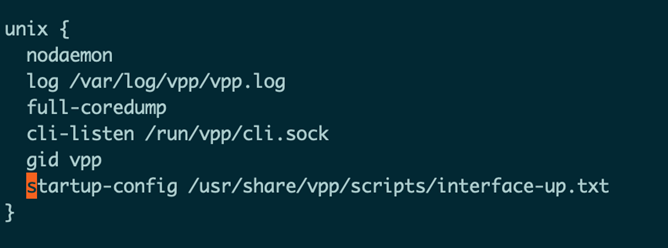

    unix {
      nodaemon
      log /var/log/vpp/vpp.log
      full-coredump
      cli-listen /run/vpp/cli.sock
      gid vpp
      startup-config /etc/vpp/interface.txt
    }
    root@gobgp:~# vi /etc/vpp/interface.txt
    set interface state GigabitEthernet7/0/0 up
    set interface ip address GigabitEthernet7/0/0 192.168.123.3/24
    root@gobgp:~# systemctl restart   vpp
    root@gobgp:~# vppctl show interface addr
    GigabitEthernet7/0/0 (up):
      L3 192.168.123.3/24
    local0 (dn):
    root@gobgp:~# cat /etc/vpp/interface.txt
    set interface state GigabitEthernet7/0/0 up
    set interface ip address GigabitEthernet7/0/0 192.168.123.3/24
    root@gobgp:~#
    root@gobgp:~# ping 192.168.123.2
    connect: Network is unreachable
    root@gobgp:~# vppctl
        _______    _        _   _____  ___
     __/ __/ _   (_)__    | | / / _ / _
     _/ _// // / / / _    | |/ / ___/ ___/
     /_/ /____(_)_/\___/   |___/_/  /_/


    vpp# ping 192.168.123.2
    116 bytes from 192.168.123.2: icmp_seq=2 ttl=64 time=.1428 ms
    116 bytes from 192.168.123.2: icmp_seq=3 ttl=64 time=.0896 ms
    116 bytes from 192.168.123.2: icmp_seq=4 ttl=64 time=.0839 ms
    116 bytes from 192.168.123.2: icmp_seq=5 ttl=64 time=.0847 ms

    root@gobgp:~#
    vpp# sr policy add bsid cafe::1 next A1:: next B1:: next C1:: encap
    vpp#

    vpp# show sr policies
    SR policies:
    [0].-   BSID: cafe::1
            Behavior: Encapsulation
            Type: Default
            FIB table: 0
            Segment Lists:
            [0].- < a1::, b1::, c1:: > weight: 1
    -----------
    vpp#
