#include<stdio.h> #include<stdlib.h> #include<string.h> #include<netinet/ip_icmp.h> #include<netinet/tcp.h> #include<netinet/udp.h> #include<arpa/inet.h> #include<sys/socket.h> #include<sys/types.h> #define BUFFSIZE 1024 int main(){ int rawsock; char buff[BUFFSIZE]; int n; int count = 0; rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_TCP); // rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_UDP); // rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_ICMP); // rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_RAW); if(rawsock < 0){ printf("raw socket error! "); exit(1); } while(1){ n = recvfrom(rawsock,buff,BUFFSIZE,0,NULL,NULL); if(n<0){ printf("receive error! "); exit(1); } count++; struct ip *ip = (struct ip*)buff; printf("%5d %20s",count,inet_ntoa(ip->ip_src)); printf("%20s %5d %5d ",inet_ntoa(ip->ip_dst),ip->ip_p,ntohs(ip->ip_len)); printf(" "); } }
所有IP的所有port都能接收
#include<stdio.h> #include<stdlib.h> #include<string.h> #include<netinet/ip_icmp.h> #include<netinet/tcp.h> #include<netinet/udp.h> #include<arpa/inet.h> #include<sys/socket.h> #include<sys/types.h> #define BUFFSIZE 1024 int main(){ int rawsock; char buff[BUFFSIZE]; int n; int count = 0; rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_TCP); // rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_UDP); // rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_ICMP); // rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_RAW); if(rawsock < 0){ printf("raw socket error! "); exit(1); } while(1){ n = recvfrom(rawsock,buff,BUFFSIZE,0,NULL,NULL); if(n<0){ printf("receive error! "); exit(1); } count++; struct ip *ip = (struct ip*)buff; unsigned short dst_port; memcpy(&dst_port, buff + 22, sizeof(dst_port)); dst_port = ntohs(dst_port); if (5000 == dst_port || 6000 == dst_port) { printf("%5d %20s",count,inet_ntoa(ip->ip_src)); printf("%20s %5d %5d and port %d ",inet_ntoa(ip->ip_dst),ip->ip_p,ntohs(ip->ip_len), dst_port); printf(" "); } } }
[root@bogon raw-sockets-example]# ./sniffer 730 10.10.16.82 10.10.16.81 6 60 and port 6000 838 10.10.16.82 10.10.16.81 6 60 and port 6000 991 10.10.16.82 10.10.16.81 6 60 and port 6000 1359 10.10.16.82 10.10.16.81 6 60 and port 5000 1360 10.10.16.82 10.10.16.81 6 52 and port 5000 1473 10.10.16.82 10.10.16.81 6 57 and port 5000 1610 10.10.16.82 10.10.16.81 6 57 and port 5000 1956 10.10.16.82 10.10.16.81 6 57 and port 5000 4035 10.10.16.82 10.10.16.81 6 52 and port 5000 4414 10.10.16.1 10.10.16.81 6 60 and port 6000 4480 10.10.16.1 10.10.16.81 6 60 and port 6000 5938 10.10.16.1 10.10.16.81 6 60 and port 5000 5939 10.10.16.1 10.10.16.81 6 52 and port 5000 6167 10.10.16.1 10.10.16.81 6 57 and port 5000 6229 10.10.16.1 10.10.16.81 6 57 and port 5000 6271 10.10.16.1 10.10.16.81 6 57 and port 5000 6309 10.10.16.1 10.10.16.81 6 57 and port 5000 6343 10.10.16.1 10.10.16.81 6 57 and port 5000 6401 10.10.16.1 10.10.16.81 6 54 and port 5000 6403 10.10.16.1 10.10.16.81 6 52 and port 5000 6404 10.10.16.1 10.10.16.81 6 52 and port 5000
[root@bogon raw-sockets-example]# cat sniffer2.c #include<stdio.h> #include<stdlib.h> #include<string.h> #include<netinet/ip_icmp.h> #include<netinet/tcp.h> #include<netinet/udp.h> #include<arpa/inet.h> #include<sys/socket.h> #include<sys/types.h> #include <errno.h> #define BUFFSIZE 1024 #define PORT 50000 #define PORT_CLIENT 50001 #define SERVER_ADDR "10.10.16.81" #define CLIENT_ADDR "10.10.16.82" int main(){ int rawsock; char buff[BUFFSIZE]; int n; int count = 0; struct sockaddr_in *servaddr = NULL, *client_addr = NULL; rawsock = socket(AF_INET,SOCK_RAW,IPPROTO_TCP); if(rawsock < 0){ printf("raw socket error! "); exit(1); } servaddr = (struct sockaddr_in *)malloc(sizeof(struct sockaddr_in)); if (servaddr == NULL) { printf("could not allocate memory "); goto end; } servaddr->sin_family = AF_INET; servaddr->sin_port = PORT; servaddr->sin_addr.s_addr = inet_addr(SERVER_ADDR); /* Part 2 – fill data structure and bind to socket */ if (0 != (bind(rawsock, (struct sockaddr *)servaddr, sizeof(struct sockaddr_in)))) { printf("could not bind server socket to address "); goto end1; } /* part 3: read and write data */ client_addr = (struct sockaddr_in *)malloc(sizeof(struct sockaddr_in)); if (client_addr == NULL) { printf("Unable to allocate memory to client address socket "); goto end2; } client_addr->sin_family = AF_INET; client_addr->sin_port = PORT_CLIENT; client_addr->sin_addr.s_addr = inet_addr(CLIENT_ADDR); int error =0; error = connect(rawsock, (struct sockaddr *)client_addr, sizeof(struct sockaddr_in)); if (error != 0) { printf("error %d", errno); printf("connect returned error "); goto end2; } while(1){ n = recvfrom(rawsock,buff,BUFFSIZE,0,NULL,NULL); if(n<0){ printf("receive error! "); exit(1); } count++; struct ip *ip = (struct ip*)buff; unsigned short dst_port; memcpy(&dst_port, buff + 22, sizeof(dst_port)); dst_port = ntohs(dst_port); if (5000 == dst_port || 6000 == dst_port) { printf("%5d %20s",count,inet_ntoa(ip->ip_src)); printf("%20s %5d %5d and port %d ",inet_ntoa(ip->ip_dst),ip->ip_p,ntohs(ip->ip_len), dst_port); printf(" "); } } end2: free(client_addr); end1: free(servaddr); end: close(rawsock); }

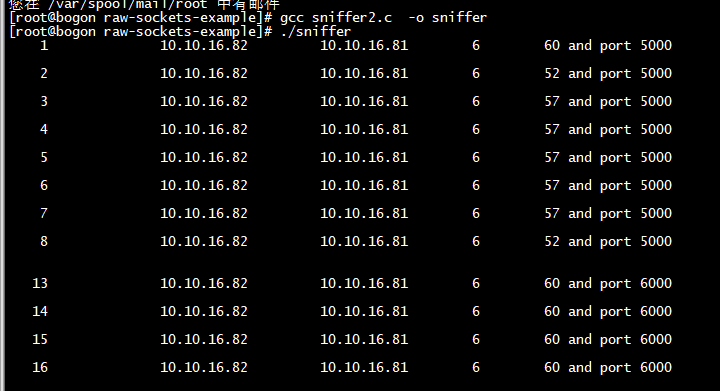

sniffer2执行了bind 和connect
bind的port没用用

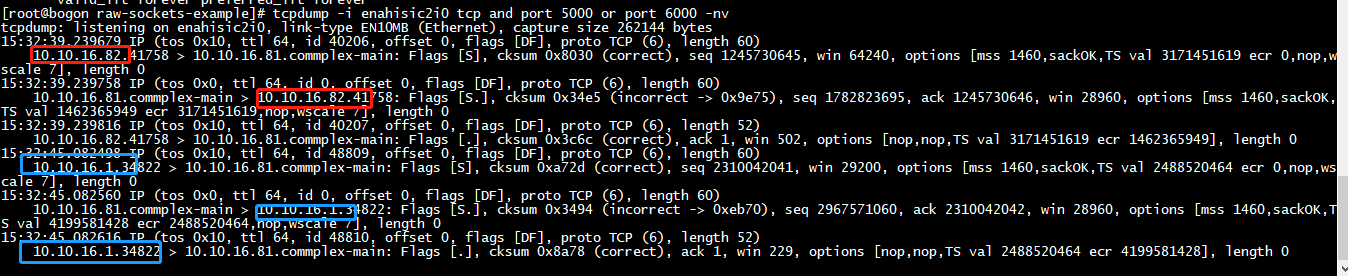

其他节点发过来的tcp报文无法tcpdump
开启两个sniffer，
一个connect 10.10.16.82,一个connect 10.10.16.1

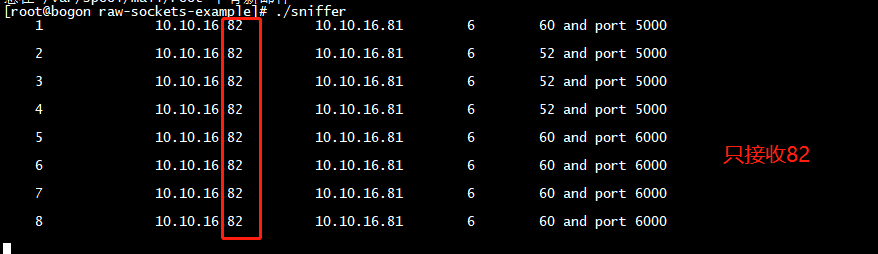

sniffer1

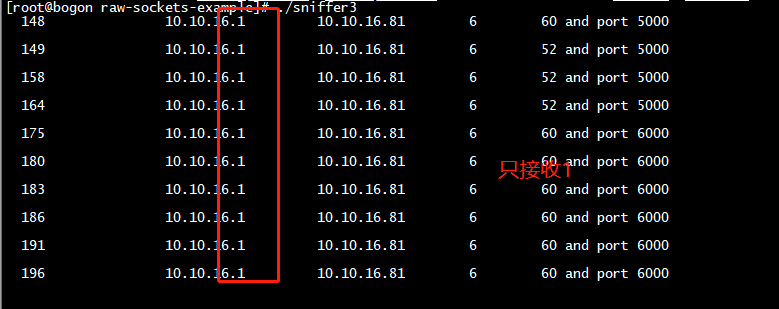

sniffer2
