  • D3D中的光照(3)

    平行光示例:

    The GetAsyncKeyState function determines whether a key is up or down at the time the function is called, and whether the key was pressed after a previous call to GetAsyncKeyState.

    Syntax

    SHORT GetAsyncKeyState(
        int vKey
    );

    Parameters

    vKey
    [in] Specifies one of 256 possible virtual-key codes. For more information, see Virtual-Key Codes.

    Return Value

    If the function succeeds, the return value specifies whether the key was pressed since the last call to GetAsyncKeyState, and whether the key is currently up or down. If the most significant bit is set, the key is down, and if the least significant bit is set, the key was pressed after the previous call to GetAsyncKeyState. However, you should not rely on this last behavior; for more information, see the Remarks.

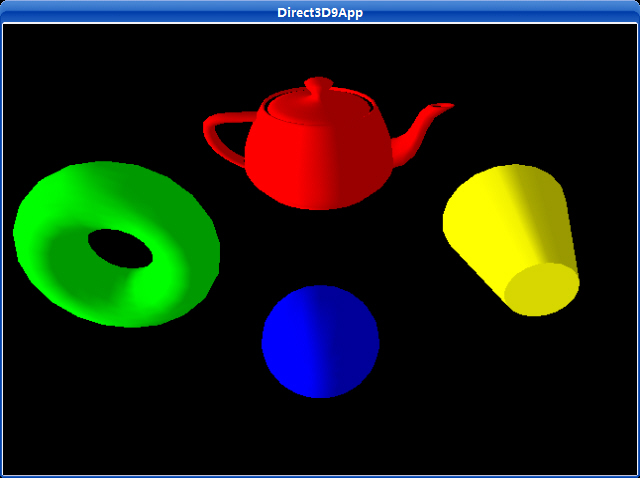

    截图:

    源代码:

    /**************************************************************************************
      Demonstrates using a directional light with D3DX objects.
      You can orbit the scene using the left and right arrow keys.
      In addition you can elevate the camera with the up and down arrow keys.
    **************************************************************************************/
    #include "d3dUtility.h"
    #pragma warning(disable : 4100)
    #define MESH_TEAPOT        0
    #define MESH_SPHERE        1
    #define MESH_TORUS        2
    #define MESH_CYLINDER    3
    #define NUM_MESH        4
    const int WIDTH  = 640;
    const int HEIGHT = 480;
    IDirect3DDevice9*        g_d3d_device  = NULL;
    ID3DXMesh*                g_object_meshes[NUM_MESH];
    D3DXMATRIX                g_world_matrices[NUM_MESH];
    D3DMATERIAL9            g_materials[NUM_MESH];
    ////////////////////////////////////////////////////////////////////////////////////////////////////
    bool setup()
    {
    // create objects
        D3DXCreateTeapot(g_d3d_device, &g_object_meshes[MESH_TEAPOT], NULL);
        D3DXCreateSphere(g_d3d_device, 1.0f, 20, 20, &g_object_meshes[MESH_SPHERE], NULL);
        D3DXCreateTorus(g_d3d_device, 0.5f, 1.0f, 20, 20, &g_object_meshes[MESH_TORUS], NULL);
        D3DXCreateCylinder(g_d3d_device, 0.5f, 1.0f, 2.0f, 20, 20, &g_object_meshes[MESH_CYLINDER], NULL);
    // build world matrices - position the objects in world space
        D3DXMatrixTranslation(&g_world_matrices[MESH_TEAPOT],     0.0f,  2.0f, 0.0f);
        D3DXMatrixTranslation(&g_world_matrices[MESH_SPHERE],     0.0f, -2.0f, 0.0f);
        D3DXMatrixTranslation(&g_world_matrices[MESH_TORUS],    -3.0f,  0.0f, 0.0f);
        D3DXMatrixTranslation(&g_world_matrices[MESH_CYLINDER],     3.0f,  0.0f, 0.0f);
    // setup the object's materials
        g_materials[MESH_TEAPOT]   = RED_MATERIAL;
        g_materials[MESH_SPHERE]   = BLUE_MATERIAL;
        g_materials[MESH_TORUS]    = GREEN_MATERIAL;
        g_materials[MESH_CYLINDER] = YELLOW_MATERIAL;
    // setup a directional light
        D3DXVECTOR3 light_direction(1.0f, -0.0f, 0.25f);
        D3DXCOLOR   color = WHITE;
        D3DLIGHT9   dir_light = init_directional_light(&light_direction, &color);
    // set and enable the light
        g_d3d_device->SetLight(0, &dir_light);
        g_d3d_device->LightEnable(0, TRUE);
    // turn off specular lighting and instruct Direct3D to renormalize normals
        g_d3d_device->SetRenderState(D3DRS_NORMALIZENORMALS, TRUE);
        g_d3d_device->SetRenderState(D3DRS_SPECULARENABLE, FALSE);
    // set the projection matrix
        D3DXMATRIX proj;
        D3DXMatrixPerspectiveFovLH(&proj, D3DX_PI * 0.25f, (float)WIDTH/HEIGHT, 1.0f, 1000.0f);
        g_d3d_device->SetTransform(D3DTS_PROJECTION, &proj);
    return true;
    }
    void cleanup()
    {
    for(int i = 0; i < NUM_MESH; i++)
            safe_release<ID3DXMesh*>(g_object_meshes[i]);
    }
    bool display(float time_delta)
    {
    // update the scene: update camera position
    static float angle = (3.0f * D3DX_PI) / 2.0f;
    static float height = 5.0f;
    if(GetAsyncKeyState(VK_LEFT) & 0x8000f)
            angle -= 0.5f * time_delta;
    if(GetAsyncKeyState(VK_RIGHT) & 0x8000f)
            angle += 0.5f * time_delta;
    if(GetAsyncKeyState(VK_UP) & 0x8000f)
            height += 5.0f * time_delta;
    if(GetAsyncKeyState(VK_DOWN) & 0x8000f)
            height -= 5.0f * time_delta;
        D3DXVECTOR3 position(cosf(angle) * 7.0f, height, sinf(angle) * 7.0f);
        D3DXVECTOR3 target(0.0f, 0.0f, 0.0f);
        D3DXVECTOR3 up(0.0f, 1.0f, 0.0f);
        D3DXMATRIX view_matrix;
        D3DXMatrixLookAtLH(&view_matrix, &position, &target, &up);
        g_d3d_device->SetTransform(D3DTS_VIEW, &view_matrix);
    // draw the scene
        g_d3d_device->Clear(0, NULL, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER, 0x00000000, 1.0f, 0);
        g_d3d_device->BeginScene();
    for(int i = 0; i < NUM_MESH; i++)
        {
    // set material and world matrix for ith object, then render the ith object.
            g_d3d_device->SetMaterial(&g_materials[i]);
            g_d3d_device->SetTransform(D3DTS_WORLD, &g_world_matrices[i]);
            g_object_meshes[i]->DrawSubset(0);
        }
        g_d3d_device->EndScene();
        g_d3d_device->Present(NULL, NULL, NULL, NULL);
    return true;
    }
    LRESULT CALLBACK wnd_proc(HWND hwnd, UINT msg, WPARAM word_param, LPARAM long_param)
    {
    switch(msg)
        {
    case WM_DESTROY:
            PostQuitMessage(0);
    break;
    case WM_KEYDOWN:
    if(word_param == VK_ESCAPE)
                DestroyWindow(hwnd);
    break;
        }
    return DefWindowProc(hwnd, msg, word_param, long_param);
    }
    int WINAPI WinMain(HINSTANCE inst, HINSTANCE, PSTR cmd_line, int cmd_show)
    {
    if(! init_d3d(inst, WIDTH, HEIGHT, true, D3DDEVTYPE_HAL, &g_d3d_device))
        {
            MessageBox(NULL, "init_d3d() - failed.", 0, MB_OK);
    return 0;
        }
    if(! setup())
        {
            MessageBox(NULL, "Steup() - failed.", 0, MB_OK);
    return 0;
        }
        enter_msg_loop(display);
        cleanup();
        g_d3d_device->Release();
    return 0;
    }

    下载源程序
