  • 基于谷歌开源的TensorFlow Object Detection API视频物体识别系统搭建自己的应用(三)

    基于上篇基于谷歌开源的TensorFlow Object Detection API视频物体识别系统搭建自己的应用(一),实现摄像头物体识别

    下载opencv的cv2包

    在Python官网即可下载opencv相关库,点击此处直接进入。

    pip install opencv-python

    安装完成后,进入IDLE输入命令

    import cv2
    若未报错,则opencv-python库成功导入,环境搭配成功。

    基于上篇新建CameraTest.py

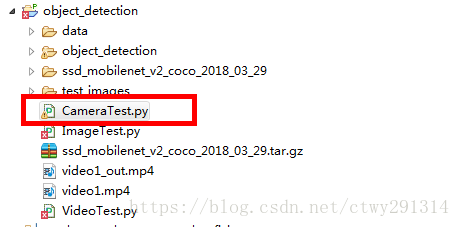

    目录结构如下:


    直接上代码:

    # coding: utf-8

    # # Object Detection Demo
    # Welcome to the object detection inference walkthrough!  This notebook will walk you step by step through the process of using a pre-trained model to detect objects in an image. Make sure to follow the [installation instructions](https://github.com/tensorflow/models/blob/master/object_detection/g3doc/installation.md) before you start.

    # # Imports

    # In[1]:

    import numpy as np
    import os
    import six.moves.urllib as urllib
    import sys
    import tarfile
    import tensorflow as tf
    import zipfile

    from collections import defaultdict
    from io import StringIO
    from matplotlib import pyplot as plt
    from PIL import Image

    import cv2                  #add 20170825
    cap = cv2.VideoCapture('rtsp://admin:admin@172.19.12.193/cam/realmonitor?channel=1&subtype=1')   #add 20170825

    # ## Env setup

    # In[2]:                                  #delete 20170825
    # This is needed to display the images.    #delete 20170825
    #get_ipython().magic('matplotlib inline')   #delete 20170825

    # This is needed since the notebook is stored in the object_detection folder.
    sys.path.append("..")


    # ## Object detection imports
    # Here are the imports from the object detection module.

    # In[3]:

    from object_detection.utils import label_map_util

    from object_detection.utils import visualization_utils as vis_util


    # # Model preparation

    # ## Variables
    #
    # Any model exported using the `export_inference_graph.py` tool can be loaded here simply by changing `PATH_TO_CKPT` to point to a new .pb file.
    #
    # By default we use an "SSD with Mobilenet" model here. See the [detection model zoo](https://github.com/tensorflow/models/blob/master/object_detection/g3doc/detection_model_zoo.md) for a list of other models that can be run out-of-the-box with varying speeds and accuracies.

    # In[4]:

    # What model to download.
    MODEL_NAME = 'ssd_mobilenet_v2_coco_2018_03_29'
    MODEL_FILE = MODEL_NAME + '.tar.gz'
    DOWNLOAD_BASE = 'http://download.tensorflow.org/models/object_detection/'

    # Path to frozen detection graph. This is the actual model that is used for the object detection.
    PATH_TO_CKPT = MODEL_NAME + '/frozen_inference_graph.pb'

    # List of the strings that is used to add correct label for each box.
    PATH_TO_LABELS = os.path.join('data', 'mscoco_label_map.pbtxt')

    NUM_CLASSES = 90


    # ## Download Model

    # In[5]:

    #opener = urllib.request.URLopener()
    #opener.retrieve(DOWNLOAD_BASE + MODEL_FILE, MODEL_FILE)
    tar_file = tarfile.open(MODEL_FILE)
    for file in tar_file.getmembers():
      file_name = os.path.basename(file.name)
      if 'frozen_inference_graph.pb' in file_name:
        tar_file.extract(file, os.getcwd())


    # ## Load a (frozen) Tensorflow model into memory.

    # In[6]:

    detection_graph = tf.Graph()
    with detection_graph.as_default():
      od_graph_def = tf.GraphDef()
      with tf.gfile.GFile(PATH_TO_CKPT, 'rb') as fid:
        serialized_graph = fid.read()
        od_graph_def.ParseFromString(serialized_graph)
        tf.import_graph_def(od_graph_def, name='')


    # ## Loading label map
    # Label maps map indices to category names, so that when our convolution network predicts `5`, we know that this corresponds to `airplane`.  Here we use internal utility functions, but anything that returns a dictionary mapping integers to appropriate string labels would be fine

    # In[7]:

    label_map = label_map_util.load_labelmap(PATH_TO_LABELS)
    categories = label_map_util.convert_label_map_to_categories(label_map, max_num_classes=NUM_CLASSES, use_display_name=True)
    category_index = label_map_util.create_category_index(categories)


    with detection_graph.as_default():
      with tf.Session(graph=detection_graph) as sess:
        while True:
          ret, image_np = cap.read()

          # 扩展维度,应为模型期待: [1, None, None, 3]
          image_np_expanded = np.expand_dims(image_np, axis=0)
          image_tensor = detection_graph.get_tensor_by_name('image_tensor:0')
          # 每个框代表一个物体被侦测到
          boxes = detection_graph.get_tensor_by_name('detection_boxes:0')
           #每个分值代表侦测到物体的可信度.
          scores = detection_graph.get_tensor_by_name('detection_scores:0')
          classes = detection_graph.get_tensor_by_name('detection_classes:0')
          num_detections = detection_graph.get_tensor_by_name('num_detections:0')
          # 执行侦测任务.
          (boxes, scores, classes, num_detections) = sess.run(
              [boxes, scores, classes, num_detections],
              feed_dict={image_tensor: image_np_expanded})
          # 检测结果的可视化
          vis_util.visualize_boxes_and_labels_on_image_array(
              image_np,
              np.squeeze(boxes),
              np.squeeze(classes).astype(np.int32),
              np.squeeze(scores),
              category_index,
              use_normalized_coordinates=True,
              line_thickness=8)
          cv2.imshow('object detection', cv2.resize(image_np,(800,600)))
          if cv2.waitKey(25) & 0xFF ==ord('q'):
            cv2.destroyAllWindows()
            break

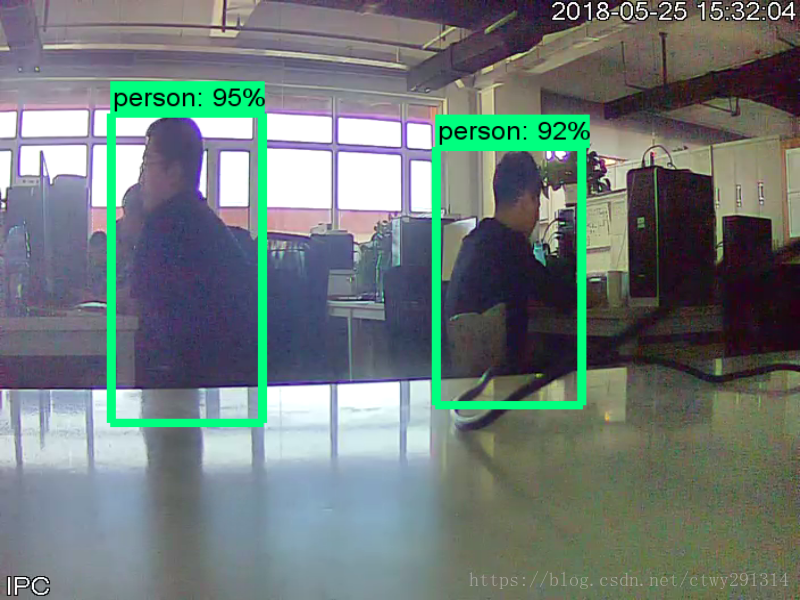

    效果:
