  • 纯代码实现图片预览

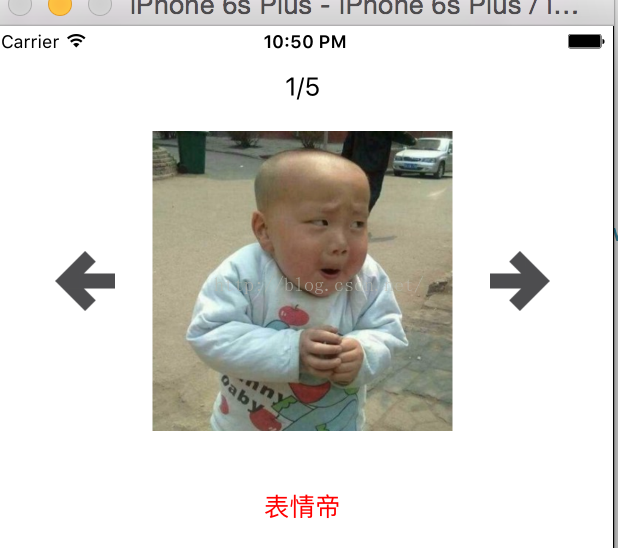

    1UI效果图




    2.代码实现


    //
    //  ViewController.m
    //  04-图片浏览器
    //
    //  Created by liuhang on 15/11/20.
    //  Copyright © 2015年 liuhang. All rights reserved.
    //

    #import "ViewController.h"
    /*
     1.查看界面元素需要哪些标签
          UIImageView 图片显示
          UIButton 按钮
          UILabel  标签
       @property  生成set和get 并生成员变量 _noLabel

     2.代码布局
        注意点 :  UIImage 是图片,不是控件;他的父类为NSObject;
                  UIImageView是加载图片的控件,父类为UIView
     3.设置监听,实现功能
     */

    @interface ViewController ()
    // 定义属性名称
    // 1.序号标签
    @property (nonatomic ,strong)  UILabel *noLabel;

    // 2.图片按钮
    @property (nonatomic , strong) UIImageView *iconImage;

    // 3.文字描述标签
    @property (nonatomic , strong) UILabel *descLabel;

    // 4.左按钮
    @property (nonatomic , strong) UIButton *leftButton;

    // 5.右按钮
    @property (nonatomic , strong) UIButton *rightButton;


    @end

    @implementation ViewController

    // 初始化加载 : 在viveDidLoad创建界面
    - (void)viewDidLoad {

        [super viewDidLoad];

        // 1.添加序号标签  slef.noLabel
        _noLabel =  [[UILabel alloc] initWithFrame:CGRectMake(0, 20, self.view.bounds.size.width, 40)];
        _noLabel.text = @"1/5";  // 设置文本内容
        _noLabel.textAlignment = NSTextAlignmentCenter;
        NSLog(@"屏幕的宽度 = %f",self.view.bounds.size.width);  // 414(6s)
        [self.view addSubview:_noLabel];  // 将视图添加到父视图

        // 2.添加图片
        CGFloat imageW = 200;
        CGFloat imageH = 200;
        // 图片居中,(获取屏幕长度 - 图片宽度) * 0.5   乘法的效率要不除法的效率高一点
        CGFloat imageX = (self.view.bounds.size.width - imageW) * 0.5;
        // 高度比序号标签高30
        CGFloat imageY = _noLabel.bounds.size.height + 30;
        _iconImage = [[UIImageView alloc] initWithFrame:CGRectMake(imageX, imageY, imageW, imageH)];
        // _iconButton.backgroundColor  = [UIColor redColor];  设置背景颜色检测正确性
        _iconImage.image = [UIImage imageNamed:@"biaoqingdi"];  // 设置背景图片
        [self.view addSubview:_iconImage];

        // 3.描述文字
        // CGRectGetMaxY是获取当前控件y坐标值 + 控件高度的值
        CGFloat descY = CGRectGetMaxY(self.iconImage.frame);
        _descLabel = [[UILabel alloc] initWithFrame:CGRectMake(0, descY , self.view.bounds.size.width, 100)];
        _descLabel.text = @"表情帝";
        _descLabel.textColor = [UIColor redColor];  // 设置文本颜色
        _descLabel.textAlignment = NSTextAlignmentCenter;
        [self.view addSubview:_descLabel];

        // 4.添加左按钮
        _leftButton = [[UIButton alloc]initWithFrame:CGRectMake(0, 0, 40, 40)];  // 初始化按钮位置
        // 动态设置按钮位置
        CGFloat centerY = self.iconImage.center.y;
        CGFloat centerX = self.iconImage.center.x * 0.3;
        _leftButton.center = CGPointMake(centerX, centerY);
        // 按钮设置背景图片只能通过set方法
        [_leftButton setBackgroundImage:[UIImage imageNamed:@"left_normal"] forState:UIControlStateNormal];
        [_leftButton setBackgroundImage:[UIImage imageNamed:@"left_highlighted"] forState:UIControlStateHighlighted];
        [self.view addSubview:_leftButton];

        // 5.设置右按钮
        _rightButton = [[UIButton alloc] initWithFrame:CGRectMake(0, 0, 40, 40)];
        _rightButton.center = CGPointMake(self.view.bounds.size.width - centerX, centerY);
        // 按钮设置背景图片只能通过set方法
        [_rightButton setBackgroundImage:[UIImage imageNamed:@"right_normal"] forState:UIControlStateNormal];
        [_rightButton setBackgroundImage:[UIImage imageNamed:@"right_highlighted"] forState:UIControlStateHighlighted];
        [self.view addSubview:_rightButton];
    }

    - (void)didReceiveMemoryWarning {
        [super didReceiveMemoryWarning];
        // Dispose of any resources that can be recreated.
    }

    @end





    可以选择,但是别选择放弃
