HighCharts之2D堆面积图
1、HighCharts之2D堆面积图源码
StackedArea.html：
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>HighCharts 2D堆面积图</title>
<script type="text/javascript" src="../scripts/jquery-1.11.0.js"></script>
<script type="text/javascript" src="../scripts/js/highcharts.js"></script>
<script type="text/javascript">
$(function(){
$('#stackedAreaChart').highcharts({
chart: {
type: 'area'
},
title: {
text: '2013年水果销售量'
},
subtitle: {
text: '水果销量'
},
xAxis: {
categories: ['一月', '二月', '三月', '四月', '五月', '六月', '七月','八月','九月','十月','十一月','十二月'],
tickmarkPlacement: 'on',
title: {
enabled: false
}
},
yAxis: {
title: {
text: '销量(kg)'
},
labels: {
formatter: function() {
return this.value / 1000;
}
}
},
tooltip: {
shared: true,
valueSuffix: ' kg'
},
plotOptions: {
area: {
stacking: 'normal',
lineColor: '#666666',
lineWidth: 1,
marker: {
lineWidth: 1,
lineColor: '#666666'
}
}
},
series: [{
name: '苹果',
data: [561, 145, 365, 879, 1245, 345, 268,654,945,451,615,341]
}, {
name: '梨子',
data: [306, 207, 451, 654, 354, 245, 874,652,478,984,875,243]
}, {
name: '橘子',
data: [156, 421, 214, 754, 410, 623, 894,451,652,874,356,524]
}, {
name: '荔枝',
data: [851, 331, 554, 245, 439, 718, 245,653,451,698,321,684]
}, {
name: '草莓',
data: [245, 352, 852, 746, 313, 430, 246,895,675,235,654,745]
}]
});
});
</script>
</head>
<body>
<div id="stackedAreaChart" style=" 1200px; height: 500px; margin: 0 auto"></div>
</body>

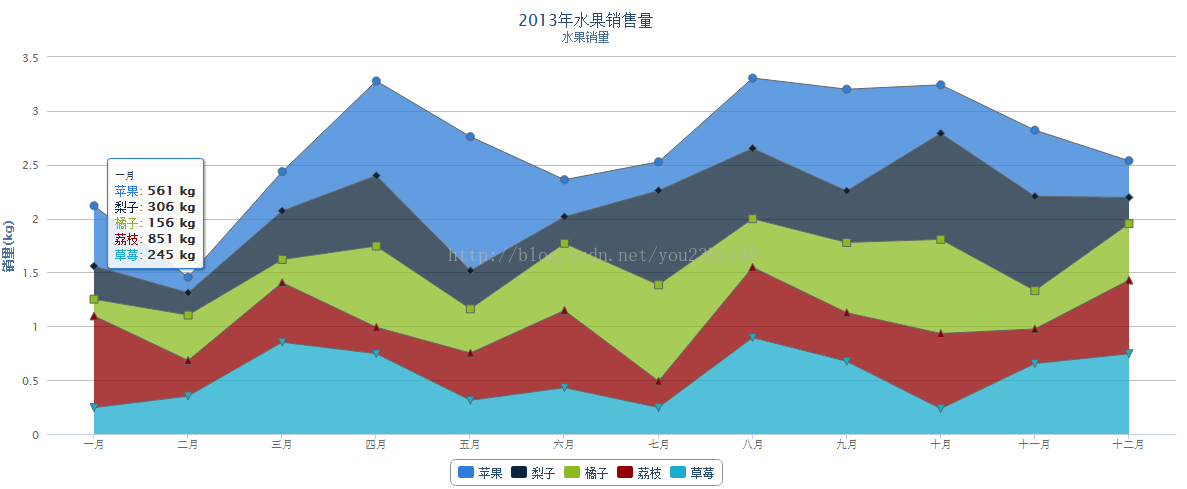

</html>2、运行结果
