HighCharts之2D带Label的折线图
1、HighCharts之2D带Label的折线图源码
LineLabel.html：
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>HighCharts 2D带Label的折线图</title>
<script type="text/javascript" src="../scripts/jquery-1.11.0.js"></script>
<script type="text/javascript" src="../scripts/js/highcharts.js"></script>
<script type="text/javascript">
$(function(){
$('#lineLabelChart').highcharts({
chart: {
type: 'line'
},
title: {
text: '统计某周水果销售情况'
},
subtitle: {
text: '水果销量'
},
xAxis: {
categories: ['星期一', '星期二', '星期三', '星期四', '星期五', '星期六', '星期日']
},
yAxis: {
title: {
text: '单位(kg)'
}
},
tooltip: {
enabled: false,
formatter: function() {
return '<b>'+ this.series.name +'</b><br/>'+
this.x +': '+ this.y +'kg';
}
},
plotOptions: {
line: {
dataLabels: {
enabled: true,
style: {
textShadow: '0 0 3px white, 0 0 3px white',
fontSize: '14px',
color: '#0000FF',
cursor: 'pointer'
}
},
enableMouseTracking: true
}
},
series: [{
name: '苹果',
data: [98,25,69,45,15,78,67]
}, {
name: '橘子',
data: [46,78,16,85,67,24,17]
}, {
name: '桃子',
data: [19,54,74,18,34,90,34]
}, {
name: '梨子',
data: [63,52,90,65,47,34,97]
}, {
name: '荔枝',
data: [56,74,99,41,43,65,78]
}]
});
});
</script>
</head>
<body>
<div id="lineLabelChart" style=" 1200px; height: 500px; margin: 0 auto"></div>
</body>

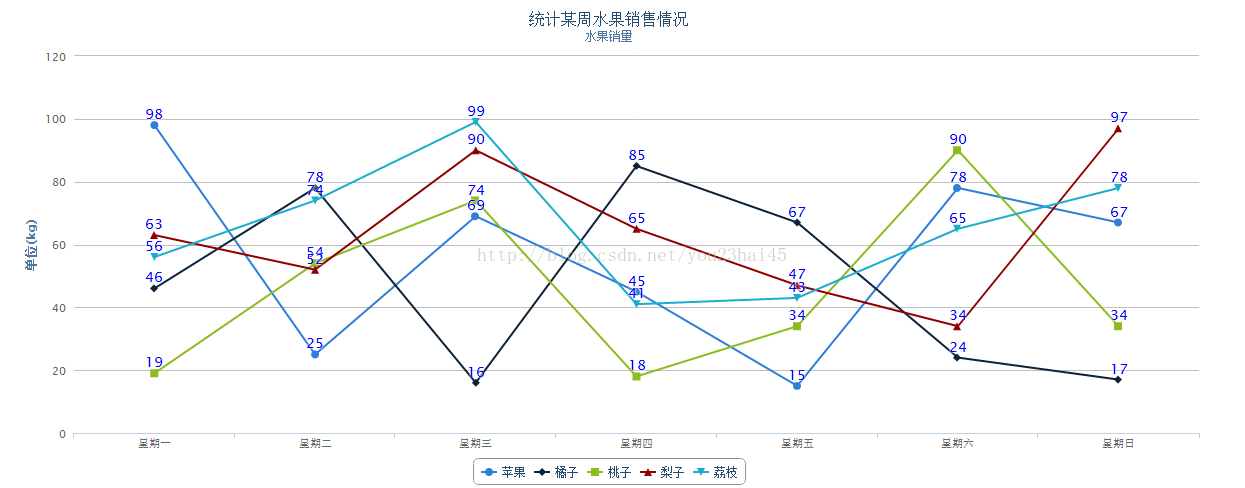

</html>2、运行结果
