  • FusionCharts 2D帕累托图

    1、了解帕累托图的特性以及和其他图的共性

    2、设计帕累托图页面中引入图的类型以及怎么引入到页面

    Pareto2D.html:

    <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
    <html>
      <head>
        <title>FusionCharts Pareto2D</title>

        <meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
        <meta http-equiv="description" content="this is my page">
        <meta http-equiv="content-type" content="text/html; charset=UTF-8">
        <script type="text/javascript" src="../scripts/jquery-2.0.3.js"></script>
        <script type="text/javascript" src="../scripts/Charts/FusionCharts.js"></script>
        <script type="text/javascript">
            $(function(){
                  var pareto2D = new FusionCharts( "../scripts/Charts/Pareto2D.swf", "pareto2DId", "100%", "540", "0" );
          		  pareto2D.setXMLUrl("data/pareto2D.xml");
                  pareto2D.render("pareto2DChart");
            });
        </script>

      </head>

      <body>
        <div id="pareto2DChart"></div>
      </body>
    </html>

    3、设计帕累托图的数据源
      pareto2D.xml:

    <?xml version="1.0" encoding="UTF-8"?>
    <chart  caption="一周统计人数" xAxisName="星期" PYAxisName ="人数" plotGradientColor="" showValues='0'
            baseFont='微软雅黑' baseFontSize='20' baseFontColor='#654545' outCnvBaseFont='宋体'
            outCnvBaseFontSize='24' outCnvBaseFontColor='#989899' drawAnchors='1' anchorSides='4'
            anchorRadius='10' anchorBorderColor='#FF0000' anchorBorderThickness='1' anchorBgColor='#00FF00'
            anchorAlpha='50' anchorBgAlpha='50' numDivLines='8' divLineIsDashed='1'>
       <set label="星期一" value="205"/>
       <set label="星期二" value="165"/>
       <set label="星期三" value="85"/>
       <set label="星期四" value="62"/>
       <set label="星期五" value="73"/>
       <set label="星期六" value="109"/>
       <set label="星期日" value="121"/>
    </chart>

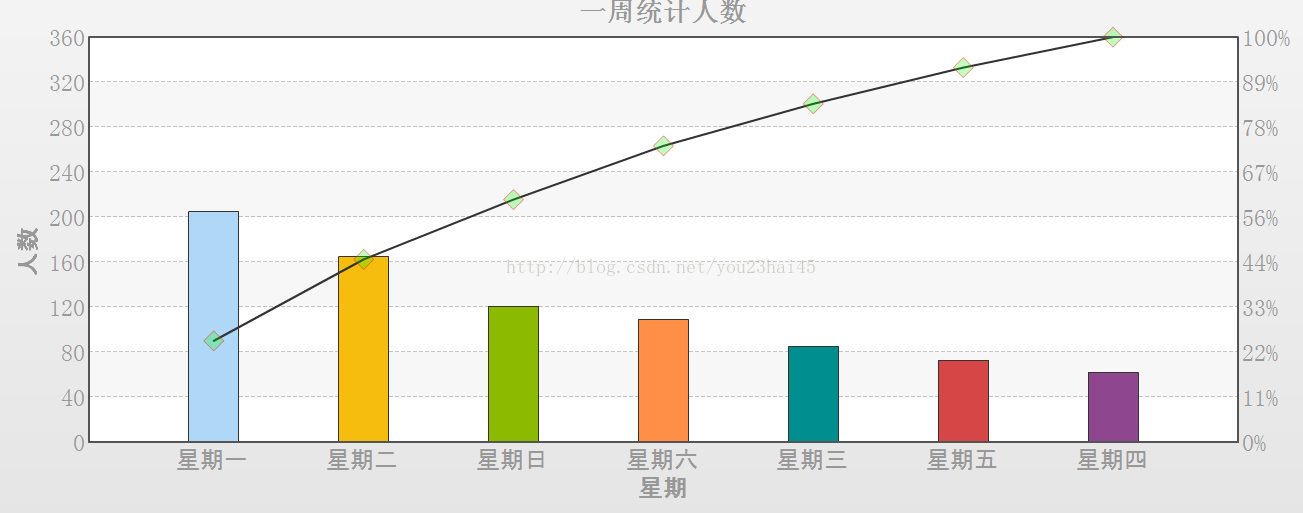

    4、运行结果
