  • FusionCharts 2D环饼图

    1、静态页面

    Doughnut.html:

    <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
    <html>
      <head>
        <title>FusionCharts Doughnut2D</title>

        <meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
        <meta http-equiv="description" content="this is my page">
        <meta http-equiv="content-type" content="text/html; charset=UTF-8">
        <script type="text/javascript" src="../scripts/jquery-2.0.3.js"></script>
        <script type="text/javascript" src="../scripts/Charts/FusionCharts.js"></script>
        <script type="text/javascript">
            $(function(){
                  var doughnut2D = new FusionCharts( "../scripts/Charts/Doughnut2D.swf", "doughnut2DId", "100%", "540", "0" );
          		  doughnut2D.setXMLUrl("data/doughnut2D.xml");
                  doughnut2D.render("doughnut2DChart");
            });
        </script>

      </head>

      <body>
        <div id="doughnut2DChart"></div>
      </body>
    </html>


    2、XML数据源

    doughnut2D.xml:

    <?xml version="1.0" encoding="UTF-8"?>
    <chart caption='一周收入' showPercentageValues='1' baseFont='微软雅黑' baseFontSize='16'
           baseFontColor='#00FF00' showLegend='1' legendPosition='BOTTOM' legendIconScale='0'
           legendBorderColor='#0000FF' legendShadow='1' legendAllowDrag='1'>
       <set label='星期一' value='895645' />
       <set label='星期二' value='154511' />
       <set label='星期三' value='562111' />
       <set label='星期四' value='451211' />
       <set label='星期五' value='356124' />
       <set label='星期六' value='754544' />
       <set label='星期日' value='454212' />
    </chart>

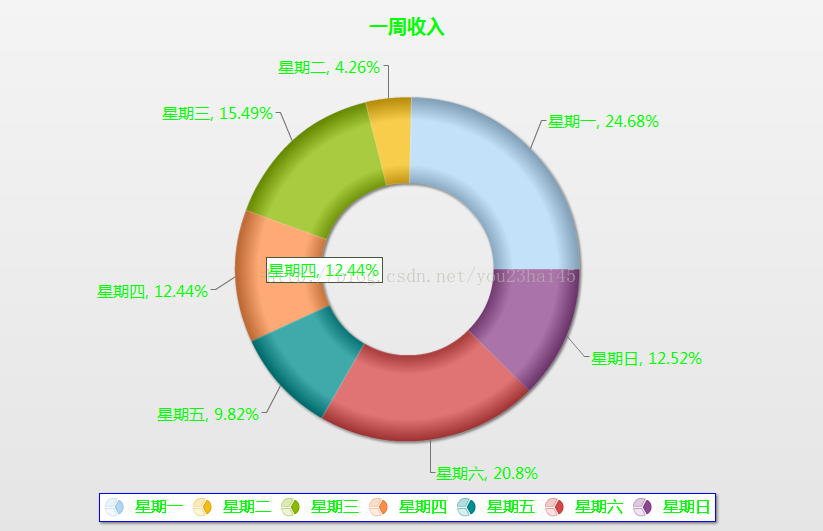

    3、运行结果
