1、FusionCharts中的2D双柱状图页面
doubleColumn2D.html：
<!DOCTYPE html>
<!--
To change this license header, choose License Headers in Project Properties.
To change this template file, choose Tools | Templates
and open the template in the editor.
-->
<html>
<head>
<title>FusionCharts 2D双柱状图</title>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width">
<script type="text/javascript" src="../script/jquery-1.10.2.js"></script>
<script type="text/javascript" src="../script/Charts/FusionCharts.js"></script>
<style type="text/css">
body{
99%;
height:100%;
font-size:12px;
}
#doubleColumn2DChart{
100%;
}
</style>
<script type="text/javascript">
$(function(){
var column2D = new FusionCharts( "../script/Charts/MSColumn2D.swf", "myChartId", "100%", "520", "0" );
column2D.setXMLUrl("data/doubleColumn2D.xml");
column2D.render("doubleColumn2DChart");
});
</script>
</head>
<body>
<div id="doubleColumn2DChart"></div>
</body>
</html>
doubleColumn2D.xml：
<?xml version="1.0" encoding="UTF-8"?>
<chart caption='2012年和2013年统计收入' xAxisName='月份' yAxisName='收入' showValues='0' baseFont='微软雅黑' baseFontSize='14'
baseFontColor='#00FF00' outCnvBaseFont='宋体' outCnvBaseFontSize='16' outCnvBaseFontColor='#798777' showAboutMenuItem='1'
showLabels='1' labelDisplay='ROTATE ' useEllipsesWhenOverflow='1' rotateLabels='1' slantLabels='1' staggerLines='2'
labelStep='3' placeValuesInside='1' showYAxisValues='1' showLimits='1' showDivLineValues='1' showShadow='1' adjustDiv='1'
setAdaptiveYMin='1' centerYaxisName='1' useRoundEdges='1' numDivLines='8' divLineColor='#987989' divLineIsDashed='1'>
<categories>
<category label='一月' />
<category label='二月' />
<category label='三月' />
<category label='四月' />
<category label='五月' />
<category label='六月' />
<category label='七月' />
<category label='八月' />
<category label='九月' />
<category label='十月' />
<category label='十一月' />
<category label='十二月' />
</categories>
<dataset seriesName='2012'>
<set value='45155' />
<set value='12452'/>
<set value='63455' />
<set value='45233' />
<set value='95656' />
<set value='87545' />
<set value='12425' />
<set value='94633' />
<set value='85452' />
<set value='75455' />
<set value='32312' />
<set value='65625' />
</dataset>
<dataset seriesName='2013'>
<set value='65655'/>
<set value='74555'/>
<set value='61245'/>
<set value='12451'/>
<set value='95656' />
<set value='24655' />
<set value='45122' />
<set value='32656' />
<set value='65656' />
<set value='95666' />
<set value='65323' />
<set value='54656' />
</dataset>
</chart>

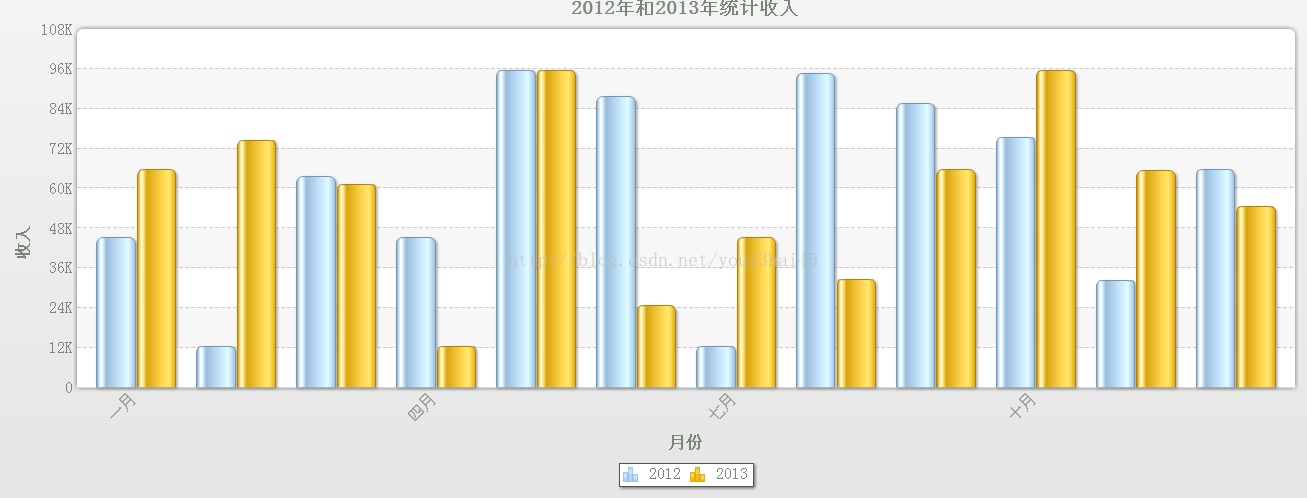

（1）初始化时

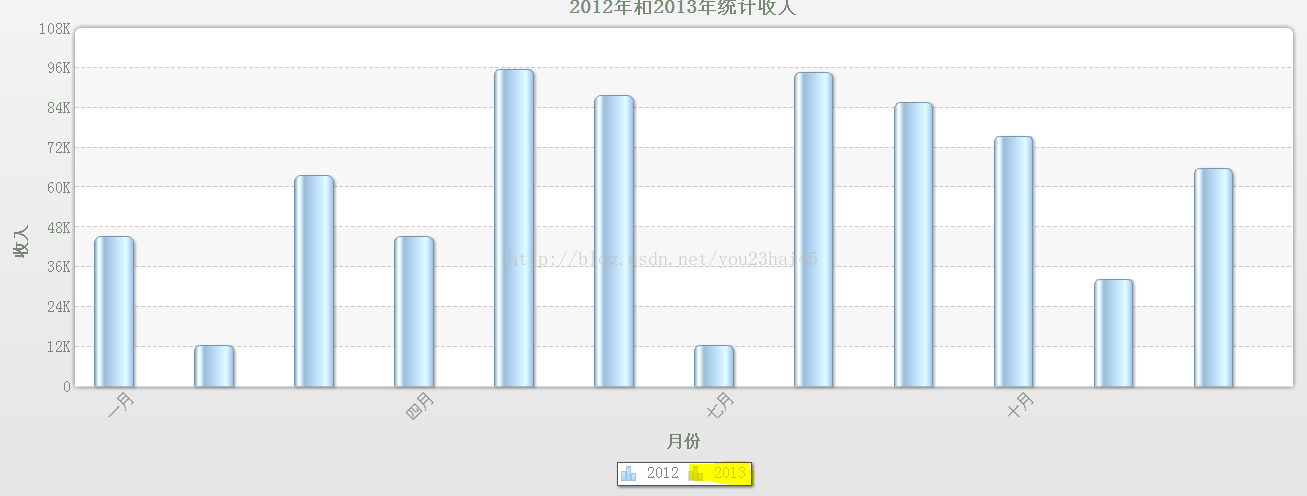

（2）点击下面图例2012时

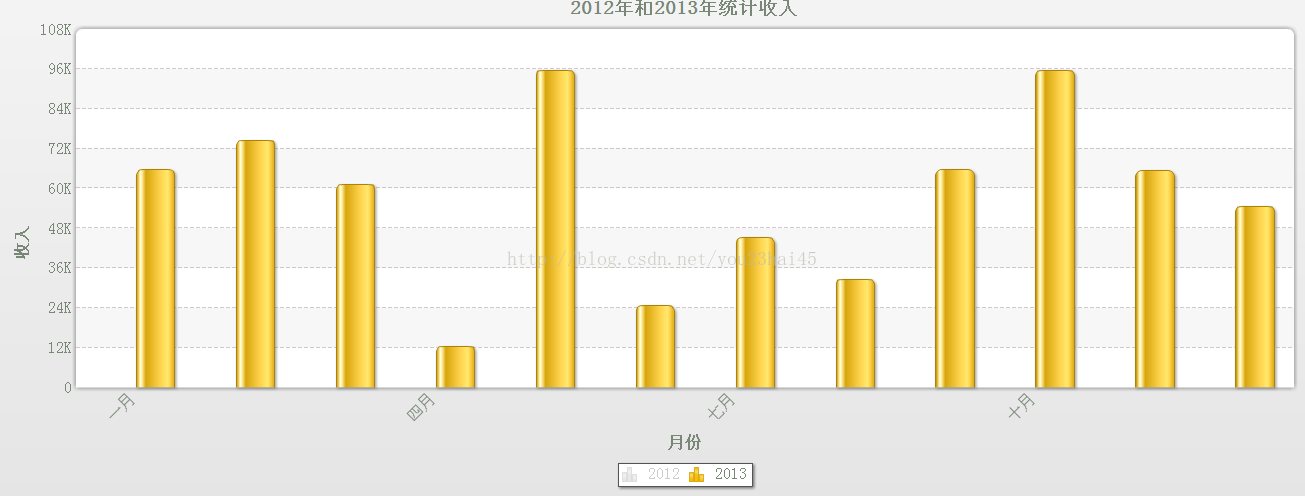

（3）点击下面图例2013时
