1、提供静态数据源XML
Funnel.xml：
<?xml version="1.0" encoding="UTF-8"?>
<chart manageResize="1" caption="2012年月平均统计人数" subcaption="千" decimals="1"
baseFontSize="12" useSameSlantAngle="1" isHollow="1" formatNumberScale="1"
numberPrefix="$">
<set label="一月" value="38563" />
<set label="二月" value="23563" />
<set label="三月" value="84564" />
<set label="四月" value="45654" />
<set label="五月" value="36342" />
<set label="六月" value="38563" />
<set label="七月" value="27563" />
<set label="八月" value="84564" />
<set label="九月" value="35654" />
<set label="十月" value="58342" />
<set label="十一月" value="35654" />
<set label="十二月" value="48342" />
</chart>2、源码如下
Funnel.jsp：
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>FusionChart实现漏斗图</title>
<script type="text/javascript" src="../Scripts/JS/jquery-1.10.2.js"></script>
<script type="text/javascript" src="../Chart/JS/FusionCharts.js"></script>
<style type="text/css">
body{
100%;
height: 100%;
font-size: 12px;
}
div{
100%;
height: 100%;
}
</style>
<script type="text/javascript">
$(function(){
//利用XML提供的静态数据来作为数据源
var Funnel = new FusionCharts( "../Chart/SWF/Funnel.swf", "FunnelId", "98%", "600", "0", "1" );
Funnel.setXMLUrl("xml/Funnel.xml");
Funnel.render("Funnel3D");
});
</script>
</head>
<body>
<div id="Funnel3D"></div>
</body>
</html>3、运行结果（如图）

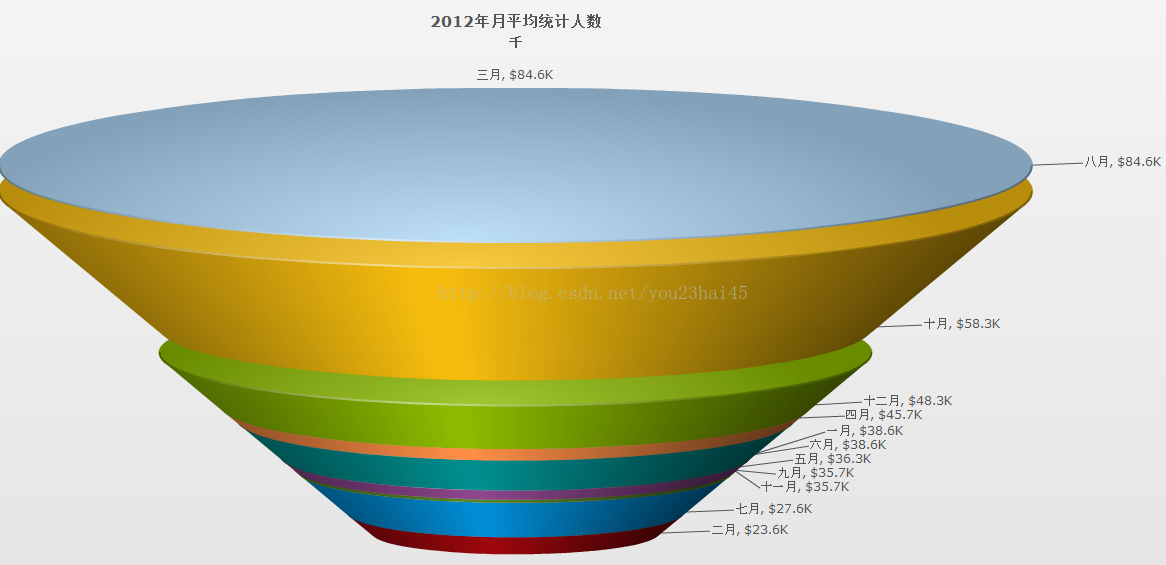

（1）初始化

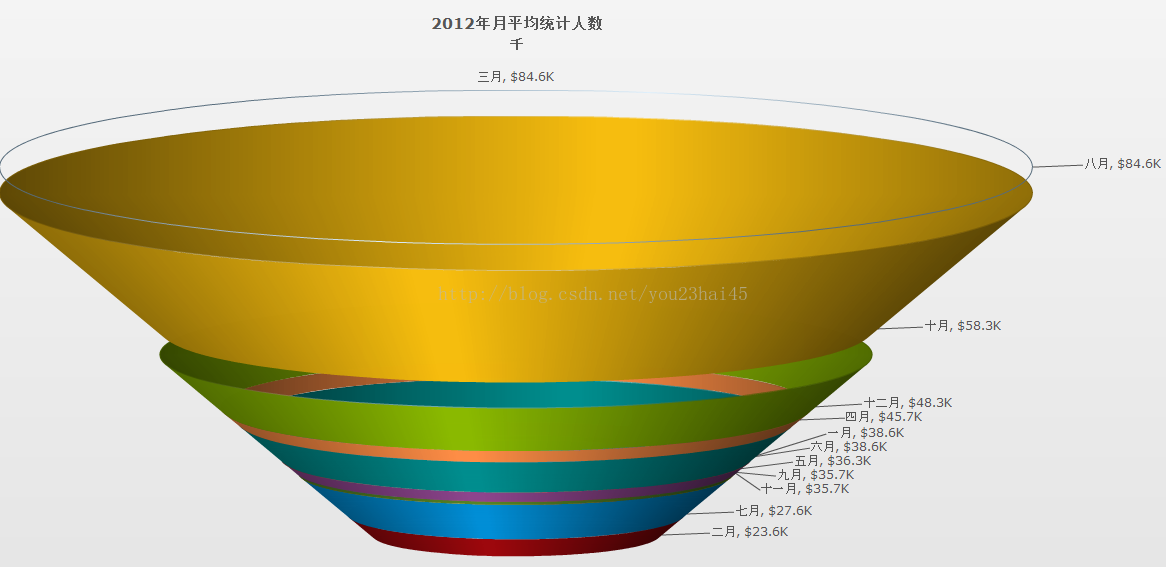

（2）修改了isHollow="1"
