1、创建一个web工程，命名为chart；
2、在WebContent目录下新建一个fusionchart文件夹，将FusionCharts.js拷到该目录下；
3、同样，将jquery-1.10.1.js和Area2D.swf也拷到WebContent目录下；
4、然后在WebContent目录下，新建一个JSP文件，取名为Area2D.jsp;
Area2D.jsp的源码如下：
<%@ page language="java" contentType="text/html; charset=utf-8"
pageEncoding="utf-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>FushionChart 2D 面积图</title>
<script type="text/javascript" src="fusionchart/FusionCharts.js"></script>
<script type="text/javascript" src="fusionchart/jquery-1.10.1.js"></script>
<style type="text/css">
body{
100%;
height:100%;
font-size: 12px;
background: silver;
}
fieldset{
100%;
height:100%;
font-size: 12px;
}
</style>
<script type="text/javascript">
$(function(){
var areaChart = new FusionCharts( "fusionchart/Area2D.swf", "areaChart", "100%", "100%", "0", "1");
areaChart.setXMLUrl("Area2D.xml");
areaChart.render("Area2D");
});
</script>
</head>
<body>
<fieldset>
<legend>2D面积图</legend>
<div id="Area2D"></div>
</fieldset>
</body>
</html>
<?xml version="1.0" encoding="UTF-8"?>
<chart caption='张华2012年月收入' xAxisName='月份' yAxisName='收入' anchorSides='3'
showValues= '1' bgColor='7FFF00' drawAnchors='1' baseFontSize='12'
numDivLines='8' divLineColor='F4A460' zeroPlaneColor='008080'
anchorBgColor='FFF000' showPlotBorder='1' plotBorderColor='FFE4B5'
canvasBgColor='5EA294'>
<set label='一月' value='3250' color='FF0000'/>
<set label='二月' value='5650' color='FF0000'/>
<set label='三月' value='6200' color='FF0000'/>
<set label='四月' value='4500' color='FF0000'/>
<set label='五月' value='6100' color='FF0000'/>
<set label='六月' value='3134' color='FF0000'/>
<set label='七月' value='4578' color='FF0000'/>
<set label='八月' value='8745' color='FF0000'/>
<set label='九月' value='2356' color='FF0000'/>
<set label='十月' value='4580' color='FF0000'/>
<set label='十一月' value='6500' color='FF0000'/>
<set label='十二月' value='7840' color='FF0000'/>

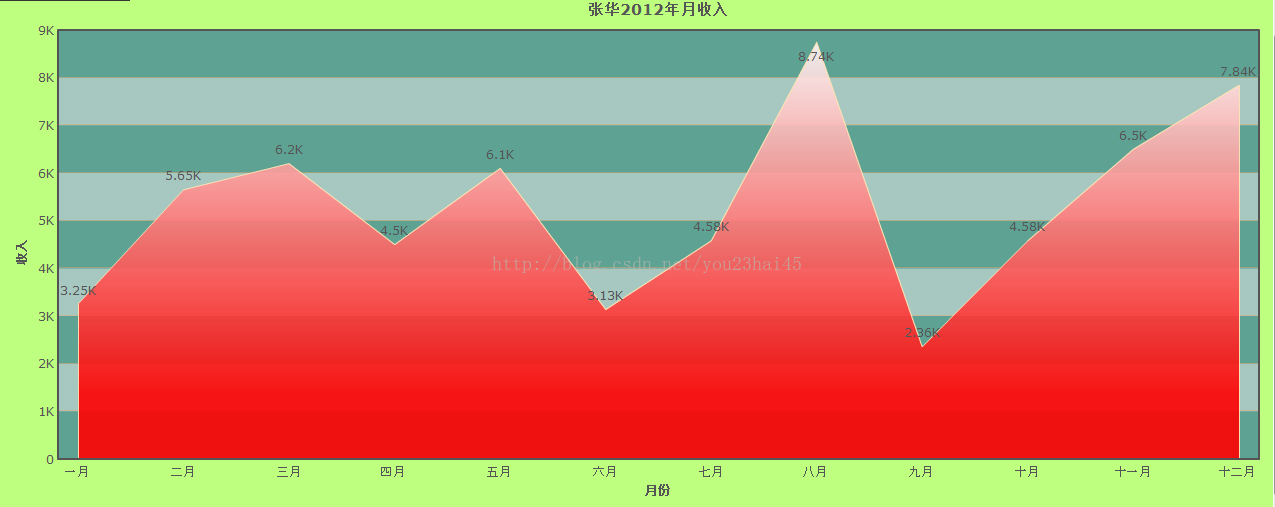

</chart>6、运行web项目，结果如下图：
