[置顶] 如何在Azure存储空间（Storage）建立属于自己的备份

   大家好，我们知道Windows Azure平台上我们可以将自己的数据存在各式各样的结构中，例如Blob适合大文件和二进制流文件，Table适合存储一些较有结构层次的数据，Queue适合作为不同Role之间的通信消息存储，SQL Azure适合大型的关系数据库。这几种结构中SQL Azure作为一个独立的部分和其他3种有少许不同，SQL Azure本质上来收是一个分布式的SQL Server，除开Federation上的一些问题，其他部分和普通的SQL Server类似。而Blob，Table，Queue统称为Azure Storage，是一种云端的存储方式，Azure Storage中数据通常是比较安全的，Azure会将你的数据备份3份，一旦发生任何故障，Fabric control都会帮助你自动创建新的备份，所以不必担心因为断电或者硬件问题造成的数据丢失或错误。

  看到这里可能有些读者就比较疑惑了，之前你提到Azure会帮助我们做到自我备份，那么你还写这样一篇文章来说备份做什么呢? 其实不是这样的，Azure能帮你做到的是物理备份，用意是防止数据丢失，保证服务的稳定。对于你来说，你并不需要知道Azure是怎样为你的数据备份的，你能看到只是你自己数据而已。试想一下，就算你有3份备份在Azure storage上，如果此时你不小心误操作一些数据，Azure会按时间将你错误的数据统统复制3份去替代原先正确的数据，这样的话就前功尽弃了。

  这里我们提到的是逻辑意义上的备份，在你的数据非常重要且敏感的情况下，多做一份逻辑备份是非常有必要的，这里我们举一个例子来说明如何在Azure的平台上通过代码来做到逻辑备份，当然你也可以设置定时备份这样的功能。写代码之前还是那句话，需要安装一些Azure组件在你的机器里，这些是必不可少的准备工作：

Azure 账号和 Storage账号（下文将会提到），没有的话可以去注册一个或者使用试用版，目前Azure看起来是已经登录中国了，大家可以关注一下。

[本示例完整源码下载(0分)] http://download.csdn.net/detail/aa466564931/5483345

首先我们创建一个Web Role，首先设计好你的UI，最最简单的是放置一个按钮就可以了，当然为了让我的页面看起来更佳美观和好用，我们还是放置更多一些的内容在页面上，首先说Blob的备份。

HTML代码：

<asp:Label ID="lbContent" runat="server" ForeColor="Red"></asp:Label>
        <br />
        <br />
        <div style="border: 2px solid;">
        <div style="font-style:italic;font-weight:bold">
        Back up Blob Storage
        Name Rule:
        <p>
            - Container names must start with a letter or number, and can contain only letters, numbers, and the dash (-) character.
        </p>
        <p>
            - Every dash (-) character must be immediately preceded and followed by a letter or number; consecutive dashes are not permitted in container names.
        </p>
        <p>
            - All letters in a container name must be lowercase.
        </p>
        <p>
            Container names must be from 3 through 63 characters long.
        </p>
        <p> Check:
            <a href="http://msdn.microsoft.com/en-us/library/windowsazure/dd135715.aspx">http://msdn.microsoft.com/en-us/library/windowsazure/dd135715.aspx</a>  </p>
        </div>
        <br />
        <br />
        Source Container Name:
        <asp:TextBox ID="tbSource" runat="server"></asp:TextBox>
        <br />
        Backup Container Name:
        <asp:TextBox ID="tbCopies" runat="server"></asp:TextBox>
         <br />
        <asp:Button ID="btnBackup" runat="server" Text="Back up your Blob"
            onclick="btnBackup_Click" />
        <br />
         <br />
        <asp:Label ID="lbBackup" runat="server" ForeColor="Red"></asp:Label>
        </div>



这里也提到当你创建Blob container时候必须遵守的一些命名规范（全为小写，长度3-63，禁止特殊字符除了“-”）。

继续添加一个按钮：

    <asp:Button ID="btnUpload" runat="server" Text="Upload Resources to Storage"
            onclick="btnUpload_Click" />



接下来我们在Azure项目中写入我们的Azure账号信息，右键点击Azure项目-左侧配置（settings）- 添加配置（Add Settings）- 类型选择连接字符串（connection string）- 点击最右侧的按钮 弹出设置Storage对话框 Account name为你的账号 Account key为你的密码，账户和密码可以在你的Azure的账户中心找到，这里如果你需要更详细的信息，请参照：

http://www.windowsazure.com/en-us/manage/services/storage/how-to-create-a-storage-account/

http://www.windowsazure.com/en-us/develop/net/how-to-guides/blob-storage/#configure-access

如果你是老用户，则可以跳过这一段。这里我们将这个connection string名字设为StorageConnections。（自定义）

接着让我们通过代码来创建一个Azure account因为我们不需要每次连接storage的时候都去重新创建一边Account，那么我们将account设为一个全局变量：

        private CloudStorageAccount account;
        List<string> nameList = new List<string>() { "MSDN.jpg", "Microsoft.jpg" };
        protected void Page_Load(object sender, EventArgs e)
        {
            lbBackup.Text = string.Empty;
            lbContent.Text = string.Empty;
            account = CloudStorageAccount.FromConfigurationSetting("StorageConnections");
        }

nameList只是我们需要备份的文件名，与创建account的过程无关。

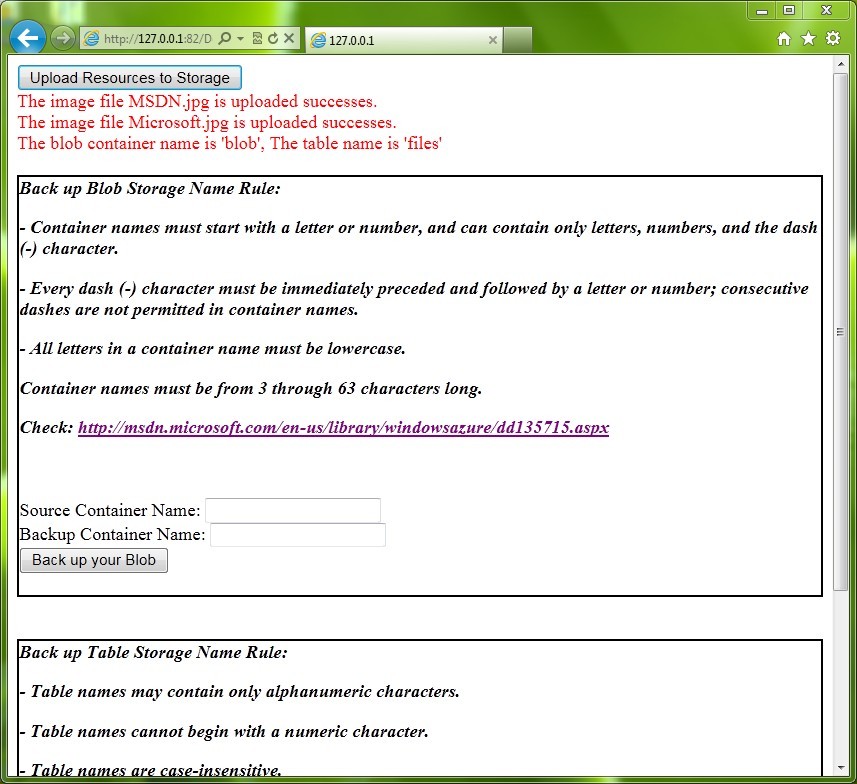

接着是初次上传文件的代码, 也就是需要被备份的原始数据 （2张图片）：

        /// <summary>
        /// Upload resources to Storage.
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        protected void btnUpload_Click(object sender, EventArgs e)
        {
            try
            {
                FileDataSource source = new FileDataSource("files");
                CloudBlobClient client = account.CreateCloudBlobClient();
                CloudBlobContainer container = client.GetContainerReference("blob");
                container.CreateIfNotExist();
                var permission = container.GetPermissions();
                permission.PublicAccess = BlobContainerPublicAccessType.Container;
                container.SetPermissions(permission);
                bool flag = false;

                foreach (string name in nameList)
                {
                    if (!source.FileExists(name, "image"))
                    {
                        flag = true;
                        CloudBlob blob = container.GetBlobReference(name);
                        string path = string.Format("{0}/{1}", "Files", name);
                        blob.UploadFile(Server.MapPath(path));

                        FileEntity entity = new FileEntity("image");
                        entity.FileName = name;
                        entity.FileUrl = blob.Uri.ToString();
                        source.AddFile(entity);
                        lbContent.Text += String.Format("The image file {0} is uploaded successes. <br />", name);
                    }
                }
                if (!flag)
                    lbContent.Text = "You had uploaded these resources. The blob container name is 'blob', table name is 'files'";
                else
                    lbContent.Text += "The blob container name is 'blob', The table name is 'files'";
            }
            catch (Exception ex)
            {
                lbContent.Text = ex.Message;
            }
        }

好了，接下来是备份按钮的代码，这里我创建了一个StorageManager类，用来检测Blob container和Blob是否存在，不存在则是无法备份了：

StorageManger.cs

   public class StorageManager
    {
        /// <summary>
        /// Check CloudBlobContainer is exists.
        /// </summary>
        /// <param name="container"></param>
        /// <returns></returns>
        public static bool CheckIfExists(CloudBlobContainer container)
        {
            try
            {
                container.FetchAttributes();
                return true;
            }
            catch (StorageClientException e)
            {
                if (e.ErrorCode == StorageErrorCode.ResourceNotFound)
                    return false;
                else
                    throw;
            }
        }

        /// <summary>
        /// Check CloudBlob is exists.
        /// </summary>
        /// <param name="blob"></param>
        /// <returns></returns>
        public static bool CheckIfExists(CloudBlob blob)
        {
            try
            {
                blob.FetchAttributes();
                return true;
            }
            catch (StorageClientException e)
            {
                if (e.ErrorCode == StorageErrorCode.ResourceNotFound)
                    return false;
                else
                    throw;
            }
        }
    }

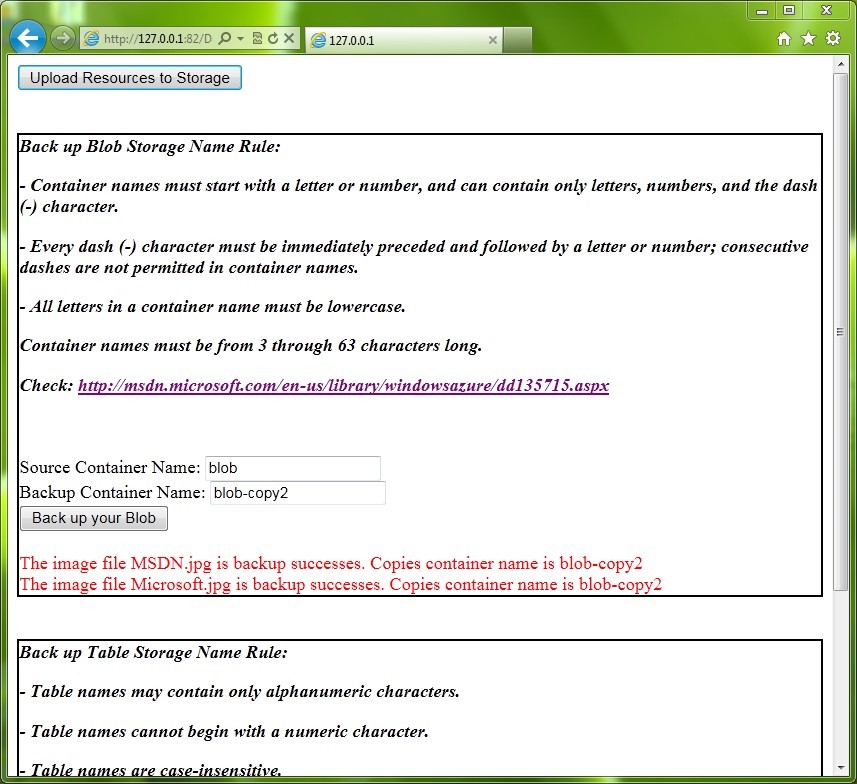

backup按钮：

        protected void btnBackup_Click(object sender, EventArgs e)
        {
            try
            {
                if (tbSource.Text.Trim().Equals(string.Empty) && tbCopies.Text.Trim().Equals(string.Empty))
                {
                    lbBackup.Text = "Source TextBox and Copies TextBox can not be empty";
                    return;
                }

                string sourceContainerName = tbSource.Text.Trim();
                string copiesContainerName = tbCopies.Text.Trim();
                CloudBlobClient client = account.CreateCloudBlobClient();

                CloudBlobContainer sourceContainer = client.GetContainerReference(sourceContainerName);
                if (!StorageManager.CheckIfExists(sourceContainer))
                {
                    lbBackup.Text = "The source blob container is not exists";
                    return;
                }
                CloudBlobContainer copiesContainer = client.GetContainerReference(copiesContainerName);
                copiesContainer.CreateIfNotExist();
                var permission = copiesContainer.GetPermissions();
                permission.PublicAccess = BlobContainerPublicAccessType.Container;
                copiesContainer.SetPermissions(permission);


                foreach (var blob in sourceContainer.ListBlobs())
                {
                    string uri = blob.Uri.AbsolutePath;
                    string[] matches = new string[] { "blob/" };
                    string FileName = uri.Split(matches, StringSplitOptions.None)[1].Substring(0);
                    CloudBlob sourceBlob = sourceContainer.GetBlobReference(FileName);
                    CloudBlob copiesBlob = copiesContainer.GetBlobReference(FileName);
                    copiesBlob.CopyFromBlob(sourceBlob);
                    lbBackup.Text += String.Format("The image file {0} is backup successes. Copies container name is {1} <br />", FileName, copiesContainerName);
                }
            }
            catch (StorageClientException ex)
            {
                if (ex.ExtendedErrorInformation.ErrorCode.Equals("OutOfRangeInput"))
                    lbBackup.Text = "Please check your blob container name.";
                else
                    lbBackup.Text = ex.Message;
            }
            catch (Exception all)
            {
                lbBackup.Text = all.Message;
            }
        }

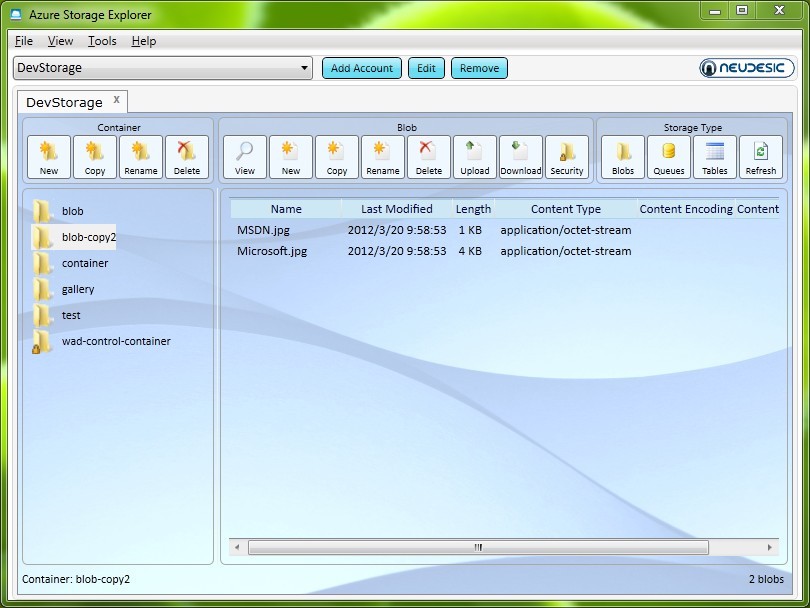

备份成功的blob会新创建好一个Blob，并且放在同一个BlobContainer下，你可以使用Storage Explorer检查一下是否备份成功了。

刚才我们提到的是Blob的备份，blob你可以想象就是一个个单独的文件的备份，比较简单和直观，如果我们需要Table storage这种有一定结构性的数据该怎么办呢？也很简单，首先我们需要为Table Storage建立一个类库，这样调用和阅读起来都比较方便。接着建立好一个实体类，这里你可以想象成数据库里表结构对应实体类，不过唯一的不同是这个实体类需要继承TableServiceEntity类，并且给两个特殊key赋值，PartitionKey和RowKey，Rowkey你可以想象成是你的列的主键，这是不可以重复的，而partitionkey是作为你的Table的分区键使用的，对Table storage来说会有更好的性能。代码如下：

    public class FileEntity : TableServiceEntity
    {
        /// <summary>
        /// No parameters constructor
        /// </summary>
        public FileEntity()
        {
            PartitionKey = "all";
            RowKey = string.Format("{0:10}-{1}", DateTime.MaxValue.Ticks - DateTime.Now.Ticks, Guid.NewGuid()).Replace("-", "");
        }

        /// <summary>
        /// With parameters constructor
        /// </summary>
        /// <param name="partitionKey"></param>
        public FileEntity(string partitionKey)
        {
            PartitionKey = partitionKey;
            RowKey = string.Format("{0:10}-{1}", DateTime.MaxValue.Ticks - DateTime.Now.Ticks, Guid.NewGuid()).Replace("-", "");
        }

        public string FileName
        {
            get;
            set;
        }

        public string FileUrl
        {
            get;
            set;
        }
    }



还需要一个用来创建查询的context类：

    public class FileContext : TableServiceContext
    {
        public FileContext(string baseAddress, StorageCredentials credentials)
            : base(baseAddress, credentials)
        {

        }

        /// <summary>
        /// Get all entities of table storage "files".
        /// </summary>
        public IEnumerable<FileEntity> GetEntities
        {
            get
            {
                var list = this.CreateQuery<FileEntity>("files");
                return list;
            }
        }

        /// <summary>
        /// Get all entities of table storage "files_backup".
        /// </summary>
        public IEnumerable<FileEntity> GetBackupEntities
        {
            get
            {
                var list = this.CreateQuery<FileEntity>("files_backup");
                return list;
            }
        }
    }



最后我们可以建立Datasource类，方便view层和data层之间的相互调用（具体的方法都在这里，包括查询table，添加row，校验方法等等）

    public class FileDataSource
    {
        private static CloudStorageAccount account;
        private FileContext context;
        private string tableName;

        public FileDataSource(string tableName)
        {
            // Create table storage client via cloud account.
            account = CloudStorageAccount.FromConfigurationSetting("StorageConnections");
            CloudTableClient client = account.CreateCloudTableClient();
            client.CreateTableIfNotExist(tableName);
            this.tableName = tableName;

            // Table context properties.
            context = new FileContext(account.TableEndpoint.AbsoluteUri, account.Credentials);
            context.RetryPolicy = RetryPolicies.Retry(3, TimeSpan.FromSeconds(1));
            context.IgnoreResourceNotFoundException = true;
            context.IgnoreMissingProperties = true;

        }

        /// <summary>
        /// Get all entities method.
        /// </summary>
        /// <returns></returns>
        public IEnumerable<FileEntity> GetAllEntities()
        {
            var list = from m in this.context.GetEntities
                       select m;
            return list;
        }

        /// <summary>
        /// Get table rows by partitionKey.
        /// </summary>
        /// <param name="partitionKey"></param>
        /// <returns></returns>
        public IEnumerable<FileEntity> GetEntities(string partitionKey)
        {
            var list = from m in this.context.GetEntities
                       where m.PartitionKey == partitionKey
                       select m;
            return list;
        }

        /// <summary>
        /// Get specify entity.
        /// </summary>
        /// <param name="partitionKey"></param>
        /// <param name="fileName"></param>
        /// <returns></returns>
        public FileEntity GetEntitiesByName(string partitionKey, string fileName)
        {
            var list = from m in this.context.GetEntities
                       where m.PartitionKey == partitionKey && m.FileName == fileName
                       select m;
            if (list.Count() > 0)
                return list.First<FileEntity>();
            else
                return null;
        }

        /// <summary>
        /// Add an entity.
        /// </summary>
        /// <param name="entity"></param>
        public void AddFile(FileEntity entity)
        {
            this.context.AddObject(this.tableName, entity);
            this.context.SaveChanges();
        }

        /// <summary>
        /// Add multiple entities.
        /// </summary>
        /// <param name="entities"></param>
        public void AddNumbersOfFiles(List<FileEntity> entities)
        {
            if (entities.Count() > 0)
            {
                int totleNumbers = entities.Count();
                int uploadTimes = entities.Count() / 100;
                if ((entities.Count() % 100) > 0)
                    uploadTimes += 1;
                for (int i = 0; i < uploadTimes; i++)
                {
                    if (i == uploadTimes - 1)
                    {
                        for (int j = i * 100; j < totleNumbers; j++)
                        {
                            this.context.AddObject(this.tableName, entities[j]);
                        }
                        this.context.SaveChanges();
                    }
                    else
                    {
                        for (int j = i * 100; j < (i + 1) * 100; j++)
                        {
                            this.context.AddObject(this.tableName, entities[j]);
                        }
                        this.context.SaveChanges();
                    }
                }
            }

        }

        /// <summary>
        /// Make a judgment to check file is exists.
        /// </summary>
        /// <param name="filename"></param>
        /// <param name="partitionKey"></param>
        /// <returns></returns>
        public bool FileExists(string filename, string partitionKey)
        {
            IEnumerable<FileEntity> list = from m in this.context.GetEntities
                       where m.FileName == filename && m.PartitionKey == partitionKey
                       select m;
            if (list.Count()>0)
            {
                return true;
            }
            else
            {
                return false;
            }
        }
    }

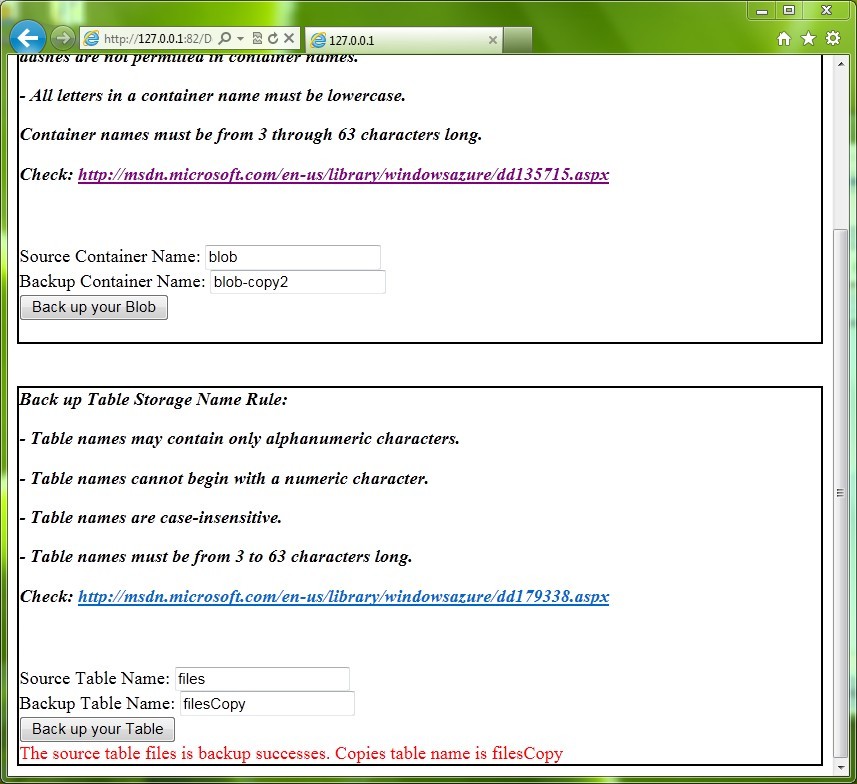

Table storage的按钮方法（同Blob，实现细节有少许不同，使用到了我们刚刚创建的TableStorageManager类库中的方法添加和查询Table Storage）

        protected void btnBackupTable_Click(object sender, EventArgs e)
        {
            try
            {
                if (tbTabelSource.Text.Trim().Equals(string.Empty) && tbTableCopies.Text.Trim().Equals(string.Empty))
                {
                    lbBackupTable.Text = "Source TextBox and Copies TextBox can not be empty";
                    return;
                }

                string sourceTableName = tbTabelSource.Text.Trim();
                string copiesTableName = tbTableCopies.Text.Trim();
                CloudTableClient client = account.CreateCloudTableClient();


                if (!client.DoesTableExist(sourceTableName))
                {
                    lbBackupTable.Text = "The source table is not exists";
                    return;
                }

                FileDataSource tableDataSource = new FileDataSource(sourceTableName);
                List<FileEntity> sourceList = tableDataSource.GetAllEntities().ToList<FileEntity>();
                client.DeleteTableIfExist(copiesTableName);
                FileDataSource tableDataCopies = new FileDataSource(copiesTableName);
                tableDataCopies.AddNumbersOfFiles(sourceList);
                lbBackupTable.Text = String.Format("The source table {0} is backup successes. Copies table name is {1}", sourceTableName, copiesTableName);
            }
            catch (StorageClientException ex)
            {
                if (ex.ExtendedErrorInformation.ErrorCode.Equals("OutOfRangeInput"))
                    lbBackupTable.Text = "Please check your blob container name.";
                else
                    lbBackupTable.Text = ex.Message;
            }
            catch (Exception all)
            {
                lbBackupTable.Text = all.Message;
            }
        }

而Storage的另一个对象Queue来说通常是作为消息机制而存在的，所以我们一般不会对Queue做备份工作，如果你确实需要对Queue进行备份，参考Blob的代码，并且将Blob container改为Queue的相对读取和创建的方法即可。

示例图片：

1 点击上传资源按钮. (需要被备份的对象) blob container名字为blob, table名字为files

2. 点击备份blob按钮 备份成功的blob container名字为blob-copy2

3. 在Azure storage explorer工具中可以快速找到备份blob对象

4. 点击table storage按钮 备份 新的table storage叫做filesCopy

5.同样可以再Storage Explorer找到备份对象 你可以与源对象进行比较
