  • [转载]Pytorch中nn.Linear module的理解

    [转载]Pytorch中nn.Linear module的理解

    本文转载并援引全文纯粹是为了构建和分类自己的知识,方便自己未来的查找,没啥其他意思。

    这个模块要实现的公式是:y=xAT+*b

    来源:https://blog.csdn.net/u012936765/article/details/52671156

    Linear 是module的子类,是参数化module的一种,与其名称一样,表示着一种线性变换。

    创建

    这里写图片描述

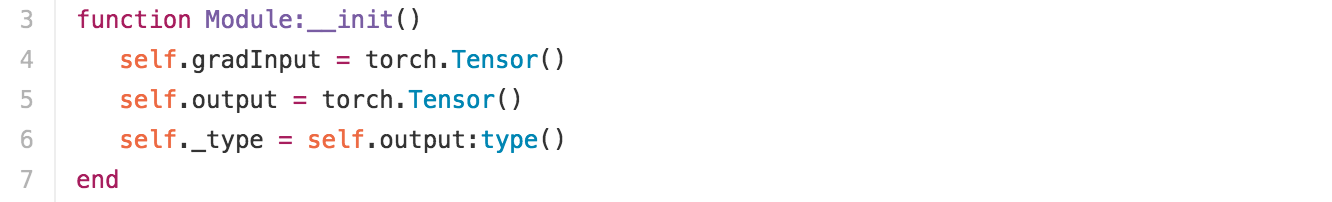

    parent 的init函数

    这里写图片描述

    Linear的创建需要两个参数,inputSize 和 outputSize
    inputSize:输入节点数
    outputSize:输出节点数
    所以Linear 有7个字段:

    weight : Tensor , outputSize ×× inputSize
    bias: Tensor ,outputSize
    gradWeight: Tensor , outputSize ×× inputSize
    gradBias: Tensor ,outputSize
    gradInput: Tensor
    output: Tensor
    _type: output:type()
    例子
    module = nn.Linear(10, 5)
    1
    Forward Pass

    这里写图片描述

    ————————————————
    版权声明:本文为CSDN博主「bubbleoooooo」的原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接及本声明。
    原文链接:https://blog.csdn.net/u012936765/article/details/52671156

    这篇文章有一个很好的例子:

    import torch

    x = torch.randn(128, 20)  # 输入的维度是(128,20)
    m = torch.nn.Linear(20, 30)  # 20,30是指维度
    output = m(x)
    print('m.weight.shape:
     ', m.weight.shape)
    print('m.bias.shape:
    ', m.bias.shape)
    print('output.shape:
    ', output.shape)

    # ans = torch.mm(input,torch.t(m.weight))+m.bias 等价于下面的
    ans = torch.mm(x, m.weight.t()) + m.bias
    print('ans.shape:
    ', ans.shape)

    print(torch.equal(ans, output))



    输出是:

    m.weight.shape:
      torch.Size([30, 20])
    m.bias.shape:
     torch.Size([30])
    output.shape:
     torch.Size([128, 30])
    ans.shape:
     torch.Size([128, 30])
    True


    注意它输入的是一个128*20的二维tensor,经过一个线性变换后变成了128*30的.如果输入换成了:

    x = torch.randn(20, 128)  # 输入的维度是(20,128)
    m = torch.nn.Linear(20, 30)  # 20,30是指维度
    output = m(x)


    就会报错了。因为公式是y=xAT+b。由上面的输出我们可以看到,A的维度是3020,转置之后是20*30,所以应该和X的列数对应。一般的:linear的输入和输出值的都是列数,把输入换成:

    x = torch.randn(20, 20)  # 输入的维度是(20,20)
    m = torch.nn.Linear(20, 30)  # 20,30是指维度
    output = m(x)


    输出之后就会发现,改变的依然是列数。
