概念
将一个jar及其依赖的三方jar全部打到一个包中，这个包即为FatJar。
作用
作用： Jar包隔离，避免Jar冲突。
打包方式
- maven-shade-plugin插件；
- spring-boot-maven-plugin插件（Spring Boot打包插件）；
嵌套Jar资源加载方案
思路：扩展Jar URL协议+定制ClassLoader;
扩展Jar URL协议
问题： JDK内置的Jar URL协议只支持一个’!/’，需要扩展此协议使其支持多个’!/’，以便能够加载jar in jar的资源，如下所示：

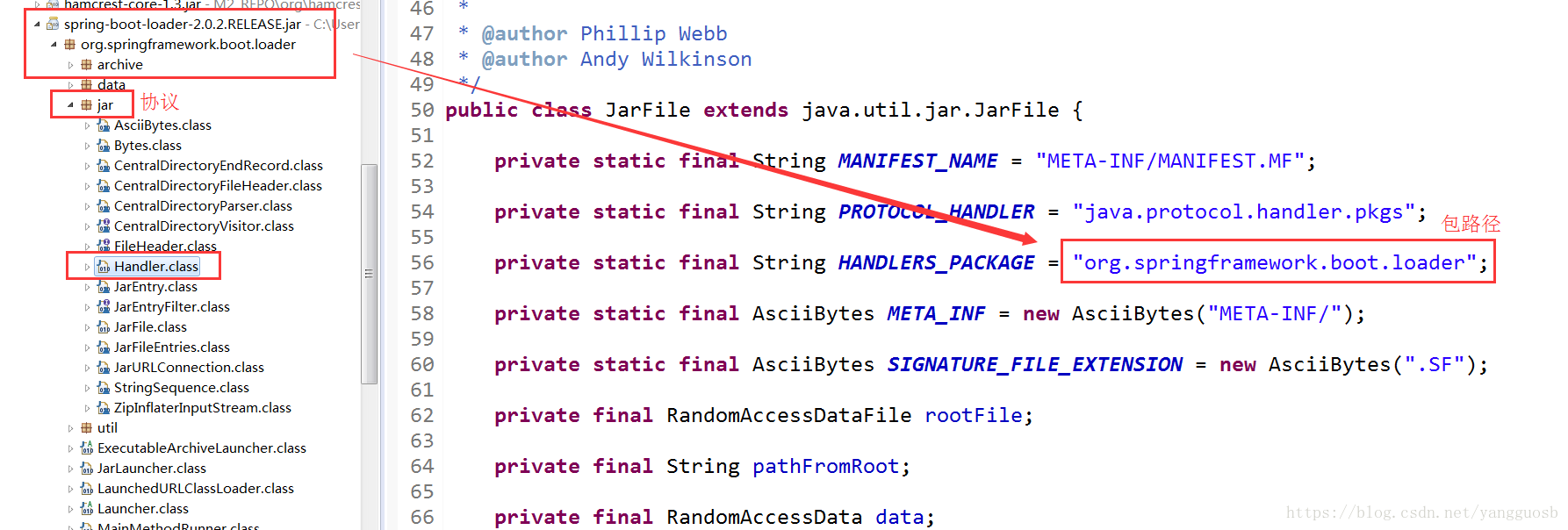

jar:file:/data/spring-boot-theory/BOOT-INF/lib/spring-aop-5.0.4.RELEASE.jar!/org/springframework/aop/SpringProxy.classjar:file:/data/spring-boot-theory.jar!/BOOT-INF/lib/spring-aop-5.0.4.RELEASE.jar!/org/springframework/aop/SpringProxy.class 解决方案：定制协议处理器Handler，定制规则查看另一篇，SpringBoot实现如下图所示：
定制ClassLoader
加载class：重载loadclass，添加对应的包路径；
加载其它资源：使用URLClassLoader原有逻辑即可；
SpringBoot提供了LaunchedURLClassLoader ，实现如下所示：
/*
* Copyright 2012-2017 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.springframework.boot.loader;
import java.io.IOException;
import java.net.JarURLConnection;
import java.net.URL;
import java.net.URLClassLoader;
import java.net.URLConnection;
import java.security.AccessController;
import java.security.PrivilegedExceptionAction;
import java.util.Enumeration;
import java.util.jar.JarFile;
import org.springframework.boot.loader.jar.Handler;
/**
* {@link ClassLoader} used by the {@link Launcher}.
*
* @author Phillip Webb
* @author Dave Syer
* @author Andy Wilkinson
*/
public class LaunchedURLClassLoader extends URLClassLoader {
static {
ClassLoader.registerAsParallelCapable();
}
/**
* Create a new {@link LaunchedURLClassLoader} instance.
* @param urls the URLs from which to load classes and resources
* @param parent the parent class loader for delegation
*/
public LaunchedURLClassLoader(URL[] urls, ClassLoader parent) {
super(urls, parent);
}
@Override
public URL findResource(String name) {
Handler.setUseFastConnectionExceptions(true);
try {
return super.findResource(name);
}
finally {
Handler.setUseFastConnectionExceptions(false);
}
}
@Override
public Enumeration<URL> findResources(String name) throws IOException {
Handler.setUseFastConnectionExceptions(true);
try {
return new UseFastConnectionExceptionsEnumeration(super.findResources(name));
}
finally {
Handler.setUseFastConnectionExceptions(false);
}
}
@Override
protected Class<?> loadClass(String name, boolean resolve)
throws ClassNotFoundException {
Handler.setUseFastConnectionExceptions(true);
try {
try {
definePackageIfNecessary(name);
}
catch (IllegalArgumentException ex) {
// Tolerate race condition due to being parallel capable
if (getPackage(name) == null) {
// This should never happen as the IllegalArgumentException indicates
// that the package has already been defined and, therefore,
// getPackage(name) should not return null.
throw new AssertionError("Package " + name + " has already been "
+ "defined but it could not be found");
}
}
return super.loadClass(name, resolve);
}
finally {
Handler.setUseFastConnectionExceptions(false);
}
}
/**
* Define a package before a {@code findClass} call is made. This is necessary to
* ensure that the appropriate manifest for nested JARs is associated with the
* package.
* @param className the class name being found
*/
private void definePackageIfNecessary(String className) {
int lastDot = className.lastIndexOf('.');
if (lastDot >= 0) {
String packageName = className.substring(0, lastDot);
if (getPackage(packageName) == null) {
try {
definePackage(className, packageName);
}
catch (IllegalArgumentException ex) {
// Tolerate race condition due to being parallel capable
if (getPackage(packageName) == null) {
// This should never happen as the IllegalArgumentException
// indicates that the package has already been defined and,
// therefore, getPackage(name) should not have returned null.
throw new AssertionError(
"Package " + packageName + " has already been defined "
+ "but it could not be found");
}
}
}
}
}
private void definePackage(String className, String packageName) {
try {
AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () -> {
String packageEntryName = packageName.replace('.', '/') + "/";
String classEntryName = className.replace('.', '/') + ".class";
for (URL url : getURLs()) {
try {
URLConnection connection = url.openConnection();
if (connection instanceof JarURLConnection) {
JarFile jarFile = ((JarURLConnection) connection)
.getJarFile();
if (jarFile.getEntry(classEntryName) != null
&& jarFile.getEntry(packageEntryName) != null
&& jarFile.getManifest() != null) {
definePackage(packageName, jarFile.getManifest(), url);
return null;
}
}
}
catch (IOException ex) {
// Ignore
}
}
return null;
}, AccessController.getContext());
}
catch (java.security.PrivilegedActionException ex) {
// Ignore
}
}
/**
* Clear URL caches.
*/
public void clearCache() {
for (URL url : getURLs()) {
try {
URLConnection connection = url.openConnection();
if (connection instanceof JarURLConnection) {
clearCache(connection);
}
}
catch (IOException ex) {
// Ignore
}
}
}
private void clearCache(URLConnection connection) throws IOException {
Object jarFile = ((JarURLConnection) connection).getJarFile();
if (jarFile instanceof org.springframework.boot.loader.jar.JarFile) {
((org.springframework.boot.loader.jar.JarFile) jarFile).clearCache();
}
}
private static class UseFastConnectionExceptionsEnumeration
implements Enumeration<URL> {
private final Enumeration<URL> delegate;
UseFastConnectionExceptionsEnumeration(Enumeration<URL> delegate) {
this.delegate = delegate;
}
@Override
public boolean hasMoreElements() {
Handler.setUseFastConnectionExceptions(true);
try {
return this.delegate.hasMoreElements();
}
finally {
Handler.setUseFastConnectionExceptions(false);
}
}
@Override
public URL nextElement() {
Handler.setUseFastConnectionExceptions(true);
try {
return this.delegate.nextElement();
}
finally {
Handler.setUseFastConnectionExceptions(false);
}
}
}
}
加载步骤
- 注册定制Handler;
- 获取当前Jar包及其嵌套Jar包URL;
- 创建ClassLoader，进行资源加载；
使用示例代码，如下所示：
import java.net.URL;
import java.util.List;
import com.cainiao.iots.client.utils.loader.ExecutableArchiveLauncher;
import com.cainiao.iots.client.utils.loader.archive.Archive;
import com.cainiao.iots.client.utils.loader.jar.JarFile;
public class IotClientLauncher extends ExecutableArchiveLauncher {
static final String BOOT_INF_LIB = "sar/jars/";
private ClassLoader classLoader;
@Override
protected boolean isNestedArchive(Archive.Entry entry) {
return entry.getName().startsWith(BOOT_INF_LIB);
}
@Override
protected void launch(String[] args) throws Exception {
//step1:注册handler
JarFile.registerUrlProtocolHandler();
//step2:获取当前Jar包及其嵌套Jar包URL
List<Archive> archives = getClassPathArchives();
for(int i = 0; i < archives.size(); i++){
System.out.println("Archive url: " + archives.get(i).getUrl());
}
//step3:创建ClassLoader
this.classLoader = createClassLoader(archives);
}
public ClassLoader getClassLoader() {
return classLoader;
}
public static void main(String[] args) throws Exception {
//1. 创建ClassLoader
IotClientLauncher launcher = new IotClientLauncher();
launcher.launch(args);
ClassLoader loader = launcher.getClassLoader();
//2. 加载jar in jar的资源
URL url = loader.getResource("1.jpg");
Class<?> clazz = loader.loadClass("*.*.*");
}
}
参考：
