springSecurity安全框架的学习和原理解读

最近在公司的项目中使用了spring security框架，所以有机会来学习一下，公司的项目是使用springboot搭建 springBoot版本1.59

spring security 版本4.2.3

（个人理解可能会有偏差，希望有不正确之处，大家能够指出来，共同探讨交流。）

一、Spring security框架简介

2、WebSecurityConfiguration类

3、AbstractSecurityBuilder类

4、举例说明如何将一个Configurer转换为filter

三、用户登录的验证和授权过程

一、Spring security框架简介

1、简介

一个能够为基于Spring的企业应用系统提供声明式的安全訪问控制解决方式的安全框架（简单说是对访问权限进行控制嘛），应用的安全性包括用户认证（Authentication）和用户授权（Authorization）两个部分。用户认证指的是验证某个用户是否为系统中的合法主体，也就是说用户能否访问该系统。用户认证一般要求用户提供用户名和密码。系统通过校验用户名和密码来完成认证过程。用户授权指的是验证某个用户是否有权限执行某个操作。在一个系统中，不同用户所具有的权限是不同的。比如对一个文件来说，有的用户只能进行读取，而有的用户可以进行修改。一般来说，系统会为不同的用户分配不同的角色，而每个角色则对应一系列的权限。 spring security的主要核心功能为认证和授权，所有的架构也是基于这两个核心功能去实现的。

2、框架原理

众所周知想要对对Web资源进行保护，最好的办法莫过于Filter，要想对方法调用进行保护，最好的办法莫过于AOP。所以springSecurity在我们进行用户认证以及授予权限的时候，通过各种各样的拦截器来控制权限的访问，从而实现安全。
如下为其主要过滤器

WebAsyncManagerIntegrationFilter
SecurityContextPersistenceFilter
HeaderWriterFilter
CorsFilter
LogoutFilter
RequestCacheAwareFilter
SecurityContextHolderAwareRequestFilter
AnonymousAuthenticationFilter
SessionManagementFilter
ExceptionTranslationFilter
FilterSecurityInterceptor
UsernamePasswordAuthenticationFilter
BasicAuthenticationFilter

3、框架的核心组件

SecurityContextHolder：提供对SecurityContext的访问
SecurityContext,：持有Authentication对象和其他可能需要的信息
AuthenticationManager 其中可以包含多个AuthenticationProvider
ProviderManager对象为AuthenticationManager接口的实现类
AuthenticationProvider 主要用来进行认证操作的类调用其中的authenticate()方法去进行认证操作
Authentication：Spring Security方式的认证主体
GrantedAuthority：对认证主题的应用层面的授权，含当前用户的权限信息，通常使用角色表示
UserDetails：构建Authentication对象必须的信息，可以自定义，可能需要访问DB得到
UserDetailsService：通过username构建UserDetails对象，通过loadUserByUsername根据userName获取UserDetail对象（可以在这里基于自身业务进行自定义的实现如通过数据库，xml,缓存获取等）

二、自定义安全配置的加载机制

1、前提基于自身业务需要

有关springSecrity安全框架的理解参考：springSecurity安全框架介绍

自定义了一个springSecurity安全框架的配置类继承WebSecurityConfigurerAdapter，重写其中的方法configure，但是并不清楚自定义的类是如何被加载并起到作用，这里一步步通过debug来了解其中的加载原理。

其实在我们实现该类后，在web容器启动的过程中该类实例对象会被WebSecurityConfiguration类处理。

@Configuration
public class SpringSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private AccessDeniedHandler accessDeniedHandler;

    @Autowired
    private CustAuthenticationProvider custAuthenticationProvider;

    // roles admin allow to access /admin/**
    // roles user allow to access /user/**
    // custom 403 access denied handler
    //重写了其中的configure（）方法设置了不同url的不同访问权限
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.csrf().disable()
                .authorizeRequests()
                .antMatchers("/home", "/about","/img/*").permitAll()
                .antMatchers("/admin/**","/upload/**").hasAnyRole("ADMIN")
                .antMatchers("/order/**").hasAnyRole("USER","ADMIN")
                .antMatchers("/room/**").hasAnyRole("USER","ADMIN")
                .anyRequest().authenticated()
                .and()
                .formLogin()
                .loginPage("/login")
                .permitAll()
                .and()
                .logout()
                .permitAll()
                .and()
                .exceptionHandling().accessDeniedHandler(accessDeniedHandler);
    }

    // create two users, admin and user
    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {

//        auth.inMemoryAuthentication()
//                .withUser("user").password("user").roles("USER")
//                .and()
//                .withUser("admin").password("admin").roles("ADMIN");

//        auth.jdbcAuthentication()

        auth.authenticationProvider(custAuthenticationProvider);
    }

2、WebSecurityConfiguration类

@Configuration
public class WebSecurityConfiguration implements ImportAware, BeanClassLoaderAware {
    private WebSecurity webSecurity;
    private Boolean debugEnabled;
    private List<SecurityConfigurer<Filter, WebSecurity>> webSecurityConfigurers;
    private ClassLoader beanClassLoader;

   ...省略部分代码

    @Bean(
        name = {"springSecurityFilterChain"}
    )
    public Filter springSecurityFilterChain() throws Exception {
        boolean hasConfigurers = this.webSecurityConfigurers != null
         && !this.webSecurityConfigurers.isEmpty();
        if(!hasConfigurers) {
            WebSecurityConfigurerAdapter adapter = (WebSecurityConfigurerAdapter)
            this.objectObjectPostProcessor
              .postProcess(new WebSecurityConfigurerAdapter() {
            });
            this.webSecurity.apply(adapter);
        }

        return (Filter)this.webSecurity.build();
    }



    /*1、先执行该方法将我们自定义springSecurity配置实例
       （可能还有系统默认的有关安全的配置实例 ） 配置实例中含有我们自定义业务的权限控制配置信息
       放入到该对象的list数组中webSecurityConfigurers中
       使用@Value注解来将实例对象作为形参注入
     */
 @Autowired(
        required = false
    )
    public void setFilterChainProxySecurityConfigurer(ObjectPostProcessor<Object>
    objectPostProcessor,
   @Value("#{@autowiredWebSecurityConfigurersIgnoreParents.getWebSecurityConfigurers()}")
  List<SecurityConfigurer<Filter, WebSecurity>> webSecurityConfigurers)
throws Exception {

    //创建一个webSecurity对象
    this.webSecurity = (WebSecurity)objectPostProcessor.postProcess(new WebSecurity(objectPostProcessor));
        if(this.debugEnabled != null) {
            this.webSecurity.debug(this.debugEnabled.booleanValue());
        }

        //对所有配置类的实例进行排序
        Collections.sort(webSecurityConfigurers, WebSecurityConfiguration.AnnotationAwareOrderComparator.INSTANCE);
        Integer previousOrder = null;
        Object previousConfig = null;


        //迭代所有配置类的实例 判断其order必须唯一
        Iterator var5;
        SecurityConfigurer config;
        for(var5 = webSecurityConfigurers.iterator(); var5.hasNext(); previousConfig = config) {
            config = (SecurityConfigurer)var5.next();
            Integer order = Integer.valueOf(WebSecurityConfiguration.AnnotationAwareOrderComparator.lookupOrder(config));
            if(previousOrder != null && previousOrder.equals(order)) {
                throw new IllegalStateException("@Order on WebSecurityConfigurers must be unique. Order of " + order + " was already used on " + previousConfig + ", so it cannot be used on " + config + " too.");
            }

            previousOrder = order;
        }


        //将所有的配置实例添加到创建的webSecutity对象中
        var5 = webSecurityConfigurers.iterator();

        while(var5.hasNext()) {
            config = (SecurityConfigurer)var5.next();
            this.webSecurity.apply(config);
        }
        //将webSercurityConfigures 实例放入该对象的webSecurityConfigurers属性中
        this.webSecurityConfigurers = webSecurityConfigurers;
    }


}

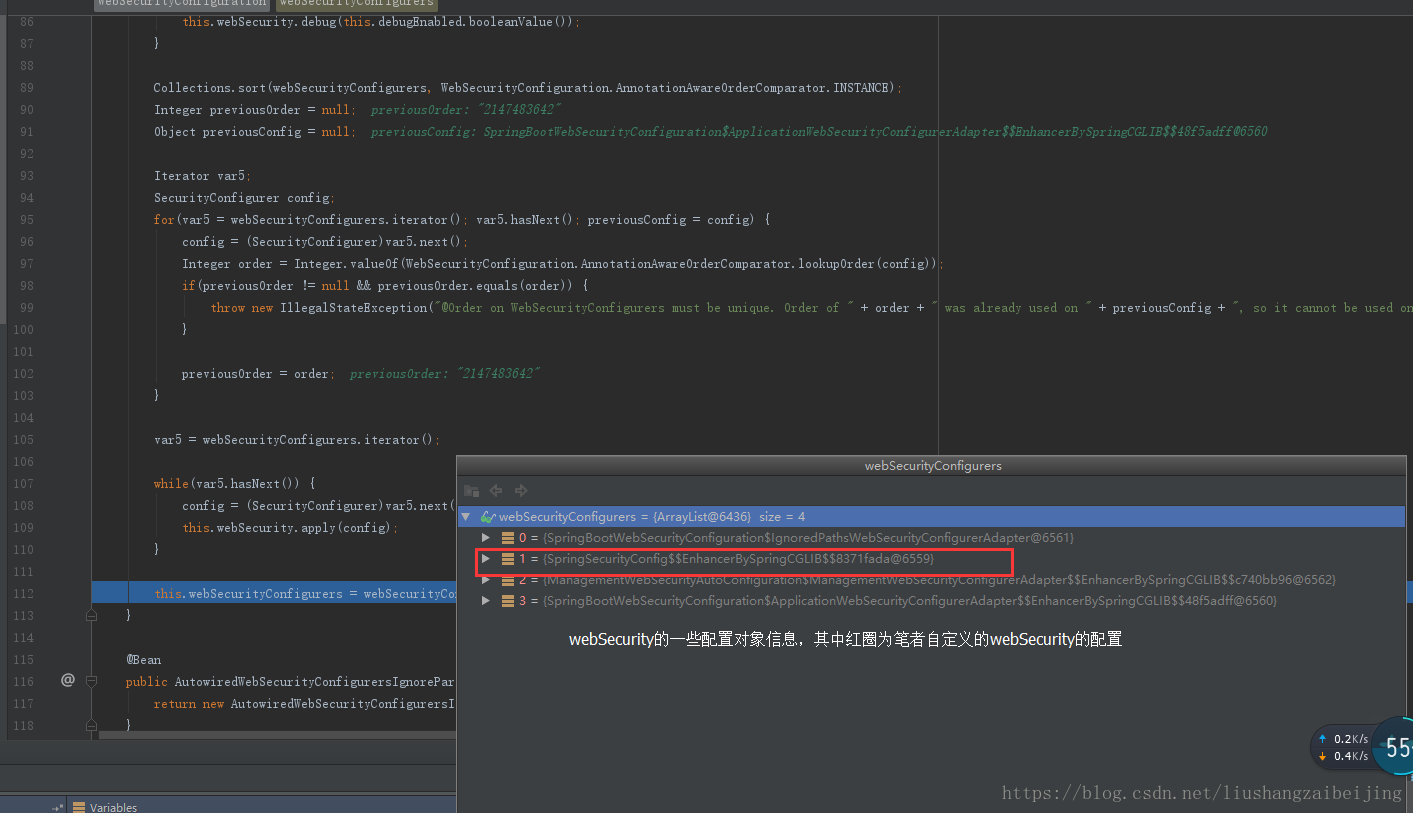

2.1、 setFilterChainProxySecurityConfigurer（）方法

@Value("#{@autowiredWebSecurityConfigurersIgnoreParents.getWebSecurityConfigurers()}") List<SecurityConfigurer<Filter, WebSecurity>> webSecurityConfigurers

该参数webSecurityConfigurers会将所有的配置实例放入该形参中

该方法中主要执行如下

1、创建webSecurity对象

2、主要检验了配置实例的order顺序（order唯一否则会报错）

3、将所有的配置实例存放进入到webSecurity对象中，其中配置实例中含有我们自定义业务的权限控制配置信息

2.2、springSecurityFilterChain()方法

调用springSecurityFilterChain()方法，这个方法会判断我们上一个方法中有没有获取到webSecurityConfigurers，没有的话这边会创建一个WebSecurityConfigurerAdapter实例，并追加到websecurity中。接着调用websecurity的build方法。实际调用的是websecurity的父类AbstractSecurityBuilder的build方法，最终返回一个名称为springSecurityFilterChain的过滤器链。里面有众多Filter(springSecurity其实就是依靠很多的Filter来拦截url从而实现权限的控制的安全框架)

3、AbstractSecurityBuilder类

public abstract class AbstractSecurityBuilder<O> implements SecurityBuilder<O> {
    private AtomicBoolean building = new AtomicBoolean();
    private O object;



    //调用build方法来返回过滤器链，还是调用SecurityBuilder的dobuild()方法

    public final O build() throws Exception {
        if(this.building.compareAndSet(false, true)) {
            this.object = this.doBuild();
            return this.object;
        } else {
            throw new AlreadyBuiltException("This object has already been built");
        }
    }

   //...省略部分代码
}

3.1 调用子类的doBuild()方法

public abstract class AbstractConfiguredSecurityBuilder<O, B extends SecurityBuilder<O>> extends AbstractSecurityBuilder<O> {
    private final Log logger;
    private final LinkedHashMap<Class<? extends SecurityConfigurer<O, B>>, List<SecurityConfigurer<O, B>>> configurers;
    private final List<SecurityConfigurer<O, B>> configurersAddedInInitializing;
    private final Map<Class<? extends Object>, Object> sharedObjects;
    private final boolean allowConfigurersOfSameType;
    private AbstractConfiguredSecurityBuilder.BuildState buildState;
    private ObjectPostProcessor<Object> objectPostProcessor;


    //doBuild()核心方法 init(),configure(),perFormBuild()
    protected final O doBuild() throws Exception {
        LinkedHashMap var1 = this.configurers;
        synchronized(this.configurers) {
            this.buildState = AbstractConfiguredSecurityBuilder.BuildState.INITIALIZING;
            this.beforeInit();
            this.init();
            this.buildState = AbstractConfiguredSecurityBuilder.BuildState.CONFIGURING;
            this.beforeConfigure();
            this.configure();
            this.buildState = AbstractConfiguredSecurityBuilder.BuildState.BUILDING;
            O result = this.performBuild();
            this.buildState = AbstractConfiguredSecurityBuilder.BuildState.BUILT;
            return result;
        }
    }

    protected abstract O performBuild() throws Exception;

    //调用init方法 调用配置类WebSecurityConfigurerAdapter的init()方法
    private void init() throws Exception {
        Collection<SecurityConfigurer<O, B>> configurers = this.getConfigurers();
        Iterator var2 = configurers.iterator();

        SecurityConfigurer configurer;
        while(var2.hasNext()) {
            configurer = (SecurityConfigurer)var2.next();
            configurer.init(this);
        }

        var2 = this.configurersAddedInInitializing.iterator();

        while(var2.hasNext()) {
            configurer = (SecurityConfigurer)var2.next();
            configurer.init(this);
        }

    }

    private void configure() throws Exception {
        Collection<SecurityConfigurer<O, B>> configurers = this.getConfigurers();
        Iterator var2 = configurers.iterator();

        while(var2.hasNext()) {
            SecurityConfigurer<O, B> configurer = (SecurityConfigurer)var2.next();
            configurer.configure(this);
        }

    }

    private Collection<SecurityConfigurer<O, B>> getConfigurers() {
        List<SecurityConfigurer<O, B>> result = new ArrayList();
        Iterator var2 = this.configurers.values().iterator();

        while(var2.hasNext()) {
            List<SecurityConfigurer<O, B>> configs = (List)var2.next();
            result.addAll(configs);
        }

        return result;
    }

    //...省略部分代码
}

3.2 先调用本类的init()方法

build过程主要分三步，init->configure->peformBuild

1 init方法做了两件事，一个就是调用getHttp()方法获取一个http实例，并通过web.addSecurityFilterChainBuilder方法把获取到的实例赋值给WebSecurity的securityFilterChainBuilders属性，这个属性在我们执行build的时候会用到，第二个就是为WebSecurity追加了一个postBuildAction，在build都完成后从http中拿出FilterSecurityInterceptor对象并赋值给WebSecurity。
2 getHttp()方法，这个方法在当我们使用默认配置时（大多数情况下）会为我们追加各种SecurityConfigurer的具体实现类到httpSecurity中，如exceptionHandling()方法会追加一个ExceptionHandlingConfigurer，sessionManagement()方法会追加一个SessionManagementConfigurer,securityContext()方法会追加一个SecurityContextConfigurer对象，这些SecurityConfigurer的具体实现类最终会为我们配置各种具体的filter。
3 另外getHttp()方法的最后会调用configure(http)，这个方法也是我们继承WebSecurityConfigurerAdapter类后最可能会重写的方法。
4 configure(HttpSecurity http)方法，默认的configure(HttpSecurity http)方法继续向httpSecurity类中追加SecurityConfigurer的具体实现类，如authorizeRequests()方法追加一个ExpressionUrlAuthorizationConfigurer，formLogin()方法追加一个FormLoginConfigurer。其中ExpressionUrlAuthorizationConfigurer这个实现类比较重要，因为他会给我们创建一个非常重要的对象FilterSecurityInterceptor对象，FormLoginConfigurer对象比较简单，但是也会为我们提供一个在安全认证过程中经常用到会用的一个Filter：UsernamePasswordAuthenticationFilter。

以上三个方法就是WebSecurityConfigurerAdapter类中init方法的主要逻辑，

public abstract class WebSecurityConfigurerAdapter implements
   WebSecurityConfigurer<WebSecurity> {

    public void init(final WebSecurity web) throws Exception {
        final HttpSecurity http = this.getHttp();
        web.addSecurityFilterChainBuilder(http).postBuildAction(new Runnable() {
            public void run() {
                FilterSecurityInterceptor securityInterceptor = (FilterSecurityInterceptor)http.getSharedObject(FilterSecurityInterceptor.class);
                web.securityInterceptor(securityInterceptor);
            }
        });
    }


 protected final HttpSecurity getHttp() throws Exception {
        if(this.http != null) {
            return this.http;
        } else {
            DefaultAuthenticationEventPublisher eventPublisher = (DefaultAuthenticationEventPublisher)this.objectPostProcessor.postProcess(new DefaultAuthenticationEventPublisher());


//添加认证的事件的发布者
this.localConfigureAuthenticationBldr.authenticationEventPublisher(eventPublisher);
//获取AuthenticationManager对象其中一至多个进行认证处理的对象实例，后面会进行讲解
AuthenticationManager authenticationManager = this.authenticationManager();
            this.authenticationBuilder.parentAuthenticationManager(authenticationManager);
            Map<Class<? extends Object>, Object> sharedObjects = this.createSharedObjects();
            this.http = new HttpSecurity(this.objectPostProcessor, this.authenticationBuilder, sharedObjects);
            if(!this.disableDefaults) {
                ((HttpSecurity)((DefaultLoginPageConfigurer)((HttpSecurity)((HttpSecurity)((HttpSecurity)((HttpSecurity)((HttpSecurity)((HttpSecurity)((HttpSecurity)((HttpSecurity)this.http.csrf().and()).addFilter(new WebAsyncManagerIntegrationFilter()).exceptionHandling().and()).headers().and()).sessionManagement().and()).securityContext().and()).requestCache().and()).anonymous().and()).servletApi().and()).apply(new DefaultLoginPageConfigurer())).and()).logout();
                ClassLoader classLoader = this.context.getClassLoader();
                List<AbstractHttpConfigurer> defaultHttpConfigurers = SpringFactoriesLoader.loadFactories(AbstractHttpConfigurer.class, classLoader);
                Iterator var6 = defaultHttpConfigurers.iterator();

                while(var6.hasNext()) {
                    AbstractHttpConfigurer configurer = (AbstractHttpConfigurer)var6.next();
                    this.http.apply(configurer);
                }
            }

            //最终调用我们的继承的WebSecurityConfigurerAdapter中重写的configure()
            //将我们业务相关的权限配置规则信息进行初始化操作
            this.configure(this.http);
            return this.http;
        }
    }


 protected AuthenticationManager authenticationManager() throws Exception {
        if(!this.authenticationManagerInitialized) {
            this.configure(this.localConfigureAuthenticationBldr);
            if(this.disableLocalConfigureAuthenticationBldr) {
                this.authenticationManager = this.authenticationConfiguration.getAuthenticationManager();
            } else {
                this.authenticationManager = (AuthenticationManager)this.localConfigureAuthenticationBldr.build();
            }

            this.authenticationManagerInitialized = true;
        }

        return this.authenticationManager;
    }



}

3.3、第二步configure

configure方法最终也调用到了WebSecurityConfigurerAdapter的configure(WebSecurity web)方法，默认实现中这个是一个空方法，具体应用中也经常重写这个方法来实现特定需求。

3.4、第三步 peformBuild

具体的实现逻辑在WebSecurity类中
这个方法中最主要的任务就是遍历securityFilterChainBuilders属性中的SecurityBuilder对象，并调用他的build方法。
这个securityFilterChainBuilders属性我们前面也有提到过，就是在WebSecurityConfigurerAdapter类的init方法中获取http后赋值给了WebSecurity。因此这个地方就是调用httpSecurity的build方法。
httpSecurity的build方式向其中追加一个个过滤器


public final class WebSecurity extends AbstractConfiguredSecurityBuilder<Filter, WebSecurity> implements SecurityBuilder<Filter>, ApplicationContextAware {
...省略部分代码
<span class="hljs-comment">//调用该方法通过securityFilterChainBuilder.build()方法来创建securityFilter过滤器</span>
<span class="hljs-comment">//并添加到securityFilterChains对象中，包装成FilterChainProxy 返回</span>
<span class="hljs-function"><span class="hljs-keyword">protected</span> Filter <span class="hljs-title">performBuild</span><span class="hljs-params">()</span> <span class="hljs-keyword">throws</span> Exception </span>{
    Assert.state(!<span class="hljs-keyword">this</span>.securityFilterChainBuilders.isEmpty(), <span class="hljs-string">"At least one SecurityBuilder&lt;? extends SecurityFilterChain&gt; needs to be specified. Typically this done by adding a @Configuration that extends WebSecurityConfigurerAdapter. More advanced users can invoke "</span> + WebSecurity.class.getSimpleName() + <span class="hljs-string">".addSecurityFilterChainBuilder directly"</span>);
    <span class="hljs-keyword">int</span> chainSize = <span class="hljs-keyword">this</span>.ignoredRequests.size() + <span class="hljs-keyword">this</span>.securityFilterChainBuilders.size();
    List&lt;SecurityFilterChain&gt; securityFilterChains = <span class="hljs-keyword">new</span> ArrayList(chainSize);
    Iterator var3 = <span class="hljs-keyword">this</span>.ignoredRequests.iterator();

    <span class="hljs-keyword">while</span>(var3.hasNext()) {
        RequestMatcher ignoredRequest = (RequestMatcher)var3.next();
        securityFilterChains.add(<span class="hljs-keyword">new</span> DefaultSecurityFilterChain(ignoredRequest, <span class="hljs-keyword">new</span> Filter[<span class="hljs-number">0</span>]));
    }

    var3 = <span class="hljs-keyword">this</span>.securityFilterChainBuilders.iterator();

    <span class="hljs-keyword">while</span>(var3.hasNext()) {
        SecurityBuilder&lt;? extends SecurityFilterChain&gt; securityFilterChainBuilder = (SecurityBuilder)var3.next();
        securityFilterChains.add(securityFilterChainBuilder.build());
    }

    FilterChainProxy filterChainProxy = <span class="hljs-keyword">new</span> FilterChainProxy(securityFilterChains);
    <span class="hljs-keyword">if</span>(<span class="hljs-keyword">this</span>.httpFirewall != <span class="hljs-keyword">null</span>) {
        filterChainProxy.setFirewall(<span class="hljs-keyword">this</span>.httpFirewall);
    }

    filterChainProxy.afterPropertiesSet();
    Filter result = filterChainProxy;
    <span class="hljs-keyword">if</span>(<span class="hljs-keyword">this</span>.debugEnabled) {
        <span class="hljs-keyword">this</span>.logger.warn(<span class="hljs-string">"

********************************************************************
**********        Security debugging is enabled.       *************
**********    This may include sensitive information.  *************
**********      Do not use in a production system!     *************
********************************************************************

"</span>);
        result = <span class="hljs-keyword">new</span> DebugFilter(filterChainProxy);
    }

    <span class="hljs-keyword">this</span>.postBuildAction.run();
    <span class="hljs-keyword">return</span> (Filter)result;
}

}

4、举例说明如何将一个Configurer转换为filter

ExpressionUrlAuthorizationConfigurer的继承关系
ExpressionUrlAuthorizationConfigurer->AbstractInterceptUrlConfigurer->AbstractHttpConfigurer->SecurityConfigurerAdapter->SecurityConfigurer
对应的init方法在SecurityConfigurerAdapter类中，是个空实现，什么也没有做，configure方法在SecurityConfigurerAdapter类中也有一个空实现，在AbstractInterceptUrlConfigurer类中进行了重写

Abstractintercepturlconfigurer.java代码

@Override
    public void configure(H http) throws Exception {
        FilterInvocationSecurityMetadataSource metadataSource = createMetadataSource(http);
        if (metadataSource == null) {
            return;
        }
        FilterSecurityInterceptor securityInterceptor = createFilterSecurityInterceptor(
                http, metadataSource, http.getSharedObject(AuthenticationManager.class));
        if (filterSecurityInterceptorOncePerRequest != null) {
            securityInterceptor
                    .setObserveOncePerRequest(filterSecurityInterceptorOncePerRequest);
        }
        securityInterceptor = postProcess(securityInterceptor);
        http.addFilter(securityInterceptor);
        http.setSharedObject(FilterSecurityInterceptor.class, securityInterceptor);
    }
...
private AccessDecisionManager createDefaultAccessDecisionManager(H http) {
        AffirmativeBased result = new AffirmativeBased(getDecisionVoters(http));
        return postProcess(result);
    }
...
private FilterSecurityInterceptor createFilterSecurityInterceptor(H http,
            FilterInvocationSecurityMetadataSource metadataSource,
            AuthenticationManager authenticationManager) throws Exception {
        FilterSecurityInterceptor securityInterceptor = new FilterSecurityInterceptor();
        securityInterceptor.setSecurityMetadataSource(metadataSource);
        securityInterceptor.setAccessDecisionManager(getAccessDecisionManager(http));
        securityInterceptor.setAuthenticationManager(authenticationManager);
        securityInterceptor.afterPropertiesSet();
        return securityInterceptor;
    }

4.1、在这个类的configure中创建了一个FilterSecurityInterceptor，并且也可以明确看到spring security默认给我们创建的AccessDecisionManager是AffirmativeBased。

4.2、.最后再看下HttpSecurity类执行build的最后一步 performBuild，这个方法就是在HttpSecurity中实现的

Httpsecurity.java代码

@Override
    protected DefaultSecurityFilterChain performBuild() throws Exception {
        Collections.sort(filters, comparator);
        return new DefaultSecurityFilterChain(requestMatcher, filters);
    }

可以看到，这个类只是把我们追加到HttpSecurity中的security进行了排序，用的排序类是FilterComparator，从而保证我们的filter按照正确的顺序执行。接着将filters构建成filterChian返回。在前面WebSecurity的performBuild方法中，这个返回值会被包装成FilterChainProxy，并作为WebSecurity的build方法的放回值。从而以springSecurityFilterChain这个名称注册到springContext中（在WebSecurityConfiguration中做的）

4.3.在WebSecurity的performBuild方法的最后一步还执行了一个postBuildAction.run，这个方法也是spring security给我们提供的一个hooks，可以在build完成后再做一些事情，比如我们在WebSecurityConfigurerAdapter类的init方法中我们利用这个hook在构建完成后将FilterSecurityInterceptor赋值给了webSecurity类的filterSecurityInterceptor属性

三、用户登录的验证和授权过程

1、用户一次完整的登录验证和授权，是一个请求经过层层拦截器从而实现权限控制，整个web端配置为DelegatingFilterProxy（springSecurity的委托过滤其代理类），它并不实现真正的过滤，而是所有过滤器链的代理类，真正执行拦截处理的是由spring 容器管理的个个filter bean组成的filterChain.

调用实际的FilterChainProxy 的doFilterInternal()方法去获取所有的拦截器并进行过滤处理如下是DelegatingFilterProxy的doFilter（）方法

public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain) throws ServletException, IOException {
        Filter delegateToUse = this.delegate;
        if(delegateToUse == null) {
            Object var5 = this.delegateMonitor;
            synchronized(this.delegateMonitor) {
                delegateToUse = this.delegate;
                if(delegateToUse == null) {
                    WebApplicationContext wac = this.findWebApplicationContext();
                    if(wac == null) {
                        throw new IllegalStateException("No WebApplicationContext found: no ContextLoaderListener or DispatcherServlet registered?");
                    }

                    delegateToUse = this.initDelegate(wac);
                }

                this.delegate = delegateToUse;
            }
        }

//调用实际的FilterChainProxy 的doFilterInternal()方法 去获取所有的拦截器并进行过滤处理
        this.invokeDelegate(delegateToUse, request, response, filterChain);
    }

调用实际的FilterChainProxy 的doFilter()方法去获取所有的拦截器并进行过滤处理。

2、FilterChainProxy类

最终调用FilterChainProxy 的doFilterInternal()方法，获取所有的过滤器实例

public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        boolean clearContext = request.getAttribute(FILTER_APPLIED) == null;
        if(clearContext) {
            try {
                request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
                //doFilter 调用doFilterInternal方法
                this.doFilterInternal(request, response, chain);
            } finally {
                SecurityContextHolder.clearContext();
                request.removeAttribute(FILTER_APPLIED);
            }
        } else {
            this.doFilterInternal(request, response, chain);
        }

    }

    private void doFilterInternal(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        FirewalledRequest fwRequest = this.firewall.getFirewalledRequest((HttpServletRequest)request);
        HttpServletResponse fwResponse = this.firewall.getFirewalledResponse((HttpServletResponse)response);
         //过去所有的过滤器
        List<Filter> filters = this.getFilters((HttpServletRequest)fwRequest);
        if(filters != null && filters.size() != 0) {
            FilterChainProxy.VirtualFilterChain vfc = new FilterChainProxy.VirtualFilterChain(fwRequest, chain, filters);
            vfc.doFilter(fwRequest, fwResponse);
        } else {
            if(logger.isDebugEnabled()) {
                logger.debug(UrlUtils.buildRequestUrl(fwRequest) + (filters == null?" has no matching filters":" has an empty filter list"));
            }

            fwRequest.reset();
            chain.doFilter(fwRequest, fwResponse);
        }
    }


  private List<Filter> getFilters(HttpServletRequest request) {
       //遍历所有的matcher类 如果支持就继续获取
        Iterator var2 = this.filterChains.iterator();

        SecurityFilterChain chain;
        do {
            if(!var2.hasNext()) {
                return null;
            }

            chain = (SecurityFilterChain)var2.next();
        } while(!chain.matches(request));
        //后去匹配中的所有过滤器
        return chain.getFilters();
    }

如上其实是获取到本次请求的所有filter 并安装指定顺序进行执行doFilter()方法

这是笔者本次业务请求所要执行的所有过滤器

WebAsyncManagerIntegrationFilter
SecurityContextPersistenceFilter
HeaderWriterFilter
LogoutFilter
UsernamePasswordAuthenticationFilter
RequestCacheAwareFilter
SecurityContextHolderAwareRequestFilter
AnonymousAuthenticationFilter
SessionManagementFilter
ExceptionTranslationFilter
FilterSecurityInterceptor

关于springSecutity拦截器的介绍请参考如下链接地址

https://blog.csdn.net/dushiwodecuo/article/details/78913113

http://blog.didispace.com/xjf-spring-security-4/

https://www.cnblogs.com/HHR-SUN/p/7095720.html

https://blog.csdn.net/zheng963/article/details/50427320

https://blog.csdn.net/m0_37834471/article/details/81142246

https://www.cnblogs.com/mingluosunshan/p/5485259.html

原文地址：https://blog.csdn.net/liushangzaibeijing/article/details/81220610

查看全文

相关阅读:
1012 The Best Rank (25 分)（排序）
1011. World Cup Betting (20)（查找元素）
1009 Product of Polynomials (25 分)（模拟）
1008 Elevator (20 分)（数学问题）
1006 Sign In and Sign Out (25 分)（查找元素）
1005 Spell It Right (20 分)（字符串处理）
Kafka Connect 出现ERROR Failed to flush WorkerSourceTask{id=local-file-source-0}, timed out while wait
flume、kafka、avro组成的消息系统
 Java23种设计模式总结【转载】
Java编程思维导图

原文地址：https://www.cnblogs.com/jpfss/p/11022461.html

springSecurity安全框架的学习和原理解读

一、Spring security框架简介

1、简介

2、框架原理

3、框架的核心组件

二、自定义安全配置的加载机制

1、前提 基于自身业务需要

2、WebSecurityConfiguration类

3、AbstractSecurityBuilder类

4、举例说明如何将一个Configurer转换为filter

三、用户登录的验证和授权过程

1、前提基于自身业务需要
