  • jasperReports 通过java导出各种格式报表，及javaweb项目整合显示各种报表
    注意：编写此项目时，请先手动编写**.jrxml  或者用IReport生成**.jrxml或**.jasper

    注：java导出报表与web项目显示报表方法其实是相同的，只不过有一句代码不同,如下

    1.  html.setParameter(JRHtmlExporterParameter.OUTPUT_FILE_NAME,"C:/Users/Administrator/Desktop/ireport/report1.html");//生成文件
    2.             //html.setParameter(JRHtmlExporterParameter.OUTPUT_WRITER,response.getWriter()); // web页面显示



    maven依赖

    1. <!-- iReport JasperReports -->
    2. <dependency>
    3.     <groupId>net.sf.jasperreports</groupId>
    4.     <artifactId>jasperreports</artifactId>
    5.     <version>5.6.0</version>
    6. </dependency>
    7. <dependency>
    8.     <groupId>org.codehaus.groovy</groupId>
    9.     <artifactId>groovy-all</artifactId>
    10.     <version>2.2.2</version>
    11. </dependency>


    通过java代码生成各种格式报表文件

    JDBC文件

    1. package com.hlzt.test;
    2.
    3. import java.sql.Connection;
    4. import java.sql.DriverManager;
    5. import java.sql.ResultSet;
    6. import java.sql.Statement;
    7.
    8. public class JDBC {
    9.     public static String driver="com.mysql.jdbc.Driver";
    10.     public static String url="jdbc:mysql://localhost:3306/senyuan1";
    11.     public static String user="root";
    12.     public static String pwd="123456";
    13.     public static Connection conn=getConnection();
    14.     public static Statement statement=getStatement();
    15.
    16.     private static Connection getConnection(){
    17.         if(conn==null){
    18.             try{
    19.                  Class.forName(driver);
    20.                  conn=DriverManager.getConnection(url,user,pwd);
    21.             }catch(Exception e){
    22.                 e.printStackTrace();
    23.             }
    24.         }
    25.         return conn;
    26.     }
    27.     private static Statement getStatement(){
    28.         if(statement==null){
    29.             try{
    30.                 statement=conn.createStatement();
    31.             }catch(Exception e){
    32.                 e.printStackTrace();
    33.             }
    34.         }
    35.         return statement;
    36.     }
    37.     public static ResultSet getResultSet(String sql){
    38.         ResultSet rs=null;
    39.         try{
    40.             rs=statement.executeQuery(sql);
    41.         }catch(Exception e){
    42.             e.printStackTrace();
    43.         }
    44.         return rs;
    45.     }
    46.     public static void closeAll(ResultSet rs,Statement st,Connection cn){
    47.         try{
    48.             if(rs!=null){
    49.                 rs.close();
    50.             }
    51.             if(st!=null){
    52.                 st.close();
    53.             }
    54.             if(cn!=null){
    55.                 cn.close();
    56.             }
    57.         }catch(Exception e){
    58.             e.printStackTrace();
    59.         }
    60.     }
    61. }


    生成 各种格式

    1. package com.hlzt.test;
    2. import java.io.File;
    3. import java.io.IOException;
    4. import java.io.InputStream;
    5. import java.util.HashMap;
    6. import java.util.Map;
    7.
    8. import javax.servlet.ServletContext;
    9. import javax.servlet.ServletException;
    10. import javax.servlet.http.HttpServlet;
    11. import javax.servlet.http.HttpServletRequest;
    12. import javax.servlet.http.HttpServletResponse;
    13. import net.sf.jasperreports.engine.JRExporterParameter;
    14. import net.sf.jasperreports.engine.JasperCompileManager;
    15. import net.sf.jasperreports.engine.JasperFillManager;
    16. import net.sf.jasperreports.engine.JasperPrint;
    17. import net.sf.jasperreports.engine.JasperReport;
    18. import net.sf.jasperreports.engine.export.JRHtmlExporter;
    19. import net.sf.jasperreports.engine.export.JRHtmlExporterParameter;
    20. import net.sf.jasperreports.engine.util.JRLoader;
    21. @SuppressWarnings("deprecation")
    22. public class TestReport  {
    23.
    24. 	public static void main(String[] args) {
    25. 		service();
    26. 	}
    27. 	//protected void service(HttpServletRequest request, HttpServletResponse response)throws ServletException, IOException {
    28. 	protected static void service(){
    29. 		try{
    30. 			//ServletContext context = this.getServletConfig().getServletContext();
    31.
    32. 			//JasperCompileManager 编译管理器
    33. 			//JasperFillManager 填充管理器
    34. 			//JRXmlLoader xml加载器
    35. 			//JasperPrintManager 打印管理器
    36. 			//JasperExportManager 导出管理器
    37.
    38. 			//JasperCompileManager.compileReportToFile(context.getRealPath("/reports/DbReport.jrxml"));//编译jrxml文件，生成jasper文件
    39.
    40. 			Map map=new HashMap();//参数map
    41. 			map.put("userName", "admin");
    42.
    43. 			//生成jrprint文件
    44. 			//JasperFillManager.fillReportToFile(context.getRealPath("/reports/DbReport.jasper"), map, JDBC.conn);
    45.
    46.
    47. 			File jasperFile=new File("C:/Users/Administrator/Desktop/ireport/report1.jasper");
    48. 			JasperReport jasperReport =(JasperReport)JRLoader.loadObject(jasperFile);
    49.             JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport, map,JDBC.conn);
    50.             File file=new File("C:/Users/Administrator/Desktop/ireport/report1.html");
    51.             //生成html
    52.             JRHtmlExporter html = new JRHtmlExporter();
    53.             html.setParameter(JRHtmlExporterParameter.JASPER_PRINT, jasperPrint);
    54.             html.setParameter(JRHtmlExporterParameter.OUTPUT_FILE_NAME,"C:/Users/Administrator/Desktop/ireport/report1.html");//生成文件
    55.             //html.setParameter(JRHtmlExporterParameter.OUTPUT_WRITER,response.getWriter()); // web页面显示
    56.             html.setParameter(JRHtmlExporterParameter.IS_USING_IMAGES_TO_ALIGN,Boolean.FALSE);
    57.             html.setParameter(JRExporterParameter.CHARACTER_ENCODING, "utf-8");
    58.             html.exportReport();
    59.             //生成excel
    60.             /*
    61.             JRXlsExporter xls=new JRXlsExporter();
    62.             */
    63.             //生成pdf
    64.             /*
    65.             JRPdfExporter pdf = new JRPdfExporter();
    66. 			*/
    67. 		}catch(Exception e){
    68. 			e.printStackTrace();
    69. 		}
    70. 	}
    71. }



    与javaweb整合


    本文用的是JasperReport最新版本6.0

    JasperReport官网：community.jaspersoft.com

    web开发建议下载JasperReports library --> jasperreports-xxx-project 里面包含demo以及api


    项目结构：

    jar包：新手可以把下载下来的所有jar包都放进去，熟练之后可以根据自己所需加入相关jar包

    WebRoot下：新建reports文件夹，用来存放jrxml、jasper文件；build.xml(放入进去之后会出现蚂蚁图标)；



    jrxml文件代码，此代码是xml格式文件，可以自己手写，也可以安装 iReport设计编译成jasper文件，为了入门下面纯手写

    DbReport.jrxml：

    [html] view plain copy
    1. <span style="font-size:14px;"><?xml version="1.0" encoding="UTF-8" ?>
    2. <jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports"
    3.             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    4.             xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports
    5.                                 http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="DbReport" >
    6.
    7.     <!-- jasperReport标签中name="DbReport"需要对应外面文件名, $P{}为填充参数,$V{}为值 ,$F{}为查询值或者为Jr数据-->
    8.
    9.     <!-- 页面样式标签 --属性：
    10.         forecolor(前景色，就是文本)
    11.         backcolor(背景色)
    12.         hAlign(水平位置Center, Justified, Left, Right)
    13.         vAlign(垂直位置Bottom, Middle, Top)
    14.         border(边框1Point, 2Point, 4Point, Dotted, None, Thin)
    15.         borderColor(边框颜色)
    16.         fontName(字体)
    17.         fontSize(字体大小)
    18.         isBold,isItalic,IsUnderline,isStrikeThrough(粗体，斜体，下画线,..)
    19.         lineSpacing(1_1_2, Double, Single行间距)
    20.         rotation(旋转,Left, None, Right,转的是90度)
    21.         isStyledText(指示这个Element是否用Style,true,false)
    22.         isDefault(说明这个样式是否默认样式)
    23.     -->
    24.     <style name="pageHeader" forecolor="#FFFFFF" backcolor="#333333"/>
    25.
    26.     <!-- 参数标签 -->
    27.     <parameter name="userName" class="java.lang.String"/>
    28.
    29.     <!-- 查询语句标签 -->
    30.     <queryString>
    31.         <![CDATA[
    32.             select id,user_name as name,email,qq from user where user_name=$P{userName}
    33.         ]]>
    34.     </queryString>
    35.     <!-- 显示字段标签 -->
    36.     <field name="id" class="java.lang.Integer" />
    37.     <field name="name" class="java.lang.String" />
    38.     <field name="email" class="java.lang.String" />
    39.     <field name="qq" class="java.lang.String" />
    40.
    41.     <pageHeader>
    42.         <band height="30">
    43.             <staticText>
    44.                 <reportElement style="pageHeader"  x="0" y="5" width="55" height="15"/>
    45.                 <textElement textAlignment="Center"/>
    46.                 <text><![CDATA[ID]]></text>
    47.             </staticText>
    48.             <staticText>
    49.                 <reportElement style="pageHeader"  x="55" y="5" width="205" height="15"/>
    50.                 <text><![CDATA[Name]]></text>
    51.             </staticText>
    52.             <staticText>
    53.                 <reportElement style="pageHeader"  x="160" y="5" width="255" height="15"/>
    54.                 <text><![CDATA[Email]]></text>
    55.             </staticText>
    56.             <staticText>
    57.                 <reportElement style="pageHeader"  x="260" y="5" width="255" height="15"/>
    58.                 <text><![CDATA[QQ]]></text>
    59.             </staticText>
    60.         </band>
    61.     </pageHeader>
    62.     <!-- 显示内容-->
    63.     <detail>
    64.         <band height="20">
    65.             <textField>
    66.                 <reportElement x="0" y="4" width="50" height="15"/>
    67.                 <textElement textAlignment="Right"/>
    68.                 <textFieldExpression><![CDATA[$F{id}]]></textFieldExpression>
    69.             </textField>
    70.             <textField isStretchWithOverflow="true">
    71.                 <reportElement positionType="Float" x="55" y="4" width="100" height="15"/>
    72.                 <textFieldExpression><![CDATA[$F{name}]]></textFieldExpression>
    73.             </textField>
    74.             <textField isStretchWithOverflow="true">
    75.                 <reportElement positionType="Float" x="160" y="4" width="100" height="15"/>
    76.                 <textFieldExpression><![CDATA[$F{email}]]></textFieldExpression>
    77.             </textField>
    78.             <textField isStretchWithOverflow="true">
    79.                 <reportElement positionType="Float" x="260" y="4" width="255" height="15"/>
    80.                 <textFieldExpression><![CDATA[$F{qq}]]></textFieldExpression>
    81.             </textField>
    82.
    83.             <line>
    84.                 <reportElement positionType="Float" x="0" y="19" width="515" height="1" forecolor="#808080"/>
    85.             </line>
    86.         </band>
    87.     </detail>
    88.
    89. </jasperReport>
    90. </span>


    后台代码：TestServlet.java

    [java] view plain copy
    1. <span style="font-size:14px;">package servlets;
    2.
    3. import java.io.File;
    4. import java.io.IOException;
    5. import java.io.InputStream;
    6. import java.sql.ResultSet;
    7. import java.util.HashMap;
    8. import java.util.Map;
    9.
    10. import javax.servlet.ServletContext;
    11. import javax.servlet.ServletException;
    12. import javax.servlet.http.HttpServlet;
    13. import javax.servlet.http.HttpServletRequest;
    14. import javax.servlet.http.HttpServletResponse;
    15.
    16. import util.JDBC;
    17. import net.sf.jasperreports.engine.JRDataSource;
    18. import net.sf.jasperreports.engine.JRExporterParameter;
    19. import net.sf.jasperreports.engine.JRResultSetDataSource;
    20. import net.sf.jasperreports.engine.JasperCompileManager;
    21. import net.sf.jasperreports.engine.JasperExportManager;
    22. import net.sf.jasperreports.engine.JasperFillManager;
    23. import net.sf.jasperreports.engine.JasperPrint;
    24. import net.sf.jasperreports.engine.JasperReport;
    25. import net.sf.jasperreports.engine.JasperRunManager;
    26. import net.sf.jasperreports.engine.data.JRMapArrayDataSource;
    27. import net.sf.jasperreports.engine.export.JRHtmlExporter;
    28. import net.sf.jasperreports.engine.export.JRHtmlExporterParameter;
    29. import net.sf.jasperreports.engine.export.JRPdfExporter;
    30. import net.sf.jasperreports.engine.export.JRXlsExporter;
    31. import net.sf.jasperreports.engine.export.JRXlsExporterParameter;
    32. import net.sf.jasperreports.engine.util.JRLoader;
    33. import net.sf.jasperreports.view.JasperViewer;
    34.
    35. public class TestServlet extends HttpServlet {
    36.     @Override
    37.     protected void service(HttpServletRequest request, HttpServletResponse response)
    38.             throws ServletException, IOException {
    39.         try{
    40.             ServletContext context = this.getServletConfig().getServletContext();
    41.
    42.             //JasperCompileManager 编译管理器
    43.             //JasperFillManager 填充管理器
    44.             //JRXmlLoader xml加载器
    45.             //JasperPrintManager 打印管理器
    46.             //JasperExportManager 导出管理器
    47.             //JasperRunManager 运行管理器
    48.
    49.             JasperCompileManager.compileReportToFile(context.getRealPath("/reports/DbReport.jrxml"));//编译jrxml文件，生成jasper文件
    50.
    51.             Map map=new HashMap();//参数map
    52.             map.put("userName", "admin");
    53.
    54.             //生成jrprint文件
    55.             //JasperFillManager.fillReportToFile(context.getRealPath("/reports/DbReport.jasper"), map, JDBC.conn);
    56.
    57.
    58.             File jasperFile=new File(context.getRealPath("/reports/DbReport.jasper"));
    59.             JasperReport jasperReport =(JasperReport)JRLoader.loadObject(jasperFile);
    60.             JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport, map,JDBC.conn);
    61.
    62.             //将查询的数据填充到报表中
    63.             //String sql="select id,user_name as name,email,qq from user";
    64.             //ResultSet rs=JDBC.getResultSet(sql);
    65.             //JRResultSetDataSource jr=new JRResultSetDataSource(rs);
    66.             //JasperFillManager.fillReportToFile(context.getRealPath("/reports/DbReport.jasper"), map, jr);
    67.             //JDBC.closeAll(rs, JDBC.statement, null);//关闭数据连接
    68.
    69.             //JasperRunManager.runReportToHtmlFile(context.getRealPath("/reports/DbReport.jasper"), map, JDBC.conn);
    70.             //JasperRunManager.runReportToHtmlFile(context.getRealPath("/reports/DbReport.jasper"), map, jr);
    71.             //生成html文件
    72.             //JasperRunManager.runReportToHtmlFile(context.getRealPath("/reports/DbReport.jasper"), "E:/test.html", map, JDBC.conn);
    73.
    74.             //InputStream  inputStream=getServletConfig().getServletContext().getResourceAsStream(context.getRealPath("/reports/DbReport.jasper"));
    75.             //JasperRunManager.runReportToPdfStream(inputStream, response.getOutputStream(), map, jr);
    76.
    77.             //-----以map数组为数据源,生成html文件
    78.             JasperRunManager.runReportToHtmlFile(context.getRealPath("/reports/DbReport.jasper"), "E:/test2.html", map, getReportDataSource());
    79.
    80.
    81.
    82.             //生成html数据
    83.             /*
    84.             JRHtmlExporter html = new JRHtmlExporter();
    85.             html.setParameter(JRHtmlExporterParameter.JASPER_PRINT, jasperPrint);
    86.             html.setParameter(JRHtmlExporterParameter.OUTPUT_WRITER,response.getWriter());
    87.             html.setParameter(JRHtmlExporterParameter.IS_USING_IMAGES_TO_ALIGN,Boolean.FALSE);
    88.             html.setParameter(JRExporterParameter.CHARACTER_ENCODING, "utf-8");
    89.             html.exportReport();
    90.             */
    91.             //生成excel
    92.             /*
    93.             JRXlsExporter xls=new JRXlsExporter();
    94.             xls.setParameter(JRXlsExporterParameter.JASPER_PRINT, jasperPrint);
    95.             xls.setParameter(JRXlsExporterParameter.OUTPUT_STREAM, response.getOutputStream());
    96.             xls.setParameter(JRXlsExporterParameter.IS_ONE_PAGE_PER_SHEET, Boolean.FALSE);
    97.             xls.setParameter(JRXlsExporterParameter.IS_WHITE_PAGE_BACKGROUND, Boolean.FALSE);
    98.             response.setHeader("Content-Disposition", "attachment;filename=first.xls");
    99.             response.setContentType("application/vnd_ms-excel");
    100.             xls.exportReport();
    101.             */
    102.             //生成pdf
    103.             /*
    104.             JRPdfExporter pdf = new JRPdfExporter();
    105.             pdf.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
    106.             pdf.setParameter(JRExporterParameter.OUTPUT_STREAM, response.getOutputStream());
    107.
    108.             response.setHeader("Content-Disposition", "attachment;filename=first.pdf");
    109.             response.setContentType("application/pdf");
    110.             response.setCharacterEncoding("UTF-8");
    111.             pdf.exportReport();
    112.             */
    113.         }catch(Exception e){
    114.             e.printStackTrace();
    115.         }
    116.     }
    117.
    118.     private JRDataSource getReportDataSource(){
    119.         //new JRMapArrayDataSource(getMaparray());这里也可以传自定义对象数组，对象属性字段必须对应DbReport.jrxml中显示数据字段
    120.         JRMapArrayDataSource dataSource=new JRMapArrayDataSource(getMaparray());
    121.         return dataSource;
    122.     }
    123.     private Map[] getMaparray(){
    124.         //map key键必须对应DbReport.jrxml中显示数据字段
    125.         Map map1=new HashMap();
    126.         map1.put("id", 1);
    127.         map1.put("name", "aaa");
    128.         map1.put("email", "111@qq.com");
    129.         map1.put("qq", "111");
    130.
    131.         Map map2=new HashMap();
    132.         map2.put("id", 2);
    133.         map2.put("name", "bbb");
    134.         map2.put("email", "222@qq.com");
    135.         map2.put("qq", "222");
    136.
    137.         Map map3=new HashMap();
    138.         map3.put("id", 3);
    139.         map3.put("name", "ccc");
    140.         map3.put("email", "333@qq.com");
    141.         map3.put("qq", "333");
    142.
    143.         Map[] mapArray=new Map[3];
    144.         mapArray[0]=map1;
    145.         mapArray[1]=map2;
    146.         mapArray[2]=map3;
    147.
    148.         return mapArray;
    149.     }
    150. }
    151. </span>

    JDBC:

    [java] view plain copy
    1. <span style="font-size:14px;">package util;
    2.
    3. import java.sql.Connection;
    4. import java.sql.DriverManager;
    5. import java.sql.ResultSet;
    6. import java.sql.Statement;
    7.
    8. public class JDBC {
    9.     public static String driver="com.mysql.jdbc.Driver";
    10.     public static String url="jdbc:mysql://localhost:3306/myapp";
    11.     public static String user="root";
    12.     public static String pwd="root";
    13.     public static Connection conn=getConnection();
    14.     public static Statement statement=getStatement();
    15.
    16.     private static Connection getConnection(){
    17.         if(conn==null){
    18.             try{
    19.                  Class.forName(driver);
    20.                  conn=DriverManager.getConnection(url,user,pwd);
    21.             }catch(Exception e){
    22.                 e.printStackTrace();
    23.             }
    24.         }
    25.         return conn;
    26.     }
    27.     private static Statement getStatement(){
    28.         if(statement==null){
    29.             try{
    30.                 statement=conn.createStatement();
    31.             }catch(Exception e){
    32.                 e.printStackTrace();
    33.             }
    34.         }
    35.         return statement;
    36.     }
    37.     public static ResultSet getResultSet(String sql){
    38.         ResultSet rs=null;
    39.         try{
    40.             rs=statement.executeQuery(sql);
    41.         }catch(Exception e){
    42.             e.printStackTrace();
    43.         }
    44.         return rs;
    45.     }
    46.     public static void closeAll(ResultSet rs,Statement st,Connection cn){
    47.         try{
    48.             if(rs!=null){
    49.                 rs.close();
    50.             }
    51.             if(st!=null){
    52.                 st.close();
    53.             }
    54.             if(cn!=null){
    55.                 cn.close();
    56.             }
    57.         }catch(Exception e){
    58.             e.printStackTrace();
    59.         }
    60.     }
    61. }
    62. </span>

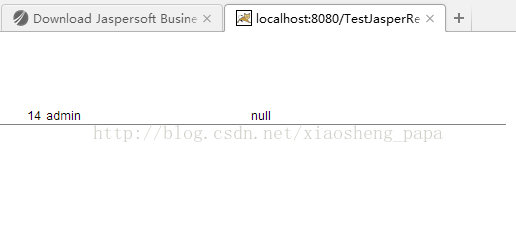

    执行效果：html数据



    原文地址：https://blog.csdn.net/u013378306/article/details/52412876
  • 相关阅读:
    Android 解决toolbar标题不显示问题
    Android Material Design之CollapsingToolbarLayout使用
    Android ToolBar标题文字居中的方法
    Android ToolBar自定义图标，关联DrawerLayout
    Android studio 隐藏toolbar上的app title
    Android CollapsingToolbarLayout Toolbar的title覆盖问题
    K-Means算法的收敛性和如何快速收敛超大的KMeans？
    CentOS6.5下编译R源码并安装Spark R
    说说Windows7 64bits下安装TensorFlow GPU版本会遇到的一些坑
    Windows7 64bits下安装TensorFlow GPU版本（图文详解）
  • 原文地址：https://www.cnblogs.com/jpfss/p/11121706.html
Copyright © 2011-2022 走看看
