  • java实现微信支付宝等多个支付平台合一的二维码支付(maven+spring springmvc mybatis框架)

    首先申明，本人实现微信支付宝等支付平台合多为一的二维码支付，并且实现有效时间内支付有效，本人采用的框架是spring springmvc mybatis 框架，maven管理。其实如果支付，不需要mybatis也能实现，代码和本人见解还需大神指教。
流程和思路：**用户点击支付** --> **出现一次支付密码，并且带有时间限制** --> **扫描二维码跳转后台** --> **后台判断是微信支付还是支付宝支付**

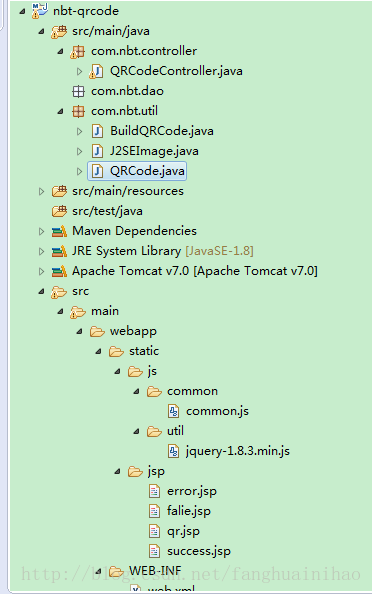

    1. 1.整体架构：

      这里写图片描述

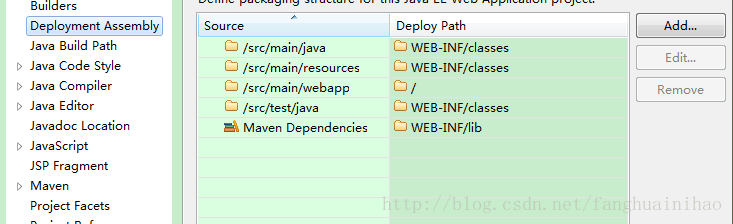

    2. 2.配置编译的文件目录，

      这里写图片描述

    3. 3.pom.xml,其中qrcode.qrcode、qrcode.swetake是从本地编译到maven库中，因为网络maven中没有。

    <?xml version="1.0"?>
<project
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
    xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>fanghuai</groupId>
        <artifactId>nbt</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.nbt.qrcoder</groupId>
    <artifactId>nbt-qrcode</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>
    <name>nbt-qrcode Maven Webapp</name>
    <url>http://maven.apache.org</url>
    <properties>
        <spring.version>4.1.3.RELEASE</spring.version>
        <mybatis.version>3.2.8</mybatis.version>
        <mybatis.spring.version>1.2.2</mybatis.spring.version>
        <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
        <mysql.version>5.1.32</mysql.version>
        <slf4j.version>1.6.4</slf4j.version>
        <jackson.version>2.4.2</jackson.version>
        <druid.version>1.0.9</druid.version>
        <jstl.version>1.2</jstl.version>
        <servlet-api.version>2.5</servlet-api.version>
        <jsp-api.version>2.0</jsp-api.version>
        <commons-lang3.version>3.3.2</commons-lang3.version>
        <commons-io.version>1.3.2</commons-io.version>
        <commons-net.version>3.3</commons-net.version>
        <pagehelper.version>4.0.0</pagehelper.version>

    </properties>
    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
        </dependency>
        <!-- qrcode -->
        <dependency>
            <groupId>qrcode.qrcode</groupId>
            <artifactId>qrcode</artifactId>
            <version>1.0</version>
        </dependency>
        <dependency>
            <groupId>qrcode.swetake</groupId>
            <artifactId>swetake</artifactId>
            <version>1.0</version>
        </dependency>

        <!-- 日志处理 -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.miemiedev</groupId>
            <artifactId>mybatis-paginator</artifactId>
            <version>${mybatis.paginator.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>${pagehelper.version}</version>
        </dependency>
        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>${druid.version}</version>
        </dependency>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- JSP相关 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>${jstl.version}</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>${servlet-api.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jsp-api</artifactId>
            <version>${jsp-api.version}</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <finalName>nbt-qrcode</finalName>
    </build>
</project>
    1. 4.二维码相关属性（Model）
    package com.nbt.util;
import java.awt.image.BufferedImage;
import jp.sourceforge.qrcode.data.QRCodeImage;

 public   class J2SEImage implements QRCodeImage {
        BufferedImage bufImg;
        public J2SEImage(BufferedImage bufImg) {
            this.bufImg = bufImg;
        }
        public int getWidth() {
            return bufImg.getWidth();
        }
        public int getHeight() {
            return bufImg.getHeight();
        }
        public int getPixel(int x, int y) {
            return bufImg.getRGB(x, y);
        }
    }
    1. 5.二维码生成代码
    package com.nbt.util;

import java.awt.Color;
import java.awt.Graphics2D;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;

import javax.imageio.ImageIO;

import jp.sourceforge.qrcode.QRCodeDecoder;
import jp.sourceforge.qrcode.exception.DecodingFailedException;

import com.swetake.util.Qrcode;

public class QRCode {

     /**
     * 生成二维码(QRCode)图片
     * @param content  二维码内容
     * @param imgPath 存放二维位置
     */
    public static  void encoderQRCode(BuildQRCode bc) {

        try {
            Qrcode qrcodeHandler = new Qrcode();
            qrcodeHandler.setQrcodeErrorCorrect('M');
            qrcodeHandler.setQrcodeEncodeMode('B');
            qrcodeHandler.setQrcodeVersion(7);
            System.out.println(bc.getContent());
            byte[] contentBytes = bc.getContent().getBytes("gb2312");
            BufferedImage bufImg = new BufferedImage(140, 140,
                    BufferedImage.TYPE_INT_RGB);
            Graphics2D gs = bufImg.createGraphics();
            gs.setBackground(Color.WHITE);
            gs.clearRect(0, 0, 140, 140);
            // 设定图像颜色> BLACK
            gs.setColor(Color.BLACK);
            // 设置偏移量 不设置可能导致解析出错
            int pixoff = 2;
            // 输出内容> 二维码
            if (contentBytes.length > 0 && contentBytes.length < 120) {
                boolean[][] codeOut = qrcodeHandler.calQrcode(contentBytes);
                for (int i = 0; i < codeOut.length; i++) {
                    for (int j = 0; j < codeOut.length; j++) {
                        if (codeOut[j][i]) {
                            gs.fillRect(j * 3 + pixoff, i * 3 + pixoff, 3, 3);
                        }
                    }
                }
            } else {
                System.err.println("QRCode content bytes length = " + contentBytes.length + " not in [ 0,120 ]. ");
            }
            gs.dispose();
            bufImg.flush();
            File imgFile = new File(bc.getImgPath());
            // 生成二维码QRCode图片
            ImageIO.write(bufImg, "png", imgFile);

        } catch (Exception e) {

            e.printStackTrace();
        }
    }

    /**
     * 解码二维码
     * @param imgPath
     * @return String
     */
    public static  String decoderQRCode(String imgPath) {
        // QRCode 二维码图片的文件
        File imageFile = new File(imgPath);
        BufferedImage bufImg = null;
        String decodedData = null;
        try {
            bufImg = ImageIO.read(imageFile);
            QRCodeDecoder decoder = new QRCodeDecoder();
            decodedData = new String(decoder.decode(new J2SEImage(bufImg)));
            // try {
            // System.out.println(new String(decodedData.getBytes("gb2312"),
            // "gb2312"));
            // } catch (Exception e) {
            // // TODO: handle exception
            // }
        } catch (IOException e) {
            System.out.println("Error: " + e.getMessage());
            e.printStackTrace();
        } catch (DecodingFailedException dfe) {
            System.out.println("Error: " + dfe.getMessage());
            dfe.printStackTrace();
        }
        return decodedData;
    }


    public static void main(String[] args) {

    //生成二维码
         String imgPath = "D:/test/Michael_QRCode.png";
         String content = "http://www.baidu.com";
         BuildQRCode bc = new BuildQRCode(imgPath,content);
         encoderQRCode(bc);
         System.out.println("encoder QRcode success");


     //解读二维码
         String decoderContent =decoderQRCode(imgPath);
         System.out.println("解析结果如下：");
         System.out.println(decoderContent);
         System.out.println("========decoder success!!!");
     }
}
    1. 6.Controller相关代码(jsp页面要通过流的形式放在页面上，不然二维码显示不出来。)
    package com.nbt.controller;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.text.SimpleDateFormat;
import java.util.Calendar;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

import com.mysql.jdbc.StringUtils;
import com.nbt.util.BuildQRCode;
import com.nbt.util.QRCode;
@Controller
@RequestMapping("/qr")
public class QRCodeController {

    private static Logger log = Logger.getLogger(QRCodeController.class);


    /**
     * 跳转到二维码页面
     * @param request
     * @return
     */
    @RequestMapping("/toShowQRCode.do")
    public String showQRCode(HttpServletRequest request){
        log.info("跳转到二维码页面...");
        return "qr";
    }

    /**
     * 通过流的形式实现在jsp上面显示二维码
     * @param model
     * @param request
     * @param response
     * @throws IOException
     */
    @RequestMapping("/readImage")
    public void readImage(Model model, HttpServletRequest request, HttpServletResponse response) throws IOException{
        BuildQRCode bc = new BuildQRCode();//调用无参构造方法
        bc.initParam(bc);//对参数进行初始化
        QRCode.encoderQRCode(bc);//生成二维码

        String filePath =  bc.getImgPath();
        File filePic = new File(filePath);
        if(filePic.exists()){
           FileInputStream is = new FileInputStream(filePic);
           int i = is.available(); // 得到文件大小
           byte data[] = new byte[i];
           is.read(data); // 读数据
           is.close();
           response.setContentType("image/*"); // 设置返回的文件类型
           OutputStream toClient = response.getOutputStream(); // 得到向客户端输出二进制数据的对象
           toClient.write(data); // 输出数据
           toClient.close();
        }
    }

    /**
     * 预支付接口
     * @param timeout
     * @param orderNo
     * @return
     */
    @RequestMapping("/toPay.do")
    public String toPay(@RequestParam("timeout") String timeout,@RequestParam("orderNo")String orderNo){
        log.info("开始进行支付");
        if(StringUtils.isNullOrEmpty(orderNo)||StringUtils.isNullOrEmpty(timeout)){
            log.info("订单号或者时间超时为空");
            return "faile";
        }

        Calendar ca = Calendar.getInstance();
        String afterTime = new SimpleDateFormat("yyyyMMddHHmmssSS").format(ca.getTime());

        if(!afterTime.equals(timeout)){
            log.info(afterTime+"---->"+timeout);
            log.info("二维码已失效，请重新支付");
            return "faile";
        }
        /**
         * ..... 这段可以根据二维码参数不一样，去相关支付平台进行支付，
         * 具体代码可以根据支付平台的api文档进行支付操作
         */
        log.info("支付成功");
        return "success";

    }
}
    1. 7.二维码相关参数初始化(我目前二维码存放在本地，你们可以把二维码放在程序目录下)。
    package com.nbt.util;

import java.text.SimpleDateFormat;
import java.util.Calendar;
import java.util.Date;


public class BuildQRCode {

    /**
     * 二维码存放地址
     */
    private   String imgPath ;

    /**
     * 二维码内容
     */
    private  String content ;

    /**
     * 无参构造方法
     */
    public BuildQRCode() {

    }


    /**
     * 有参构造方法
     * @param imgPath
     * @param content
     */
    public BuildQRCode(String imgPath, String content) {
        super();
        this.imgPath = imgPath;
        this.content = content;
    }



    public void initParam(BuildQRCode bqrc){

    //  生成临时订单号和有效时间
        Calendar ca = Calendar.getInstance();
        Date date  = ca.getTime();
        SimpleDateFormat sdf = new SimpleDateFormat("yyyyMMddHHmmssSS");
        System.out.println(sdf.format(date));
        String orderNo = sdf.format(date)+(int)Math.random()*1000;//生成订单号
        //生成有效时间五分钟
        ca.add(Calendar.MINUTE,5);
        System.out.println(sdf.format(ca.getTime()));
        String timeout = sdf.format(ca.getTime());

    //对参数进行初始化
        bqrc.setImgPath( "D:/test/Michael_QRCode.png");
        bqrc.setContent( "http://localhost:8080/nbt-qrcode/qr/toPay.do?orderNo="+orderNo+"&timeout="+timeout);
    }

    public static void main(String[] args) {
        BuildQRCode qc = new BuildQRCode();
        qc.initParam(qc);//设置参数
        QRCode.encoderQRCode(qc);
    }



    public  String getImgPath() {
        return imgPath;
    }

    public  void setImgPath(String imgPath) {
        this.imgPath = imgPath;
    }

    public  String getContent() {
        return content;
    }

    public  void setContent(String content) {
        this.content = content;
    }




}
  • 相关阅读:
    我的书单
    说说IUnitOfWork~Linq to Sql与EntityFrameworks中的SubmtChanges()发生了什么事
    说说IUnitOfWork~认识IUnitOfWork，为什么要出现IUnitOfWork接口
    LINQtoSQL那点事~关于延时加载的性能，微软给出了不错的解决方案
    数据结构~站点地图其实是一颗树
    说说IUnitOfWork~方法完整性与统一提交不冲突
    递归 解剖
    Java Socket一对一聊天
    转：浅谈c++容器
    Java JList 使用
  • 原文地址：https://www.cnblogs.com/jpfss/p/9443570.html
Copyright © 2011-2022 走看看
