2 海康网络相机官方例程（2-1）采集图像转化opencv

1设置相机和实物连接

https://www.cnblogs.com/kekeoutlook/p/13111030.html

电脑和工业网络相机在同一一个交换机上，网段改成同一个里面。

2官方程序

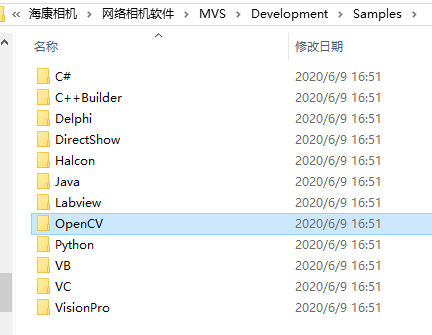

官方样例中有这么个样例

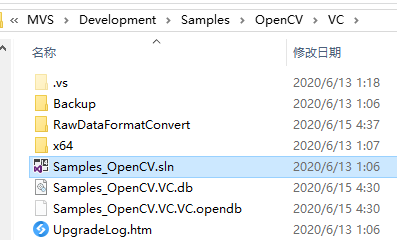

 打开之后设置

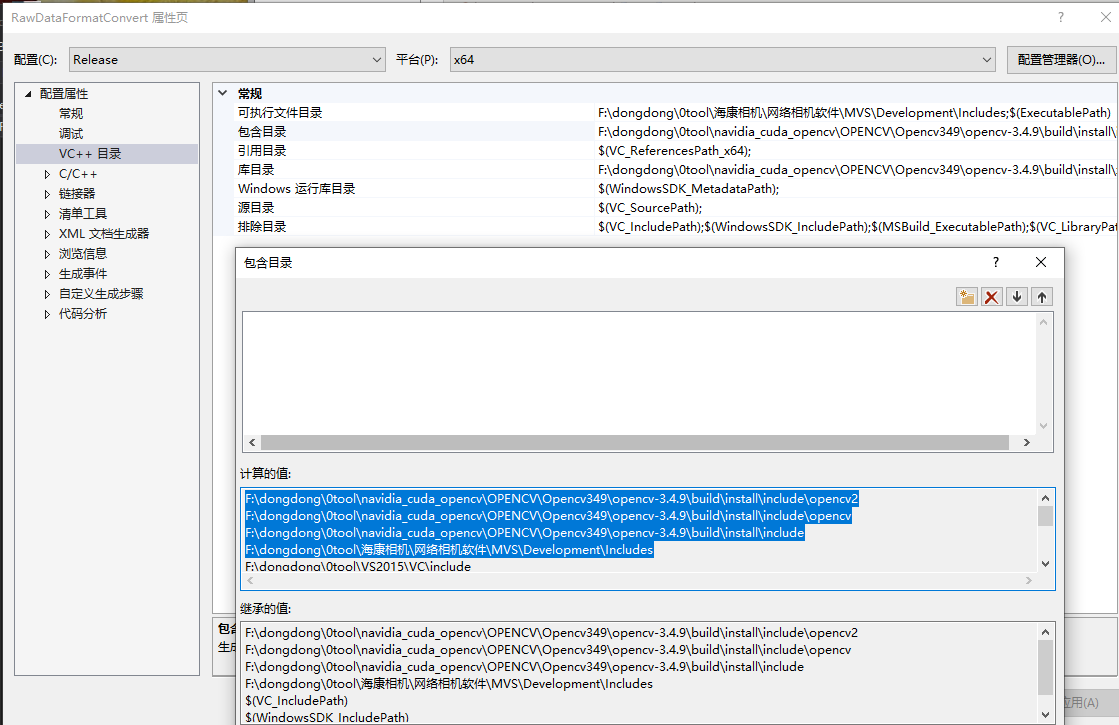

包含目录（我之前已经在属性管理器添加了）

F:dongdongtool
avidia_cuda_opencvOPENCVOpencv349opencv-3.4.9uildinstallincludeopencv2
F:dongdongtool
avidia_cuda_opencvOPENCVOpencv349opencv-3.4.9uildinstallincludeopencv
F:dongdongtool
avidia_cuda_opencvOPENCVOpencv349opencv-3.4.9uildinstallinclude
F:dongdongtool海康相机网络相机软件MVSDevelopmentIncludes

　　

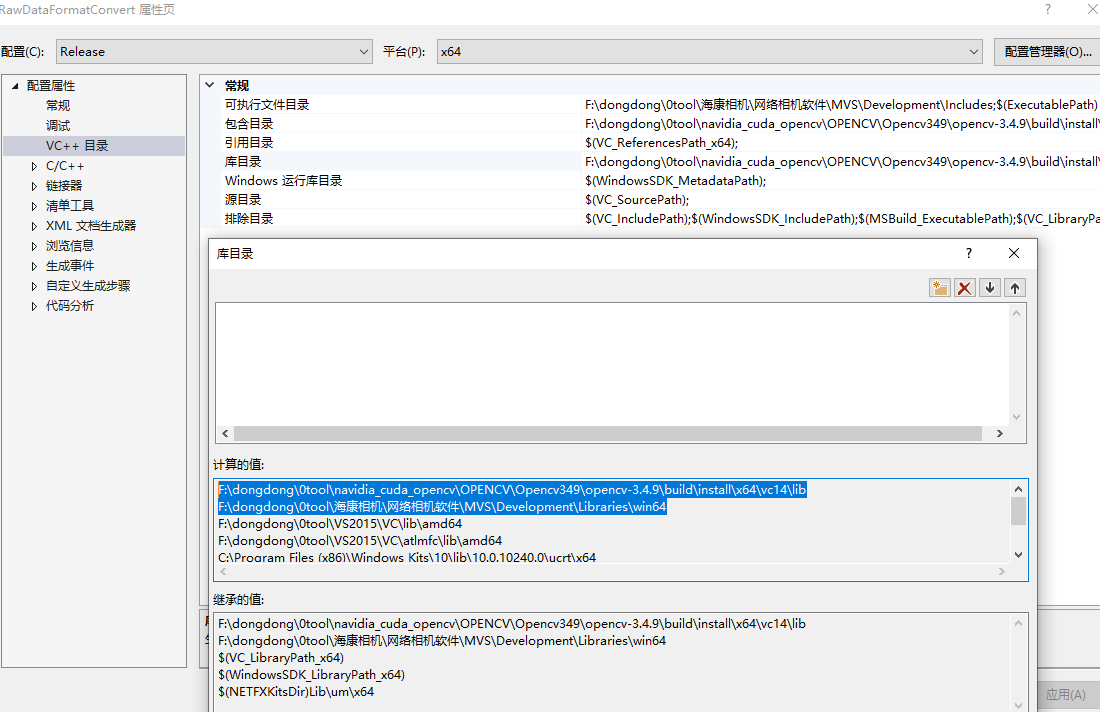

库目录

F:dongdongtool
avidia_cuda_opencvOPENCVOpencv349opencv-3.4.9uildinstallx64vc14lib
F:dongdongtool海康相机网络相机软件MVSDevelopmentLibrarieswin64

　　

连接器

MvCameraControl.lib
F:dongdongtool
avidia_cuda_opencvOPENCVOpencv349opencv-3.4.9uildinstallx64vc14lib*.lib

　　连接器有自带的opencv库，但是和我的版本不符合，去掉原来的换成自己的。

编译程序

报错1

IplImage和mat转化问题 不支持

百度后，去掉IplImage结构体的if定义

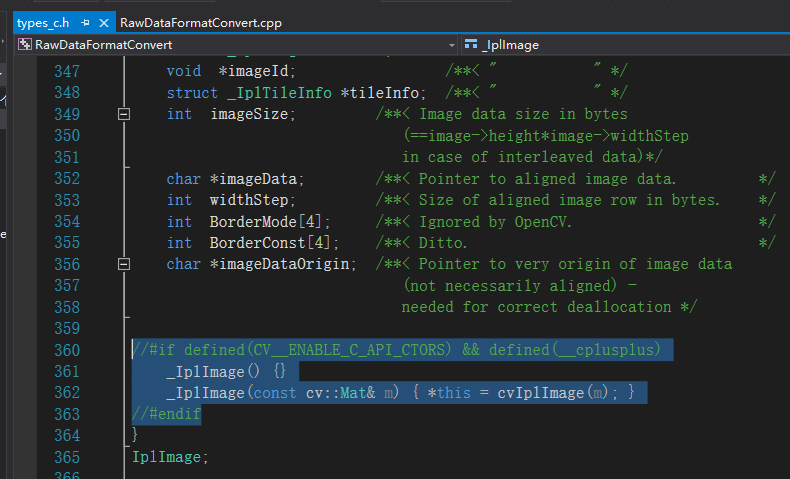

首先转到 IplImage定义

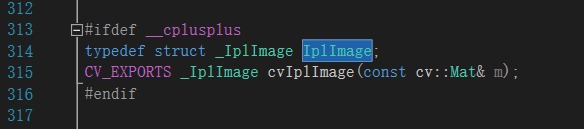

 然后转到_IplImage定义

加上两行注释

 报错2

转换失败

相机的数据传输出必须转换下，不是所有格式都支持转化

 打开mvs修改相机的数据输出

 直接断开 没啥保存按键，不放心断开相机在连接，查看是不是RGB8输出

错误3无法保存

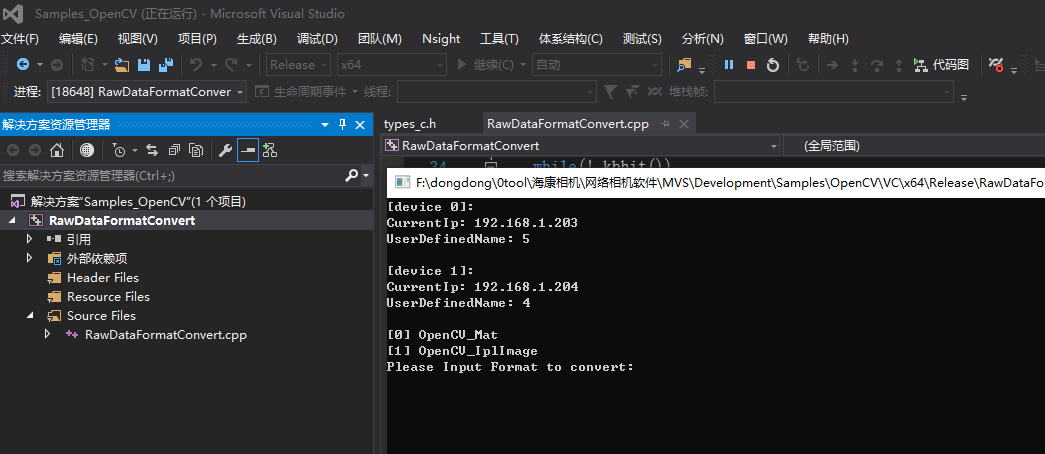

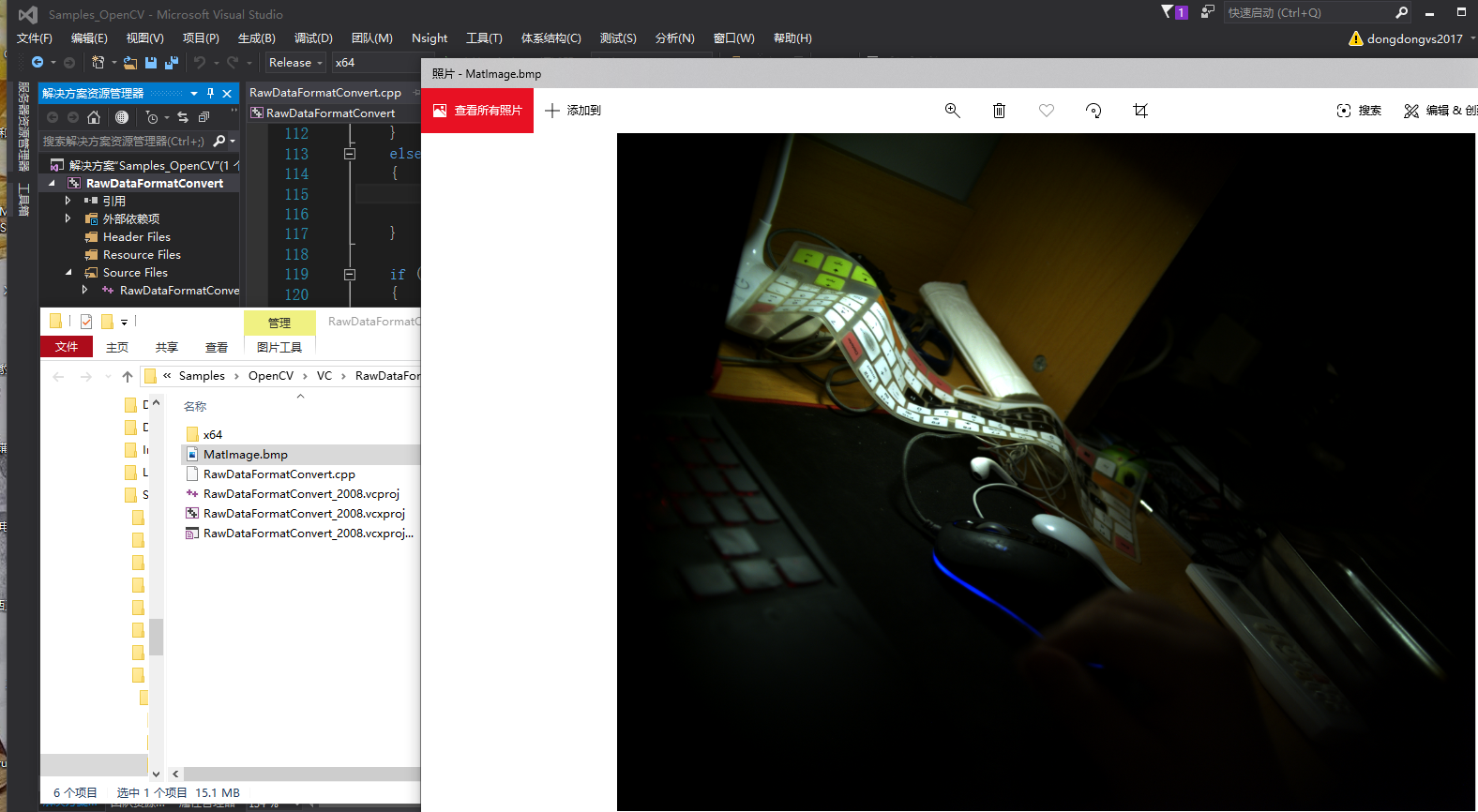

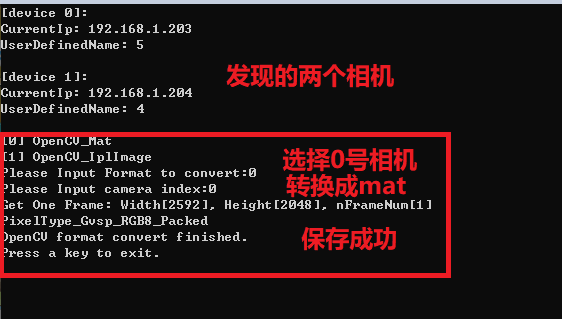

程序运行

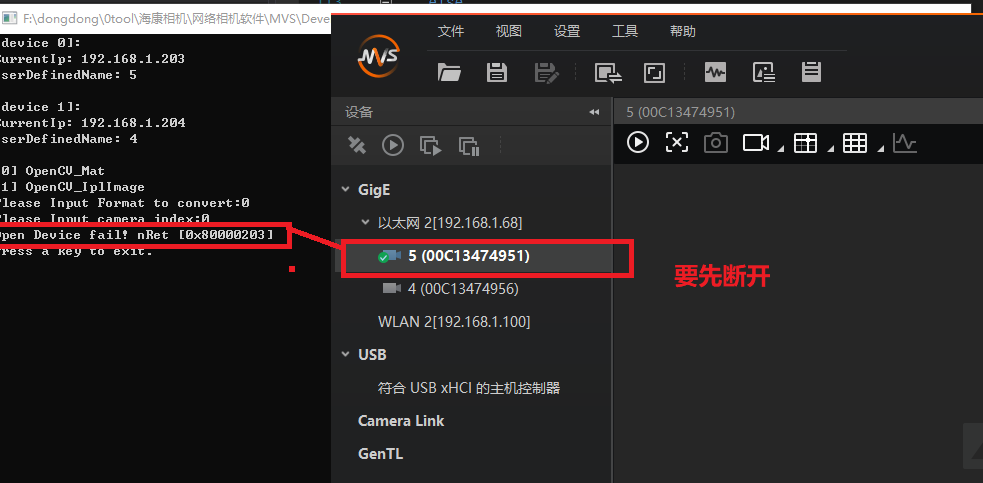

额外插曲 一定要先断开相机和MVS软件的连接，不然相机会被占用。



 程序基本流程

1获取相机原始数据，存在一个char数组里

 执行转换



 不知道速度怎么

/***************************************************************************************************
*
* Notes about how to configure your OpenCV environment and project.
* 1. You can prepare the required installation package from the official website. https://opencv.org/releases.html
* 2. If the *.lib files doesn't exist in the package download, you need to compile by yourself with the CMake tool.
* 3. Add the 'bin' folder path to the PATH.
* 4. Configure the 'Additional Include Directories', 'Additional Library Directories' and 'Additional Dependencies' for current project property.
*
* If there is any question or request, please feel free to contact us.

***************************************************************************************************/

#include "MvCameraControl.h"
#include "opencv2/imgproc/imgproc.hpp"
#include "opencv2/highgui/highgui.hpp"
#include <stdio.h>
#include <Windows.h>
#include <process.h>
#include <conio.h>
#include "string.h"

unsigned int g_nPayloadSize = 0;

enum CONVERT_TYPE
{
    OpenCV_Mat        = 0,    // Most of the time, we use 'Mat' format to store image data after OpenCV V2.1
    OpenCV_IplImage       = 1,   //we may also use 'IplImage' format to store image data, usually before OpenCV V2.1
};


// Wait for key press
void WaitForKeyPress(void)
{
    while(!_kbhit())
    {
        Sleep(10);
    }
    _getch();
}


// print the discovered devices information to user
bool PrintDeviceInfo(MV_CC_DEVICE_INFO* pstMVDevInfo)
{
    if (NULL == pstMVDevInfo)
    {
        printf("The Pointer of pstMVDevInfo is NULL!
");
        return false;
    }
    if (pstMVDevInfo->nTLayerType == MV_GIGE_DEVICE)
    {
        int nIp1 = ((pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0xff000000) >> 24);
        int nIp2 = ((pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0x00ff0000) >> 16);
        int nIp3 = ((pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0x0000ff00) >> 8);
        int nIp4 = (pstMVDevInfo->SpecialInfo.stGigEInfo.nCurrentIp & 0x000000ff);

        // print current ip and user defined name
        printf("CurrentIp: %d.%d.%d.%d
" , nIp1, nIp2, nIp3, nIp4);
        printf("UserDefinedName: %s

" , pstMVDevInfo->SpecialInfo.stGigEInfo.chUserDefinedName);
    }
    else if (pstMVDevInfo->nTLayerType == MV_USB_DEVICE)
    {
        printf("UserDefinedName: %s
", pstMVDevInfo->SpecialInfo.stUsb3VInfo.chUserDefinedName);
        printf("Serial Number: %s
", pstMVDevInfo->SpecialInfo.stUsb3VInfo.chSerialNumber);
        printf("Device Number: %d

", pstMVDevInfo->SpecialInfo.stUsb3VInfo.nDeviceNumber);
    }
    else
    {
        printf("Not support.
");
    }

    return true;
}


int RGB2BGR( unsigned char* pRgbData, unsigned int nWidth, unsigned int nHeight )
{
    if ( NULL == pRgbData )
    {
        return MV_E_PARAMETER;
    }

    for (unsigned int j = 0; j < nHeight; j++)
    {
        for (unsigned int i = 0; i < nWidth; i++)
        {
            unsigned char red = pRgbData[j * (nWidth * 3) + i * 3];
            pRgbData[j * (nWidth * 3) + i * 3]     = pRgbData[j * (nWidth * 3) + i * 3 + 2];
            pRgbData[j * (nWidth * 3) + i * 3 + 2] = red;
        }
    }

    return MV_OK;
}


// convert data stream in Mat format

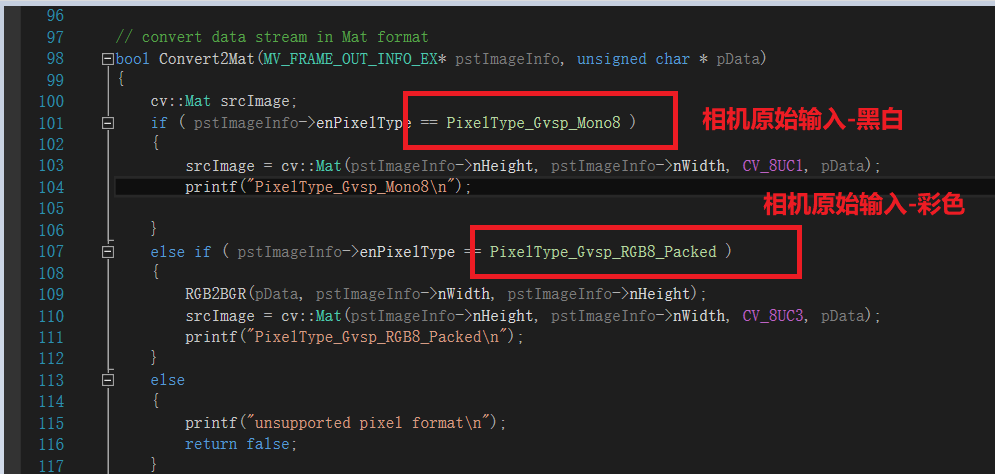

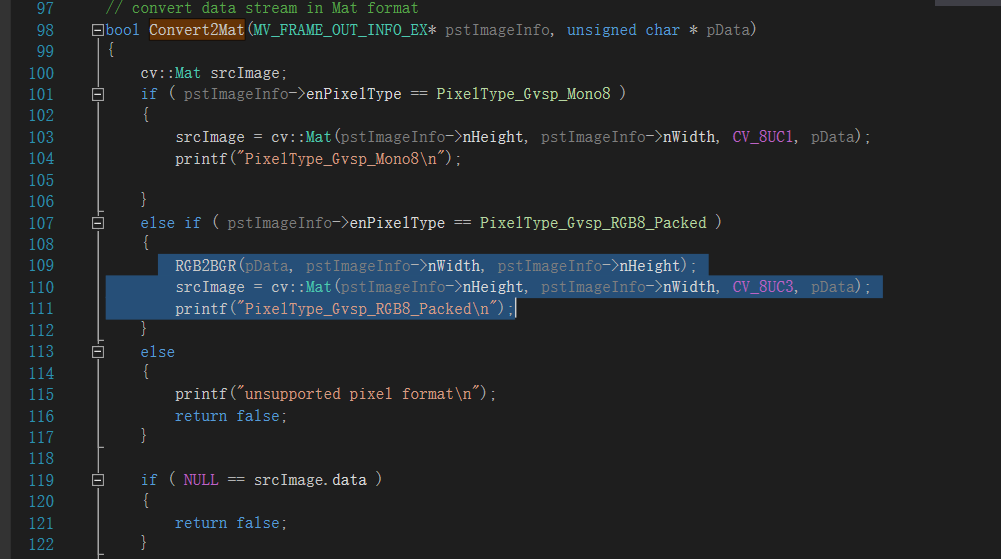

bool Convert2Mat(MV_FRAME_OUT_INFO_EX* pstImageInfo, unsigned char * pData)
{
    cv::Mat srcImage;
    if ( pstImageInfo->enPixelType == PixelType_Gvsp_Mono8 )
    {
        srcImage = cv::Mat(pstImageInfo->nHeight, pstImageInfo->nWidth, CV_8UC1, pData);
		printf("PixelType_Gvsp_Mono8
");

    }
    else if ( pstImageInfo->enPixelType == PixelType_Gvsp_RGB8_Packed )
    {
        RGB2BGR(pData, pstImageInfo->nWidth, pstImageInfo->nHeight);
        srcImage = cv::Mat(pstImageInfo->nHeight, pstImageInfo->nWidth, CV_8UC3, pData);
		printf("PixelType_Gvsp_RGB8_Packed
");
    }
    else
    {
        printf("unsupported pixel format
");
        return false;
    }

    if ( NULL == srcImage.data )
    {
        return false;
    }

    //save converted image in a local file
    try {
//#if defined (VC9_COMPILE)
//
//        cvSaveImage("MatImage.bmp", &(IplImage(srcImage)));
//#else
//        cv::imwrite("MatImage.bmp", srcImage);
//#endif

		cv::imwrite("MatImage.bmp", srcImage);
    }
    catch (cv::Exception& ex) {
        fprintf(stderr, "Exception saving image to bmp format: %s
", ex.what());
    }

    srcImage.release();

    return true;
}


// convert data stream in Ipl format
bool Convert2Ipl(MV_FRAME_OUT_INFO_EX* pstImageInfo, unsigned char * pData)
{
    IplImage* srcImage = NULL;
    if ( pstImageInfo->enPixelType == PixelType_Gvsp_Mono8 )
    {
        srcImage = cvCreateImage(cvSize(pstImageInfo->nWidth, pstImageInfo->nHeight), IPL_DEPTH_8U, 1);
    }
    else if ( pstImageInfo->enPixelType == PixelType_Gvsp_RGB8_Packed )
    {
        RGB2BGR(pData, pstImageInfo->nWidth, pstImageInfo->nHeight);
        srcImage = cvCreateImage(cvSize(pstImageInfo->nWidth, pstImageInfo->nHeight), IPL_DEPTH_8U, 3);
    }
    else
    {
        printf("unsupported pixel format
");
        return false;
    }
    if ( NULL == srcImage )
    {
        printf("CreatImage failed.
");
        return false;
    }

    srcImage->imageData = (char *)pData;

    // save converted image in a local file
    try {
        cvSaveImage("IplImage.bmp", srcImage);
    }
    catch (cv::Exception& ex) {
        fprintf(stderr, "Exception saving image to bmp format: %s
", ex.what());
    }

    cvReleaseImage(&srcImage);
    return true;
}


int main()
{
    int nRet = MV_OK;
    void* handle = NULL;

    do
    {
        // Enum device
        MV_CC_DEVICE_INFO_LIST stDeviceList;
        memset(&stDeviceList, 0, sizeof(MV_CC_DEVICE_INFO_LIST));
        nRet = MV_CC_EnumDevices(MV_GIGE_DEVICE | MV_USB_DEVICE, &stDeviceList);
        if (MV_OK != nRet)
        {
            printf("Enum Devices fail! nRet [0x%x]
", nRet);
            break;
        }

        if (stDeviceList.nDeviceNum > 0)
        {
            for (unsigned int i = 0; i < stDeviceList.nDeviceNum; i++)
            {
                printf("[device %d]:
", i);
                MV_CC_DEVICE_INFO* pDeviceInfo = stDeviceList.pDeviceInfo[i];
                if (NULL == pDeviceInfo)
                {
                    break;
                }
                PrintDeviceInfo(pDeviceInfo);
            }
        }
        else
        {
            printf("Find No Devices!
");
            break;
        }

        // input the format to convert
        printf("[0] OpenCV_Mat
");
        printf("[1] OpenCV_IplImage
");
        printf("Please Input Format to convert:");
        unsigned int nFormat = 0;
        scanf("%d", &nFormat);
        if (nFormat >= 2)
        {
            printf("Input error!
");
            return 0;
        }

        // select device to connect
        printf("Please Input camera index:");
        unsigned int nIndex = 0;
        scanf("%d", &nIndex);
        if (nIndex >= stDeviceList.nDeviceNum)
        {
            printf("Input error!
");
            break;
        }

        // Select device and create handle
        nRet = MV_CC_CreateHandle(&handle, stDeviceList.pDeviceInfo[nIndex]);
        if (MV_OK != nRet)
        {
            printf("Create Handle fail! nRet [0x%x]
", nRet);
            break;
        }

        // open device
        nRet = MV_CC_OpenDevice(handle);
        if (MV_OK != nRet)
        {
            printf("Open Device fail! nRet [0x%x]
", nRet);
            break;
        }

        // Detection network optimal package size(It only works for the GigE camera)
        if (stDeviceList.pDeviceInfo[nIndex]->nTLayerType == MV_GIGE_DEVICE)
        {
            int nPacketSize = MV_CC_GetOptimalPacketSize(handle);
            if (nPacketSize > 0)
            {
                nRet = MV_CC_SetIntValue(handle,"GevSCPSPacketSize",nPacketSize);
                if(nRet != MV_OK)
                {
                    printf("Warning: Set Packet Size fail nRet [0x%x]!", nRet);
                }
            }
            else
            {
                printf("Warning: Get Packet Size fail nRet [0x%x]!", nPacketSize);
            }
        }

        // Set trigger mode as off
        nRet = MV_CC_SetEnumValue(handle, "TriggerMode", 0);
        if (MV_OK != nRet)
        {
            printf("Set Trigger Mode fail! nRet [0x%x]
", nRet);
            break;
        }

        // Get payload size
        MVCC_INTVALUE stParam;
        memset(&stParam, 0, sizeof(MVCC_INTVALUE));
        nRet = MV_CC_GetIntValue(handle, "PayloadSize", &stParam);
        if (MV_OK != nRet)
        {
            printf("Get PayloadSize fail! nRet [0x%x]
", nRet);
            break;
        }
        g_nPayloadSize = stParam.nCurValue;

        // Start grab image
        nRet = MV_CC_StartGrabbing(handle);
        if (MV_OK != nRet)
        {
            printf("Start Grabbing fail! nRet [0x%x]
", nRet);
            break;
        }

        MV_FRAME_OUT_INFO_EX stImageInfo = {0};
        memset(&stImageInfo, 0, sizeof(MV_FRAME_OUT_INFO_EX));
        unsigned char * pData = (unsigned char *)malloc(sizeof(unsigned char) * (g_nPayloadSize));
        if (pData == NULL)
        {
            printf("Allocate memory failed.
");
            break;
        }

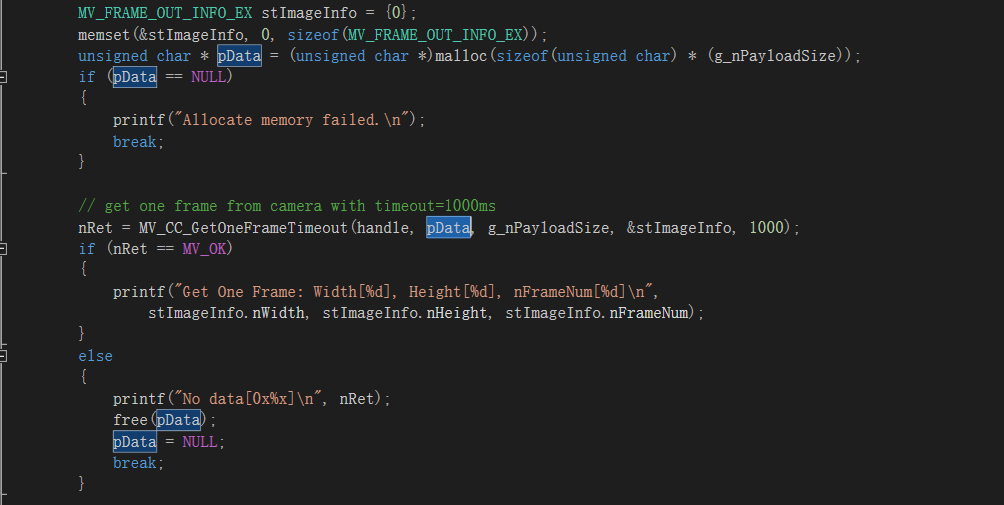

        // get one frame from camera with timeout=1000ms
        nRet = MV_CC_GetOneFrameTimeout(handle, pData, g_nPayloadSize, &stImageInfo, 1000);
        if (nRet == MV_OK)
        {
            printf("Get One Frame: Width[%d], Height[%d], nFrameNum[%d]
",
                stImageInfo.nWidth, stImageInfo.nHeight, stImageInfo.nFrameNum);
        }
        else
        {
            printf("No data[0x%x]
", nRet);
            free(pData);
            pData = NULL;
            break;
        }

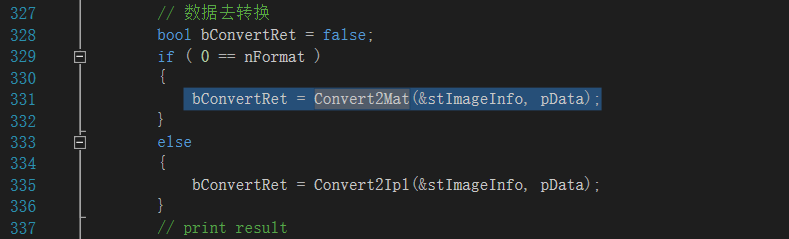

        // 数据去转换
        bool bConvertRet = false;
        if ( 0 == nFormat )
        {
            bConvertRet = Convert2Mat(&stImageInfo, pData);
        }
        else
        {
            bConvertRet = Convert2Ipl(&stImageInfo, pData);
        }
        // print result
        if ( bConvertRet )
        {
            printf("OpenCV format convert finished.
");
            free(pData);
            pData = NULL;
        }
        else
        {
            printf("OpenCV format convert failed.
");
            free(pData);
            pData = NULL;
            break;
        }

        // Stop grab image
        nRet = MV_CC_StopGrabbing(handle);
        if (MV_OK != nRet)
        {
            printf("Stop Grabbing fail! nRet [0x%x]
", nRet);
            break;
        }

        // Close device
        nRet = MV_CC_CloseDevice(handle);
        if (MV_OK != nRet)
        {
            printf("ClosDevice fail! nRet [0x%x]
", nRet);
            break;
        }

        // Destroy handle
        nRet = MV_CC_DestroyHandle(handle);
        if (MV_OK != nRet)
        {
            printf("Destroy Handle fail! nRet [0x%x]
", nRet);
            break;
        }
    } while (0);


    if (nRet != MV_OK)
    {
        if (handle != NULL)
        {
            MV_CC_DestroyHandle(handle);
            handle = NULL;
        }
    }

    printf("Press a key to exit.
");
    WaitForKeyPress();

    return 0;
}
