Docker：企业级私有镜像仓库Harbor使用
Harbor 是基于 Docker Registry 的企业级镜像仓库，安装后的使用方法类似 Docker Hub，可以通过 web 页面操作。
1. 安装 Harbor
本文使用的 Linux 版本是 CentOS7，Harbor 版本是 v1.4.0。
前提条件
需要首先安装 Docker 及 Docker-compose。
安装 Harbor
国内离线安装版本的镜像 在这里。

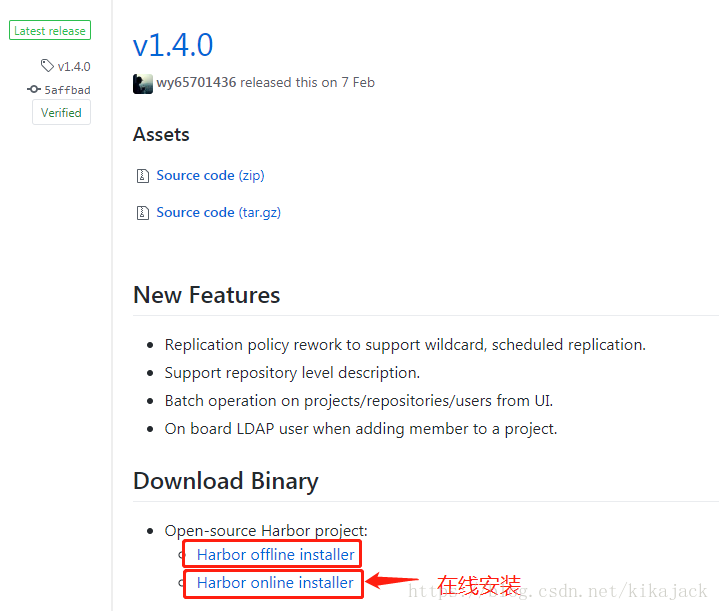

Harbor 提供源码、离线安装、在线安装三种方式，这里使用最方便的在线安装。
1. 下载 online 安装包并解压
wget https://storage.googleapis.com/harbor-releases/release-1.4.0/harbor-online-installer-v1.4.0.tgz
tar xvf harbor-online-installer-v1.4.0.tgz2. 修改 harbor.cfg 文件
进入解压后的目录，将 harbor.cfg 文件中的 hostname 字段改为你的 IP 地址或域名。其他地方不需要改。
## Configuration file of Harbor
# hostname设置访问地址，可以使用ip、域名，不可以设置为127.0.0.1或localhost
hostname = 你的 IP
# 访问协议，默认是http，也可以设置https，如果设置https，则nginx ssl需要设置on
ui_url_protocol = http
# mysql数据库root用户默认密码root123，实际使用时修改下
db_password = root123
max_job_workers = 3
customize_crt = on
ssl_cert = /data/cert/server.crt
ssl_cert_key = /data/cert/server.key
secretkey_path = /data
admiral_url = NA
# 邮件设置，发送重置密码邮件时使用
email_identity =
email_server = smtp.mydomain.com
email_server_port = 25
email_username = sample_admin@mydomain.com
email_password = abc
email_from = admin <sample_admin@mydomain.com>
email_ssl = false
# 启动Harbor后，管理员UI登录的密码，默认是Harbor12345
harbor_admin_password = Harbor12345
# 认证方式，这里支持多种认证方式，如LADP、本次存储、数据库认证。默认是db_auth，mysql数据库认证
auth_mode = db_auth
# LDAP认证时配置项
#ldap_url = ldaps://ldap.mydomain.com
#ldap_searchdn = uid=searchuser,ou=people,dc=mydomain,dc=com
#ldap_search_pwd = password
#ldap_basedn = ou=people,dc=mydomain,dc=com
#ldap_filter = (objectClass=person)
#ldap_uid = uid
#ldap_scope = 3
#ldap_timeout = 5
# 是否开启自注册
self_registration = on
# Token有效时间，默认30分钟
token_expiration = 30
# 用户创建项目权限控制，默认是everyone（所有人），也可以设置为adminonly（只能管理员）
project_creation_restriction = everyone
verify_remote_cert = on3. 执行 ./prepare 脚本
# ./prepare
Generated and saved secret to file: /data/secretkey
Generated configuration file: ./common/config/nginx/nginx.conf
Generated configuration file: ./common/config/adminserver/env
Generated configuration file: ./common/config/ui/env
Generated configuration file: ./common/config/registry/config.yml
Generated configuration file: ./common/config/db/env
Generated configuration file: ./common/config/jobservice/env
Generated configuration file: ./common/config/log/logrotate.conf
Generated configuration file: ./common/config/jobservice/app.conf
Generated configuration file: ./common/config/ui/app.conf
Generated certificate, key file: ./common/config/ui/private_key.pem, cert file: ./common/config/registry/root.crt
The configuration files are ready, please use docker-compose to start the service.4. 启动 Harbor
在刚才解压后的目录下，有 docker-compose.yml 文件，可以通过 docker-compose 命令启动 Harbor：
docker-compose up启动成功后，下列容器会运行：
# docker container ls
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
9a1dd1432847 vmware/nginx-photon:v1.4.0 "nginx -g 'daemon of…" 45 seconds ago Up 37 seconds 0.0.0.0:80->80/tcp, 0.0.0.0:443->443/tcp, 0.0.0.0:4443->4443/tcp nginx
57f4080b28ee vmware/harbor-jobservice:v1.4.0 "/harbor/start.sh" 23 minutes ago Up 8 seconds (health: starting) harbor-jobservice
7148baf0d2df vmware/harbor-ui:v1.4.0 "/harbor/start.sh" 23 minutes ago Up 9 seconds (health: starting) harbor-ui
1827ddef7d33 vmware/harbor-db:v1.4.0 "/usr/local/bin/dock…" 23 minutes ago Up 17 seconds (health: starting) 3306/tcp harbor-db
706651472dac vmware/registry-photon:v2.6.2-v1.4.0 "/entrypoint.sh serv…" 23 minutes ago Up 23 minutes (healthy) 5000/tcp registry
523fb0cff04e vmware/harbor-adminserver:v1.4.0 "/harbor/start.sh" 23 minutes ago Up 9 seconds (health: starting) harbor-adminserver
0689fc5a6199 vmware/harbor-log:v1.4.0 "/bin/sh -c /usr/loc…" 23 minutes ago Up 23 minutes (healthy) 127.0.0.1:1514->10514/tcp harbor-log5. 问题定位
不管遇到啥问题，不要慌，看日志。Harbor 默认将日志写在主机的 /var/log/harbor 目录下，其中的多个日志文件分别对应 Harbor 的各个服务。
# ls /var/log/harbor
adminserver.log jobservice.log mysql.log proxy.log registry.log ui.log启动时显示正常，但访问 Harbor 页面时报 502 错误，数据库无法启动
解决方案：1.3 和 1.4 两个版本都有这个问题，只能退回到 1.2 及之前的版本，或等 1.4.1（这要看 MariaDB 何时更新）。
这是 ext3 文件系统的坑，参考 这个 Issue。官方说会在 1.4.1 版本中改正，但这要看 MariaDB 何时更新。可以用 cat /etc/fstab 命令查看文件系统类型：
# cat /etc/fstab
/dev/vda1 / ext3 noatime,acl,user_xattr 1 1
proc /proc proc defaults 0 0
sysfs /sys sysfs noauto 0 0
debugfs /sys/kernel/debug debugfs noauto 0 0
devpts /dev/pts devpts mode=0620,gid=5 0 0查看容器运行状态时，发现有几个一直在启动 starting 状态，但是就是启动不了：
# docker container ls
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
bc4e98f292ae vmware/nginx-photon:v1.4.0 "nginx -g 'daemon of…" 16 minutes ago Up 16 minutes 0.0.0.0:80->80/tcp, 0.0.0.0:443->443/tcp, 0.0.0.0:4443->4443/tcp nginx
a65d298f0564 vmware/harbor-jobservice:v1.4.0 "/harbor/start.sh" 16 minutes ago Up 16 seconds (health: starting) harbor-jobservice
530a6e9879c3 vmware/harbor-ui:v1.4.0 "/harbor/start.sh" 16 minutes ago Up 18 seconds (health: starting) harbor-ui
444b0345e660 vmware/registry-photon:v2.6.2-v1.4.0 "/entrypoint.sh serv…" 16 minutes ago Up 16 minutes (healthy) 5000/tcp registry
ef4ad43e9b78 vmware/harbor-adminserver:v1.4.0 "/harbor/start.sh" 16 minutes ago Up 12 seconds (health: starting) harbor-adminserver
e201790bc3a9 vmware/harbor-db:v1.4.0 "/usr/local/bin/dock…" 16 minutes ago Up 11 seconds (health: starting) 3306/tcp harbor-db
93d763d3260c vmware/harbor-log:v1.4.0 "/bin/sh -c /usr/loc…" 16 minutes ago Up 16 minutes (healthy) 127.0.0.1:1514->10514/tcp harbor-log报错的 mysql.log 日志中的 Unknown/unsupported storage engine: InnoDB 意思很明确，数据库的 InnoDB 存储引擎不支持 Linux 的存储引擎（这里是 ext3 文件格式）。日志的完整内容如下：
# cat mysql.log
Apr 11 19:56:35 172.18.0.1 mysql[2587]: Initializing database
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] InnoDB: preallocating 12582912 bytes for file ./ibdata1 failed with error 22
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] InnoDB: Could not set the file size of './ibdata1'. Probably out of disk space
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] InnoDB: Database creation was aborted with error Generic error. You may need to delete the ibdata1 file before trying to start up again.
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] Plugin 'InnoDB' init function returned error.
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] Plugin 'InnoDB' registration as a STORAGE ENGINE failed.
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] Unknown/unsupported storage engine: InnoDB
Apr 11 19:56:36 172.18.0.1 mysql[2587]: 2018-04-11 11:56:36 139946685007808 [ERROR] Aborting
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: Installation of system tables failed! Examine the logs in
Apr 11 19:56:36 172.18.0.1 mysql[2587]: /var/lib/mysql/ for more information.
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: The problem could be conflicting information in an external
Apr 11 19:56:36 172.18.0.1 mysql[2587]: my.cnf files. You can ignore these by doing:
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: shell> /usr/bin/mysql_install_db --defaults-file=~/.my.cnf
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: You can also try to start the mysqld daemon with:
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: shell> /usr/sbin/mysqld --skip-grant --general-log &
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: and use the command line tool /usr/bin/mysql
Apr 11 19:56:36 172.18.0.1 mysql[2587]: to connect to the mysql database and look at the grant tables:
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: shell> /usr/bin/mysql -u root mysql
Apr 11 19:56:36 172.18.0.1 mysql[2587]: mysql> show tables;
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: Try 'mysqld --help' if you have problems with paths. Using
Apr 11 19:56:36 172.18.0.1 mysql[2587]: --general-log gives you a log in /var/lib/mysql/ that may be helpful.
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: The latest information about mysql_install_db is available at
Apr 11 19:56:36 172.18.0.1 mysql[2587]: https://mariadb.com/kb/en/installing-system-tables-mysql_install_db
Apr 11 19:56:36 172.18.0.1 mysql[2587]: MariaDB is hosted on launchpad; You can find the latest source and
Apr 11 19:56:36 172.18.0.1 mysql[2587]: email lists at http://launchpad.net/maria
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:36 172.18.0.1 mysql[2587]: Please check all of the above before submitting a bug report
Apr 11 19:56:36 172.18.0.1 mysql[2587]: at http://mariadb.org/jira
Apr 11 19:56:36 172.18.0.1 mysql[2587]:
Apr 11 19:56:39 172.18.0.1 mysql[2587]: /usr/local/bin/docker-entrypoint.sh: running /docker-entrypoint-updatedb.d/upgrade.sh
Apr 11 19:56:39 172.18.0.1 mysql[2587]: Maria DB flag not found, the DB was created in mysql image, running upgrade...
Apr 11 19:56:39 172.18.0.1 mysql[2587]: Waiting for MySQL start...
...
Apr 11 19:57:09 172.18.0.1 mysql[2587]: Waiting for MySQL start...
Apr 11 19:57:10 172.18.0.1 mysql[2587]: MySQL failed to start.
Apr 11 19:57:11 172.18.0.1 mysql[2587]: /usr/local/bin/docker-entrypoint.sh: running /docker-entrypoint-updatedb.d/upgrade.sh
Apr 11 19:57:11 172.18.0.1 mysql[2587]: Maria DB flag not found, the DB was created in mysql image, running upgrade...
Apr 11 19:57:11 172.18.0.1 mysql[2587]: Waiting for MySQL start...
...修改数据库的配置文件
安装 Harbor 后（不管是首次安装还是重装），如果宿主机的 /data/database 目录不存在，则 Harbor 会创建这个目录并初始化数据库的数据。如果 Harbor 发现 /data/database 目录存在，会直接使用，不再初始化。
Harbor 中的数据库密码的配置仅在数据库首次初始化时起作用。如果想修改数据库的密码，要先把 /data/database 目录整体删除（注意：数据库也删除了），否则无法启动 Harbor，即使重下镜像也无法解决。如果想在生产环境部署 Harbor，建议预先配置好各类环境参数，避免改动。
2. 使用 Harbor

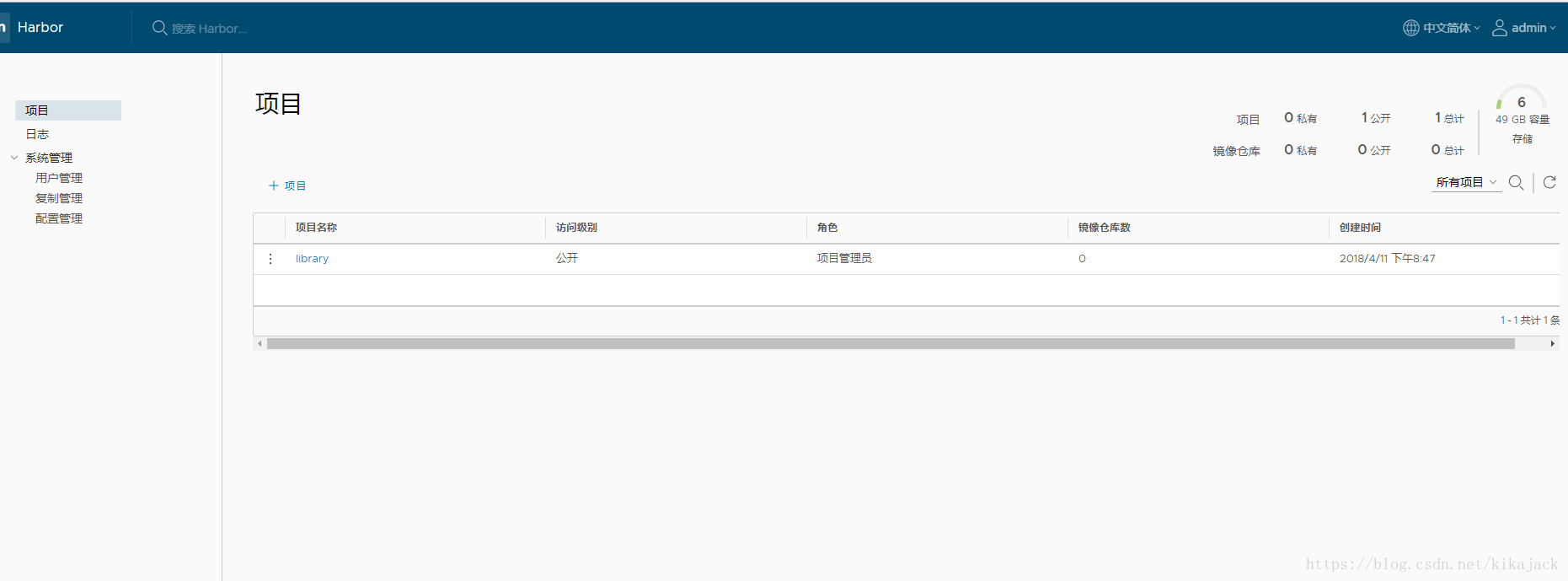

Harbor 默认的管理员账户是 admin，密码是 Harbor12345，初次登陆后需要修改密码。
下载镜像、给镜像打标签、上传镜像可以参考 这篇文章。
登录 Harbor 跟登录 Docker Hub 类似，只是需要添加域名或 IP 地址。
2.1 镜像操作
登录 Harbor
# docker login -u admin -p Harbor12345 111.230.25.113:80
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
Error response from daemon: Get https://111.230.25.113/v2/: dial tcp 111.230.25.113:443: getsockopt: connection refused报错了，这是因为 Harbor 默认使用 HTTP，而 V2 及以上版本的 Docker Registry 默认必须使用 HTTPS，要想通过 HTTP 访问 Registry，必须要将 --insecure-registry 参数添加到 Docker 守护进程的配置文件 /etc/docker/daemon.json 并重启 Docker 服务。配置如下：
{
"insecure-registries": ["111.230.25.113:80"]
}再次登录，如果输错了密码会报错 unauthorized: authentication required：
# docker login 111.230.25.113:80
Username: admin
Password:
Login Succeeded登录成功，可以在用户的家目录下的 ~/.docker/config.json 中确认：
# cat ~/.docker/config.json
{
"auths": {
"111.230.25.113:80": {
"auth": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
}
},
"HttpHeaders": {
"User-Agent": "Docker-Client/18.02.0-ce (linux)"
}
}下载镜像
# docker pull hello-world打 tag 并查看镜像，注意需要跟登录时的信息完全一致，包括端口号
# docker tag hello-world 111.230.25.113:80/library/hello-world
# docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
hello-world latest e38bc07ac18e 8 hours ago 1.85kB
111.230.25.113:80/library/hello-world latest e38bc07ac18e 8 hours ago 1.85kB上传镜像
docker push 111.230.25.113:80/library/hello-world
The push refers to repository [111.230.25.113:80/library/hello-world]
2b8cbd0846c5: Pushed
latest: digest: sha256:d5c74e6f8efc7bdf42a5e22bd764400692cf82360d86b8c587a7584b03f51520 size: 5242.2 用户及权限
管理员可以添加用户，设置权限。

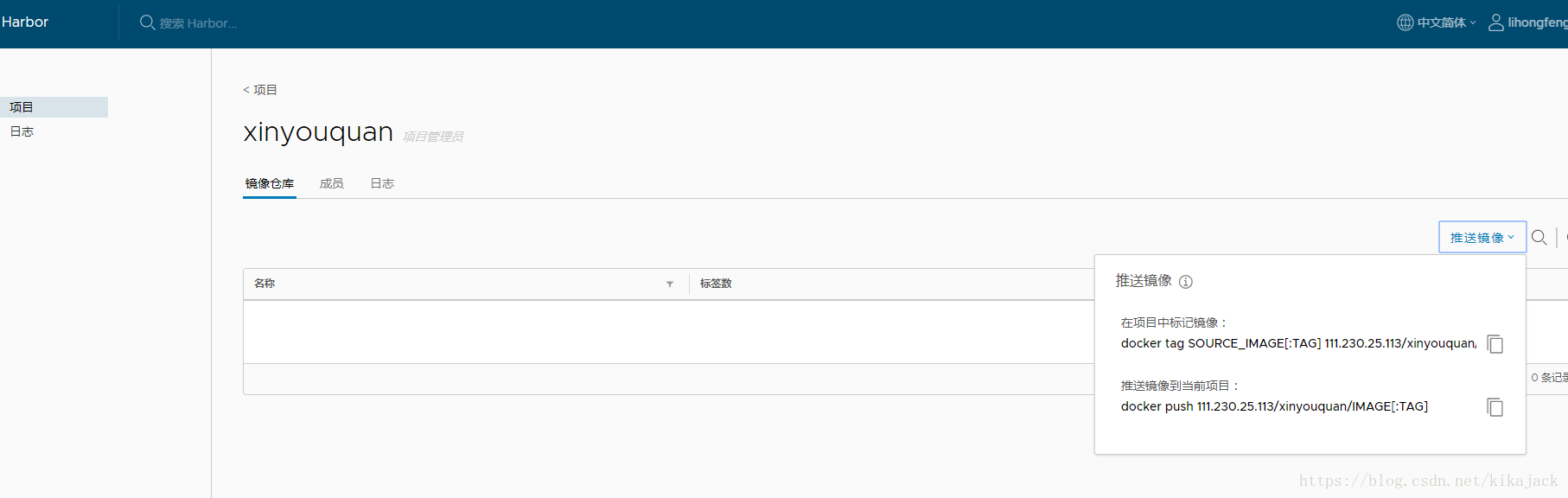

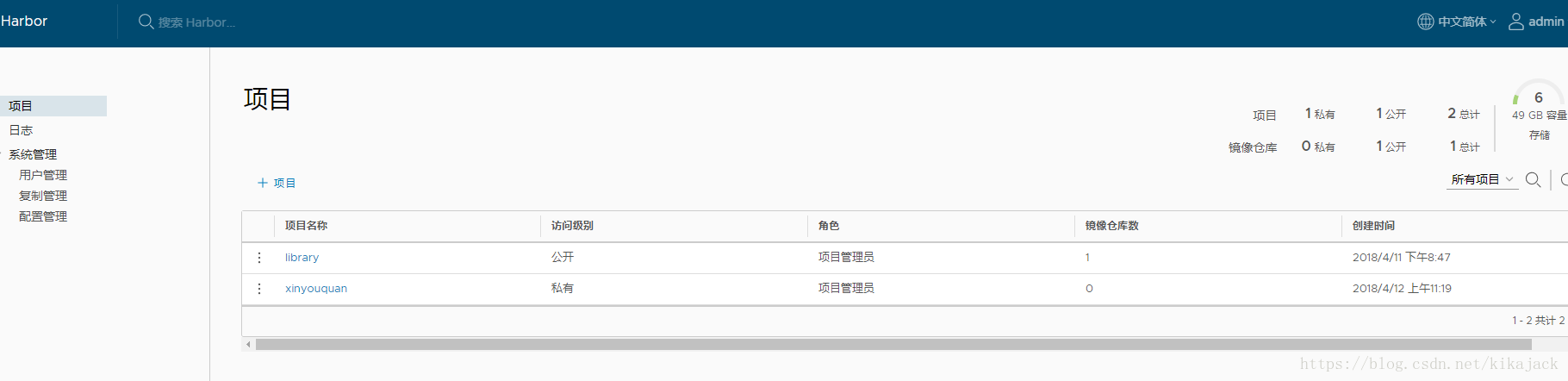

普通用户可以在授权范围内操作。项目创建者及项目的成员可以向私有项目上传镜像。
