  • 纯CSS实现小三角提示信息

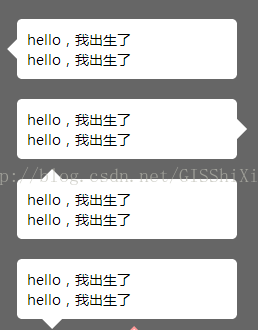

    实现后的效果如下:

    不带边框的

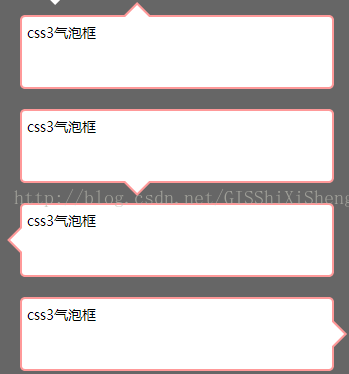

    带边框的

    在此提供两种实现方式:

    1、不带边框的

    css:



    1. *{margin:0;padding:0;}
    2.         body{
    3.             background:#666;
    4.             font:14px/20px "Microsoft YaHei";
    5.             text-align: left;
    6.         }
    7.         .entry{
    8.             position: relative;
    9.             margin-left: 20px;
    10.             margin-top:20px;
    11.             200px;
    12.             background:#fff;
    13.             padding:10px;
    14.             /*设置圆角*/
    15.             -webkit-border-radius:5px;
    16.             -moz-border-radius:5px;
    17.             border-radius:5px;
    18.         }
    19.         /*左三角*/
    20.         .entry-trangle-left{
    21.             position:absolute;
    22.             bottom:15px;
    23.             left:-10px;
    24.             0;
    25.             height:0;
    26.             border-top:15px solid transparent;
    27.             border-bottom:15px solid transparent;
    28.             border-right:15px solid #fff;
    29.         }
    30.         /*右三角*/
    31.         .entry-trangle-right{
    32.             position:absolute;
    33.             top:15px;
    34.             right:-10px;
    35.             0;
    36.             height:0;
    37.             border-top:15px solid transparent;
    38.             border-bottom:15px solid transparent;
    39.             border-left:15px solid #fff;
    40.         }
    41.         /*上三角*/
    42.         .entry-trangle-top{
    43.             position:absolute;
    44.             top:-10px;
    45.             left:20px;
    46.             0;
    47.             height:0;
    48.             border-left:15px solid transparent;
    49.             border-right:15px solid transparent;
    50.             border-bottom:15px solid #fff;
    51.         }
    52.         /*下三角*/
    53.         .entry-trangle-bottom{
    54.             position:absolute;
    55.             bottom:-10px;
    56.             left:20px;
    57.             0;
    58.             height:0;
    59.             border-left:15px solid transparent;
    60.             border-right:15px solid transparent;
    61.             border-top:15px solid #fff;
    62.         }


    html:



    1. <div class="entry">
    2.     <div class="entry-trangle-left"><!--本Div只来实现三角形,无其他作用--></div>
    3.     hello,我出生了<br/>
    4.     hello,我出生了
    5. </div>
    6. <div class="entry">
    7.     <div class="entry-trangle-right"><!--本Div只来实现三角形,无其他作用--></div>
    8.     hello,我出生了<br/>
    9.     hello,我出生了
    10. </div>
    11. <div class="entry">
    12.     <div class="entry-trangle-top"><!--本Div只来实现三角形,无其他作用--></div>
    13.     hello,我出生了<br/>
    14.     hello,我出生了
    15. </div>
    16. <div class="entry">
    17.     <div class="entry-trangle-bottom"><!--本Div只来实现三角形,无其他作用--></div>
    18.     hello,我出生了<br/>
    19.     hello,我出生了
    20. </div>


    2、带边框的

    css:


    1. /*上三角*/
    2.        .tag-top{
    3.             margin: 20px;
    4.             padding: 5px;
    5.             300px;
    6.             height:60px;
    7.             border:2px solid #f99;
    8.             position:relative;
    9.             background-color:#FFF;
    10.             /*设置圆角*/
    11.             -webkit-border-radius:5px;
    12.             -moz-border-radius:5px;
    13.             border-radius:5px;
    14.         }
    15.        .tag-top:before,.tag-top:after{
    16.            content:"";
    17.            display:block;
    18.            border-15px;
    19.            position:absolute;
    20.            top:-30px;
    21.            left:100px;
    22.            border-style:solid dashed dashed solid;
    23.            border-color:transparent  transparent #f99 transparent;
    24.            font-size:0;
    25.            line-height:0;
    26.        }
    27.        .tag-top:after{
    28.            top:-27px;
    29.            border-color: transparent transparent #FFF transparent;
    30.        }
    31.        /*下三角*/
    32.        .tag-bottom{
    33.            margin: 20px;
    34.            padding: 5px;
    35.            300px;
    36.            height:60px;
    37.            border:2px solid #f99;
    38.            position:relative;
    39.            background-color:#FFF;
    40.            /*设置圆角*/
    41.            -webkit-border-radius:5px;
    42.            -moz-border-radius:5px;
    43.            border-radius:5px;
    44.        }
    45.        .tag-bottom:before,.tag-bottom:after{
    46.            content:"";
    47.            display:block;
    48.            border-15px;
    49.            position:absolute;
    50.            bottom:-30px;
    51.            left:100px;
    52.            border-style:solid dashed dashed solid;
    53.            border-color:#f99 transparent  transparent transparent;
    54.            font-size:0;
    55.            line-height:0;
    56.        }
    57.        .tag-bottom:after{
    58.            bottom:-27px;
    59.            border-color: #FFF transparent transparent transparent;
    60.        }
    61.        /*左三角*/
    62.        .tag-left{
    63.            margin: 20px;
    64.            padding: 5px;
    65.            300px;
    66.            height:60px;
    67.            border:2px solid #f99;
    68.            position:relative;
    69.            background-color:#FFF;
    70.            /*设置圆角*/
    71.            -webkit-border-radius:5px;
    72.            -moz-border-radius:5px;
    73.            border-radius:5px;
    74.        }
    75.        .tag-left:before,.tag-left:after{
    76.            content:"";
    77.            display:block;
    78.            border-15px;
    79.            position:absolute;
    80.            left:-30px;
    81.            top:20px;
    82.            border-style:dashed solid solid dashed;
    83.            border-color:transparent #f99 transparent  transparent;
    84.            font-size:0;
    85.            line-height:0;
    86.        }
    87.        .tag-left:after{
    88.            left:-27px;
    89.            border-color:transparent #FFF transparent transparent ;
    90.        }
    91.        .tag-right{
    92.            margin: 20px;
    93.            padding: 5px;
    94.            300px;
    95.            height:60px;
    96.            border:2px solid #f99;
    97.            position:relative;
    98.            background-color:#FFF;
    99.            /*设置圆角*/
    100.            -webkit-border-radius:5px;
    101.            -moz-border-radius:5px;
    102.            border-radius:5px;
    103.        }
    104.        .tag-right:before,.tag-right:after{
    105.            content:"";
    106.            display:block;
    107.            border-15px;
    108.            position:absolute;
    109.            right:-30px;
    110.            top:20px;
    111.            border-style:dashed solid solid dashed;
    112.            border-color:transparent transparent transparent #f99;
    113.            font-size:0;
    114.            line-height:0;
    115.        }
    116.        .tag-right:after{
    117.            right:-27px;
    118.            border-color:transparent transparent  transparent #FFF ;
    119.        }

    html:



    1. <div class="tag-top">
    2.     css3气泡框
    3. </div>
    4. <div class="tag-bottom">
    5.     css3气泡框
    6. </div>
    7. <div class="tag-left">
    8.     css3气泡框
    9. </div>
    10. <div class="tag-right">
    11.     css3气泡框
    12. </div>

    此外,如若,设置边框的颜色与背景色相同,也能得到没有边框的:

    css:



    1. .tag-right-noborder{
    2.            margin: 20px;
    3.            padding: 5px;
    4.            300px;
    5.            height:60px;
    6.            border:2px solid #FFF;
    7.            position:relative;
    8.            background-color:#FFF;
    9.            /*设置圆角*/
    10.            -webkit-border-radius:5px;
    11.            -moz-border-radius:5px;
    12.            border-radius:5px;
    13.        }
    14.        .tag-right-noborder:before,.tag-right-noborder:after{
    15.            content:"";
    16.            display:block;
    17.            border-15px;
    18.            position:absolute;
    19.            right:-30px;
    20.            top:20px;
    21.            border-style:dashed solid solid dashed;
    22.            border-color:transparent transparent transparent #FFF;
    23.            font-size:0;
    24.            line-height:0;
    25.        }
    26.        .tag-right-noborder:after{
    27.            right:-27px;
    28.            border-color:transparent transparent  transparent #FFF ;
    29.        }


    html:



    1. <div class="tag-right-noborder">
    2.     css3气泡框
    3. </div>


    实现后的效果:
