spring集成webSocket实现服务端向前端推送消息
1、前端连接websocket代码
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head lang="en"> <meta charset="UTF-8"> <script src="http://cdn.sockjs.org/sockjs-0.3.min.js"></script> <link rel="stylesheet" href="//cdn.bootcss.com/bootstrap/3.3.5/css/bootstrap.min.css"> <link rel="stylesheet" href="//cdn.bootcss.com/bootstrap/3.3.5/css/bootstrap-theme.min.css"> <script src="//cdn.bootcss.com/jquery/1.11.3/jquery.min.js"></script> <script src="//cdn.bootcss.com/bootstrap/3.3.5/js/bootstrap.min.js"></script> <title>webSocket-用户66</title> <script type="text/javascript"> $(function() { var websocket; if('WebSocket' in window) { console.log("此浏览器支持websocket"); websocket = new WebSocket("ws://localhost:8080/residential/websocketDemo/66"); } else if('MozWebSocket' in window) { alert("此浏览器只支持MozWebSocket"); } else { alert("此浏览器只支持SockJS"); } websocket.onopen = function(evnt) { console.log(evnt); $("#tou").html("链接服务器成功!") }; websocket.onmessage = function(evnt) { $("#msg").html($("#msg").html() + "<br/>" + evnt.data); }; websocket.onerror = function(evnt) {}; websocket.onclose = function(evnt) { console.log("与服务器断开了链接!"); $("#tou").html("与服务器断开了链接!") } $('#close').bind('click', function() { websocket.close(); }); $('#send').bind('click', function() { send(); }); function send() { if(websocket != null) { var message = document.getElementById('message').value; console.log(message); websocket.send(message); } else { alert('未与服务器链接.'); } } }); </script> </head> <body> <div class="page-header" id="tou"> webSocket多终端聊天测试 </div> <div class="well" id="msg"></div> <div class="col-lg"> <div class="input-group"> <input type="text" class="form-control" placeholder="发送信息..." id="message"> <span class="input-group-btn"> <button class="btn btn-default" type="button" id="send" >发送</button> </span> </div> </div> <div> <button class="btn btn-default" type="button" id="close" >关闭连接</button> </div> </body> </html>
2、maven中导入SpringConfiguator的包
<!-- websocket --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-websocket</artifactId> <version>${spring.version}</version> </dependency>
3、服务端连接websocket代码
package org.property.component; import java.io.IOException; import java.util.HashMap; import java.util.HashSet; import java.util.Map; import java.util.Set; import javax.websocket.OnClose; import javax.websocket.OnError; import javax.websocket.OnMessage; import javax.websocket.OnOpen; import javax.websocket.Session; import javax.websocket.server.PathParam; import javax.websocket.server.ServerEndpoint; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.web.socket.server.standard.SpringConfigurator; /** * * @Description: 给所用户所有终端推送消息 * @author liuqin * @date 2018年3月19日 下午3:21:31 * */ //websocket连接URL地址和可被调用配置 @ServerEndpoint(value="/websocketDemo/{userId}",configurator = SpringConfigurator.class) public class WebsocketDemo { //日志记录 private Logger logger = LoggerFactory.getLogger(WebsocketDemo.class); //静态变量，用来记录当前在线连接数。应该把它设计成线程安全的。 private static int onlineCount = 0; //记录每个用户下多个终端的连接 private static Map<Long, Set<WebsocketDemo>> userSocket = new HashMap<>(); //需要session来对用户发送数据, 获取连接特征userId private Session session; private Long userId; /** * @Title: onOpen * @Description: websocekt连接建立时的操作 * @param @param userId 用户id * @param @param session websocket连接的session属性 * @param @throws IOException */ @OnOpen public void onOpen(@PathParam("userId") Long userId,Session session) throws IOException{ this.session = session; this.userId = userId; onlineCount++; //根据该用户当前是否已经在别的终端登录进行添加操作 if (userSocket.containsKey(this.userId)) { logger.debug("当前用户id:{}已有其他终端登录",this.userId); userSocket.get(this.userId).add(this); //增加该用户set中的连接实例 }else { logger.debug("当前用户id:{}第一个终端登录",this.userId); Set<WebsocketDemo> addUserSet = new HashSet<>(); addUserSet.add(this); userSocket.put(this.userId, addUserSet); } logger.info("用户{}登录的终端个数是为{}",userId,userSocket.get(this.userId).size()); logger.info("当前在线用户数为：{},所有终端个数为：{}",userSocket.size(),onlineCount); } /** * @Title: onClose * @Description: 连接关闭的操作 */ @OnClose public void onClose(){ onlineCount--; //移除当前用户终端登录的websocket信息,如果该用户的所有终端都下线了，则删除该用户的记录 if (userSocket.get(this.userId).size() == 0) { userSocket.remove(this.userId); }else{ userSocket.get(this.userId).remove(this); } logger.info("用户{}登录的终端个数是为{}",this.userId,userSocket.get(this.userId).size()); logger.info("当前在线用户数为：{},所有终端个数为：{}",userSocket.size(),onlineCount); } /** * @Title: onMessage * @Description: 收到消息后的操作 * @param @param message 收到的消息 * @param @param session 该连接的session属性 */ @OnMessage public void onMessage(String message, Session session) { logger.info("收到来自用户id为：{}的消息：{}",this.userId,message); if(session ==null) logger.info("session null"); } /** * @Title: onError * @Description: 连接发生错误时候的操作 * @param @param session 该连接的session * @param @param error 发生的错误 */ @OnError public void onError(Session session, Throwable error){ logger.debug("用户id为：{}的连接发送错误",this.userId); error.printStackTrace(); } /** * @Title: sendMessageToUser * @Description: 发送消息给用户下的所有终端 * @param @param userId 用户id * @param @param message 发送的消息 * @param @return 发送成功返回true，反则返回false */ public Boolean sendMessageToUser(Long userId,String message){ if (userSocket.containsKey(userId)) { logger.info(" 给用户id为：{}的所有终端发送消息：{}",userId,message); for (WebsocketDemo WS : userSocket.get(userId)) { logger.info("sessionId为:{}",WS.session.getId()); try { WS.session.getBasicRemote().sendText(message); } catch (IOException e) { e.printStackTrace(); logger.info(" 给用户id为：{}发送消息失败",userId); return false; } } return true; } logger.info("发送错误：当前连接不包含id为：{}的用户",userId); return false; } }
4、Controller层发送消息方法
package org.property.controller.property; import java.io.IOException; import javax.websocket.Session; import org.property.controller.BaseController; import org.property.service.WSMessageService; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestMethod; import org.springframework.web.bind.annotation.RequestParam; import org.springframework.web.bind.annotation.ResponseBody; import org.springframework.web.servlet.ModelAndView; @Controller @RequestMapping("/message") public class MessageController extends BaseController{ private static final Logger logger = LoggerFactory.getLogger(MessageController.class); //websocket服务层调用类 @Autowired private WSMessageService wsMessageService; //请求入口 @RequestMapping(value="/TestWS",method=RequestMethod.GET) @ResponseBody public String TestWS(@RequestParam(value="userId",required=true) Long userId, @RequestParam(value="message",required=true) String message){ logger.debug("收到发送请求，向用户{}的消息：{}",userId,message); if(wsMessageService.sendToAllTerminal(userId, message)){ return "发送成功"; }else{ return "发送失败"; } } @RequestMapping(value="/test66",method=RequestMethod.GET) public ModelAndView test66() throws IOException{ return new ModelAndView("/test", null); } @RequestMapping(value="/test88",method=RequestMethod.GET) public ModelAndView test88() throws IOException{ return new ModelAndView("/test88", null); } }
5、service调用websocket发送消息
package org.property.service; /** * @Class: WebSocketMessageService * @Description: 使用webscoket连接向用户发送信息 * @author JFPZ * @date 2017年5月15日 上午20:17:01 */ import java.io.IOException; import javax.websocket.Session; import org.property.component.WebsocketDemo; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Service; @Service("webSocketMessageService") public class WSMessageService { private Logger logger = LoggerFactory.getLogger(WSMessageService.class); //声明websocket连接类 private WebsocketDemo websocketDemo = new WebsocketDemo(); /** * @Title: sendToAllTerminal * @Description: 调用websocket类给用户下的所有终端发送消息 * @param @param userId 用户id * @param @param message 消息 * @param @return 发送成功返回true，否则返回false */ public Boolean sendToAllTerminal(Long userId,String message){ logger.info("向用户{}的消息：{}",userId,message); if(websocketDemo.sendMessageToUser(userId,message)){ return true; }else{ return false; } } }

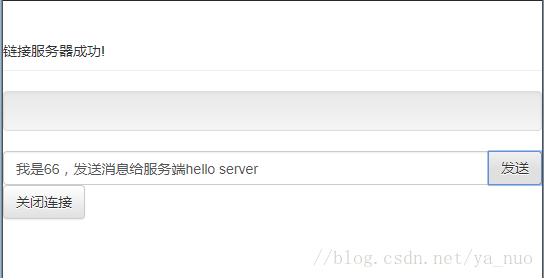

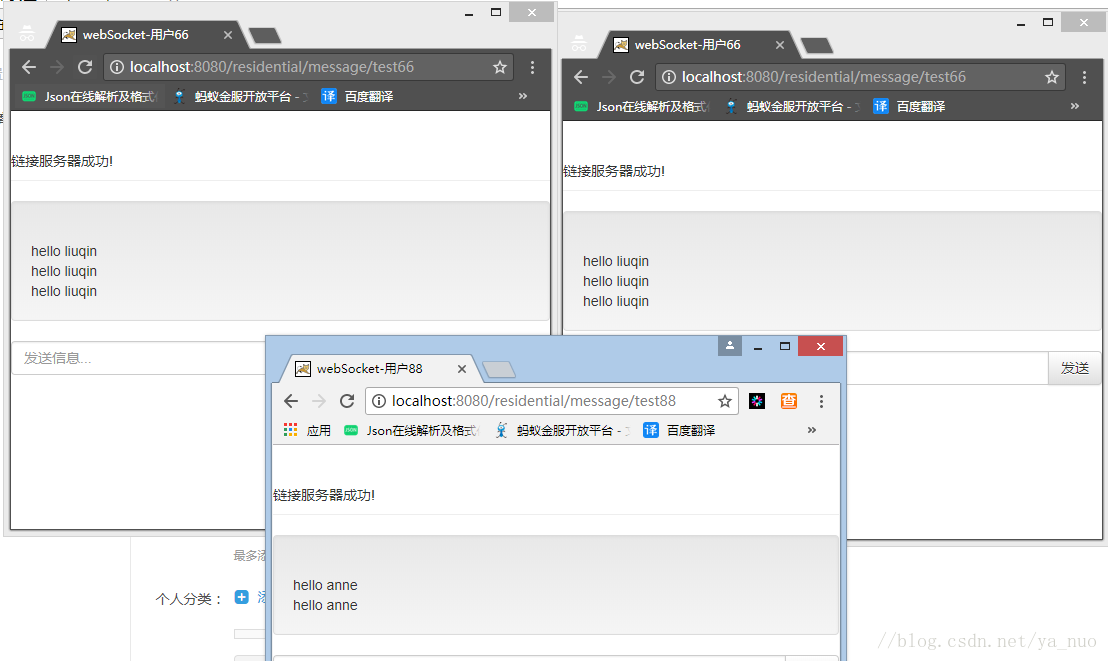

6、测试，连接发送成功。
