来自Leetcode第146题LRU缓存机制
运用你所掌握的数据结构,设计和实现一个 LRU (最近最少使用) 缓存机制。它应该支持以下操作: 获取数据 get 和 写入数据 put 。
获取数据 get(key) - 如果密钥 (key) 存在于缓存中,则获取密钥的值(总是正数),否则返回 -1。
写入数据 put(key, value) - 如果密钥不存在,则写入其数据值。当缓存容量达到上限时,它应该在写入新数据之前删除最近最少使用的数据值,从而为新的数据值留出空间。
示例:
LRUCache cache = new LRUCache( 2 /* 缓存容量 */ );
cache.put(1, 1);
cache.put(2, 2);
cache.get(1); // 返回 1
cache.put(3, 3); // 该操作会使得密钥 2 作废
cache.get(2); // 返回 -1 (未找到)
cache.put(4, 4); // 该操作会使得密钥 1 作废
cache.get(1); // 返回 -1 (未找到)
cache.get(3); // 返回 3
cache.get(4); // 返回 4
硬件实现的4路组相联 + LRU算法
参考组原实验mooc

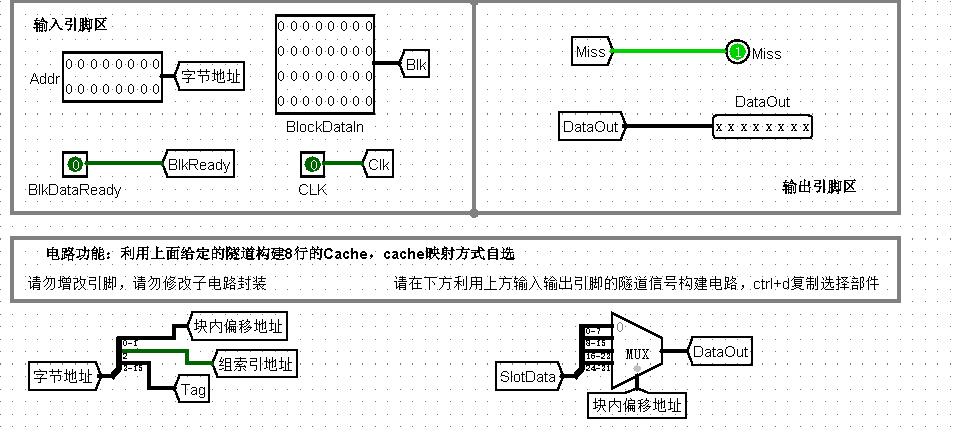

输入输出引脚图:

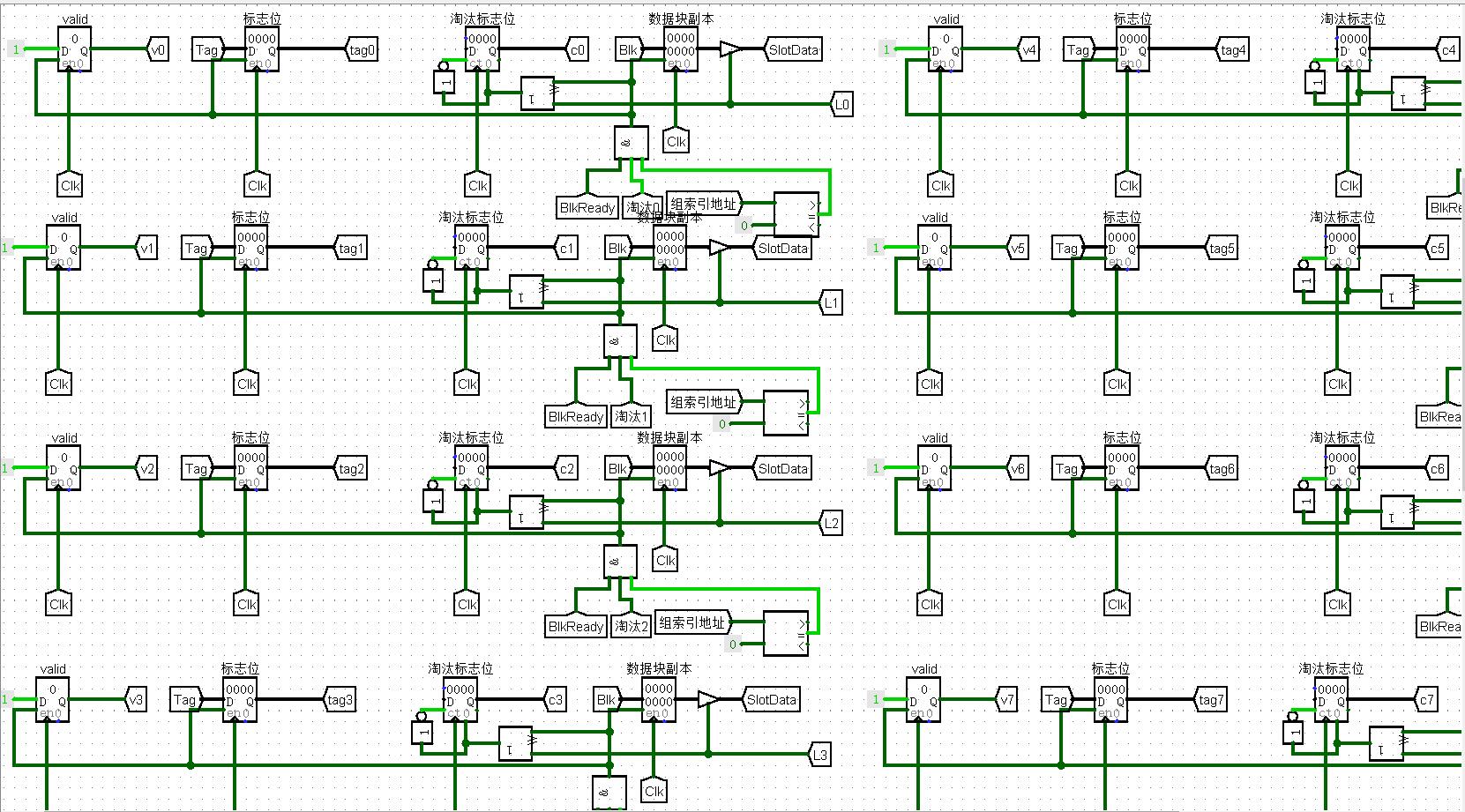

8个cache槽分2组4路:

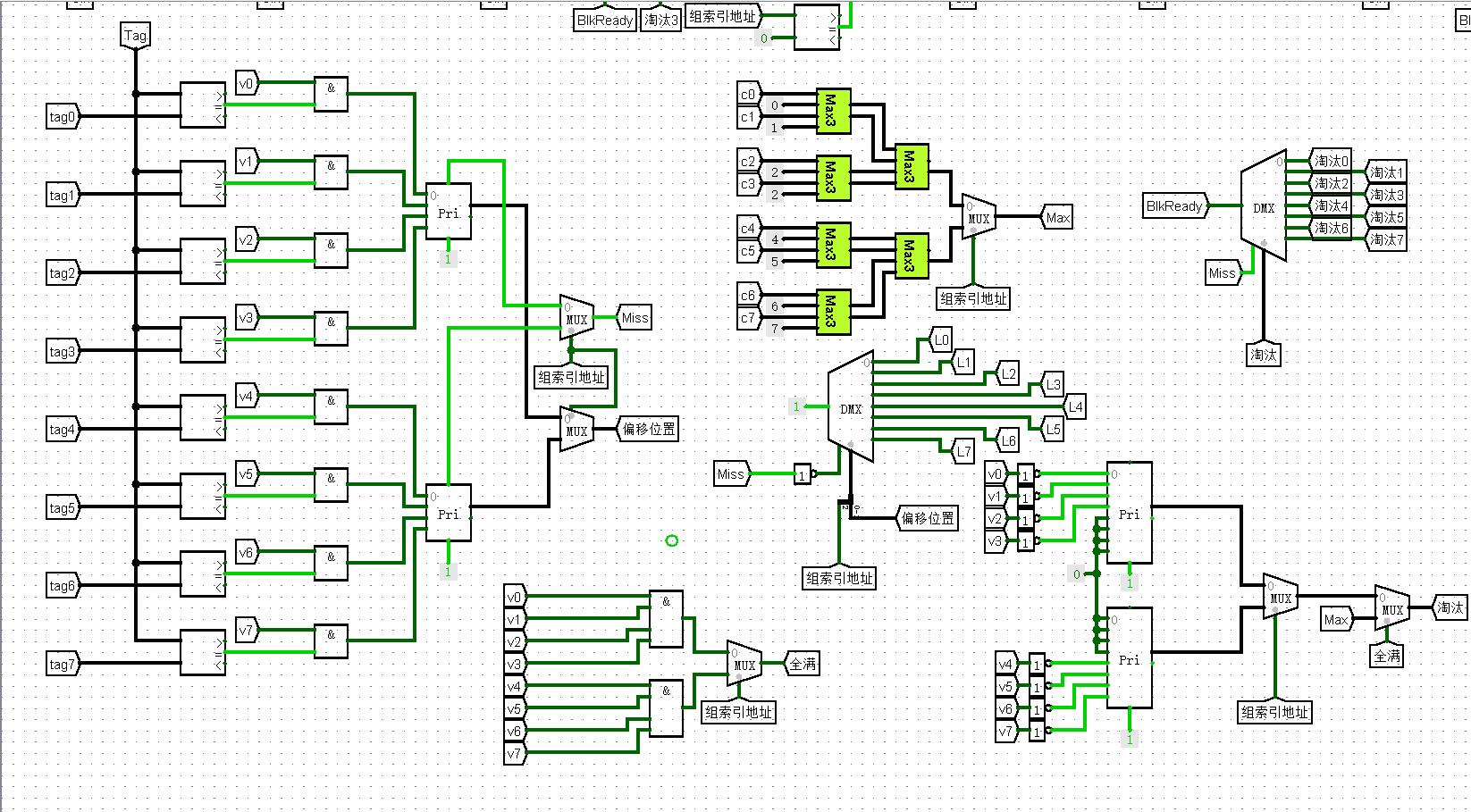

替换算法LRU:

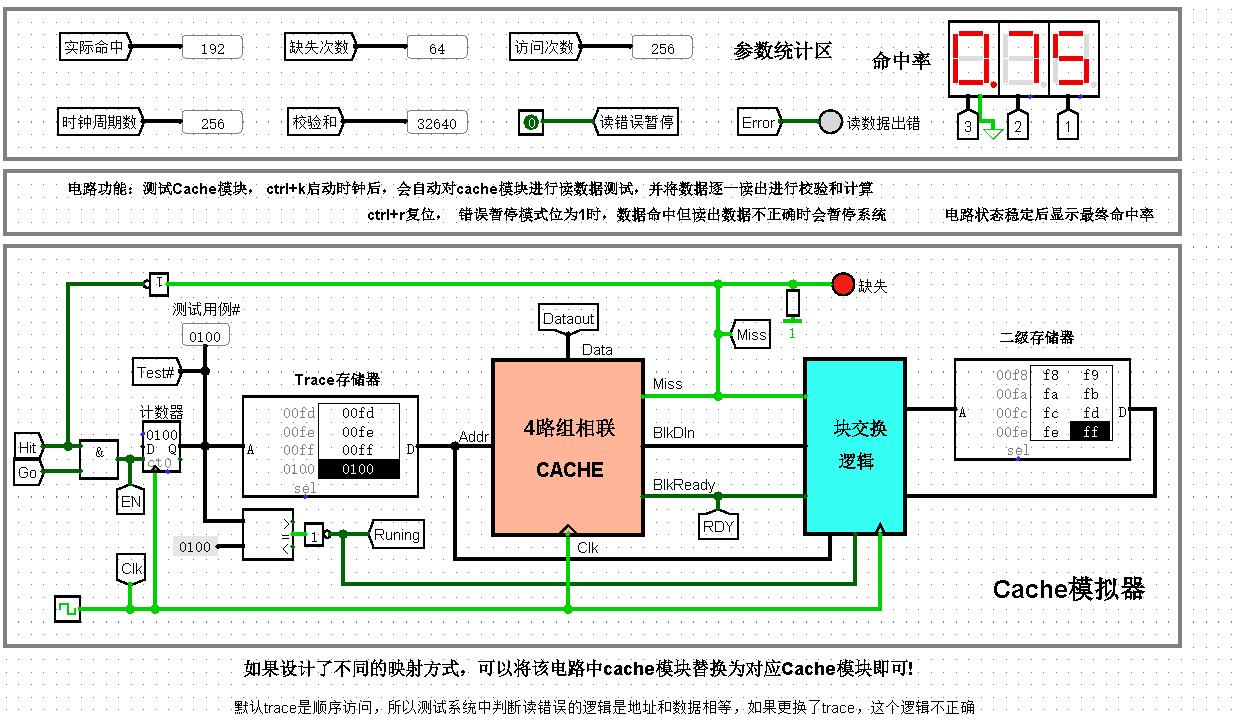

测试图:
软件实现
哈希链表实现
来源题解
LRU 算法实际上是让你设计数据结构:首先要接收一个 capacity 参数作为缓存的最大容量,然后实现两个 API,一个是 put(key, val) 方法存入键值对,另一个是 get(key) 方法获取 key 对应的 val,如果 key 不存在则返回 -1。
注意哦,get 和 put 方法必须都是 O(1)O(1) 的时间复杂度,我们举个具体例子来看看 LRU 算法怎么工作。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
| LRUCache cache = new LRUCache(2);
cache.put(1, 1);
cache.put(2, 2);
cache.get(1);
cache.put(3, 3);
cache.get(2);
cache.put(1, 4);
|
从流程里可以看到,不需要设计计数器来实现对每次未命中的cache槽做计数+1,淘汰时将数值最大的淘汰。
在put时将元素放到了队头,每次get都会将元素提前,我们要做的就是把队尾元素替换掉。

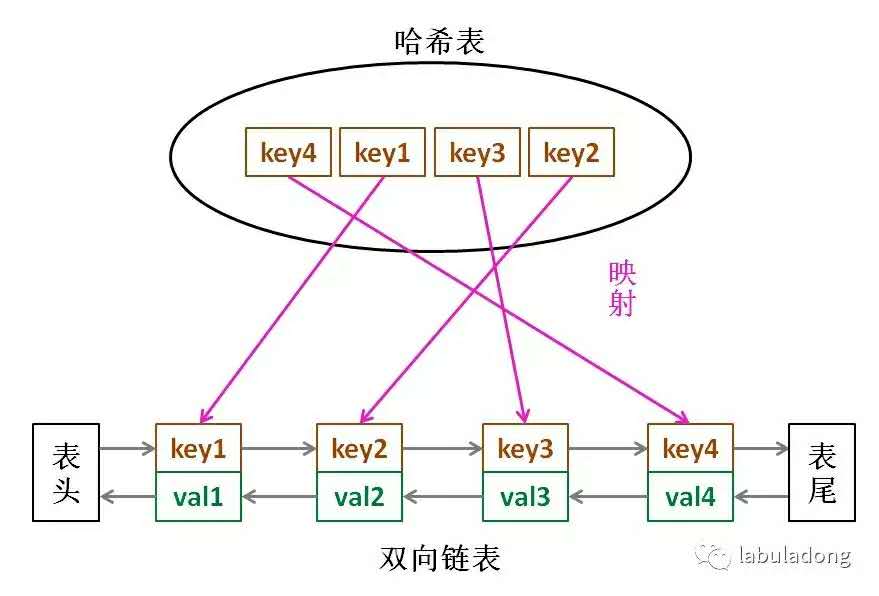

LRU 缓存算法的核心数据结构就是哈希链表,双向链表和哈希表的结合体。这个数据结构长这样:
代码如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97
| class { public int key,val; public Node next,prior;
public (int key,int val){ this.val = val; this.key = key; } } class DoubleList{ private Node head,tail ; private int size;
public DoubleList(){ head = new Node(0,0); tail = new Node(0,0); head.next = tail;< 大专栏 LRU缓存机制/span> tail.prior = head; size = 0; }
public void addFirst(Node x){ x.next = head.next; x.prior = head; head.next.prior = x; head.next = x; size++; }
public void remove(Node x){ x.prior.next = x.next; x.next.prior = x.prior; size--; }
public Node removeLast(){ if(tail.prior == head) return null; Node last = tail.prior; remove(last); return last; }
public int getSize(){ return size; } } class LRUCache{ private HashMap<Integer ,Node> map; private DoubleList cache; private int capacity;
public LRUCache(int capacity){ this.capacity = capacity; map = new HashMap<>(); cache = new DoubleList(); }
public int get(int key){ if (!map.containsKey(key)) return -1; int val = map.get(key).val; put(key,val); return val; }
public void put(int key,int val){ Node x = new Node(key, val);
if (map.containsKey(key)) { cache.remove(map.get(key)); cache.addFirst(x); map.put(key, x); }else{ if (capacity == cache.getSize()) { Node last = cache.removeLast(); map.remove(last.key); } cache.addFirst(x); map.put(key, x); } } }
|
有序字典
来源题解
利用了LinkedHashMap这样一种数据结构
在构造器里第三个参数accessOrder,设置为false表示不是访问顺序而是插入顺序存储的,这也是默认值,表示LinkedHashMap中存储的顺序是按照调用put方法插入的顺序进行排序的;true则是按照访问顺序,访问过后的元素会到链表的末尾。
0.75F表示负载因子
HashMap有一个初始容量大小,默认是16
static final int DEAFULT_INITIAL_CAPACITY = 1 << 4; // aka 16
为了减少冲突概率,当HashMap的数组长度达到一个临界值就会触发扩容,把所有元素rehash再放回容器中,这是一个非常耗时的操作。
而这个临界值由负载因子和当前的容量大小来决定:
DEFAULT_INITIAL_CAPACITYDEFAULT_LOAD_FACTOR
即默认情况下数组长度是160.75=12时,触发扩容操作。
所以使用hash容器时尽量预估自己的数据量来设置初始值。
在理想情况下,使用随机哈希吗,节点出现的频率在hash桶中遵循泊松分布,同时给出了桶中元素的个数和概率的对照表。
从上表可以看出当桶中元素到达8个的时候,概率已经变得非常小,也就是说用0.75作为负载因子,每个碰撞位置的链表长度超过8个是几乎不可能的。
hash容器指定初始容量尽量为2的幂次方。
HashMap负载因子为0.75是空间和时间成本的一种折中。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
| class LRUCache extends LinkedHashMap<Integer, Integer>{ private int capacity; public LRUCache(int capacity) { super(capacity, 0.75F, true); this.capacity = capacity; }
public int get(int key) { return super.getOrDefault(key, -1); }
public void put(int key, int value) { super.put(key, value); }
protected boolean removeEldestEntry(Map.Entry<Integer, Integer> eldest) { return size() > capacity; } }
|
