  • 微信小程序----手势锁详解

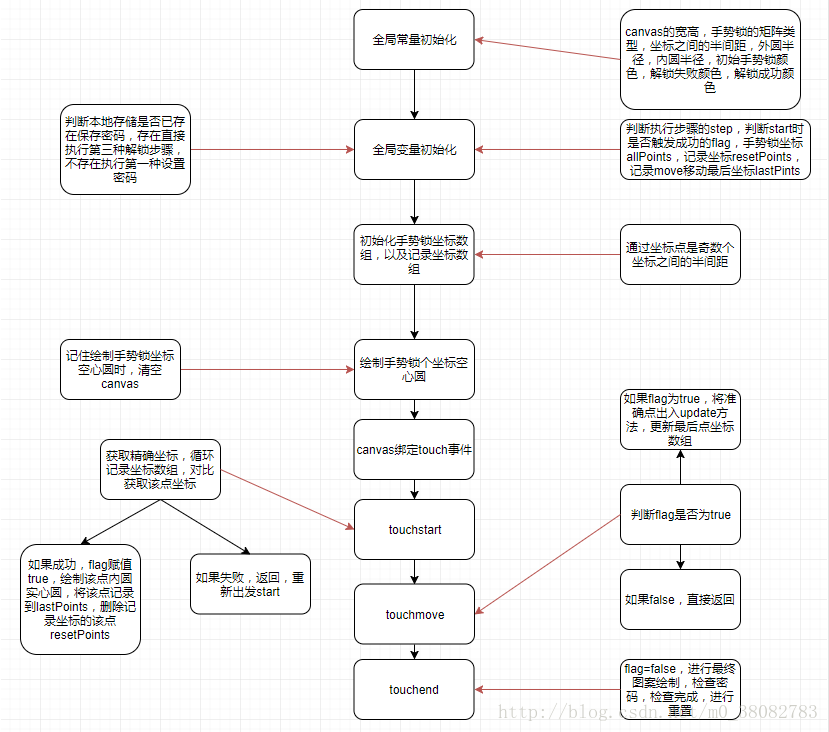

    设计思路流程图

    这里写图片描述

    1、全局常量

    constructor(page,opts){
       // 初始化全局常量数据
       this.page = page;
       this.width = opts.width || 300;
       this.height = opts.height || 300;
       this.canvasId = opts.canvasId || 'lock';
       this.type = opts.type || 3;
       this.cleColor = opts.cleColor || 'rgba(0,136,204,1)';
       this.size = this.width / this.type / 2;//坐标点之间的半间距
       this.R = this.size / 2;//外圆半径
       this.r = this.size / 4;//內圆半径

       // 判断是否在缓存中存在密码,如果存在,直接进行第二步骤:解码,如果不存在,进行初始化,设置密码
       this.pswObj = wx.getStorageSync('password') ? {
         step: 2,
         password: JSON.parse(wx.getStorageSync('password'))
       } : { step: 0 };

       // 启动手势锁初始化
       this.init();
     }

    2、全局变量

    init(){
        const _this = this;

        // 定义全局变量,标记start,手势锁的每个坐标的中心点数组,记录选中数组
        _this.flag = false;
        _this.locationArr = [];
        _this.lastPoint = [];
        _this.restPoint = [];

        // 设置canvas的宽高
        _this.page.setData({
          width : _this.width,
          height : _this.height
        });

        this.ctx = wx.createCanvasContext(this.canvasId, this);
        // 初始化中心坐标数组
        this.location();
        // 初始化绘制图形圆
        this.drawPo();
        // 初始化绑定事件
        this.bindEvent();
      }

    3、初始化坐标数组locationArr 和restPoint

    location(){
        // 计算坐标的x,y坐标,同时记录当前位置代表的数
        let count = 0,arr = [],arr0 = [];
        for(let i = 0; i < this.type; i++){
          for(let j = 0 ; j < this.type; j++){
            count++;
            arr.push({
              x: this.size * ((j + 1) * 2 - 1),//奇数个坐标间半间距
              y: this.size * ((i + 1) * 2 - 1),//奇数个坐标间半间距
              count: count//每个坐标代表的数
            });
            arr0.push({
              x: this.size * ((j + 1) * 2 - 1),//奇数个坐标间半间距
              y: this.size * ((i + 1) * 2 - 1),//奇数个坐标间半间距
              count: count//每个坐标代表的数
            });
          }
        }
        this.locationArr = arr;
        this.restPoint = arr0;
      }

    4、绘制手势锁矩阵

    绘制圆函数(bool值判断当前绘制的是空心还是实心)

    drawCle(x, y, r, bool){
        // 设置边框颜色。
        bool ? this.ctx.setStrokeStyle(this.cleColor) : this.ctx.setFillStyle(this.cleColor);; // 注意用set
        // 设置线条的宽度。
        this.ctx.setLineWidth(2); // 注意用set
        // 开始创建一个路径,需要调用fill或者stroke才会使用路径进行填充或描边。
        this.ctx.beginPath();
        // 画一条弧线。
        this.ctx.arc(x, y, r, 0, Math.PI * 2, true);
        // 关闭一个路径
        this.ctx.closePath();
        // 画出当前路径的边框。默认颜色色为黑色。
        bool ? this.ctx.stroke():this.ctx.fill();
        // 将之前在绘图上下文中的描述(路径、变形、样式)画到 canvas 中。
        this.ctx.draw(true);
      }

    矩阵绘制

    drawPo(){
        // 绘制空心圆,绘制之前,清空canvas,防止重复绘制
        this.ctx.clearRect(0, 0, this.width, this.height);
        this.locationArr.forEach(current => {
          this.drawCle(current.x, current.y, this.R, true);
        });
      }

    5、触发move时线的绘制函数

    drawLine(po) {// 解锁轨迹
        this.ctx.beginPath();
        // 线宽
        this.ctx.lineWidth = 3;
        // 起始点
        this.ctx.moveTo(this.lastPoint[0].x, this.lastPoint[0].y);
        // 中间转换的点
        for (var i = 1; i < this.lastPoint.length; i++) {
          this.ctx.lineTo(this.lastPoint[i].x, this.lastPoint[i].y);
        }
        // 正在移动选择的点
        if (po) { this.ctx.lineTo(po.x, po.y);}
        this.ctx.stroke();
        this.ctx.closePath();
        this.ctx.draw(true);
      }

    6、获取当前位置的坐标点函数

    getPosition(e) { // 获取touch点相对于canvas的坐标
     return {
       x: e.touches[0].x,
       y: e.touches[0].y
     };
    }

    7、触发touchstart事件处理

    _this.page.onTouchStart = function(e){
     let po = _this.getPosition(e);//获取当前准确坐标
     for (let [key,val] of _this.locationArr.entries()){//循环对比最近的坐标
       if (Math.abs(val.x - po.x) < _this.r && Math.abs(val.y - po.y) < _this.r){
         _this.flag = true;//进入判断,触发touchstart事件成功
         _this.drawCle(val.x, val.y, _this.r, false);//绘制该点的实心内圆
         _this.lastPoint.push(val);//记录该点坐标到lastPoint
         _this.restPoint.splice(key,1);//删除记录数组restPoint的该点坐标
         break;//找到坐标,跳出循环
       }
     }
    }

    8、触发touchmove事件处理

    _this.page.onTouchMove = function (e) {
      _this.flag && _this.updata(_this.getPosition(e));
    }

    判断是否触发touchstart,如果触发,执行updata函数。

    更新最后点坐标函数

    updata(po){
        //清空canvas
        this.ctx.clearRect(0, 0, this.width, this.height);
        //重新绘制矩阵
        for (let val of this.locationArr) {
          this.drawCle(val.x, val.y, this.R, true);
        }
        //绘制已记录坐标的实心圆
        for (let val of this.lastPoint) {
          this.drawCle(val.x, val.y, this.r ,false);
        }
        //绘制解锁路线
        this.drawLine(po);
        //找到移动中的还未落点的精确坐标
        for (let [key, val] of this.restPoint.entries()) {
          if (Math.abs(po.x - val.x) < this.r && Math.abs(po.y - val.y) < this.r) {
            this.drawCle(val.x, val.y, this.r, false);
            this.lastPoint.push(val);
            this.restPoint.splice(key, 1);
            break;
          }
        }
      }

    9、触发touchend事件处理

    _this.page.onTouchEnd = function (e) {
      if(_this.flag){
        _this.flag = false;
        _this.endData();
        _this.checkPassword(_this.lastPoint);
        setTimeout(function () {
          _this.reset();
        }, 500);
      }
    }

    通过流程图,可以更加清楚的认识到做一个功能需要创建的变量和函数,流程步骤更加清楚,当然也需要制作的过程进行优化。建议制作一些大的功能的时候,如果流程不清楚,最好绘制流程图,思路清晰,开发更快,考虑更周全。
