  • 圣杯布局的原理

    圣杯布局的起源

    In Search of the Holy Grail

    圣杯布局解决的问题

    两边定宽,中间自适应的三栏布局,中间栏要放在文档流前面以优先渲染。

    圣杯布局的原理

    HTML代码

    <div class="content">
        <div class="center col">
        </div>
        <div class="left col">
        </div>
        <div class="right col">
        </div>
    </div>

    CSS代码

    第一步:定义容器content的样式padding: 0 100px,以及center,left,right的公共样式,同时定义每个容器的颜色和宽度,左右固定一百,中间100%;

    .content{padding: 0 100px;}
    .col{
        float: left;
        height: 200px;
        position: relative;
    }
    .left,.right{
        width: 100px;
    }
    .left{
        background-color: blue;
    }
    .right{
        background-color: green;
    }
    .center{
        width: 100%;
        background-color: pink;
    }

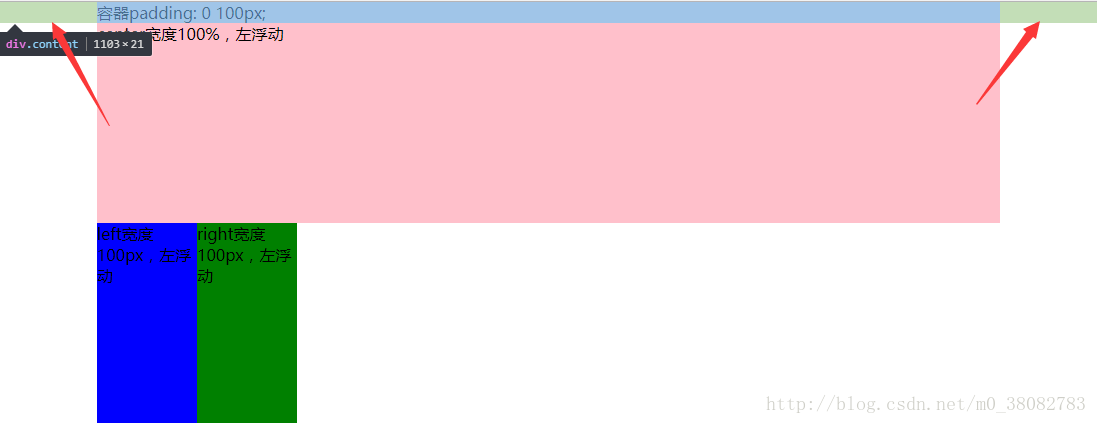

    效果图:
    基础样式效果图

    第二步:采用负边距将left和right放到左右两边
    1. 当左右设置不同方向负边距margin-left和margin-right

    .left{margin-left:-100%;}
    .right{margin-right:-100px;}
    1. 当左右设置同方向负边距margin-left
    .left{margin-left:-100%;}
    .right{margin-left:-100px;}

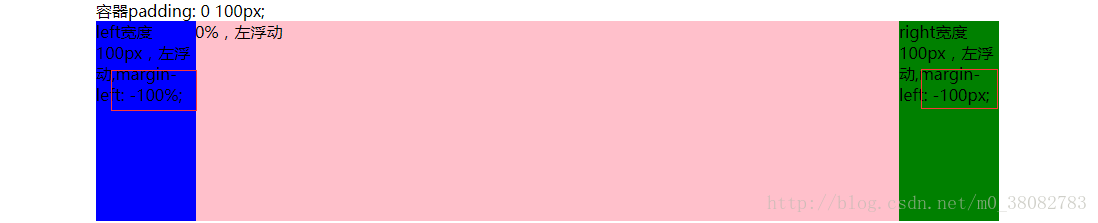

    效果图:
    采用负边距定位效果图

    此时我们可以清晰的看到center的左右两边都被left和center遮挡,此时圣杯布局如何处理呢?
    第三步:用相对定位来解决
    1. 当左右设置不同方向负边距margin-left和margin-right

    .left{right:100px;}
    1. 当左右设置同方向负边距margin-left
    .left{right:100px;}
    .right{left:100px;}

    最终效果和CSS代码

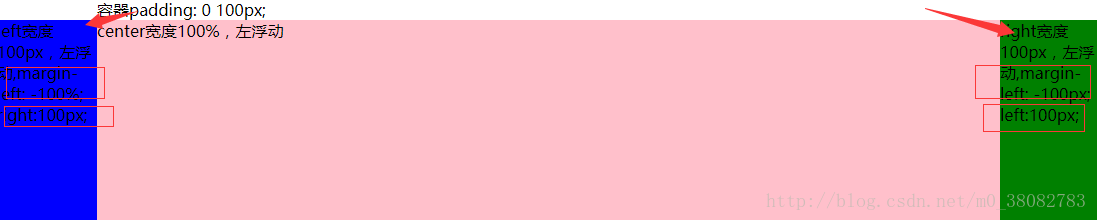

    效果图:
    相对定位后的效果图
    1. 当左右设置不同方向负边距margin-left和margin-right

    .content{padding: 0 100px;}
    .col{
        float: left;
        height: 200px;
        position: relative;
    }
    .left,.right{
        width: 100px;
    }
    .left{
        background-color: blue;
        margin-left: -100%;
        right: 100px;
    }
    .right{
        background-color: green;
        margin-right: -100px;
    }
    .center{
        width: 100%;
        background-color: pink;
    }
    1. 当左右设置同方向负边距margin-left
    .content{padding: 0 100px;}
    .col{
        float: left;
        height: 200px;
        position: relative;
    }
    .left,.right{
        width: 100px;
    }
    .left{
        background-color: blue;
        margin-left: -100%;
        right: 100px;
    }
    .right{
        background-color: green;
        margin-left: -100px;
        left:100px;
    }
    .center{
        width: 100%;
        background-color: pink;
    }

    优点:

    • 兼容所有浏览器
    • 不用JS计算中间容器宽度就能自适应

    缺点:

    • 采用了相对定位,既然用了相对定位(position:relative;),何不使用绝对定位(position:absolute;),更加简单、直接、易懂!
