How To Join CentOS Linux To An Active Directory Domain
Here we’ll show you how to add your Linux system to a Microsoft Windows Active Directory (AD) domain through the command line. This will allow us to SSH into the Linux server with user accounts in our AD domain, providing a central source of cross-platform authentication.
There are a number of ways to do this, however this is the easiest way that I’ve found to do it entirely through the command line.
In this example I am using CentOS 7 and Windows Server 2012 R2, however the version of Windows should not matter. We are assuming that our domain is already setup and configured, we’re simply joining our CentOS server to an existing domain.
Preparing CentOS
First we want to install all of the below packages in CentOS.
yum install sssd realmd oddjob oddjob-mkhomedir adcli samba-common samba-common-tools krb5-workstation openldap-clients policycoreutils-python -y
The CentOS server will need to be able to resolve the Active Directory domain in order to successfully join it. In this instance my DNS server in /etc/resolv.conf is set to one of the Active Directory servers hosting the example.com domain that I wish to join.
[root@centos7 ~]# cat /etc/resolv.conf search example.com nameserver 192.168.1.2
Join CentOS To Windows Domain
Now that we’ve got that out of the way we can actually join the domain, this can be done with the ‘realm join’ command as shown below. You will need to specify the username of a user in the domain that has privileges to join a computer to the domain.
[root@centos7 ~]# realm join --user=administrator example.com Password for administrator:
Once you enter the password for your specific account, the /etc/sssd/sssd.conf and /etc/krb.conf files will be automatically configured. This is really great as editing these manually usually leads to all sorts of trivial problems when joining the domain. The /etc/krb5.keytab file is also created during this process.
If this fails, you can add -v to the end of the command for highly verbose output, which should give you more detailed information regarding the problem for further troubleshooting.
We can confirm that we’re in the realm (Linux terminology for the domain) by running the ‘realm list’ command, as shown below.
[root@centos7 ~]# realm list example.com type: kerberos realm-name: EXAMPLE.COM domain-name: example.com configured: kerberos-member server-software: active-directory client-software: sssd required-package: oddjob required-package: oddjob-mkhomedir required-package: sssd required-package: adcli required-package: samba-common-tools login-formats: %U@example.com login-policy: allow-realm-logins
Once this has completed successfully, a computer object will be created in Active Directory in the default computers container as shown below.
To keep things neat I like to move this into some other organizational unit (OU) for Linux servers rather than leaving things in the default computers container, however this doesn’t really matter for this exercise.
Now that our Linux server is a member of the Active Directory domain we can perform some tests. By default if we want to specify any users in the domain, we need to specify the domain name. For example with the ‘id’ command below, we get nothing back for ‘administrator’, however ‘administrator@example.com’ shows the UID for the account as well as all the groups the account is a member of in the Active Directory domain.
[root@centos7 ~]# id administrator id: administrator: no such user [root@centos7 ~]# id administrator@example.com uid=1829600500(administrator@example.com) gid=1829600513(domain users@example.com) groups=1829600513(domain users@example.com),1829600512(domain admins@example.com),1829600572(denied rodc password replication group@example.com),1829600519(enterprise admins@example.com),1829600518(schema admins@example.com),1829600520(group policy creator owners@example.com)
We can change this behaviour by modifying the /etc/sssd/sssd.conf file, the following lines need to change from:
use_fully_qualified_names = True fallback_homedir = /home/%u@%d
To the below, which does not require the fully qualified domain name (FQDN) to be specified. This also modifies the user directory in /home from having the FQDN specified after the username.
use_fully_qualified_names = False fallback_homedir = /home/%u
To apply these changes, restart sssd.
[root@centos7 ~]# systemctl restart sssd
Now we should be able to find user accounts without specifying the domain, as shown below this now works where it did not previously.
[root@centos7 ~]# id administrator uid=1829600500(administrator) gid=1829600513(domain users) groups=1829600513(domain users),1829600512(domain admins),1829600572(denied rodc password replication group),1829600520(group policy creator owners),1829600519(enterprise admins),1829600518(schema admins)
If this is still not correctly working for you, I suggest that you take a look at flushing your sssd cache.
Configuring SSH and Sudo Access
Now that we have successfully joined our CentOS server to the example.com domain, we can SSH in as any domain user from Active Directory with default settings.
[root@centos7 ~]# ssh user1@localhost user1@localhost's password: Creating home directory for user1.
We can further restrict SSH access by modifying the /etc/ssh/sshd_config file and make use of things like AllowUsers or AllowGroups to only allow certain user or groups from AD to have access. See our guide to the sshd_config file for further information. Don’t forget to restart sshd if you make any changes to this file in order to apply them.

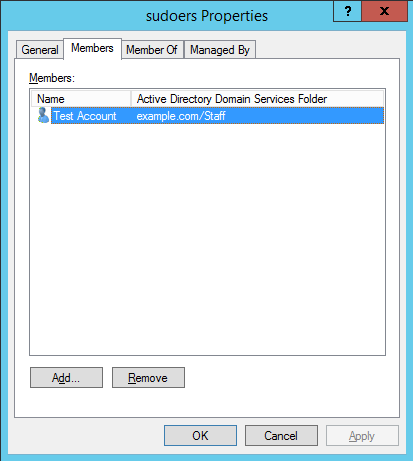

We can also modify our sudoers configuration to allow our user account from the domain the desired level of access. I usually create an Active Directory group called something like ‘sudoers’, put my user in it, then allow this group sudo access by creating a file in /etc/sudoers.d/ which allows root access to be centrally controlled by AD.
Below is an example of this, the ‘sudoers’ group will have full root access.
[root@centos7 ~]# cat /etc/sudoers.d/sudoers %sudoers ALL=(ALL) ALL
This group only exists in Active Directory, our Linux server can see that user1 is a member of the sudoers group in Active Directory, and respects this group configuration and allows user1 root privileges as per the above configuration.
With this in place, our user1 account in the example.com Active Directory domain will now be able to use the sudo command to run commands with root privileges.
[user1@centos7 ~]$ sudo su [sudo] password for user1: [root@centos7 user1]# [root@centos7 user1]# whoami root
That’s all there is to it, we can now SSH to a Linux server with a user account from our Active Directory domain and even grant specific users or groups from AD specific levels of access.
Leaving The Domain
If you want to reverse the process and remove yourself from the domain, simply run the ‘realm leave’ command followed by the domain name, as shown below.
[root@centos7 ~]# realm leave example.com
This will complete without any further user input. It will delete the computer object that was created in Active Directory, remove the keytab file, and set the sssd.conf and krb5.conf files back to default.
Summary
We have demonstrated how you can easily add your CentOS Linux system to a Microsoft Windows Active Directory domain, and then grant SSH or sudo access based on the user or group from the domain.
If you have a large number of Linux servers and an existing Windows domain you can easily use this process to add your Linux servers to the Windows domain, allowing for centralised user authentication which is far easier to manage when compared to having local user accounts spread out on every Linux server.
-
Ana
Thank you Jarrod for the most useful article!
-
Maas Salem
Might want to add this.
yum install samba-common-tools -y
– of you wont be able to join the domain. ( error in missing packages.)
Thanks
-
Olivier
Same here
-
Hmm I looked over the Ansible config I deploy this to Linux servers with and that package is not installed, although on the two servers I checked they already had that package. I’ll update the post, thanks.
-
Dave
This seems to have been added as a dependency with the above packages in 7.x, at least as of 11/2017.
-
-
-
Hari
Superb ! It worked for me.
-
Gaby
Hello, very usefull information.
On a my active directory the OS information of my Linux box is empty. Does it the same for you ? How can I solve that?
Thanks in advanced-
I have the same thing, I haven’t been able to find a way through SSSD to populate that field. I believe with realmd it’s possible by specifying ‘os-name’, however I was not able to get that working in my test.
-
Gaby
Hello, for info, I find a way to do it using realmd :
realm join –user=xxxx –computer-ou=OU=LinuxOS –os-name=OracleLinux –os-version=”Red Hat Enterprise Linux 7.3″
now I am looking on how to update the os-version & os-name fields when a linux box is already into the AD
-
-
t0ta11ed
You can do this in AD with the Powershell command SET-ADCOMPUTER. Helpful article!
-
-
Muhammad Khan
Super Article, A very convenient way of integration of Linux & Windows Server. Great Job, Jarrod
-
Steve
Does this work for:
CentOS 6x?
How about HP-UX?
-
I haven’t tested with CentOS 6, however I believe it should work. Not sure about HP-UX, I’ve never used it, sorry.
-
Hello,
it doesn’t work on redhat/centos/oraclelinux 6. some packages are not available. Instead, use adcli package. (avalaible in Centos Mirror repo, if i remember well.)
-
-
Linda
worked for me with CentOs7. Thanks for a great post!
-
-
Rafael
Great article, Jarrod. It worked perfectly for me, using CentOS 7.
Just a few comments:
– /etc/krb.conf will be /etc/krb5.conf since we’re using krb5-workstation. At first I was concerned something went wrong but then I realized is was another filename.
– I ran into some odd issues like not all users in domain being able to login, and id command not working for all users. So a colleague suggested installing winbind and it worked like a charm. My AD domain has a trust with another domain and I’m able to login with any user from both domains after installing winbind. I recommend you add it in the packages list.
– You can add Domain Admins group in sudoers so every sysadmin can login in the Linux server and elevate. I used this line/syntax:
%mydomain\domain admins ALL=(ALL) ALL
Any other AD groups with spaces in the name can also be added like this, using a single dash after the word preceding the space.
– When using domains with trust, you may want to use FQDN to specify domain/user. So I can login and put in sudoers users like user1@mydomain1.com and user2@mydomain2.com. Winbind is essential for this.
Thank you very much!
-
Gab
Hello, there is a way for AD windows account to get log in over the file explorer to a specific shared folder on the linux? eg. get log in to her own $HOME on the linux from her Windows Computer?
-
That should be possible with Samba, you can mount shared directories from either Windows or Linux and authenticate against AD.
-
Ok thanks Jarrod. Any great article to suggest? :)
-
Nothing in particular comes to mind sorry, it’s not something I’ve personally needed to setup, I’ve just seen the options available in Samba in the past.
-
-
-
-
SAM
one of the best and easiest way to join AD.
Thnx -
netty
Thanks for this – much appreciated.
-
Pete
Thank you so much for the instructions. I was able to join the domain, however, Windows domain users are not able to login to Centos, id username@domain.com gives error “no such user” What am I missing here?
-
I’ve had similar before, try and clear the SSSD cache then try again: https://www.rootusers.com/how-to-clear-the-sssd-cache-in-linux/
-
-
Rohit
uid=1829600500(administrator@example.com) gid=1829600513
UID and GId was not match with Active Directory.How to match UID and GID with AD
Yes,
i have centos 7 and i am using realm for domain join, after domain join they are showing different UID and GID, that UID and GID was not match with AD. -
PJ
Nice
-
goudeuk
Many thanks Jarod for sharing this.
Very useful. -
zN_Ars3n
Hello Jarrod!
I have an issue with adding linux to AD. I added machine to AD with domain admin credentials. When I run ‘realm list’ it shows me that my machine is in my domain but I cannot log in to the system by domain credencials. When I run ‘id admin@mydomain-com.local‘ it shows me message “no such user”. I am using winbindd in this machine too and when I run ‘wbinfo -u’ it shows me all users in my domain. I cleared cache for sssd but it wont helps. Could u help with this issue?-
Not too sure about winbind, I haven’t personally used it, could you try changing to sssd? I believe it’s better supported.
-
-
Mitsos
Great article !!!
In order to get Operating System info on Active Directory Users & Computers, on a Centos 7 machine you can create a /etc/realmd.conf file and the following data:[active-directory]
os-name = Linux
os-version = CentOS 7[service]
automatic-install = yesThe problem that I am facing is that when I run:
#getent passwd
I do not get any AD accounts, contrary when running id , I get all the info. More over, when I run wbinfo -u, I get errors (I suppose that’s my mistake cos winbind does not work with sssd). -
hello, in my company we have around 100 domain controller all around the world. often when I join a server to the Active Directory Domain, the server never choose the closest DC (same subnet for example).
Is there a way to fix one or 2 DC to contact?
Thanks. -
Hello,
do you know how to fix sssd to contact only 1 or 2 dc instead of to contact one randomly?
Regards
-
Roger
Is Active Directory 2016 (Domain Functional Level 2016) also supported with CentOS 6 / 7?
Thank you for your reply
-
Thanks Jarrod, going forward via LDAP and AD I think you have no choice plus IMHO this is a better option as it’s just like joining a Windows and Apple(still MAC is problematic) machine to the Domain.
The Why not to go forward with LDAP
Clarification regarding the status of Identity Management for Unix (IDMU) & NIS Server Role in Windows Server 2016 Technical Preview and beyond
https://blogs.technet.microsoft.com/activedirectoryua/2016/02/09/identity-management-for-unix-idmu-is-deprecated-in-windows-server/ -
S N B
We are really looking forward for any such article as mentioned by Gab May 18, 2017 at 8:10 pm
