解决Flink消费Kafka信息，结果存储在Mysql的重复消费问题

背景

最近项目中使用Flink消费kafka消息，并将消费的消息存储到mysql中，看似一个很简单的需求，在网上也有很多flink消费kafka的例子，但看了一圈也没看到能解决重复消费的问题的文章，于是在flink官网中搜索此类场景的处理方式，发现官网也没有实现flink到mysql的Exactly-Once例子，但是官网却有类似的例子来解决端到端的仅一次消费问题。这个现成的例子就是FlinkKafkaProducer011这个类，它保证了通过FlinkKafkaProducer011发送到kafka的消息是Exactly-Once的，主要的实现方式就是继承了TwoPhaseCommitSinkFunction这个类，关于TwoPhaseCommitSinkFunction这个类的作用可以先看上一篇文章：https://blog.51cto.com/simplelife/2401411。

实现思想

这里简单说下这个类的作用就是实现这个类的方法：beginTransaction、preCommit、commit、abort，达到事件（preCommit）预提交的逻辑（当事件进行自己的逻辑处理后进行预提交，如果预提交成功之后才进行真正的（commit）提交，如果预提交失败则调用abort方法进行事件的回滚操作），结合flink的checkpoint机制，来保存topic中partition的offset。

达到的效果我举个例子来说明下：比如checkpoint每10s进行一次，此时用FlinkKafkaConsumer011实时消费kafka中的消息，消费并处理完消息后，进行一次预提交数据库的操作，如果预提交没有问题，10s后进行真正的插入数据库操作，如果插入成功，进行一次checkpoint，flink会自动记录消费的offset，可以将checkpoint保存的数据放到hdfs中，如果预提交出错，比如在5s的时候出错了，此时Flink程序就会进入不断的重启中，重启的策略可以在配置中设置，当然下一次的checkpoint也不会做了，checkpoint记录的还是上一次成功消费的offset，本次消费的数据因为在checkpoint期间，消费成功，但是预提交过程中失败了，注意此时数据并没有真正的执行插入操作，因为预提交（preCommit）失败，提交（commit）过程也不会发生了。等你将异常数据处理完成之后，再重新启动这个Flink程序，它会自动从上一次成功的checkpoint中继续消费数据，以此来达到Kafka到Mysql的Exactly-Once。

具体实现代码三个类

1. StreamDemoKafka2Mysql.java

1.
   import org.apache.flink.runtime.state.filesystem.FsStateBackend;
2.
   import org.apache.flink.shaded.jackson2.com.fasterxml.jackson.databind.node.ObjectNode;
3.
   import org.apache.flink.streaming.api.CheckpointingMode;
4.
   import org.apache.flink.streaming.api.datastream.DataStreamSource;
5.
   import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
6.
   import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer011;
7.
   import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumerBase;
8.
   import org.apache.flink.streaming.util.serialization.JSONKeyValueDeserializationSchema;
9.
   import org.apache.kafka.clients.consumer.ConsumerConfig;
10.

11.
    import java.util.Properties;
12.

13.
    /**
14.
    * Created with IntelliJ IDEA.
15.
    * User: zzy
16.
    * Date: 2019/5/28
17.
    * Time: 8:40 PM
18.
    * To change this template use File | Settings | File Templates.
19.
    *
20.
    * 消费kafka消息，sink(自定义)到mysql中，保证kafka to mysql 的Exactly-Once
21.
    */
22.

23.
    @SuppressWarnings("all")
24.
    public class StreamDemoKafka2Mysql {
25.
    private static final String topic_ExactlyOnce = "mysql-exactly-Once-4";
26.

27.
    public static void main(String[] args) throws Exception {
28.
    StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
29.

30.
    //设置并行度,为了方便测试，查看消息的顺序，这里设置为1，可以更改为多并行度
31.
    env.setParallelism(1);
32.
    //checkpoint的设置
33.
    //每隔10s进行启动一个检查点【设置checkpoint的周期】
34.
    env.enableCheckpointing(10000);
35.
    //设置模式为：exactly_one，仅一次语义
36.
    env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
37.
    //确保检查点之间有1s的时间间隔【checkpoint最小间隔】
38.
    env.getCheckpointConfig().setMinPauseBetweenCheckpoints(1000);
39.
    //检查点必须在10s之内完成，或者被丢弃【checkpoint超时时间】
40.
    env.getCheckpointConfig().setCheckpointTimeout(10000);
41.
    //同一时间只允许进行一次检查点
42.
    env.getCheckpointConfig().setMaxConcurrentCheckpoints(1);
43.
    //表示一旦Flink程序被cancel后，会保留checkpoint数据，以便根据实际需要恢复到指定的checkpoint
44.
    //env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
45.
    //设置statebackend,将检查点保存在hdfs上面，默认保存在内存中。这里先保存到本地
46.
    // env.setStateBackend(new FsStateBackend("file:///Users/temp/cp/"));
47.

48.
    //设置kafka消费参数
49.
    Properties props = new Properties();
50.
    props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "zzy:9092");
51.
    props.put(ConsumerConfig.GROUP_ID_CONFIG, "flink-consumer-group2");
52.
    //kafka分区自动发现周期
53.
    props.put(FlinkKafkaConsumerBase.KEY_PARTITION_DISCOVERY_INTERVAL_MILLIS, "3000");
54.

55.
    /*SimpleStringSchema可以获取到kafka消息，JSONKeyValueDeserializationSchema可以获取都消息的key,value，metadata:topic,partition，offset等信息*/
56.
    FlinkKafkaConsumer011<ObjectNode> kafkaConsumer011 = new FlinkKafkaConsumer011<>(topic_ExactlyOnce, new JSONKeyValueDeserializationSchema(true), props);
57.

58.
    //加入kafka数据源
59.
    DataStreamSource<ObjectNode> streamSource = env.addSource(kafkaConsumer011);
60.
    // System.out.println("streamSource:" + streamSource.print());
61.
    streamSource.print();
62.
    //数据传输到下游
63.
    streamSource.addSink(new MySqlTwoPhaseCommitSink()).name("MySqlTwoPhaseCommitSink");
64.
    //触发执行
65.
    env.execute(StreamDemoKafka2Mysql.class.getName());
66.
    }
67.
    }

2.MySqlTwoPhaseCommitSink.java

1.
   import org.apache.flink.api.common.ExecutionConfig;
2.
   import org.apache.flink.api.common.typeutils.TypeSerializer;
3.
   import org.apache.flink.api.common.typeutils.base.VoidSerializer;
4.
   import org.apache.flink.api.java.typeutils.runtime.kryo.KryoSerializer;
5.
   import org.apache.flink.shaded.jackson2.com.fasterxml.jackson.databind.node.ObjectNode;
6.
   import org.apache.flink.streaming.api.functions.sink.SinkFunction;
7.
   import org.apache.flink.streaming.api.functions.sink.TwoPhaseCommitSinkFunction;
8.
   import org.slf4j.Logger;
9.
   import org.slf4j.LoggerFactory;
10.

11.
    import java.sql.Connection;
12.
    import java.sql.PreparedStatement;
13.
    import java.sql.Timestamp;
14.
    import java.text.SimpleDateFormat;
15.
    import java.util.Date;
16.

17.
    /**
18.
    * Created with IntelliJ IDEA.
19.
    * User: zzy
20.
    * Date: 2019/5/28
21.
    * Time: 8:47 PM
22.
    * To change this template use File | Settings | File Templates.
23.
    *
24.
    * 自定义kafka to mysql,继承TwoPhaseCommitSinkFunction,实现两阶段提交
25.
    */
26.
    public class MySqlTwoPhaseCommitSink extends TwoPhaseCommitSinkFunction<ObjectNode,Connection,Void> {
27.

28.
    private static final Logger log = LoggerFactory.getLogger(MySqlTwoPhaseCommitSink.class);
29.

30.
    public MySqlTwoPhaseCommitSink(){
31.
    super(new KryoSerializer<>(Connection.class,new ExecutionConfig()), VoidSerializer.INSTANCE);
32.
    }
33.

34.
    /**
35.
    * 执行数据库入库操作 task初始化的时候调用
36.
    * @param connection
37.
    * @param objectNode
38.
    * @param context
39.
    * @throws Exception
40.
    */
41.
    @Override
42.
    protected void invoke(Connection connection, ObjectNode objectNode, Context context) throws Exception {
43.
    log.info("start invoke...");
44.
    String date = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date());
45.
    log.info("===>date:" + date + " " + objectNode);
46.
    log.info("===>date:{} --{}",date,objectNode);
47.
    String value = objectNode.get("value").toString();
48.
    log.info("objectNode-value:" + value);
49.
    JSONObject valueJson = JSONObject.parseObject(value);
50.
    String value_str = (String) valueJson.get("value");
51.
    String sql = "insert into `mysqlExactlyOnce_test` (`value`,`insert_time`) values (?,?)";
52.
    PreparedStatement ps = connection.prepareStatement(sql);
53.
    ps.setString(1,value_str);
54.
    Timestamp value_time = new Timestamp(System.currentTimeMillis());
55.
    ps.setTimestamp(2,value_time);
56.
    log.info("要插入的数据:{}--{}",value_str,value_time);
57.
    //执行insert语句
58.
    ps.execute();
59.
    //手动制造异常
60.
    if(Integer.parseInt(value_str) == 15) {
61.
    System.out.println(1 / 0);
62.
    }
63.
    }
64.

65.
    /**
66.
    * 获取连接，开启手动提交事物（getConnection方法中）
67.
    * @return
68.
    * @throws Exception
69.
    */
70.
    @Override
71.
    protected Connection beginTransaction() throws Exception {
72.
    log.info("start beginTransaction.......");
73.
    String url = "jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&useSSL=false&autoReconnect=true";
74.
    Connection connection = DBConnectUtil.getConnection(url, "root", "123456");
75.
    return connection;
76.
    }
77.

78.
    /**
79.
    *预提交，这里预提交的逻辑在invoke方法中
80.
    * @param connection
81.
    * @throws Exception
82.
    */
83.
    @Override
84.
    protected void preCommit(Connection connection) throws Exception {
85.
    log.info("start preCommit...");
86.
    }
87.

88.
    /**
89.
    * 如果invoke方法执行正常，则提交事务
90.
    * @param connection
91.
    */
92.
    @Override
93.
    protected void commit(Connection connection) {
94.
    log.info("start commit...");
95.
    DBConnectUtil.commit(connection);
96.
    }
97.

98.
    /**
99.
    * 如果invoke执行异常则回滚事物，下一次的checkpoint操作也不会执行
100.
     * @param connection
101.
     */
102.
     @Override
103.
     protected void abort(Connection connection) {
104.
     log.info("start abort rollback...");
105.
     DBConnectUtil.rollback(connection);
106.
     }
107.
     }

3.DBConnectUtil.java

1.
   import org.slf4j.Logger;
2.
   import org.slf4j.LoggerFactory;
3.

4.
   import java.sql.DriverManager;
5.
   import java.sql.SQLException;
6.
   import java.sql.Connection;
7.

8.
   /**
9.
   * Created with IntelliJ IDEA.
10.
    * User: zzy
11.
    * Date: 2019/5/28
12.
    * Time: 8:58 PM
13.
    * To change this template use File | Settings | File Templates.
14.
    */
15.
    public class DBConnectUtil {
16.

17.
    private static final Logger log = LoggerFactory.getLogger(DBConnectUtil.class);
18.

19.
    /**
20.
    * 获取连接
21.
    *
22.
    * @param url
23.
    * @param user
24.
    * @param password
25.
    * @return
26.
    * @throws SQLException
27.
    */
28.
    public static Connection getConnection(String url, String user, String password) throws SQLException {
29.
    Connection conn = null;
30.
    try {
31.
    Class.forName("com.mysql.jdbc.Driver");
32.
    } catch (ClassNotFoundException e) {
33.
    log.error("获取mysql.jdbc.Driver失败");
34.
    e.printStackTrace();
35.
    }
36.
    try {
37.
    conn = DriverManager.getConnection(url, user, password);
38.
    log.info("获取连接:{} 成功...",conn);
39.
    }catch (Exception e){
40.
    log.error("获取连接失败，url:" + url + ",user:" + user);
41.
    }
42.

43.
    //设置手动提交
44.
    conn.setAutoCommit(false);
45.
    return conn;
46.
    }
47.

48.
    /**
49.
    * 提交事物
50.
    */
51.
    public static void commit(Connection conn) {
52.
    if (conn != null) {
53.
    try {
54.
    conn.commit();
55.
    } catch (SQLException e) {
56.
    log.error("提交事物失败,Connection:" + conn);
57.
    e.printStackTrace();
58.
    } finally {
59.
    close(conn);
60.
    }
61.
    }
62.
    }
63.

64.
    /**
65.
    * 事物回滚
66.
    *
67.
    * @param conn
68.
    */
69.
    public static void rollback(Connection conn) {
70.
    if (conn != null) {
71.
    try {
72.
    conn.rollback();
73.
    } catch (SQLException e) {
74.
    log.error("事物回滚失败,Connection:" + conn);
75.
    e.printStackTrace();
76.
    } finally {
77.
    close(conn);
78.
    }
79.
    }
80.
    }
81.

82.
    /**
83.
    * 关闭连接
84.
    *
85.
    * @param conn
86.
    */
87.
    public static void close(Connection conn) {
88.
    if (conn != null) {
89.
    try {
90.
    conn.close();
91.
    } catch (SQLException e) {
92.
    log.error("关闭连接失败,Connection:" + conn);
93.
    e.printStackTrace();
94.
    }
95.
    }
96.
    }
97.
    }

4.代码测试

为了方便发送消息，我用一个定时任务每秒发送一个数字，1～20，往kafka写日志的程序

1.
   public class KafkaUtils {
2.
   // private static final String broker_list = "localhost:9092";
3.
   private static final String broker_list = "zzy:9092";
4.
   //flink 读取kafka写入mysql exactly-once 的topic
5.
   private static final String topic_ExactlyOnce = "mysql-exactly-Once-4";
6.

7.
   public static void writeToKafka2() throws InterruptedException {
8.
   Properties props = new Properties();
9.
   props.put("bootstrap.servers", broker_list);
10.
    props.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
11.
    props.put("value.serializer", "org.apache.kafka.common.serialization.StringSerializer");
12.
    // KafkaProducer producer = new KafkaProducer<String, String>(props);//老版本producer已废弃
13.
    Producer<String, String> producer = new org.apache.kafka.clients.producer.KafkaProducer<>(props);
14.

15.
    try {
16.
    for (int i = 1; i <= 20; i++) {
17.
    MysqlExactlyOncePOJO mysqlExactlyOnce = new MysqlExactlyOncePOJO(String.valueOf(i));
18.
    ProducerRecord record = new ProducerRecord<String, String>(topic_ExactlyOnce, null, null, JSON.toJSONString(mysqlExactlyOnce));
19.
    producer.send(record);
20.
    System.out.println("发送数据: " + JSON.toJSONString(mysqlExactlyOnce));
21.
    Thread.sleep(1000);
22.
    }
23.
    }catch (Exception e){
24.

25.
    }
26.

27.
    producer.flush();
28.
    }
29.

30.
    public static void main(String[] args) throws InterruptedException {
31.
    writeToKafka2();
32.
    }
33.
    }
34.

35.

36.
    @Data
37.
    @NoArgsConstructor
38.
    @AllArgsConstructor
39.
    public class MysqlExactlyOncePOJO {
40.
    private String value;
41.
    }

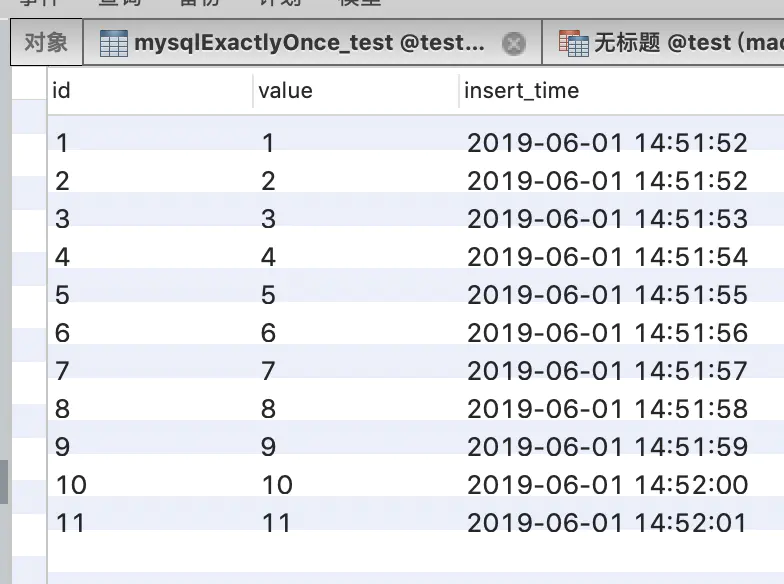

在发送到数字15之前，应该是做过一次checkpoint了，并且快要到第二次checkpoint的时间，第一次checkpoint的消费数据成功将插入数据库中，在消费到数字15的时候，手动造一个异常，此时数据库中应该只有第一次checkpoint后commit的数据，第二次checkpoint的数据并不会插入到数据库中（因为预提交已经失败，不会进行真正的提交），我实验的日志信息：

1.
   19/06/01 14:52:07 INFO TypeExtractor: Class class org.apache.flink.streaming.connectors.kafka.internals.KafkaTopicPartition cannot be used as a POJO type because not all fields are valid POJO fields, and must be processed as GenericType. Please read the Flink documentation on "Data Types & Serialization" for details of the effect on performance.
2.
   19/06/01 14:52:07 INFO FlinkKafkaConsumerBase: Setting restore state in the FlinkKafkaConsumer: {KafkaTopicPartition{topic='mysql-exactly-Once-4', partition=0}=10}
3.
   19/06/01 14:52:07 INFO ConsumerConfig: ConsumerConfig values:
4.
   auto.commit.interval.ms = 5000
5.
   auto.offset.reset = latest
6.
   bootstrap.servers = [zzy:9092]
7.
   check.crcs = true
8.
   client.id =
9.
   connections.max.idle.ms = 540000
10.
    enable.auto.commit = true
11.
    exclude.internal.topics = true
12.
    fetch.max.bytes = 52428800
13.
    fetch.max.wait.ms = 500
14.
    fetch.min.bytes = 1
15.
    group.id = flink-consumer-group2
16.
    heartbeat.interval.ms = 3000
17.
    interceptor.classes = null
18.
    internal.leave.group.on.close = true
19.
    isolation.level = read_uncommitted
20.
    key.deserializer = class org.apache.kafka.common.serialization.ByteArrayDeserializer
21.
    max.partition.fetch.bytes = 1048576
22.
    max.poll.interval.ms = 300000
23.
    max.poll.records = 500
24.
    metadata.max.age.ms = 300000
25.
    metric.reporters = []
26.
    metrics.num.samples = 2
27.
    metrics.recording.level = INFO
28.
    metrics.sample.window.ms = 30000
29.
    partition.assignment.strategy = [class org.apache.kafka.clients.consumer.RangeAssignor]
30.
    receive.buffer.bytes = 65536
31.
    reconnect.backoff.max.ms = 1000
32.
    reconnect.backoff.ms = 50
33.
    request.timeout.ms = 305000
34.
    retry.backoff.ms = 100
35.
    sasl.jaas.config = null
36.
    sasl.kerberos.kinit.cmd = /usr/bin/kinit
37.
    sasl.kerberos.min.time.before.relogin = 60000
38.
    sasl.kerberos.service.name = null
39.
    sasl.kerberos.ticket.renew.jitter = 0.05
40.
    sasl.kerberos.ticket.renew.window.factor = 0.8
41.
    sasl.mechanism = GSSAPI
42.
    security.protocol = PLAINTEXT
43.
    send.buffer.bytes = 131072
44.
    session.timeout.ms = 10000
45.
    ssl.cipher.suites = null
46.
    ssl.enabled.protocols = [TLSv1.2, TLSv1.1, TLSv1]
47.
    ssl.endpoint.identification.algorithm = null
48.
    ssl.key.password = null
49.
    ssl.keymanager.algorithm = SunX509
50.
    ssl.keystore.location = null
51.
    ssl.keystore.password = null
52.
    ssl.keystore.type = JKS
53.
    ssl.protocol = TLS
54.
    ssl.provider = null
55.
    ssl.secure.random.implementation = null
56.
    ssl.trustmanager.algorithm = PKIX
57.
    ssl.truststore.location = null
58.
    ssl.truststore.password = null
59.
    ssl.truststore.type = JKS
60.
    value.deserializer = class org.apache.kafka.common.serialization.ByteArrayDeserializer
61.

62.
    19/06/01 14:52:07 WARN ConsumerConfig: The configuration 'flink.partition-discovery.interval-millis' was supplied but isn't a known config.
63.
    19/06/01 14:52:07 INFO AppInfoParser: Kafka version : 0.11.0.0
64.
    19/06/01 14:52:07 INFO AppInfoParser: Kafka commitId : cb8625948210849f
65.
    19/06/01 14:52:07 INFO FlinkKafkaConsumerBase: Consumer subtask 0 will start reading 1 partitions with offsets in restored state: {KafkaTopicPartition{topic='mysql-exactly-Once-4', partition=0}=10}
66.
    19/06/01 14:52:07 INFO ConsumerConfig: ConsumerConfig values:
67.
    auto.commit.interval.ms = 5000
68.
    auto.offset.reset = latest
69.
    bootstrap.servers = [zzy:9092]
70.
    check.crcs = true
71.
    client.id =
72.
    connections.max.idle.ms = 540000
73.
    enable.auto.commit = false
74.
    exclude.internal.topics = true
75.
    fetch.max.bytes = 52428800
76.
    fetch.max.wait.ms = 500
77.
    fetch.min.bytes = 1
78.
    group.id = flink-consumer-group2
79.
    heartbeat.interval.ms = 3000
80.
    interceptor.classes = null
81.
    internal.leave.group.on.close = true
82.
    isolation.level = read_uncommitted
83.
    key.deserializer = class org.apache.kafka.common.serialization.ByteArrayDeserializer
84.
    max.partition.fetch.bytes = 1048576
85.
    max.poll.interval.ms = 300000
86.
    max.poll.records = 500
87.
    metadata.max.age.ms = 300000
88.
    metric.reporters = []
89.
    metrics.num.samples = 2
90.
    metrics.recording.level = INFO
91.
    metrics.sample.window.ms = 30000
92.
    partition.assignment.strategy = [class org.apache.kafka.clients.consumer.RangeAssignor]
93.
    receive.buffer.bytes = 65536
94.
    reconnect.backoff.max.ms = 1000
95.
    reconnect.backoff.ms = 50
96.
    request.timeout.ms = 305000
97.
    retry.backoff.ms = 100
98.
    sasl.jaas.config = null
99.
    sasl.kerberos.kinit.cmd = /usr/bin/kinit
100.
     sasl.kerberos.min.time.before.relogin = 60000
101.
     sasl.kerberos.service.name = null
102.
     sasl.kerberos.ticket.renew.jitter = 0.05
103.
     sasl.kerberos.ticket.renew.window.factor = 0.8
104.
     sasl.mechanism = GSSAPI
105.
     security.protocol = PLAINTEXT
106.
     send.buffer.bytes = 131072
107.
     session.timeout.ms = 10000
108.
     ssl.cipher.suites = null
109.
     ssl.enabled.protocols = [TLSv1.2, TLSv1.1, TLSv1]
110.
     ssl.endpoint.identification.algorithm = null
111.
     ssl.key.password = null
112.
     ssl.keymanager.algorithm = SunX509
113.
     ssl.keystore.location = null
114.
     ssl.keystore.password = null
115.
     ssl.keystore.type = JKS
116.
     ssl.protocol = TLS
117.
     ssl.provider = null
118.
     ssl.secure.random.implementation = null
119.
     ssl.trustmanager.algorithm = PKIX
120.
     ssl.truststore.location = null
121.
     ssl.truststore.password = null
122.
     ssl.truststore.type = JKS
123.
     value.deserializer = class org.apache.kafka.common.serialization.ByteArrayDeserializer
124.

125.
     19/06/01 14:52:07 WARN ConsumerConfig: The configuration 'flink.partition-discovery.interval-millis' was supplied but isn't a known config.
126.
     19/06/01 14:52:07 INFO AppInfoParser: Kafka version : 0.11.0.0
127.
     19/06/01 14:52:07 INFO AppInfoParser: Kafka commitId : cb8625948210849f
128.
     {"value":{"value":"12"},"metadata":{"offset":11,"topic":"mysql-exactly-Once-4","partition":0}}
129.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: start invoke...
130.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 {"value":{"value":"12"},"metadata":{"offset":11,"topic":"mysql-exactly-Once-4","partition":0}}
131.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 --{"value":{"value":"12"},"metadata":{"offset":11,"topic":"mysql-exactly-Once-4","partition":0}}
132.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: objectNode-value:{"value":"12"}
133.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: 要插入的数据:12--2019-06-01 14:52:07.616
134.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: start invoke...
135.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 {"value":{"value":"13"},"metadata":{"offset":12,"topic":"mysql-exactly-Once-4","partition":0}}
136.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 --{"value":{"value":"13"},"metadata":{"offset":12,"topic":"mysql-exactly-Once-4","partition":0}}
137.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: objectNode-value:{"value":"13"}
138.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: 要插入的数据:13--2019-06-01 14:52:07.617
139.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: start invoke...
140.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 {"value":{"value":"14"},"metadata":{"offset":13,"topic":"mysql-exactly-Once-4","partition":0}}
141.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 --{"value":{"value":"14"},"metadata":{"offset":13,"topic":"mysql-exactly-Once-4","partition":0}}
142.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: objectNode-value:{"value":"14"}
143.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: 要插入的数据:14--2019-06-01 14:52:07.618
144.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: start invoke...
145.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 {"value":{"value":"15"},"metadata":{"offset":14,"topic":"mysql-exactly-Once-4","partition":0}}
146.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: ===>date:2019-06-01 14:52:07 --{"value":{"value":"15"},"metadata":{"offset":14,"topic":"mysql-exactly-Once-4","partition":0}}
147.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: objectNode-value:{"value":"15"}
148.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: 要插入的数据:15--2019-06-01 14:52:07.619
149.
     {"value":{"value":"13"},"metadata":{"offset":12,"topic":"mysql-exactly-Once-4","partition":0}}
150.
     {"value":{"value":"14"},"metadata":{"offset":13,"topic":"mysql-exactly-Once-4","partition":0}}
151.
     {"value":{"value":"15"},"metadata":{"offset":14,"topic":"mysql-exactly-Once-4","partition":0}}
152.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: start abort rollback...
153.
     19/06/01 14:52:07 INFO Task: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (c284f48cd0b113da4f68fd835e643903) switched from RUNNING to FAILED.
154.
     java.lang.ArithmeticException: / by zero
155.
     at com.zzy.bigdata.flink.streaming.MySqlTwoPhaseCommitSink.invoke(MySqlTwoPhaseCommitSink.java:68)
156.
     at com.zzy.bigdata.flink.streaming.MySqlTwoPhaseCommitSink.invoke(MySqlTwoPhaseCommitSink.java:30)
157.
     at org.apache.flink.streaming.api.functions.sink.TwoPhaseCommitSinkFunction.invoke(TwoPhaseCommitSinkFunction.java:230)
158.
     at org.apache.flink.streaming.api.operators.StreamSink.processElement(StreamSink.java:56)
159.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$CopyingChainingOutput.pushToOperator(OperatorChain.java:579)
160.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$CopyingChainingOutput.collect(OperatorChain.java:554)
161.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$CopyingChainingOutput.collect(OperatorChain.java:534)
162.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$BroadcastingOutputCollector.collect(OperatorChain.java:649)
163.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$BroadcastingOutputCollector.collect(OperatorChain.java:602)
164.
     at org.apache.flink.streaming.api.operators.AbstractStreamOperator$CountingOutput.collect(AbstractStreamOperator.java:718)
165.
     at org.apache.flink.streaming.api.operators.AbstractStreamOperator$CountingOutput.collect(AbstractStreamOperator.java:696)
166.
     at org.apache.flink.streaming.api.operators.StreamSourceContexts$NonTimestampContext.collect(StreamSourceContexts.java:104)
167.
     at org.apache.flink.streaming.api.operators.StreamSourceContexts$NonTimestampContext.collectWithTimestamp(StreamSourceContexts.java:111)
168.
     at org.apache.flink.streaming.connectors.kafka.internals.AbstractFetcher.emitRecordWithTimestamp(AbstractFetcher.java:398)
169.
     at org.apache.flink.streaming.connectors.kafka.internal.Kafka010Fetcher.emitRecord(Kafka010Fetcher.java:89)
170.
     at org.apache.flink.streaming.connectors.kafka.internal.Kafka09Fetcher.runFetchLoop(Kafka09Fetcher.java:154)
171.
     at org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumerBase.runWithPartitionDiscovery(FlinkKafkaConsumerBase.java:675)
172.
     at org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumerBase.run(FlinkKafkaConsumerBase.java:667)
173.
     at org.apache.flink.streaming.api.operators.StreamSource.run(StreamSource.java:94)
174.
     at org.apache.flink.streaming.api.operators.StreamSource.run(StreamSource.java:58)
175.
     at org.apache.flink.streaming.runtime.tasks.SourceStreamTask.run(SourceStreamTask.java:99)
176.
     at org.apache.flink.streaming.runtime.tasks.StreamTask.invoke(StreamTask.java:300)
177.
     at org.apache.flink.runtime.taskmanager.Task.run(Task.java:704)
178.
     at java.lang.Thread.run(Thread.java:748)
179.
     19/06/01 14:52:07 INFO Task: Freeing task resources for Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (c284f48cd0b113da4f68fd835e643903).
180.
     19/06/01 14:52:07 INFO Task: Ensuring all FileSystem streams are closed for task Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (c284f48cd0b113da4f68fd835e643903) [FAILED]
181.
     19/06/01 14:52:07 INFO TaskExecutor: Un-registering task and sending final execution state FAILED to JobManager for task Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) c284f48cd0b113da4f68fd835e643903.
182.
     19/06/01 14:52:07 INFO ExecutionGraph: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (c284f48cd0b113da4f68fd835e643903) switched from RUNNING to FAILED.
183.
     java.lang.ArithmeticException: / by zero
184.
     at com.zzy.bigdata.flink.streaming.MySqlTwoPhaseCommitSink.invoke(MySqlTwoPhaseCommitSink.java:68)
185.
     at com.zzy.bigdata.flink.streaming.MySqlTwoPhaseCommitSink.invoke(MySqlTwoPhaseCommitSink.java:30)
186.
     at org.apache.flink.streaming.api.functions.sink.TwoPhaseCommitSinkFunction.invoke(TwoPhaseCommitSinkFunction.java:230)
187.
     at org.apache.flink.streaming.api.operators.StreamSink.processElement(StreamSink.java:56)
188.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$CopyingChainingOutput.pushToOperator(OperatorChain.java:579)
189.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$CopyingChainingOutput.collect(OperatorChain.java:554)
190.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$CopyingChainingOutput.collect(OperatorChain.java:534)
191.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$BroadcastingOutputCollector.collect(OperatorChain.java:649)
192.
     at org.apache.flink.streaming.runtime.tasks.OperatorChain$BroadcastingOutputCollector.collect(OperatorChain.java:602)
193.
     at org.apache.flink.streaming.api.operators.AbstractStreamOperator$CountingOutput.collect(AbstractStreamOperator.java:718)
194.
     at org.apache.flink.streaming.api.operators.AbstractStreamOperator$CountingOutput.collect(AbstractStreamOperator.java:696)
195.
     at org.apache.flink.streaming.api.operators.StreamSourceContexts$NonTimestampContext.collect(StreamSourceContexts.java:104)
196.
     at org.apache.flink.streaming.api.operators.StreamSourceContexts$NonTimestampContext.collectWithTimestamp(StreamSourceContexts.java:111)
197.
     at org.apache.flink.streaming.connectors.kafka.internals.AbstractFetcher.emitRecordWithTimestamp(AbstractFetcher.java:398)
198.
     at org.apache.flink.streaming.connectors.kafka.internal.Kafka010Fetcher.emitRecord(Kafka010Fetcher.java:89)
199.
     at org.apache.flink.streaming.connectors.kafka.internal.Kafka09Fetcher.runFetchLoop(Kafka09Fetcher.java:154)
200.
     at org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumerBase.runWithPartitionDiscovery(FlinkKafkaConsumerBase.java:675)
201.
     at org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumerBase.run(FlinkKafkaConsumerBase.java:667)
202.
     at org.apache.flink.streaming.api.operators.StreamSource.run(StreamSource.java:94)
203.
     at org.apache.flink.streaming.api.operators.StreamSource.run(StreamSource.java:58)
204.
     at org.apache.flink.streaming.runtime.tasks.SourceStreamTask.run(SourceStreamTask.java:99)
205.
     at org.apache.flink.streaming.runtime.tasks.StreamTask.invoke(StreamTask.java:300)
206.
     at org.apache.flink.runtime.taskmanager.Task.run(Task.java:704)
207.
     at java.lang.Thread.run(Thread.java:748)
208.
     19/06/01 14:52:07 INFO ExecutionGraph: Job com.zzy.bigdata.flink.streaming.StreamDemoKafka2Mysql (a7188181ec45ab397d21bb1f928c7b89) switched from state RUNNING to FAILING.
209.
     ...
210.
     19/06/01 14:52:07 INFO TaskExecutor: Discarding the results produced by task execution c284f48cd0b113da4f68fd835e643903.
211.
     19/06/01 14:52:07 INFO ExecutionGraph: Try to restart or fail the job com.zzy.bigdata.flink.streaming.StreamDemoKafka2Mysql (a7188181ec45ab397d21bb1f928c7b89) if no longer possible.
212.
     19/06/01 14:52:07 INFO ExecutionGraph: Job com.zzy.bigdata.flink.streaming.StreamDemoKafka2Mysql (a7188181ec45ab397d21bb1f928c7b89) switched from state FAILING to RESTARTING.
213.
     19/06/01 14:52:07 INFO ExecutionGraph: Restarting the job com.zzy.bigdata.flink.streaming.StreamDemoKafka2Mysql (a7188181ec45ab397d21bb1f928c7b89).
214.
     19/06/01 14:52:07 INFO ExecutionGraph: Job com.zzy.bigdata.flink.streaming.StreamDemoKafka2Mysql (a7188181ec45ab397d21bb1f928c7b89) switched from state RESTARTING to CREATED.
215.
     19/06/01 14:52:07 INFO CheckpointCoordinator: Restoring job a7188181ec45ab397d21bb1f928c7b89 from latest valid checkpoint: Checkpoint 3 @ 1559371921807 for a7188181ec45ab397d21bb1f928c7b89.
216.
     19/06/01 14:52:07 INFO CheckpointCoordinator: No master state to restore
217.
     19/06/01 14:52:07 INFO ExecutionGraph: Job com.zzy.bigdata.flink.streaming.StreamDemoKafka2Mysql (a7188181ec45ab397d21bb1f928c7b89) switched from state CREATED to RUNNING.
218.
     19/06/01 14:52:07 INFO ExecutionGraph: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) switched from CREATED to SCHEDULED.
219.
     19/06/01 14:52:07 INFO ExecutionGraph: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) switched from SCHEDULED to DEPLOYING.
220.
     19/06/01 14:52:07 INFO ExecutionGraph: Deploying Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (attempt #33) to localhost
221.
     19/06/01 14:52:07 INFO TaskExecutor: Received task Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1).
222.
     19/06/01 14:52:07 INFO Task: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) switched from CREATED to DEPLOYING.
223.
     19/06/01 14:52:07 INFO Task: Creating FileSystem stream leak safety net for task Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) [DEPLOYING]
224.
     19/06/01 14:52:07 INFO Task: Loading JAR files for task Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) [DEPLOYING].
225.
     19/06/01 14:52:07 INFO Task: Registering task at network: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) [DEPLOYING].
226.
     19/06/01 14:52:07 INFO Task: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) switched from DEPLOYING to RUNNING.
227.
     19/06/01 14:52:07 INFO ExecutionGraph: Source: Custom Source -> (Sink: Print to Std. Out, Sink: MySqlTwoPhaseCommitSink) (1/1) (b406c6534c19b26ab0ae3b6056f926cc) switched from DEPLOYING to RUNNING.
228.
     19/06/01 14:52:07 INFO StreamTask: No state backend has been configured, using default (Memory / JobManager) MemoryStateBackend (data in heap memory / checkpoints to JobManager) (checkpoints: 'null', savepoints: 'null', asynchronous: TRUE, maxStateSize: 5242880)
229.
     19/06/01 14:52:07 INFO TwoPhaseCommitSinkFunction: MySqlTwoPhaseCommitSink 0/1 - restoring state
230.
     19/06/01 14:52:07 INFO MySqlTwoPhaseCommitSink: start commit...
231.
     19/06/01 14:52:07 ERROR DBConnectUtil: 提交事物失败,Connection:com.mysql.jdbc.JDBC4Connection@69ae3a8c
232.
     java.sql.SQLException: Unexpected exception encountered during query.
233.
     at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:965)
234.
     at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:898)
235.
     at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:887)
236.
     at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:861)
237.
     at com.mysql.jdbc.ConnectionImpl.execSQL(ConnectionImpl.java:2523)
238.
     at com.mysql.jdbc.ConnectionImpl.commit(ConnectionImpl.java:1547)
239.
     at com.zzy.bigdata.flink.streaming.DBConnectUtil.commit(DBConnectUtil.java:56)
240.
     at com.zzy.bigdata.flink.streaming.MySqlTwoPhaseCommitSink.commit(MySqlTwoPhaseCommitSink.java:103)
241.
     at com.zzy.bigdata.flink.streaming.MySqlTwoPhaseCommitSink.commit(MySqlTwoPhaseCommitSink.java:30)
242.
     at org.apache.flink.streaming.api.functions.sink.TwoPhaseCommitSinkFunction.recoverAndCommit(TwoPhaseCommitSinkFunction.java:200)
243.
     at org.apache.flink.streaming.api.functions.sink.TwoPhaseCommitSinkFunction.recoverAndCommitInternal(TwoPhaseCommitSinkFunction.java:395)
244.
     at org.apache.flink.streaming.api.functions.sink.TwoPhaseCommitSinkFunction.initializeState(TwoPhaseCommitSinkFunction.java:353)
245.
     at org.apache.flink.streaming.util.functions.StreamingFunctionUtils.tryRestoreFunction(StreamingFunctionUtils.java:178)
246.
     at org.apache.flink.streaming.util.functions.StreamingFunctionUtils.restoreFunctionState(StreamingFunctionUtils.java:160)
247.
     at org.apache.flink.streaming.api.operators.AbstractUdfStreamOperator.initializeState(AbstractUdfStreamOperator.java:96)
248.
     at org.apache.flink.streaming.api.operators.AbstractStreamOperator.initializeState(AbstractStreamOperator.java:278)
249.
     at org.apache.flink.streaming.runtime.tasks.StreamTask.initializeState(StreamTask.java:738)
250.
     at org.apache.flink.streaming.runtime.tasks.StreamTask.invoke(StreamTask.java:289)
251.
     at org.apache.flink.runtime.taskmanager.Task.run(Task.java:704)
252.
     at java.lang.Thread.run(Thread.java:748)

通过日志发现成功入库的日志是1-11，消费到数字15的时候，提交失败，日志最后一行发生了回滚，关闭了连接，然后进行conmit的时候也失败了，消费的数据12-15不会插入到数据库中，此时checkpoint也不会做了，checkpoint保存的还是上一次成功消费后的offset数据。

数据库表：mysqlExactlyOnce_test

1.
   CREATE TABLE `mysqlExactlyOnce_test` (
2.
   `id` bigint(20) NOT NULL AUTO_INCREMENT,
3.
   `value` varchar(255) DEFAULT NULL,
4.
   `insert_time` datetime DEFAULT NULL,
5.
   PRIMARY KEY (`id`)
6.
   ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4

表中的数据

用空常来坐坐 https://www.cnblogs.com/alexgl2008/
