  • ArcGIS Engine DEM拉伸渲染

    从符号库中取出渲染使用的色带对象IColorRamp（也可以自己定义色带内容）

    [csharp] view plaincopyprint?
    1. <pre name="code" class="csharp">IStyleGallery pSG = new ServerStyleGalleryClass();
    2. IStyleGalleryStorage pSGS = pSG as IStyleGalleryStorage;
    3. try
    4. {
    5.     pSGS.AddFile(Application.StartupPath + "\\ESRI.ServerStyle");
    6. }
    7. catch (Exception err)
    8. {
    9.     MessageBox.Show(err.Message, "系统提示", MessageBoxButtons.OK, MessageBoxIcon.Exclamation);
    10. }
    11.
    12. IEnumStyleGalleryItem pMarkerSymbolEnum = pSG.get_Items("Color Ramps", Application.StartupPath+"\\ESRI.ServerStyle", "");
    13. pMarkerSymbolEnum.Reset();
    14. IStyleGalleryItem pItem = pMarkerSymbolEnum.Next();
    15. while (pItem != null)
    16. {
    17.     if (pItem.Name == "Elevation #1")
    18.     {
    19.         pColorRamp = pItem.Item as IColorRamp;
    20.         break;
    21.     }
    22.     pItem = pMarkerSymbolEnum.Next();
    23. }
    <pre name="code" class="csharp">IStyleGallery pSG = new ServerStyleGalleryClass();
IStyleGalleryStorage pSGS = pSG as IStyleGalleryStorage;
try
{
    pSGS.AddFile(Application.StartupPath + "\\ESRI.ServerStyle");
}
catch (Exception err)
{
    MessageBox.Show(err.Message, "系统提示", MessageBoxButtons.OK, MessageBoxIcon.Exclamation);
}

IEnumStyleGalleryItem pMarkerSymbolEnum = pSG.get_Items("Color Ramps", Application.StartupPath+"\\ESRI.ServerStyle", "");
pMarkerSymbolEnum.Reset();
IStyleGalleryItem pItem = pMarkerSymbolEnum.Next();
while (pItem != null)
{
    if (pItem.Name == "Elevation #1")
    {
        pColorRamp = pItem.Item as IColorRamp;
        break;
    }
    pItem = pMarkerSymbolEnum.Next();
}


    使用取得的ColorRamp对象渲染DEM






    [csharp] view plaincopyprint?






    1. IRasterLayer pRasterLayr = axMapControl1.get_Layer(0) as IRasterLayer;
      2.

    2.
      3.

    3. IRasterStretchColorRampRenderer pStretchRenderer = new RasterStretchColorRampRendererClass();
      4.

    4. IRasterRenderer pRasterRenderer = (IRasterRenderer)pStretchRenderer;
      5.

    5. IRaster pRaster = pRasterLayr.Raster;
      6.

    6. pRasterRenderer.Raster = pRaster;
      7.

    7. pRasterRenderer.Update();
      8.

    8. pStretchRenderer.BandIndex = 0;
      9.

    9. pStretchRenderer.ColorRamp = pColorRamp;
      10.

    10. IRasterStretch pStretchType = (IRasterStretch)pRasterRenderer;
      11.

    11. pStretchType.StretchType = esriRasterStretchTypesEnum.esriRasterStretch_StandardDeviations;
      12.

    12. pStretchType.StandardDeviationsParam = 2.5;
      13.

    13.
      14.

    14. pRasterLayr.Renderer = pRasterRenderer;
      15.

    15. axMapControl1.Refresh();
      16.

    16. axTOCControl1.SetBuddyControl(axMapControl1);
      17.

    17. axTOCControl1.Update();
      18.

    18. axTOCControl1.Refresh();
      19.



    IRasterLayer pRasterLayr = axMapControl1.get_Layer(0) as IRasterLayer;

IRasterStretchColorRampRenderer pStretchRenderer = new RasterStretchColorRampRendererClass();
IRasterRenderer pRasterRenderer = (IRasterRenderer)pStretchRenderer;
IRaster pRaster = pRasterLayr.Raster;
pRasterRenderer.Raster = pRaster;
pRasterRenderer.Update();
pStretchRenderer.BandIndex = 0;
pStretchRenderer.ColorRamp = pColorRamp;
IRasterStretch pStretchType = (IRasterStretch)pRasterRenderer;
pStretchType.StretchType = esriRasterStretchTypesEnum.esriRasterStretch_StandardDeviations;
pStretchType.StandardDeviationsParam = 2.5;

pRasterLayr.Renderer = pRasterRenderer;
axMapControl1.Refresh();
axTOCControl1.SetBuddyControl(axMapControl1);
axTOCControl1.Update();
axTOCControl1.Refresh();

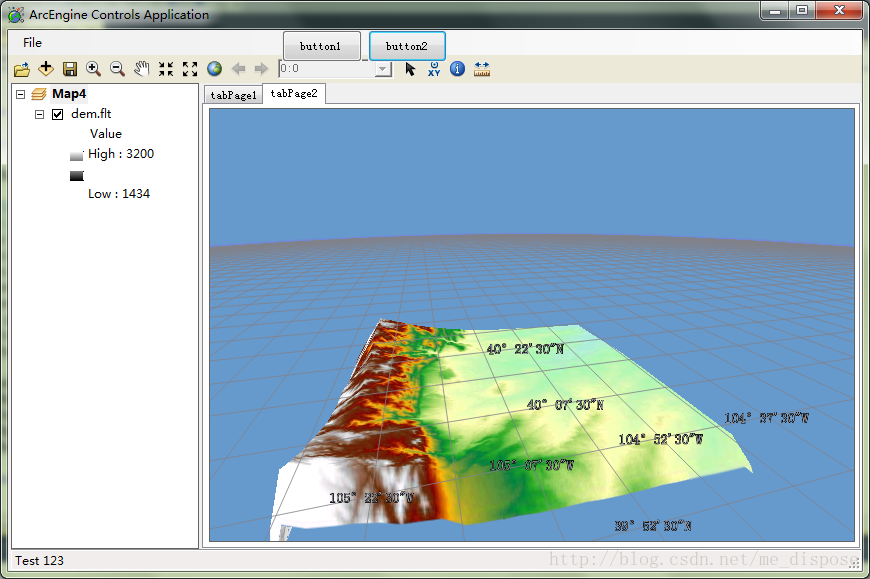

    效果如下图所示











    •



  •
