参考一：
http 流的方式
https://blog.csdn.net/u011350550/article/details/83340657
参考二：
spring boot +websocket 服务器主动推送消息
https://blog.csdn.net/qq_35638499/article/details/80928356
WebSocket协议是基于TCP的一种新的网络协议。它实现了浏览器与服务器全双工(full-duplex)通信——允许服务器主动发送信息给客户端
这里我将使用springboot2.0 集成的websocket 实现简单的服务器推送消息
1.gradle添加依赖
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-websocket</artifactId> </dependency>
2.配置spring已启动webSocket和stomp进行消息传递
//springBoot2.0版本后使用 实现WebSocketMessageBrokerConfigurer接口； //2.0以下版本继承AbstractWebSocketMessageBrokerConfigurer 类； @Configuration @EnableWebSocketMessageBroker public class WebSocketConfig implements WebSocketMessageBrokerConfigurer { @Override public void registerStompEndpoints(StompEndpointRegistry registry) { //注册一个Stomp 协议的endpoint指定URL为myWebSocket,并用.withSockJS()指定 SockJS协议。.setAllowedOrigins("*")设置跨域 registry.addEndpoint("/myWebSocket").setAllowedOrigins("*").withSockJS(); } @Override public void configureMessageBroker(MessageBrokerRegistry config) { //配置消息代理(message broker) //将消息传回给以‘/topic’开头的客户端 config.enableSimpleBroker("/topic"); } }
3.发送消息
@Component public class WebSocketComponent { @Autowired private SimpMessagingTemplate simpMessageSendingOperations;//消息发送模板 @Scheduled(fixedRate = 1000 * 30)//每隔30秒向客户端发送一次数据 public void sendMessage() { simpMessageSendingOperations.convertAndSend("/topic/ip", "我是从服务器来的消息!");//将消息推送给‘、topic/ip’的客户端 } }
4.HTML接收消息
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>webSocketTest</title>
<script src="https://code.jquery.com/jquery.min.js"></script>
<script src="https://cdn.bootcss.com/sockjs-client/1.1.0/sockjs.min.js"></script>
<script src="https://cdn.bootcss.com/stomp.js/2.3.3/stomp.min.js"></script>
</head>
<body>
<div>
<div class="form-group">
<label for="connect">WebSocket connection:</label>
<button id="connect" type="submit">Connect</button>
</div>
</div>
<script>
var stompClient = null;
function connect() {
// var socket = new SockJS("/myWebSocket");运行后端服务，在浏览器输入localhost:8080/index.html
var socket = new SockJS("http://localhost:8080/myWebSocket");//如果前后端分离项目需要拼接具体地址，前后端分离index.html可放在
stompClient = Stomp.over(socket);
stompClient.connect({}, function (frame) {
console.log(frame);
stompClient.subscribe('/topic/ip', function (body) {
console.log(body);
alert(body.body)
});
});
}
$(function () {
$("#connect").click(function (e) {
connect();
e.preventDefault();
});
});
</script>
</body>
</html>
5.springBoot启动类
@SpringBootApplication @EnableScheduling public class DsApplication { public static void main(String[] args) { SpringApplication.run(DsApplication.class, args); } }
6.前后端分离项目跨域配置
@Configuration @EnableWebMvc public class CorsConfig implements WebMvcConfigurer { @Override public void addCorsMappings(CorsRegistry registry) { registry.addMapping("/**") .allowedOrigins("*") .allowCredentials(true) .allowedMethods("GET", "POST", "DELETE", "PUT") .maxAge(3600); } }
7.如果项目有spring security需要在webSecurityConfig中配置websocket的静态资源访问
@SuppressWarnings("SpringJavaAutowiringInspection") @Configuration @EnableWebSecurity @EnableGlobalMethodSecurity(prePostEnabled = true) public class WebSecurityConfig extends WebSecurityConfigurerAdapter { @Autowired AuthenticationTokenFilter authenticationTokenFilter; @Bean public Http401AuthenticationEntryPoint unauthorizedEntryPoint() { return new Http401AuthenticationEntryPoint(""); } @Override public void configure(WebSecurity web) throws Exception { web.ignoring().antMatchers("/myWebSocket/**");//允许访问websocket定义的stomp协议资源 } @Override protected void configure(HttpSecurity httpSecurity) throws Exception { httpSecurity .cors().and() .csrf().disable() .exceptionHandling().authenticationEntryPoint(unauthorizedEntryPoint()).and() .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS).and() .authorizeRequests() // 允许对于网站静态资源的无授权访问，登录接口无授权访问 .antMatchers(HttpMethod.POST, "/**").permitAll() // 除上面外的所有请求全部需要鉴权认证 .anyRequest().authenticated(); } }
8.运行结果

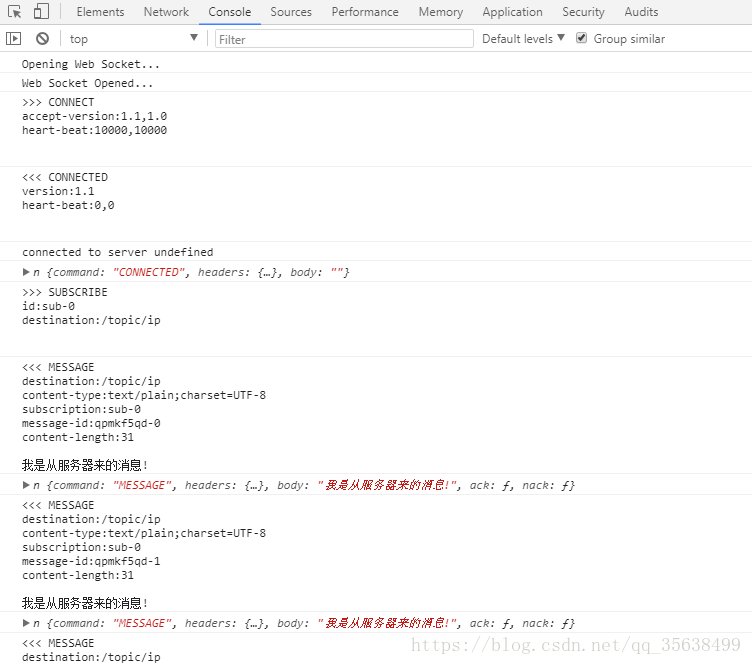

点击Connet，按F12 console 输出如下结果
