  • Java爬虫爬取京东

    需求分析

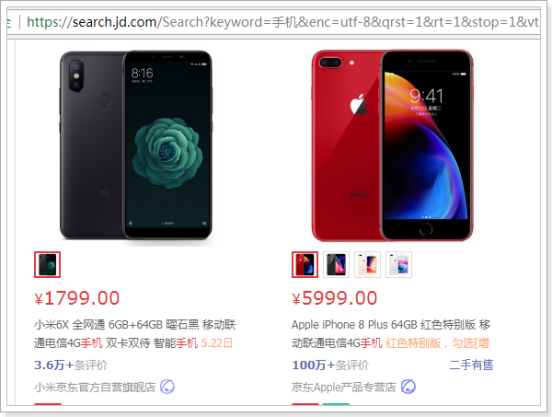

    首先访问京东,搜索手机,分析页面,我们抓取以下商品数据:

    商品图片、价格、标题、商品详情页

    image-20200827172654881

    SPU和SKU

    除了以上四个属性以外,我们发现上图中的苹果手机有四种产品,我们应该每一种都要抓取。那么这里就必须要了解spu和sku的概念。

    SPU = Standard Product Unit (标准产品单位)

    SPU是商品信息聚合的最小单位,是一组可复用、易检索的标准化信息的集合,该集合描述了一个产品的特性。通俗点讲,属性值、特性相同的商品就可以称为一个SPU。

    例如上图中的苹果手机就是SPU,包括红色、深灰色、金色、银色

    SKU=stock keeping unit(库存量单位)

    SKU即库存进出计量的单位, 可以是以件、盒、托盘等为单位。SKU是物理上不可分割的最小存货单元。在使用时要根据不同业态,不同管理模式来处理。在服装、鞋类商品中使用最多最普遍。

    例如上图中的苹果手机有几个款式,红色苹果手机,就是一个sku

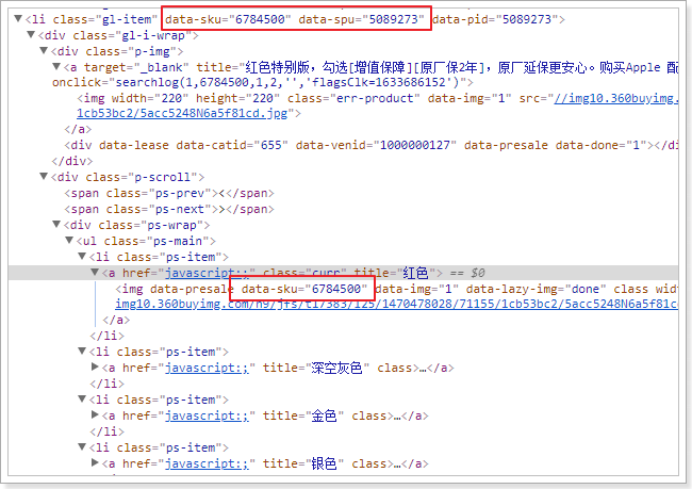

    查看页面的源码也可以看出区别

    image-20200827172825932

    开发准备

    数据库表分析

    根据需求分析,我们创建的表如下:

    CREATE TABLE `jd_item` (
      `id` bigint(10) NOT NULL AUTO_INCREMENT COMMENT '主键id',
      `spu` bigint(15) DEFAULT NULL COMMENT '商品集合id',
      `sku` bigint(15) DEFAULT NULL COMMENT '商品最小品类单元id',
      `title` varchar(100) DEFAULT NULL COMMENT '商品标题',
      `price` bigint(10) DEFAULT NULL COMMENT '商品价格',
      `pic` varchar(200) DEFAULT NULL COMMENT '商品图片',
      `url` varchar(200) DEFAULT NULL COMMENT '商品详情地址',
      `created` datetime DEFAULT NULL COMMENT '创建时间',
      `updated` datetime DEFAULT NULL COMMENT '更新时间',
      PRIMARY KEY (`id`),
      KEY `sku` (`sku`) USING BTREE
    ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COMMENT='京东商品表';


    添加依赖

    使用Spring Boot+Spring Data JPA和定时任务进行开发,

    需要创建Maven工程并添加以下依赖

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.0.2.RELEASE</version>
        </parent>
        <groupId>cn.itcast.crawler</groupId>
        <artifactId>itcast-crawler-jd</artifactId>
        <version>1.0-SNAPSHOT</version>

        <dependencies>
            <!--SpringMVC-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
            </dependency>

            <!--SpringData Jpa-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-data-jpa</artifactId>
            </dependency>

            <!--MySQL连接包-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
            </dependency>

            <!-- HttpClient -->
            <dependency>
                <groupId>org.apache.httpcomponents</groupId>
                <artifactId>httpclient</artifactId>
            </dependency>

            <!--Jsoup-->
            <dependency>
                <groupId>org.jsoup</groupId>
                <artifactId>jsoup</artifactId>
                <version>1.10.3</version>
            </dependency>

            <!--工具包-->
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-lang3</artifactId>
            </dependency>
        </dependencies>
    </project>


    添加配置文件

    加入application.properties配置文件

    #DB Configuration:
    spring.datasource.driverClassName=com.mysql.jdbc.Driver
    spring.datasource.url=jdbc:mysql://127.0.0.1:3306/crawler
    spring.datasource.username=root
    spring.datasource.password=root

    #JPA Configuration:
    spring.jpa.database=MySQL
    spring.jpa.show-sql=true


    代码实现

    编写pojo

    根据数据库表,编写pojo

    @Entity
    @Table(name = "jd_item")
    public class Item {
        //主键
        @Id
        @GeneratedValue(strategy = GenerationType.IDENTITY)
        private Long id;
        //标准产品单位(商品集合)
        private Long spu;
        //库存量单位(最小品类单元)
        private Long sku;
        //商品标题
        private String title;
        //商品价格
        private Double price;
        //商品图片
        private String pic;
        //商品详情地址
        private String url;
        //创建时间
        private Date created;
        //更新时间
        private Date updated;

        public Long getId() {
            return id;
        }

        public void setId(Long id) {
            this.id = id;
        }

        public Long getSpu() {
            return spu;
        }

        public void setSpu(Long spu) {
            this.spu = spu;
        }

        public Long getSku() {
            return sku;
        }

        public void setSku(Long sku) {
            this.sku = sku;
        }

        public String getTitle() {
            return title;
        }

        public void setTitle(String title) {
            this.title = title;
        }

        public Double getPrice() {
            return price;
        }

        public void setPrice(Double price) {
            this.price = price;
        }

        public String getPic() {
            return pic;
        }

        public void setPic(String pic) {
            this.pic = pic;
        }

        public String getUrl() {
            return url;
        }

        public void setUrl(String url) {
            this.url = url;
        }

        public Date getCreated() {
            return created;
        }

        public void setCreated(Date created) {
            this.created = created;
        }

        public Date getUpdated() {
            return updated;
        }

        public void setUpdated(Date updated) {
            this.updated = updated;
        }
    }


    编写dao层

    public interface ItemDao extends JpaRepository<Item,Long> {
    }


    编写service服务层

    ItemService接口如下:

    public interface ItemService {

        /**
         * 保存商品
         * @param item
         */
        public void save(Item item);

        /**
         * 根据条件查询商品
         * @param item
         * @return
         */
        public List<Item> findAll(Item item);
    }


    ItemServiceImpl 实现类如下:

    @Service
    public class ItemServiceImpl implements ItemService {

        @Autowired
        private ItemDao itemDao;

        @Override
        @Transactional
        public void save(Item item) {
            this.itemDao.save(item);
        }

        @Override
        public List<Item> findAll(Item item) {
            //声明查询条件
            Example<Item> example = Example.of(item);

            //根据查询条件进行查询数据
            List<Item> list = this.itemDao.findAll(example);

            return list;
        }
    }


    编写HttpUtils

    @Component
    public class HttpUtils {

        private PoolingHttpClientConnectionManager cm;

        public HttpUtils() {
            this.cm = new PoolingHttpClientConnectionManager();

            //设置最大连接数
            this.cm.setMaxTotal(100);

            //设置每个主机的最大连接数
            this.cm.setDefaultMaxPerRoute(10);
        }

        /**
         * 根据请求地址下载页面数据
         *
         * @param url
         * @return 页面数据
         */
        public String doGetHtml(String url) {
            //获取HttpClient对象
            CloseableHttpClient httpClient = HttpClients.custom().setConnectionManager(this.cm).build();

            //创建httpGet请求对象,设置url地址
            HttpGet httpGet = new HttpGet(url);

            //设置请求信息
            httpGet.setConfig(this.getConfig());

            CloseableHttpResponse response = null;


            try {
                //使用HttpClient发起请求,获取响应
                response = httpClient.execute(httpGet);

                //解析响应,返回结果
                if (response.getStatusLine().getStatusCode() == 200) {
                    //判断响应体Entity是否不为空,如果不为空就可以使用EntityUtils
                    if (response.getEntity() != null) {
                        return EntityUtils.toString(response.getEntity(), "utf8");
                    }
                }

            } catch (IOException e) {
                e.printStackTrace();
            } finally {
                //关闭response
                if (response != null) {
                    try {
                        response.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
            }
            //返回空串
            return "";
        }


        /**
         * 下载图片
         *
         * @param url
         * @return 图片名称
         */
        public String doGetImage(String url) {
            //获取HttpClient对象
            CloseableHttpClient httpClient = HttpClients.custom().setConnectionManager(this.cm).build();

            //创建httpGet请求对象,设置url地址
            HttpGet httpGet = new HttpGet(url);

            //设置请求信息
            httpGet.setConfig(this.getConfig());

            CloseableHttpResponse response = null;


            try {
                //使用HttpClient发起请求,获取响应
                response = httpClient.execute(httpGet);

                //解析响应,返回结果
                if (response.getStatusLine().getStatusCode() == 200) {
                    //判断响应体Entity是否不为空
                    if (response.getEntity() != null) {
                        //下载图片
                        //获取图片的后缀
                        String extName = url.substring(url.lastIndexOf("."));

                        //创建图片名,重命名图片
                        String picName = UUID.randomUUID().toString() + extName;

                        //下载图片
                        //声明OutPutStream
                        OutputStream outputStream = new FileOutputStream(new File("C:\Users\86152\Desktop\image\" +
                                picName));
                        response.getEntity().writeTo(outputStream);

                        //返回图片名称
                        return picName;
                    }
                }

            } catch (IOException e) {
                e.printStackTrace();
            } finally {
                //关闭response
                if (response != null) {
                    try {
                        response.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
            }
            //如果下载失败,返回空串
            return "";
        }

        //设置请求信息
        private RequestConfig getConfig() {
            RequestConfig config = RequestConfig.custom()
                    .setConnectTimeout(1000)    //创建连接的最长时间
                    .setConnectionRequestTimeout(500)  // 获取连接的最长时间
                    .setSocketTimeout(10000)    //数据传输的最长时间
                    .build();

            return config;
        }
    }


    编写ItemTask

    @Component
    public class ItemTask {

        @Autowired
        private HttpUtils httpUtils;
        @Autowired
        private ItemService itemService;

        private static final ObjectMapper MAPPER =  new ObjectMapper();


        //当下载任务完成后,间隔多长时间进行下一次的任务。
        @Scheduled(fixedDelay = 100 * 1000)
        public void itemTask() throws Exception {
            //声明需要解析的初始地址
            String url = "https://search.jd.com/Search?keyword=%E6%89%8B%E6%9C%BA&enc=utf-8&qrst=1&rt=1&stop=1&vt=2&wq" +
                    "=%E6%89%8B%E6%9C%BA&cid2=653&cid3=655&s=113&click=0&page=";

            //按照页面对手机的搜索结果进行遍历解析
            for (int i = 1; i < 10; i = i + 2) {
                String html = httpUtils.doGetHtml(url + i);
                //解析页面,获取商品数据并存储
                this.parse(html);
            }


            System.out.println("数据抓取完成!");


        }

        //解析页面,获取商品数据并存储
        private void parse(String html) throws Exception {
            //解析html获取Document
            Document doc = Jsoup.parse(html);

            //获取spu信息
            Elements spuEles = doc.select("div#J_goodsList > ul > li");
            for (Element spuEle : spuEles) {
                //获取spu
                long spu;
                if("".equals(spuEle.attr("data-spu"))){
                    spu = 0L;
                }else{
                    spu = Long.parseLong(spuEle.attr("data-spu"));
                }

                //获取sku信息
                Elements skuEles = spuEle.select("li.gl-item");

                for (Element skuEle : skuEles) {
                    //获取sku
                    long sku = Long.parseLong(skuEle.select("[data-sku]").attr("data-sku"));
                    //根据sku查询商品数据
                    Item item = new Item();
                    item.setSku(sku);
                    List<Item> list = this.itemService.findAll(item);

                    if(list.size()>0) {
                        //如果商品存在,就进行下一个循环,该商品不保存,因为已存在
                        continue;
                    }

                    //设置商品的spu
                    item.setSpu(spu);

                    //获取商品的详情的url
                    String itemUrl = "https://item.jd.com/" + sku + ".html";
                    item.setUrl(itemUrl);


                    //获取商品的图片

                    String picUrl ="https:"+ skuEle.select("img[data-img]").first().attr("src");

                    String picName = this.httpUtils.doGetImage(picUrl);
                    item.setPic(picName);

                    //获取商品的价格
                    String priceJson = skuEle.select(".p-price > strong > i").first().text();
                    double price = Double.parseDouble(priceJson);

                    item.setPrice(price);


                    //获取商品的标题
                    String title = skuEle.select(".p-name > a > em").first().text();
                    item.setTitle(title);


                    item.setCreated(new Date());
                    item.setUpdated(item.getCreated());

                    //保存商品数据到数据库中
                    this.itemService.save(item);

                }
            }
        }

    }


    编写启动类

    @SpringBootApplication
    //使用定时任务,需要先开启定时任务,需要添加注解
    @EnableScheduling
    public class Application {

        public static void main(String[] args) {
            SpringApplication.run(Application.class, args);
        }
    }

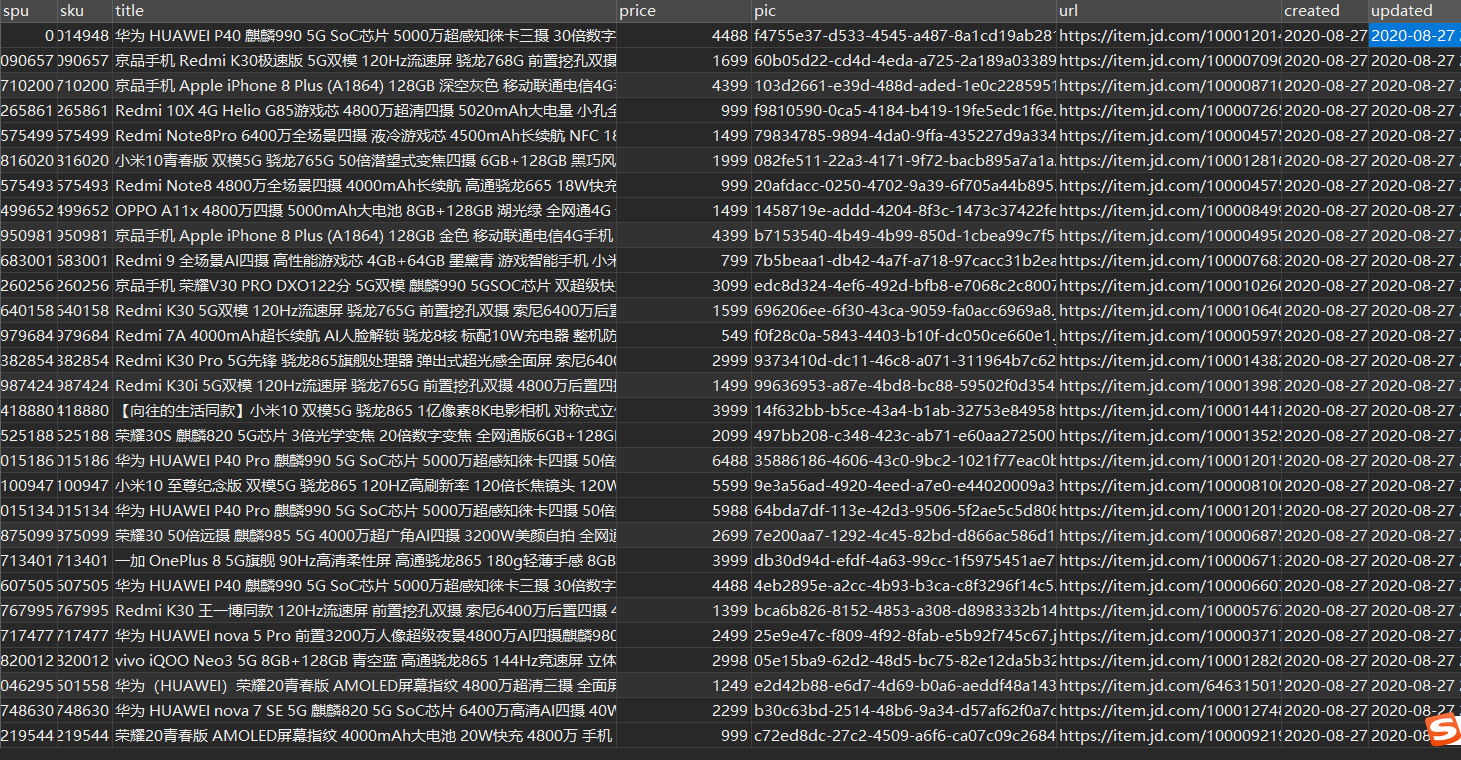

    结果如下:

    QQ截图20200827232441

    别废话,拿你代码给我看。
