流量取证-提取文件

PCAP 报文就是抓取实际在网络中传输的图片，视频等数据，然后以PCAP 格式存储形成的文件。工作中对离线的数据包进行回溯分析，有时会遇到将 PCAP 中的码流还原成相应的图片、视频、邮件等原有格式的需求。

从流量中取证文件大部分情况下是为了提取流量中的可执行程序。

1、 tcpxtract

安装：

apt-get install tcpxtract

http://www.rpmfind.net/linux/rpm2html/search.php?query=tcpxtract # 下载对应版本

查看帮助：

root@kali:~# tcpxtract -h

Usage: tcpxtract [OPTIONS] [[-d <DEVICE>] [-f <FILE>]]

Valid options include:

–file, -f <FILE> to specify an input capture file instead of a device 指定输入捕获文件

–device, -d <DEVICE> to specify an input device (i.e. eth0) 指定输入设备(即eth0)

–config, -c <FILE> use FILE as the config file 使用FILE作为配置文件

–output, -o <DIRECTORY> dump files to DIRECTORY instead of current directory 将文件转储

–version, -v display the version number of this program

–help, -h display this lovely screen

下载 pcap 流量包：

wget http://forensicscontest.com/contest01/evidence01.pcap

查看要恢复的文件：

tcpxtract -f evidence01.pcap

查看恢复后的文件

打开文件：

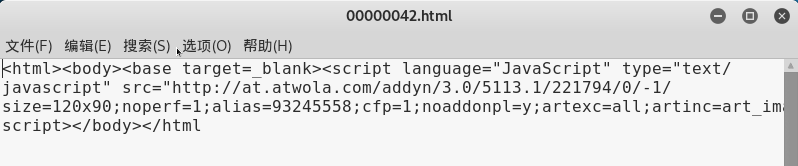

leafpad 00000042.html

2、 NetworkMiner

安装 NetworkMiner：

从 http://sourceforge.net/projects/networkminer/files/latest/download 下载

或者

https://nchc.dl.sourceforge.net/project/networkminer/networkminer/NetworkMiner-1.6.1/NetworkMiner_1-6-1.zip

打开 PCAP 文件

查看提取出来的文件

3、wireshark 还原文件

查看帮助

root@kali:~# wireshark -h

Wireshark 2.6.6 (Git v2.6.6 packaged as 2.6.6-1)

Interactively dump and analyze network traffic.

See https://www.wireshark.org for more information.

Usage: wireshark [options] … [ <infile> ]

Capture interface:

-i <interface> name or idx of interface (def: first non-loopback)

-f <capture filter> packet filter in libpcap filter syntax

-s <snaplen> packet snapshot length (def: appropriate maximum)

-p don’t capture in promiscuous mode

-k start capturing immediately (def: do nothing)

-S update packet display when new packets are captured

-l turn on automatic scrolling while -S is in use

-I capture in monitor mode, if available

-B <buffer size> size of kernel buffer (def: 2MB)

-y <link type> link layer type (def: first appropriate)

–time-stamp-type <type> timestamp method for interface

-D print list of interfaces and exit

-L print list of link-layer types of iface and exit

–list-time-stamp-types print list of timestamp types for iface and exit

Capture stop conditions:

-c <packet count> stop after n packets (def: infinite)

-a <autostop cond.> … duration:NUM – stop after NUM seconds

filesize:NUM – stop this file after NUM KB

files:NUM – stop after NUM files

Capture output:

-b <ringbuffer opt.> … duration:NUM – switch to next file after NUM secs

filesize:NUM – switch to next file after NUM KB

files:NUM – ringbuffer: replace after NUM files

Input file:

-r <infile> set the filename to read from (no pipes or stdin!)

Processing:

-R <read filter> packet filter in Wireshark display filter syntax

-n disable all name resolutions (def: all enabled)

-N <name resolve flags> enable specific name resolution(s): “mnNtdv”

-d <layer_type>==<selector>,<decode_as_protocol> …

“Decode As”, see the man page for details

Example: tcp.port==8888,http

–enable-protocol <proto_name>

enable disp of proto_name

–disable-protocol <proto_name>

disable disp of proto_name

–enable-heuristic <short_name>

enable disp of heuristic protocol

–disable-heuristic <short_name>

disable disp of heuristic protocol

User interface:

-C <config profile> start with specified configuration profile

-Y <display filter> start with the given display filter

-g <packet number> go to specified packet number after “-r”

-J <jump filter> jump to the first packet matching the (display)

filter

-j search backwards for a matching packet after “-J”

-m <font> set the font name used for most text

-t a|ad|d|dd|e|r|u|ud output format of time stamps (def: r: rel. to first)

-u s|hms output format of seconds (def: s: seconds)

-X <key>:<value> eXtension options, see man page for details

-z <statistics> show various statistics, see man page for details

Output:

-w <outfile|-> set the output filename (or ‘-‘ for stdout)

Miscellaneous:

-h display this help and exit

-v display version info and exit

-P <key>:<path> persconf:path – personal configuration files

persdata:path – personal data files

-o <name>:<value> … override preference or recent setting

-K <keytab> keytab file to use for kerberos decryption

–display=DISPLAY X display to use

–fullscreen start Wireshark in full screen

打开pcap文件：

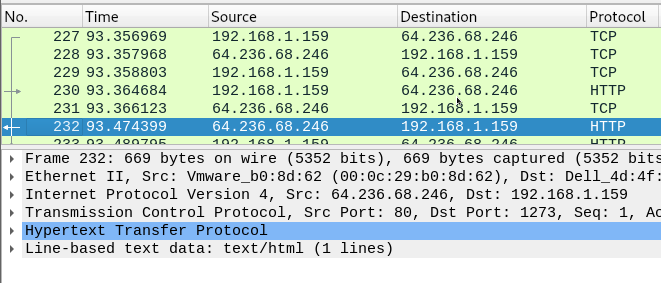

wireshark evidence01.pcap

查看还原文件：

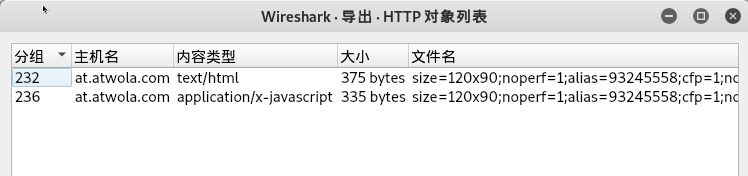

文件–》导出对象–》HTTP

查看PE文件

file * | grep PE

4. foremost

kali 2.0 默认安装

查看帮助

root@kali:~# foremost -h

foremost version 1.5.7 by Jesse Kornblum, Kris Kendall, and Nick Mikus.

$ foremost [-v|-V|-h|-T|-Q|-q|-a|-w-d] [-t <type>] [-s <blocks>] [-k <size>]

[-b <size>] [-c <file>] [-o <dir>] [-i <file]

-V – display copyright information and exit

-t – specify file type. (-t jpeg,pdf …)

-d – turn on indirect block detection (for UNIX file-systems)

-i – specify input file (default is stdin)

-a – Write all headers, perform no error detection (corrupted files)

-w – Only write the audit file, do not write any detected files to the disk

-o – set output directory (defaults to output)

-c – set configuration file to use (defaults to foremost.conf)

-q – enables quick mode. Search are performed on 512 byte boundaries.

-Q – enables quiet mode. Suppress output messages.

-v – verbose mode. Logs all messages to screen

# 还原文件

foremost -v -i evidence01.pcap

5、Chaosreader

# 下载 chaosreader

wget https://github.com/brendangregg/Chaosreader/archive/master.zip

mv master.zip chaosreader.zip

unzip chaosreader.zip

还原文件：

root@kali:~# cd Chaosreader-master

root@kali:~/Chaosreader-master# ls

chaosreader older_versions README.md

查看PE文件：

file * | grep PE

参考文档

http://blog.sina.com.cn/s/blog_e8e60bc00102vfd9.html

http://www.behindthefirewalls.com/2014/01/extracting-files-from-network-traffic-pcap.html
