Mybatis配置过程——增删改查实例

一、配置过程：

1. 创建一个项目

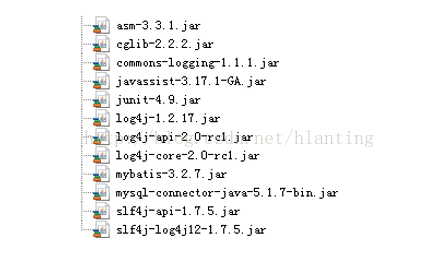

2. 导入所有的Jar包

       数据库驱动

       MyBatis核心包

       MyBatis依赖包

       JUnit



3. 配置log4j

4. 创建MyBatis的核心配置文件 SqlMapConfig.xml

5. 创建实体类

       实体类定义的规则

       1.实体类的属性要与数据库中的字段相对应

       2.属性要私有化，同时提供每个属性的setter getter;

       3.实体类必须要有无参的构造方法



6. 创建Mapper配置

       namespace命名空间，隔离不同的SQL操作

       SQL操作节点： select update insert delete     CRUD

              id：指定一个唯一的名称

              parameterType：指定参数的类型

              resultType：指定返回结果的类型

              SQL语句：参数的传递有两种方式，1. #{} 2. ${}

              当有多个参数需要传递给SQL语句时，先将这些参数封装到实体类中，以对象的方式传递

                     此时，可以使用#{属性名} ${属性名}来访问这些参数



7. 在SqlMapConfig.xml中声明一下User.xml

8. 编写测试代码

       1.创建SqlSessionFactory

       2.创建SqlSession

       3.根据映射关系调用SQL

       4.处理

       5.关闭SqlSession

二、实例：

使用Mybaits对User表进行CRUD

查询：根据ID查询，　根据用户名称模糊查询

1.创建数据库表user

CREATE TABLE `user` (

  `id` int(11) NOT NULL AUTO_INCREMENT,

  `username` varchar(32) NOT NULL COMMENT '用户名称',

  `birthday` date DEFAULT NULL COMMENT '生日',

  `sex` varchar(1) DEFAULT NULL COMMENT '性别',

  `address` varchar(256)DEFAULT NULL COMMENT '地址',

  PRIMARY KEY (`id`)

)

2.创建java工程，然后加入mybatis核心包、依赖包、数据驱动包。



3.在src下创建log4j.properties如下(此步骤可以省略，主要是为打印log日志，可查看执行的sql)：

#Global logging configuration

log4j.rootLogger=DEBUG,stdout

#Console output...

log4j.appender.stdout=org.apache.log4j.ConsoleAppender

log4j.appender.stdout.layout=org.apache.log4j.PatternLayout

log4j.appender.stdout.layout.ConversionPattern=%5p[%t]-%m%n

4. 在src下创建mybatis核心配置文件SqlMapConfig.xml，如下：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis,org/dtd/mybatis-3-config.dtd">
<configuration>
	<!-- 和spring整合后 environments配置将废除-->
	<environments default="development">
		<environment id="development">
		<!-- 使用jdbc事务管理-->
			<transactionManager type="JDBC" />
		<!-- 数据库连接池-->
			<dataSource type="POOLED">
				<property name="driver" value="com.mysql.jdbc.Driver"/>
				<property name="url" value="jdbc:mysql://localhost:3306/mybatis?characterEncoding=utf-8"/>
				<property name="username" value="root"/>
				<property name="password" value="root"/>
			</dataSource>
		</environment>
	</environments>
	<mappers>
		<mapper resource="User.xml"/>
	</mappers>
</configuration>

5. Po类作为mybatis进行sql映射使用，po类通常与数据库表对应，User.java如下：

package com.mybatis.po;

import java.text.SimpleDateFormat;
import java.util.Date;

public class User {
	private int id;
	private String username;
	private Date birthday;
	private String sex;
	private String address;
	public User(){
		super();
	}
	public int getId() {
		return id;
	}
	public void setId(int id) {
		this.id = id;
	}
	public String getUsername() {
		return username;
	}
	public void setUsername(String username) {
		this.username = username;
	}
	public Date getBirthday() {
		return birthday;
	}
	public void setBirthday(Date birthday) {
		this.birthday = birthday;
	}
	public String getSex() {
		return sex;
	}
	public void setSex(String sex) {
		this.sex = sex;
	}
	public String getAddress() {
		return address;
	}
	public void setAddress(String address) {
		this.address = address;
	}
	@Override
	public String toString() {
		SimpleDateFormat bir = new SimpleDateFormat("yyyy-MM-dd");
		return "User [id=" + id + ", username=" + username + ", birthday=" + bir.format(birthday) + ", sex=" + sex + ", address="
				+ address + "]";
	}
}

6.在src下创建sql映射文件User.xml：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis,org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="test">
	<select id="findUserById" parameterType="int" resultType="com.mybatis.po.User">
		select * from user where id = #{id}
	</select>
	<select id="findUserByName" parameterType="String" resultType="com.mybatis.po.User">
		select * from user where username like '%${value}%'
	</select>
	<select id="addUser" parameterType="com.mybatis.po.User"  resultType="int">
		 insert into user(username,birthday,sex,address) values(#{username},#{birthday},#{sex},#{address})
		<!--insert into user(username,sex,address) values(#{username},#{sex},#{address}) -->
	</select>
	<update id="updateUserById" parameterType="com.mybatis.po.User" >
		update user set username=#{username},birthday=#{birthday},sex=#{sex},address=#{address} where id=#{id};
		<!--update user set username=#{username},sex=#{sex},address=#{address} where id=#{id}; -->
	</update>
	<delete id="deleteUserById" parameterType="int" >
		delete from user where id=#{id};
	</delete>
</mapper>

7.在SqlMapConfig.xml中声明一下User.xml:

        <mappers>
		<mapper resource="User.xml"/>
	</mappers>

8. 编写测试代码 MainTest.java

package com.mybatis.test;

import java.io.IOException;
import java.io.InputStream;
import java.text.DateFormat;
import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import java.util.Scanner;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;

import com.mybatis.po.User;

public class MainTest {
	@Test
	//根据ID查询
	public void findUserById() throws IOException{
		String resource="SqlMapConfig.xml";
		InputStream inputStream=Resources.getResourceAsStream(resource);
		SqlSessionFactory factory=new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession openSession=factory.openSession();
		Scanner sc=new Scanner(System.in);
		System.out.println("请输入id:");
		int id=sc.nextInt();
		User user=openSession.selectOne("test.findUserById", id);
		System.out.println(user);
		openSession.close();
	}
	@Test
	//用户名关键字查询
	public void findUserByName() throws IOException{
		String resource="SqlMapConfig.xml";
		InputStream inputStream=Resources.getResourceAsStream(resource);
		SqlSessionFactory factory=new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession openSession=factory.openSession();
		System.out.println("请输入用户名关键字:");
		Scanner sc=new Scanner(System.in);
		String username=sc.next();
		List<User>list=openSession.selectList("test.findUserByName",username);
		System.out.println(list);
		openSession.close();
	}
	@Test
	//添加用户
	public void addUser() throws IOException, ParseException{
		String resource="SqlMapConfig.xml";
		InputStream inputStream=Resources.getResourceAsStream(resource);
		SqlSessionFactory factory=new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession openSession=factory.openSession();
		Scanner sc=new Scanner(System.in);
		System.out.println("请输入用户名:");
		String username=sc.next();
		System.out.println("请输入生日:");
		String birthday1=sc.next();
		DateFormat format=new SimpleDateFormat("yyyy-MM-dd");
		Date birthday=format.parse(birthday1);
		System.out.println("请输入性别:");
		String sex=sc.next();
		System.out.println("请输入地址:");
		String address=sc.next();
		User user=new User();
		user.setUsername(username);
		user.setBirthday(birthday);
		user.setSex(sex);
		user.setAddress(address);
		user.getId();
		int result=openSession.insert("test.addUser", user);
		openSession.commit();
		System.out.println(result);
		openSession.close();
	}
	@Test
	//修改用户信息
	public void updateUserById() throws IOException{
		String resource="SqlMapConfig.xml";
		InputStream inputStream=Resources.getResourceAsStream(resource);
		SqlSessionFactory factory=new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession openSession=factory.openSession();
		Scanner sc=new Scanner(System.in);
		System.out.println("请输入id:");
		int id=sc.nextInt();
		User user=openSession.selectOne("test.findUserById", id);
		System.out.println("请输入用户名:");
		String username=sc.next();
		System.out.println("请输入生日:");
		String birthday1=sc.next();
		DateFormat format=new SimpleDateFormat("yyyy-MM-dd");
		Date birthday = null;
		try {
			birthday = format.parse(birthday1);
		} catch (ParseException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		System.out.println("请输入性别:");
		String sex=sc.next();
		System.out.println("请输入地址:");
		String address=sc.next();
		user.setUsername(username);
	    user.setBirthday(birthday);
		user.setSex(sex);
		user.setAddress(address);
		user.getId();
		openSession.update("test.updateUserById", user);
		openSession.commit();
		System.out.println(user);
		openSession.close();
	}
	@Test
	//根据ID删除用户
	public void deleteUserById() throws IOException{
		String resource="SqlMapConfig.xml";
		InputStream inputStream=Resources.getResourceAsStream(resource);
		SqlSessionFactory factory=new SqlSessionFactoryBuilder().build(inputStream);
		SqlSession openSession=factory.openSession();
		System.out.println("请输入id:");
		Scanner sc=new Scanner(System.in);
		int id=sc.nextInt();
		openSession.delete("test.deleteUserById", id);
		openSession.commit();
		openSession.close();
	}

	public static void main(String[] args) throws IOException, ParseException{
		while(true){
		System.out.println("***************************************************");
		System.out.println("1.ID查询  2.用户名关键字查询  3.添加用户  4.修改用户信息  5.删除用户  6.退出");
		System.out.println("***************************************************");
		MainTest mainTest=new MainTest();
		Scanner sc=new Scanner(System.in);
		System.out.println("请输入要进行操作的序号：");
		int num=sc.nextInt();
		switch (num) {
		case 1:
				mainTest.findUserById();
		        break;
		case 2:
				mainTest.findUserByName();
				break;
		case 3:
				mainTest.addUser();
				break;
		case 4:
			mainTest.updateUserById();
			break;
		case 5:mainTest.deleteUserById();
		    break;
		case 6:System.out.println("感谢使用！");
			return;
		default:
			System.out.println("输入有误");
			break;
		}
	}
	}
}

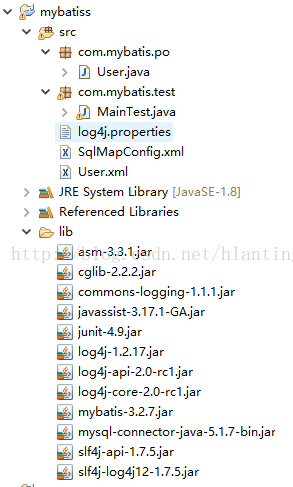

9.项目结构：
