  • CUDA二维纹理内存+OpenCV图像滤波

    CUDA和OpenCV混合编程,使用CUDA的纹理内存,实现图像的二值化以及滤波功能。


    #include <cuda_runtime.h>
    #include <highgui/highgui.hpp>
    #include <imgproc/imgproc.hpp>

    using namespace cv;

    int width = 512;
    int height = 512;

    // 2维纹理
    texture<float, 2, cudaReadModeElementType> texRef;

    // 核函数
    __global__ void transformKernel(uchar* output, int width, int height)
    {
    	// 根据tid bid计算归一化的拾取坐标
    	unsigned int x = blockIdx.x * blockDim.x + threadIdx.x;
    	unsigned int y = blockIdx.y * blockDim.y + threadIdx.y;
    	float u = x / (float)width;
    	float v = y / (float)height;

    	//从纹理存储器中拾取数据,并写入显存
    	output[(y * width + x)] = tex2D(texRef, u / 4, v / 4);
    }

    int main()
    {
    	// 分配CUDA数组
    	cudaChannelFormatDesc channelDesc = cudaCreateChannelDesc(32, 0, 0, 0, cudaChannelFormatKindFloat);
    	cudaArray* cuArray;
    	cudaMallocArray(&cuArray, &channelDesc, width, height);

    	//使用OpenCV读入图像
    	Mat image = imread("D:\lena.jpg", 0);
    	resize(image, image, Size(width, height));
    	imshow("原始图像", image);

    	cudaMemcpyToArray(cuArray, 0, 0, image.data, width*height, cudaMemcpyHostToDevice);

    	// 设置纹理属性
    	texRef.addressMode[0] = cudaAddressModeWrap; //循环寻址方式
    	texRef.addressMode[1] = cudaAddressModeWrap;
    	texRef.filterMode = cudaFilterModeLinear;   //线性滤波
    	texRef.normalized = true; //归一化坐标

    	//绑定纹理
    	cudaBindTextureToArray(texRef, cuArray, channelDesc);

    	Mat imageOutput = Mat(Size(width, height), CV_8UC1);
    	uchar * output = imageOutput.data;

    	cudaMalloc((void**)&output, width * height * sizeof(float));

    	dim3 dimBlock(16, 16);
    	dim3 dimGrid((width + dimBlock.x - 1) / dimBlock.x, (height + dimBlock.y - 1) / dimBlock.y);

    	transformKernel << <dimGrid, dimBlock >> > (output, width, height);

    	cudaMemcpy(imageOutput.data, output, height*width, cudaMemcpyDeviceToHost);

    	imshow("CUDA+OpenCV滤波", imageOutput);
    	waitKey();

    	cudaFreeArray(cuArray);
    	cudaFree(output);
    }

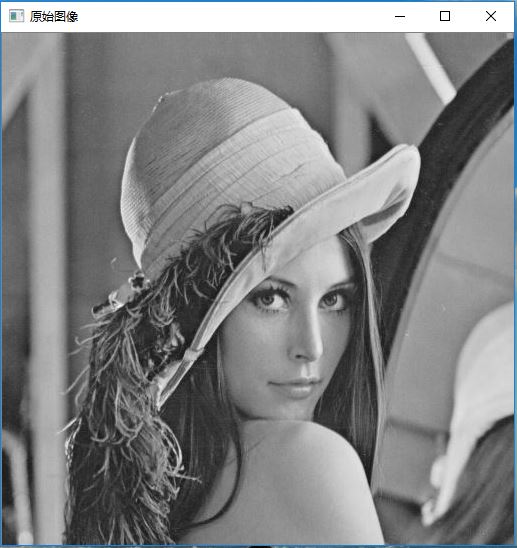

    原始lena图像:



    运行效果:
