  • OpenCV——Skewing

    // define head function
    #ifndef PS_ALGORITHM_H_INCLUDED
    #define PS_ALGORITHM_H_INCLUDED

    #include <iostream>
    #include <string>
    #include "cv.h"
    #include "highgui.h"
    #include "cxmat.hpp"
    #include "cxcore.hpp"
    #include "math.h"

    using namespace std;
    using namespace cv;

    void Show_Image(Mat&, const string &);

    #endif // PS_ALGORITHM_H_INCLUDED


    #include "PS_Algorithm.h"
    #include <time.h>

    using namespace std;
    using namespace cv;

    #define pi 3.1415926

    int main()
    {
        string Img_name("4.jpg");
        Mat Img;
        Img=imread(Img_name);

        float theta=pi/6;

        int width=Img.cols;
        int height=Img.rows;

        /*
        // horizontal skewing
        int new_height=height;
        int new_width=width+height*tan(theta)+1;
        Mat Img_H=Mat::zeros(new_height,new_width, CV_8UC3);

        float Dis;
        float new_x, new_y;
        float x1, y1, p;
        for (int y=0; y<new_height; y++)
        {
            Dis=(height-y)*tan(theta);
            for (int x=0; x<new_width; x++)
            {
                new_y=y;
               // right skew
               //  new_x=x-Dis;
               // left skew
                 new_x=x+Dis-height*tan(theta);

              // if (new_x<0) new_x=0;
              // if (new_x>width-1) new_x=width-2;

              if (new_x>0 && new_x<width-1)
              {
                    x1=int(new_x);
                    y1=int(new_y);
                    p=new_x-x1;

                    Img_H.at<Vec3b>(y,x)[0]=(1-p)*Img.at<Vec3b>(y1,x1)[0]+p*Img.at<Vec3b>(y1,x1+1)[0];
                    Img_H.at<Vec3b>(y,x)[1]=(1-p)*Img.at<Vec3b>(y1,x1)[1]+p*Img.at<Vec3b>(y1,x1+1)[1];
                    Img_H.at<Vec3b>(y,x)[2]=(1-p)*Img.at<Vec3b>(y1,x1)[2]+p*Img.at<Vec3b>(y1,x1+1)[2];

              }

            }
        }
        Show_Image(Img_H, "out");
        imwrite("H.jpg", Img_H);
        */


        // vertical skewing
        int new_height=height+width*tan(theta)+1;
        int new_width=width;
        Mat Img_V=Mat::zeros(new_height,new_width, CV_8UC3);

        float Dis;
        float new_x, new_y;
        float x1, y1, p;
        for (int y=0; y<new_height; y++)
        {

            for (int x=0; x<new_width; x++)
            {
                Dis=x*tan(theta);
                new_x=x;
               // right skew
               new_y=y-Dis;
               // left skew
               //  new_y=y+Dis-width*tan(theta);

              if (new_y>0 && new_y<height-1)
              {
                    x1=int(new_x);
                    y1=int(new_y);
                    p=new_y-y1;

                    Img_V.at<Vec3b>(y,x)[0]=(1-p)*Img.at<Vec3b>(y1,x1)[0]+p*Img.at<Vec3b>(y1+1,x1)[0];
                    Img_V.at<Vec3b>(y,x)[1]=(1-p)*Img.at<Vec3b>(y1,x1)[1]+p*Img.at<Vec3b>(y1+1,x1)[1];
                    Img_V.at<Vec3b>(y,x)[2]=(1-p)*Img.at<Vec3b>(y1,x1)[2]+p*Img.at<Vec3b>(y1+1,x1)[2];

              }

            }
        }
        Show_Image(Img_V, "out");
        imwrite("V.jpg", Img_V);


        waitKey();

    }


    // define the show image
    #include "PS_Algorithm.h"
    #include <iostream>
    #include <string>

    using namespace std;
    using namespace cv;

    void Show_Image(Mat& Image, const string& str)
    {
        namedWindow(str.c_str(),CV_WINDOW_AUTOSIZE);
        imshow(str.c_str(), Image);

    }

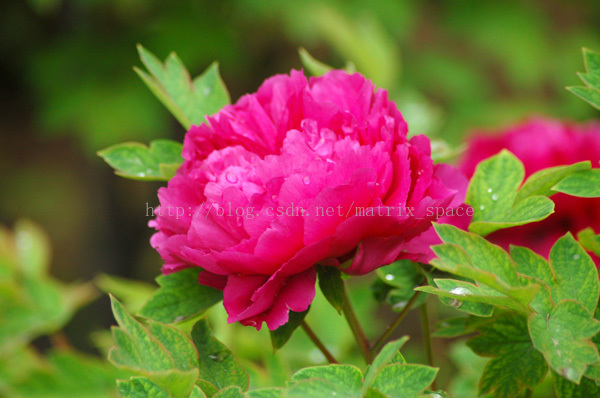

    原图

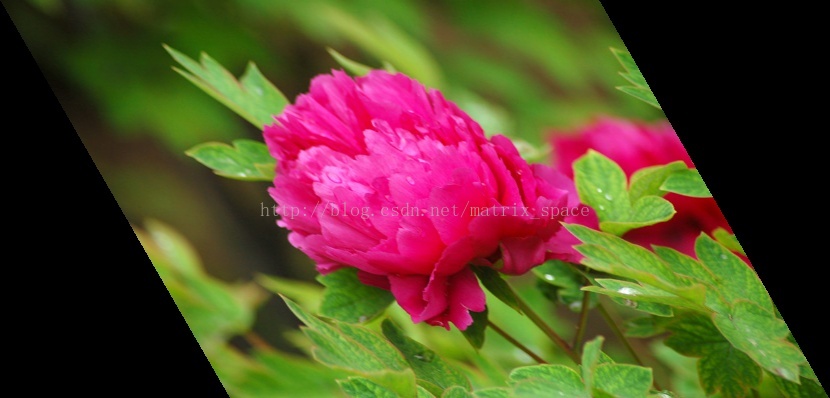

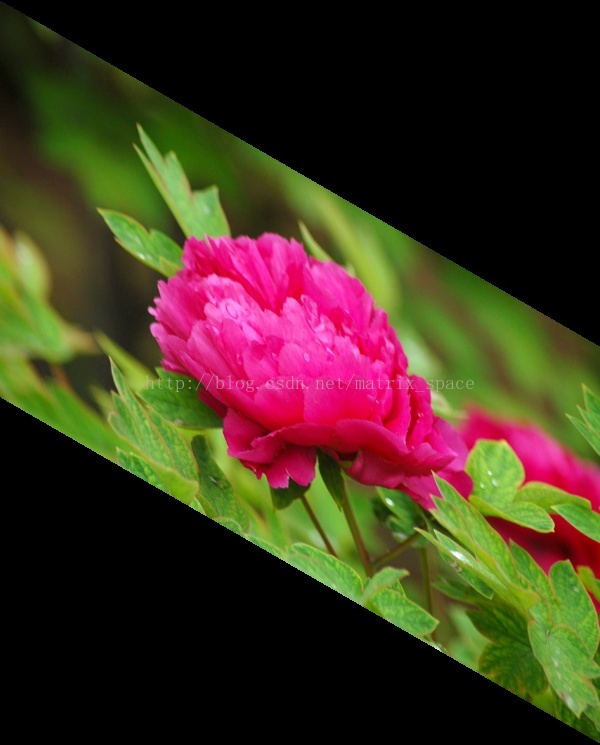

    效果图
