  • android 引导界面的实现

    文章出处:http://blog.csdn.net/djy1992/article/details/9020831

    现在越来越多程序都有引导页面了。

    网上资料不全。现在自己实现下。

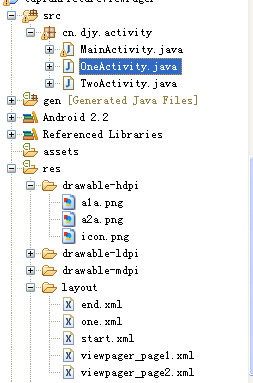

    下图是总的目录结构。

    /**
     * 实现
     * @author dujinyang
     *
     */



    顺序是: OneAcitivity  -->MainActivity -> TwoActivity

    然后第2次进去就是:OneActivity -> TwoActivity

    代码里都有注释的了,这里就不多说了。



    OneActivity的代码如下:

    package cn.djy.activity;

    import android.app.Activity;
    import android.content.Context;
    import android.content.Intent;
    import android.os.Bundle;
    import android.os.Handler;

    /**
     * 开机动画
     * @author Administrator
     *
     */
    public class OneActivity extends Activity {

    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		// TODO Auto-generated method stub
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.one);

    		boolean flag=this.isFirstEnter(getApplicationContext(), this.getClass().getName());
    		if(flag)
    			mHandler.sendEmptyMessageDelayed(SWITCH_GUIDACTIVITY,4000);
    		else
    			mHandler.sendEmptyMessageDelayed(SWITCH_TWOACTIVITY, 4000);

    	}

    	//***********************************************************************
    	//判断应用是否初次加载,读取SharedPreferences 的字段
    	//***********************************************************************
    	private static final String SHAREDPREFERENCES_NAME="yang";
    	private static final String KEY_GUIDE_ACTIVITY="Open";
    	/**
    	 * mResultStr.equalsIgnoreCase("false") 返回FALSE
    	 * TRUE 则为空值
    	 * @param context
    	 * @param className
    	 * @return boolean
    	 */
    	private boolean isFirstEnter(Context context,String className){
    		if(context==null || className ==null || "".equalsIgnoreCase(className)) return false;
    		String mResultStr=context.getSharedPreferences(SHAREDPREFERENCES_NAME,Context.MODE_WORLD_READABLE).getString(KEY_GUIDE_ACTIVITY, "");
    		if(mResultStr.equalsIgnoreCase("false"))
    			return false;
    		else
    			return true;
    	}


    	//****************************************
    	//Handler:跳转至不同页面
    	//****************************************
    	private final static int SWITCH_TWOACTIVITY=1000; //主页

    	private final static int SWITCH_GUIDACTIVITY=1001; //滑动手势
    	private Handler mHandler=new Handler(){
    		public void handleMessage(android.os.Message msg) {
    			switch (msg.what) {
    			case SWITCH_TWOACTIVITY:
    					Intent intent=new Intent();
    					intent.setClass(OneActivity.this,TwoActivity.class);
    					OneActivity.this.startActivity(intent);
    				//	OneActivity.this.finish();
    				break;
    			case SWITCH_GUIDACTIVITY:
    					Intent intents=new Intent();
    					intents.setClass(OneActivity.this,MainActivity.class);
    					OneActivity.this.startActivity(intents);
    				//	OneActivity.this.finish();
    					break;
    			}
    			super.handleMessage(msg);
    		};
    	};

    }



    MainActivity的代码如下:

    package cn.djy.activity;

    import java.util.ArrayList;

    import android.app.Activity;
    import android.content.Intent;
    import android.content.SharedPreferences;
    import android.os.Bundle;
    import android.os.Parcelable;
    import android.support.v4.view.PagerAdapter;
    import android.support.v4.view.ViewPager;
    import android.support.v4.view.ViewPager.OnPageChangeListener;
    import android.view.LayoutInflater;
    import android.view.View;
    import android.view.View.OnClickListener;
    import android.view.ViewGroup;
    import android.view.ViewGroup.LayoutParams;
    import android.widget.Button;
    import android.widget.ImageView;
    import android.widget.TwoLineListItem;
    /**
     * 实现
     * @author dujinyang
     *
     */
    public class MainActivity extends Activity {

    	private ViewPager _viewpager;

    	/**
    	 * 分页显示的View数组
    	 */
    	private ArrayList<View> _pagerlist;
    	private ImageView image;

    	/**
    	 * 小圆点的图片 放进数组
    	 */
    	private ImageView[] _imageViews;

    	//包裹滑动的图片Linearlayout
    	private ViewGroup _group;

    	//包裹小圆点的Linearlayout
    	private ViewGroup _viewPonits;




        /** Called when the activity is first created. */
        @Override
        public void onCreate(Bundle savedInstanceState) {
            super.onCreate(savedInstanceState);
            setContentView(R.layout.start);

            LayoutInflater inflater=getLayoutInflater();
            _pagerlist =new ArrayList<View>();
            _pagerlist.add(inflater.inflate(R.layout.viewpager_page1,null));
            _pagerlist.add(inflater.inflate(R.layout.viewpager_page2,null));

            //创建Imageviews数组,大小是要显示的图片数量
            _imageViews =new ImageView[_pagerlist.size()];



    //        ViewGroup
            _group =(ViewGroup) inflater.inflate(R.layout.start, null);//加载MAIN.XML

            _viewPonits=(ViewGroup) _group.findViewById(R.id.icon_circle);//加载小圆点的图片

            _viewpager =(ViewPager) _group.findViewById(R.id.guidePages);//android.support.v4.view.ViewPager


            //添加小圆点的图片
            for (int i = 0; i < _imageViews.length; i++) {
    			 image= new ImageView(this);
    			 //设置小圆点的imageview的参数
    			 image.setLayoutParams(new LayoutParams(20,20));//宽高均为20
    			 image.setPadding(20, 0, 20, 0);
    			 _imageViews[i]=image;

    			 //第一张是选中状态
    			 if(i==0){
    				 _imageViews[i].setBackgroundResource(R.drawable.a2a);
    			 }else{
    				 _imageViews[i].setBackgroundResource(R.drawable.a1a);
    			 }
    			 _viewPonits.addView(_imageViews[i]);
    		}
            //显示视图
            setContentView(_group);
            _viewpager.setAdapter(new GuidePageAdapter());
            _viewpager.setOnPageChangeListener(new GuidePageChangeListener());
        }


        void setGuided(){
        	SharedPreferences shared=getSharedPreferences("yang",0);
        	SharedPreferences.Editor editor=shared.edit();
        	editor.putString("Open", "false");
        	editor.commit();
        }

        class GuidePageAdapter extends PagerAdapter{

    		@Override
    		public int getCount() {
    			return _pagerlist.size();
    		}

    		//initalization position page
    		@Override
    		public Object instantiateItem(View container, int position) {
    			((ViewPager)container).addView(_pagerlist.get(position));
    			if(position==1){
    				Button bt=(Button) container.findViewById(R.id.bt_close);
    				bt.setOnClickListener(new OnClickListener() {
    					@Override
    					public void onClick(View v) {
    						//设置已经引导
    						setGuided();
    						//Intent
    						Intent intent=new Intent();
    						intent.setClass(MainActivity.this,TwoActivity.class );
    						MainActivity.this.startActivity(intent);
    						MainActivity.this.finish();
    					}
    				});

    			}
    			return _pagerlist.get(position);
    		}


    		//判断是否由对象生成页面
    		@Override
    		public boolean isViewFromObject(View view, Object obj) {
    			return view==obj;
    		}

    		//销毁页面的位置
    		@Override
    		public void destroyItem(View container, int position, Object object) {
    			((ViewPager)container).removeView(_pagerlist.get(position));
    		}


    		@Override
    		public void finishUpdate(View container) {
    			//finish
    		}

    		@Override
    		public void startUpdate(View container) {
    			//start
    		}

    		@Override
    		public int getItemPosition(Object object) {
    			//getItemPosition
    			return super.getItemPosition(object);
    		}


    		@Override
    		public void restoreState(Parcelable state, ClassLoader loader) {
    			super.restoreState(state, loader);
    			//restore
    		}

    		@Override
    		public Parcelable saveState() {
    			return super.saveState();
    			//save
    		}
        }

        class GuidePageChangeListener implements OnPageChangeListener{

    		@Override
    		public void onPageScrollStateChanged(int arg0) {

    		}

    		@Override
    		public void onPageScrolled(int arg0, float arg1, int arg2) {

    		}

    		@Override
    		public void onPageSelected(int position) {
    			for (int i = 0; i < _imageViews.length; i++) {
    					_imageViews[position].setBackgroundResource(R.drawable.a2a);
    					if(position!=i)
    						_imageViews[i].setBackgroundResource(R.drawable.a1a);

    			}
    		}

        }
    }



    最后是TWOActivity:这个Activity是显示的内容。


    package cn.djy.activity;

    import android.app.Activity;
    import android.os.Bundle;

    public class TwoActivity extends Activity{


    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.end);
    	}

    }




    主要代码完成。

    里面涉及的drawable图片是小圆点图片。


    下面贴出XML的。

    start.xml



    <?xml version="1.0" encoding="utf-8"?>
    <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:orientation="vertical"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        >
     	 <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" android:id="@+id/linear_viewpager">

     	 	<android.support.v4.view.ViewPager 	android:id="@+id/guidePages" android:layout_width="fill_parent"  android:layout_height="wrap_content"/>

     	 </LinearLayout>



     	 <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" android:id="@+id/linear_circle">

     	 	 <RelativeLayout android:layout_width="fill_parent" android:layout_height="wrap_content" >
     	 	 		<LinearLayout android:id="@+id/icon_circle"
     	 	 					  android:layout_width="fill_parent"
     	 	 					  android:layout_height="wrap_content"
     	 	 					  android:layout_marginBottom="40dip"
     	 	 					  android:layout_alignParentBottom="true"
     	 	 					  android:gravity="center_vertical"
     	 	 					  android:orientation="horizontal"/>
     	 	 </RelativeLayout>

     	 </LinearLayout>




    </FrameLayout>


    其实是用Group把子项包起来作为显示:


    那子项为:


    viewpager_page1.xml

    <LinearLayout
      xmlns:android="http://schemas.android.com/apk/res/android"
      android:layout_width="match_parent"
      android:layout_height="match_parent"  android:orientation="vertical">
       <TextView android:layout_width="fill_parent" android:layout_height="fill_parent" android:gravity="center" android:text="adfasfasfweqwwfqw'"
       />
     </LinearLayout>



    viewpager_page2.xml

    <?xml version="1.0" encoding="utf-8"?>
    <LinearLayout
      xmlns:android="http://schemas.android.com/apk/res/android"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:orientation="vertical"
      android:gravity="center">

      <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="pages222222222222222222"></TextView>

      <Button android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="asdfi14234124" android:id="@+id/bt_close"></Button>
    </LinearLayout>



    总的代码完成。

    希望大家互相学习 互相共享。
