3.1paddlepaddle数字识别，多层感知机（MLP）、卷积神经网络（CNN）

识别黑白图片中的数字

使用MNIST数据集

• X是输入：MNIST图片是28×28 的二维图像，为了进行计算，我们将其转化为784维向量，即$X=left ( x_0, x_1, dots, x_{783} ight )$

• Y是输出：分类器的输出是10类数字（0-9），即$Y=(y_0,y_1,…,y_9)$，每一维$y_i$代表图片分类为第i类数字的概率

• 如某张图片上的数字为2，则它的标签为(0,0,1,0,…,0)

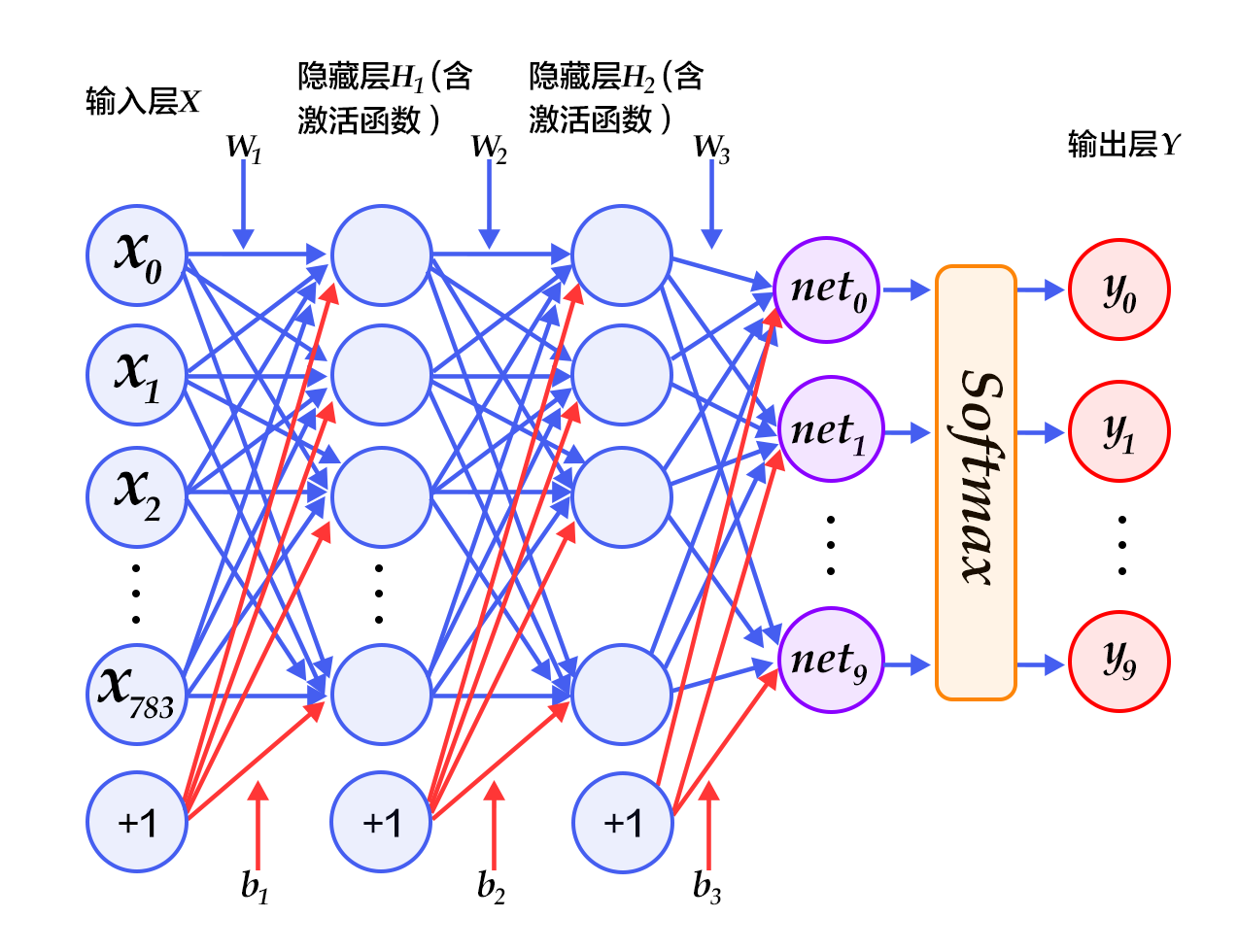

多层感知机（MLP）

交叉熵代价损失函数（cross entropy loss），公式如下：
$L_{cross-entropy}(label,y)=-sum_ilabel_i log(y_i)$

• 经过第一个隐藏层，可以得到 H1=ϕ(W1X+b1)，其中ϕ代表激活函数，常见的有sigmoid、tanh或ReLU等函数。
• 经过第二个隐藏层，可以得到 H2=ϕ(W2H1+b2)
• 最后，再经过输出层，得到的Y=softmax(W3H2+b3)，即为最后的分类结果向量。


---

paddle官方介绍：https://www.paddlepaddle.org.cn/documentation/docs/zh/beginners_guide/basics/recognize_digits/README.cn.html

paddle.fluid.DataFeeder：https://www.paddlepaddle.org.cn/documentation/docs/zh/api_cn/fluid_cn/DataFeeder_cn.html#datafeeder

---

import numpy as np
import paddle as paddle
import paddle.dataset.mnist as mnist
import paddle.fluid as fluid
from PIL import Image
import matplotlib.pyplot as plt


def multilayer_perceptron(ipt):
    hidden1 = paddle.fluid.layers.fc(input=ipt, size=100, act='relu')
    hidden2 = paddle.fluid.layers.fc(input=hidden1, size=100, act='relu')
    # 输出10个类别的概率
    out = paddle.fluid.layers.fc(input=hidden2, size=10, act='softmax')
    return out


def define_data():
    # 输入单张数据的大小，也可以把1变成-1，意味着任意大小，通常框架中第一个维度是批量数据batch size的大小
    image = fluid.layers.data(name='image', shape=[1, 28, 28], dtype='float32')
    label = fluid.layers.data(name='label', shape=[1], dtype='int64')
    return image, label


def cost(outy, label):
    cost = fluid.layers.cross_entropy(input=outy, label=label)
    avg_cost = fluid.layers.mean(cost)
    acc = fluid.layers.accuracy(input=outy, label=label)
    return avg_cost, acc


def optimizer(cost):
    # 定义优化方法
    fluid.optimizer.Adam(learning_rate=0.001).minimize(cost)


def execut():
    place = fluid.CPUPlace()
    exe = fluid.Executor(place)
    return place, exe


def train(test_program,feeder, train_reader, test_reader, avg_cost, acc, exe):
    # 开始训练和测试
    for pass_id in range(10):
        # 进行训练
        for batch_id, data in enumerate(train_reader()):
            train_cost, train_acc = exe.run(program=fluid.default_main_program(),
                                            feed=feeder.feed(data),
                                            fetch_list=[avg_cost, acc])
            # 每100个batch打印一次信息
            if batch_id % 1000 == 0:
                print('Pass:%d, Batch:%d, Cost:%0.5f, Accuracy:%0.5f' %
                      (pass_id, batch_id, train_cost[0], train_acc[0]))

        # 进行测试
        test_accs = []
        test_costs = []
        for batch_id, data in enumerate(test_reader()):
            test_cost, test_acc = exe.run(program=test_program,
                                          feed=feeder.feed(data),
                                          fetch_list=[avg_cost, acc])
            test_accs.append(test_acc[0])
            test_costs.append(test_cost[0])
        # 求测试结果的平均值
        test_cost = (sum(test_costs) / len(test_costs))
        test_acc = (sum(test_accs) / len(test_accs))
#         print('Test:%d, Cost:%0.5f, Accuracy:%0.5f' % (pass_id, test_cost, test_acc))


def load_image(file):
    im = Image.open(file).convert('L')
    im = im.resize((28, 28), Image.ANTIALIAS)
    im = np.array(im).reshape(1, 1, 28, 28).astype(np.float32)
    im = im / 255.0 * 2.0 - 1.0
    return im


def test(test_program, model, exe):
    img = Image.open('9.png')
    plt.imshow(img)
    plt.show()
    img = load_image('9.png')
    # 设置一个假的label值传进去
    results = exe.run(program=test_program,
                      feed={'image': img, "label": np.array([[0]]).astype("int64")},
                      fetch_list=[model])
    print(results)
    lab = np.argsort(results)
    print("该图片的预测结果的label为: %d" % lab[0][0][-1])


if __name__ == '__main__':
	image, label = define_data()
	model = multilayer_perceptron(image)
	avg_cost, acc = cost(model, label)
	# 在模型定义输出后，优化之前，拷贝好测试程序
	test_program = fluid.default_main_program().clone(for_test=True)

	optimizer(avg_cost)
	place, exe = execut()
	exe.run(fluid.default_startup_program())
	# 训练数据
	train_reader = paddle.batch(mnist.train(), batch_size=128)
	test_reader = paddle.batch(mnist.test(), batch_size=128)
	feeder = fluid.DataFeeder(place=place, feed_list=[image, label])

	train(test_program,feeder, train_reader, test_reader, avg_cost, acc, exe)

	test(test_program, model, exe)
	# 效果一般，图像还是用卷积的好

卷积神经网络（CNN）

import numpy as np
import paddle as paddle
import paddle.fluid as fluid
from PIL import Image


def convolutional_neural_network(img):
    # 使用20个5*5的滤波器，池化大小为2，池化步长为2，激活函数为Relu
    conv_pool_1 = fluid.nets.simple_img_conv_pool(
        input=img,
        filter_size=5,
        num_filters=20,
        pool_size=2,
        pool_stride=2,
        act="relu")
    conv_pool_1 = fluid.layers.batch_norm(conv_pool_1)
    # 第二个卷积-池化层
    # 使用50个5*5的滤波器，池化大小为2，池化步长为2，激活函数为Relu
    conv_pool_2 = fluid.nets.simple_img_conv_pool(
        input=conv_pool_1,
        filter_size=5,
        num_filters=50,
        pool_size=2,
        pool_stride=2,
        act="relu")
    # 以softmax为激活函数的全连接输出层，输出层的大小必须为数字的个数10
    prediction = fluid.layers.fc(input=conv_pool_2, size=10, act='softmax')
    return prediction

def train(feeder, train_reader, test_reader, avg_cost, acc, test_prog=None, train_prog=None, exe=None):
    # 开始训练和测试
    for pass_id in range(2):
        total_loss = 0.00
        total_acc = 0.00
        # 进行训练
        for batch_id, data in enumerate(train_reader()):
            train_cost, train_acc = exe.run(program=train_prog,
                                            feed=feeder.feed(data),
                                            fetch_list=[avg_cost, acc])
            total_loss += np.mean(train_cost)
            total_acc += np.mean(train_acc)
            # 每100个batch打印一次信息
            if batch_id % 100 == 0:
                print('Pass:%d, Batch:%d,Loss:%.3f, acc :%.3f' %
                      (pass_id, batch_id, total_loss / 100.00, total_acc / 100.00))
                total_loss = 0.00
                total_acc = 0.00

        # save model
        if pass_id % 100 == 0:
            save(params_dirname='卷积', feeded_var_names=['image'], target_vars=[predict], executor=exe)

        # 进行测试
        test_accs = 0.0
        test_costs = 0.0
        test_num = 0
        for batch_id, data in enumerate(test_reader()):
            test_cost, test_acc = exe.run(program=test_prog,
                                          feed=feeder.feed(data),
                                          fetch_list=[avg_cost, acc])
            test_accs += np.mean(test_acc)
            test_costs += np.mean(test_cost)
            test_num += 1
        # 求测试结果的平均值
        test_cost = test_costs / test_num
        test_acc = test_accs / test_num
        print('Test:%d, Cost:%0.5f, Accuracy:%0.5f' % (pass_id, test_cost, test_acc))


def load_image(file):
    im = Image.open(file).convert('L')
    im = im.resize((28, 28), Image.ANTIALIAS)
    im = np.array(im).reshape(1, 1, 28, 28).astype(np.float32)
    im = im / 255.0 * 2.0 - 1.0
    return im


def save(params_dirname, feeded_var_names, target_vars, executor):
    fluid.io.save_inference_model(dirname=params_dirname, feeded_var_names=feeded_var_names,
                                  target_vars=target_vars, executor=executor)
    print("Saved checkpoint: %s" % (params_dirname))


def test(model, compiled_test_prog, exe):
    img = Image.open('image/9.png')
    # plt.imshow(img)
    # plt.show()
    # 设置一个假的label值传进去
    results = exe.run(program=compiled_test_prog,
                      feed={'image': img},
                      fetch_list=[model])
    lab = np.argsort(results)
    print("该图片的预测结果的label为: %d" % lab[0][0][-1])


if __name__ == '__main__':
    img = fluid.data(name='image', shape=[None, 1, 28, 28], dtype='float32')
    label = fluid.data(name='label', shape=[None, 1], dtype='int64')

    if_cuda = True
    place = fluid.CUDAPlace(0) if if_cuda else fluid.CPUPlace()
    exe = fluid.Executor(place)
    # model
    predict = convolutional_neural_network(image)
    acc = fluid.layers.accuracy(input=predict, label=label)

    # cost
    cost = fluid.layers.cross_entropy(input=predict, label=label)
    avg_cost = fluid.layers.mean(cost)
    # 测试程序，在优化器还没搭上之前，但是模型已经有输出之后，创建
    test_program = fluid.default_main_program().clone(for_test=True)
    # optimizer
    fluid.optimizer.Adam(learning_rate=0.001).minimize(avg_cost)
    # init args
    exe.run(fluid.default_startup_program())

    # strategy
    exec_strategy = fluid.ExecutionStrategy()
    # # 线程数等于设备数
    exec_strategy.num_threads = fluid.core.get_cuda_device_count()
    print('----exec_strategy.num_threads :%d-----' % (exec_strategy.num_threads))
    exec_strategy.num_iteration_per_drop_scope = 10
    build_strategy = fluid.BuildStrategy()

    compiled_train_prog = fluid.compiler.CompiledProgram(fluid.default_main_program()).with_data_parallel(loss_name=avg_cost.name, build_strategy=build_strategy, exec_strategy=exec_strategy)

    compiled_test_prog = fluid.compiler.CompiledProgram(test_program).with_data_parallel(share_vars_from=compiled_train_prog)

    BATCH_SIZE = 64
    train_reader = paddle.batch(paddle.reader.shuffle(paddle.dataset.mnist.train(), buf_size=500),batch_size=BATCH_SIZE)

    test_reader = paddle.batch(paddle.dataset.mnist.test(), batch_size=BATCH_SIZE)

    feeder = fluid.DataFeeder(place=place, feed_list=[image, label])

    train(feeder, train_reader, test_reader, avg_cost, acc, test_prog=compiled_test_prog,train_prog=compiled_train_prog, exe=exe)
